Bently Nevada 330103-00-06-10-12-00 Maintenance-Proven Spare

Overview

Bently Nevada 330103-00-06-10-12-00 Maintenance-Proven Spare for Factory Uptime

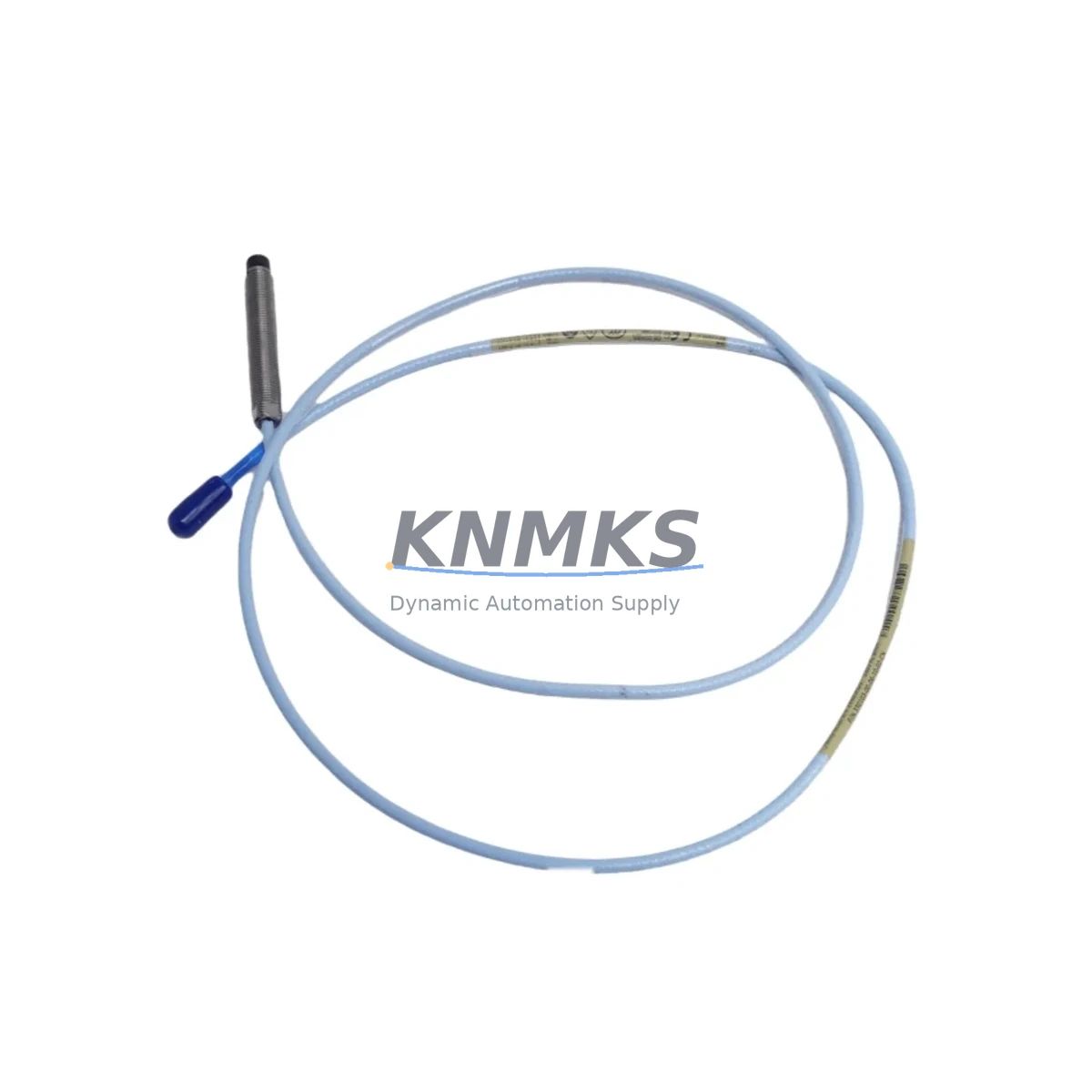

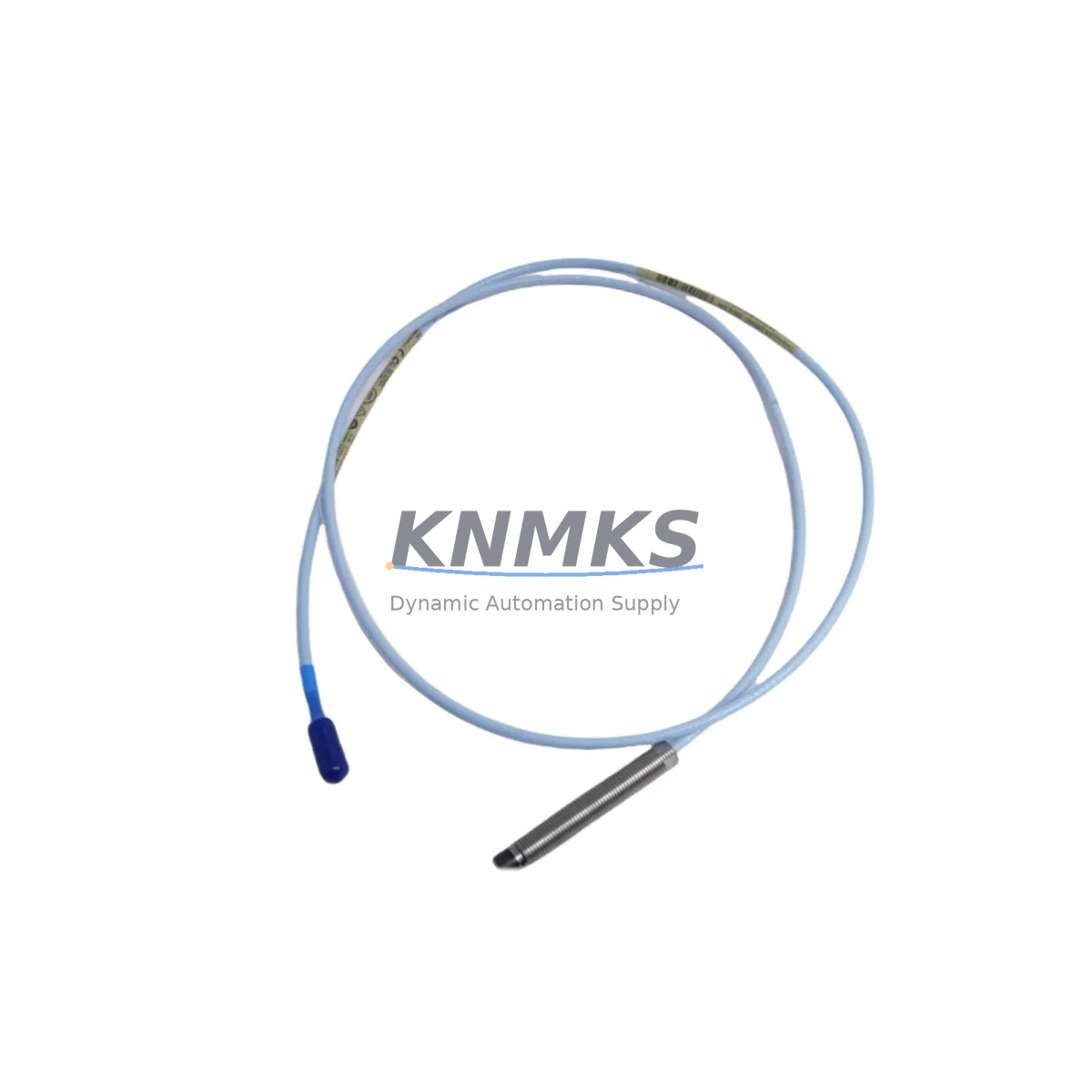

The Bently Nevada 330103-00-06-10-12-00 is an 8 mm eddy current proximity probe belonging to the 3300 XL series — one of the most widely deployed non-contact vibration and position measurement platforms in rotating machinery protection systems worldwide. Designed for continuous shaft vibration monitoring, axial position measurement, and differential expansion sensing, this probe is a critical front-line component in turbines, compressors, pumps, and gearboxes operating under API 670-compliant machinery protection frameworks.

At KNMKS, every 330103-00-06-10-12-00 unit is sourced as an original Bently Nevada spare, individually inspected, and shipped with a support terms confirmed by quotation. Our inventory is maintained across regional stock warehouses to support emergency replacement, scheduled turnaround maintenance, and long-term blanket-stock programs for critical plant assets.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330103-00-06-10-12-00 proximity probe is flagged during routine vibration trending or fails a gap voltage check during a planned outage, the replacement scope rarely ends at the probe alone. A disciplined maintenance engineer will treat this event as a trigger for a broader loop integrity audit across the entire measurement chain.

Begin with the 330130 series extension cable that connects the probe to the Proximitor. Extension cables are subject to mechanical fatigue at conduit entry points and connector corrosion in humid or chemically aggressive environments. A probe replacement paired with a degraded extension cable will produce erratic gap voltage readings and false vibration alarms within weeks. Inspect the full cable run and replace the extension cable as a matched set whenever probe tip damage or connector contamination is found.

The 3300 XL 8 mm Proximitor sensor (typically a 330180 series unit) is the active driver that powers the probe and converts the eddy current signal to a DC voltage proportional to gap distance. Proximitor modules are sensitive to supply voltage ripple and ground loop interference. During any probe swap, verify the Proximitor’s –24 VDC supply rail using the rack’s power supply module — commonly a 3500/15 or equivalent power supply card — and confirm output voltage is within the ±0.5 V tolerance band specified in the system manual.

Within the 3500 series monitoring rack, the 3500/40M proximitor I/O module or the 3500/42M velocity and acceleration monitor card interfaces the Proximitor signal to the rack backplane. Inspect the I/O module’s terminal block for loose wiring, oxidized contacts, and correct channel assignment. A loose terminal on the OK relay output can mask a genuine probe fault and prevent the machinery protection system from tripping the machine under dangerous vibration conditions.

For plants running TDXnet or System 1 condition monitoring software, confirm that the channel configuration database reflects the new probe’s calibrated sensitivity (7.87 V/mm) and gap setpoint. Misconfigured sensitivity factors are a common source of false full-scale or zero readings after a probe replacement, particularly when a technician substitutes a probe from a different sub-series without updating the software channel parameters.

Finally, review the barrier or Zener barrier (if installed for hazardous area compliance) and the associated fuse protection on the –24 VDC supply line. A blown fuse or a degraded barrier with elevated loop resistance will reduce the probe’s effective linear range and shift the gap voltage baseline, producing measurement errors that are difficult to distinguish from mechanical shaft changes without a systematic loop resistance check.

Stocking the 330103-00-06-10-12-00 alongside its matched extension cable, a spare Proximitor module, and at least one set of I/O terminal blocks as a pre-kitted maintenance assembly is the most effective strategy for reducing mean time to repair (MTTR) on critical rotating machinery assets.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. De-energize the –24 VDC supply to the affected Proximitor channel at the rack power supply. Do not simply disconnect the probe cable while the Proximitor is powered; this will generate a false OK dropout alarm and may trigger an unnecessary machine trip if the rack is in trip-enabled mode.

Step 2 — Gap voltage baseline record: Before disconnecting the old probe, record the existing gap voltage from the rack display or System 1 trend. This value confirms the installed gap and provides a reference for the new probe’s installation gap setting.

Step 3 — Probe removal: Unscrew the probe from the mounting bracket using the correct spanner. Note the number of turns from the bracket face — this is the starting reference for the new probe’s gap adjustment. Inspect the probe tip for impact damage, shaft contact marks, or contamination that may indicate a bearing or seal failure requiring separate attention.

Step 4 — New probe installation: Thread the 330103-00-06-10-12-00 replacement into the bracket. Set the initial gap to the manufacturer’s recommended linear midpoint (approximately 1.0–1.27 mm for 8 mm probes). Re-energize the Proximitor and measure gap voltage. Adjust probe depth until the gap voltage matches the system’s configured setpoint (typically –10 VDC ±0.5 V for a 1.0 mm gap on a 7.87 V/mm system). Lock the probe with the jam nut to the torque value specified in the Bently Nevada installation manual.

Step 5 — Loop verification: Perform a full-loop check: confirm OK relay status, verify vibration channel reads near zero (or shaft runout value) with the machine at rest, and check that the System 1 or rack display shows a valid, stable gap voltage. Document the as-left gap voltage in the maintenance record.

Step 6 — Return to service: Re-enable the trip function, remove LOTO, and monitor the first 30 minutes of machine run-up for any vibration trend anomalies. A correctly installed 330103-00-06-10-12-00 will restore full API 670 measurement integrity with no configuration changes required beyond the gap setpoint confirmation.

This workflow is compatible with direct replacement of legacy 330103-00-06-05-02-00 and 330103-00-06-10-02-00 variants where cable length and connector type are confirmed to match the existing installation.

Spare Parts Support FAQ

Q1: Is the 330103-00-06-10-12-00 a direct drop-in replacement for other 330103 sub-variants?
The 330103 series uses a suffix code that encodes probe diameter, cable length, connector type, and temperature rating. The 330103-00-06-10-12-00 specifies an 8 mm probe with a 1.0 m integral cable and a standard temperature rating. It is a direct mechanical and electrical replacement for other 330103 variants sharing the same probe diameter and connector type, provided the cable length is compatible with the existing extension cable run. Always verify the full suffix before substitution. KNMKS can assist with cross-reference confirmation prior to order.

Q2: How does KNMKS verify the probe before shipment?
Every 330103-00-06-10-12-00 unit undergoes a pre-shipment functional test that includes gap voltage linearity verification across the full 0.25–2.54 mm measurement range, OK output relay check, and cable continuity and insulation resistance measurement. Test records are available upon request. Units that do not meet Bently Nevada’s published specification are quarantined and not shipped. This process supports our support terms confirmed by quotation commitment from the date of delivery.

Q3: What is the recommended inventory strategy for this probe in a critical rotating machinery program?
For plants operating two or more machines equipped with 3300 XL or 3500 series monitoring systems, we recommend maintaining a minimum of two 330103-00-06-10-12-00 probes per machine train in on-site critical spares inventory, supplemented by a blanket-stock agreement with KNMKS for annual replenishment. This strategy eliminates lead-time risk for a component that is subject to periodic allocation constraints as the 3300 XL platform matures. Blanket stock programs include fixed pricing, priority allocation, and staged delivery to match your planned maintenance schedule.

Q4: Can KNMKS support long-term supply for discontinued or allocation-constrained Bently Nevada parts?
Yes. KNMKS maintains regional warehouse stock of 3300 XL and 3500 series spare parts, including proximity probes, extension cables, Proximitor modules, and I/O cards. For parts flagged as discontinued or subject to manufacturer allocation, we offer long-term supply agreements with guaranteed stock reservation, typically covering 12–36 month forward demand. Contact our technical sales team to discuss your asset list and establish a supply continuity plan.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-06-10-12-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-06-10-12-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
