Bently Nevada 330103-00-06-10-02-05 Maintenance-Proven Spare Part

Overview

Bently Nevada 330103-00-06-10-02-05 Maintenance-Proven Spare Part for Factory Uptime

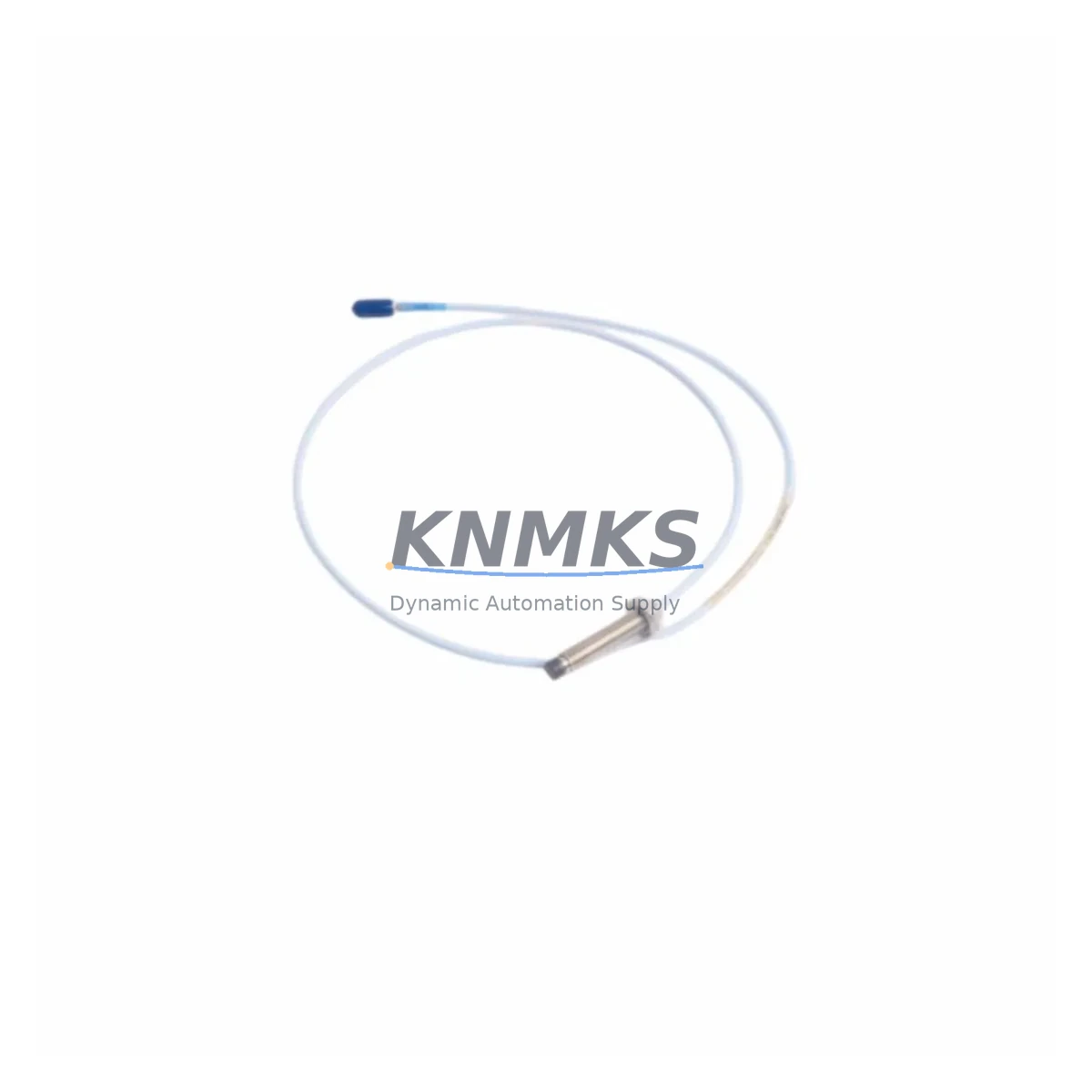

The Bently Nevada 330103-00-06-10-02-05 is an eddy-current proximity sensor engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed condition-monitoring platforms in rotating machinery environments worldwide. Whether you are managing a planned annual overhaul, responding to an unplanned trip event, or building a strategic spare parts inventory for a turbine hall or compressor train, this sensor is a critical line-replaceable unit that directly determines the reliability of your shaft vibration and position measurement chain.

Maintenance engineers and reliability teams operating gas turbines, steam turbines, centrifugal compressors, pumps, and large motors depend on the 3300 XL proximity system to deliver continuous, real-time radial vibration, axial position, and differential expansion data. When the 330103-00-06-10-02-05 probe degrades — due to cable fatigue, connector corrosion, tip damage, or calibration drift — the entire measurement loop is compromised. Replacing it promptly with a verified original spare is the fastest path to restoring system integrity and avoiding a forced outage extension.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330103-00-06-10-02-05 probe is flagged for replacement during a control cabinet inspection or a machinery health review, experienced maintenance engineers know that the probe itself is rarely the only component that needs attention. The 3300 XL measurement chain is a system — and each element must be verified to restore full measurement confidence.

Begin with the 330180 Series Proximitor driver module, which conditions the probe signal and outputs the gap voltage to the monitoring rack. A probe replacement without verifying the Proximitor’s output linearity and power supply rail (–24 VDC) is an incomplete repair. Check the Proximitor’s LED status indicators and confirm the gap voltage falls within the –10 VDC ±1 VDC nominal operating window at the installed air gap.

Next, inspect the extension cable assembly — typically a 3300 XL Series armored coaxial cable matched to the probe. Cable shield continuity, connector seating, and jacket integrity at conduit entry points are common failure modes in high-vibration environments. A damaged extension cable will produce noise, dropout, or false high-vibration alarms even with a new probe installed.

At the rack level, verify the 3500 Series or 3300 Series monitoring rack I/O modules that receive the Proximitor output. Confirm channel configuration, alarm setpoints, and OK relay status. If the rack has been in service for more than five years, inspect the 3500/20 rack power supply module for capacitor aging and output voltage stability — a marginal power supply is a common root cause of intermittent proximity system faults.

For plants running API 670-compliant protection systems, also verify the voting logic relay modules and any signal isolators or barriers in the loop, particularly in hazardous-area installations where Zener barriers or galvanic isolators are used between the Proximitor and the monitoring rack. These components age independently and can introduce offset errors that are misattributed to probe drift.

Finally, if the machinery uses keyphasor probes (such as the 330980 or 330130 series) for phase reference, confirm that the keyphasor gap and signal are within specification during the same maintenance window. Keyphasor signal quality directly affects the accuracy of 1X and 2X vibration vector analysis used for balancing and alignment diagnostics.

Building a site spare parts kit around the 330103-00-06-10-02-05 should include at minimum: one matched Proximitor driver, one spare extension cable of the correct length, and one set of connector adapters. For critical machinery trains, a complete hot-swap probe-and-driver assembly pre-gapped on a bench fixture reduces mean time to repair (MTTR) from hours to minutes.

Site Replacement Workflow

Step 1 — Isolation and documentation: Before removing the 330103-00-06-10-02-05, record the existing gap voltage, vibration amplitude, and alarm status from the monitoring rack. Photograph the probe installation orientation, bracket position, and cable routing. This baseline is essential for post-installation verification.

Step 2 — De-energize and disconnect: Remove power from the Proximitor driver at the rack or junction box. Disconnect the extension cable from the Proximitor. Do not pull the cable by the conductor — use the connector body. Inspect the connector pins for corrosion or mechanical damage before proceeding.

Step 3 — Probe removal: Using the correct probe wrench, back out the 330103-00-06-10-02-05 from the probe holder. Note the number of turns and the final installed gap (typically 50 mil / 1.27 mm for standard steel shafts). Clean the probe holder threads and inspect for fretting or corrosion.

Step 4 — New probe installation: Thread the replacement 330103-00-06-10-02-05 into the holder. Set the air gap using a non-metallic feeler gauge or a calibrated gap-setting tool. Reconnect the extension cable and restore power to the Proximitor. Allow 30 seconds for the system to stabilize.

Step 5 — Verification: Confirm gap voltage at the Proximitor output terminal is within the –10 VDC ±1 VDC window. Verify the monitoring rack shows an OK status and that vibration readings are consistent with pre-outage baseline values. Document the as-left gap voltage and sign off the maintenance record.

This workflow is compatible with both planned outage replacement and emergency in-service swap procedures. The 330103-00-06-10-02-05 is a direct form-fit-function replacement for legacy 330103 series probes of the same dimensional configuration, supporting life extension of older 3300 XL installations without rack reconfiguration.

Spare Parts Support FAQ

Q1: Is the 330103-00-06-10-02-05 compatible with both 3300 and 3500 Series Bently Nevada monitoring racks?
Yes. The 330103-00-06-10-02-05 probe, when paired with the correct 3300 XL Proximitor driver, is compatible with both the 3300 Series and 3500 Series monitoring racks. The Proximitor output is a standard –24 VDC-powered analog voltage signal that interfaces with any rack configured for eddy-current proximity inputs. Always verify channel configuration and scale factor settings in the rack software before returning the loop to service.

Q2: How do you verify a replacement probe before installation to avoid repeat failures?
Each 330103-00-06-10-02-05 unit shipped from our inventory is bench-tested for gap voltage linearity, scale factor accuracy, and connector integrity prior to dispatch. On-site, use a Bently Nevada TK-3 or equivalent calibration kit to verify the probe-and-Proximitor system response across the full linear range (–2 VDC to –18 VDC) before installation. This eliminates the risk of installing a marginal unit and experiencing a repeat trip event.

Q3: What is the recommended spare parts holding strategy for the 330103-00-06-10-02-05 in a critical machinery application?
For API 670-protected machinery (gas turbines, compressors, large pumps), the industry standard is to hold a minimum of one complete probe-and-Proximitor assembly per critical measurement point, plus one additional unit per machinery train as a fast-response spare. For plants with multiple identical trains, a shared pool of three to five assemblies is typically sufficient. Probes stored in original packaging in a climate-controlled environment maintain calibration integrity for five or more years.

Q4: What support terms and long-term supply support is available for the 330103-00-06-10-02-05?
All units are supplied with a support terms confirmed by quotation covering manufacturing defects and calibration conformance. We maintain long-term inventory of 3300 XL Series components to support plants operating legacy Bently Nevada systems beyond OEM active production. For procurement engineers managing multi-year maintenance contracts, we offer reserved stock agreements and priority dispatch to minimize lead time risk. Contact admin@knmks.com or +86 18359268345 to discuss volume pricing and supply continuity arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-06-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-06-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
