Bently Nevada 330103-00-06-10-02-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330103-00-06-10-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

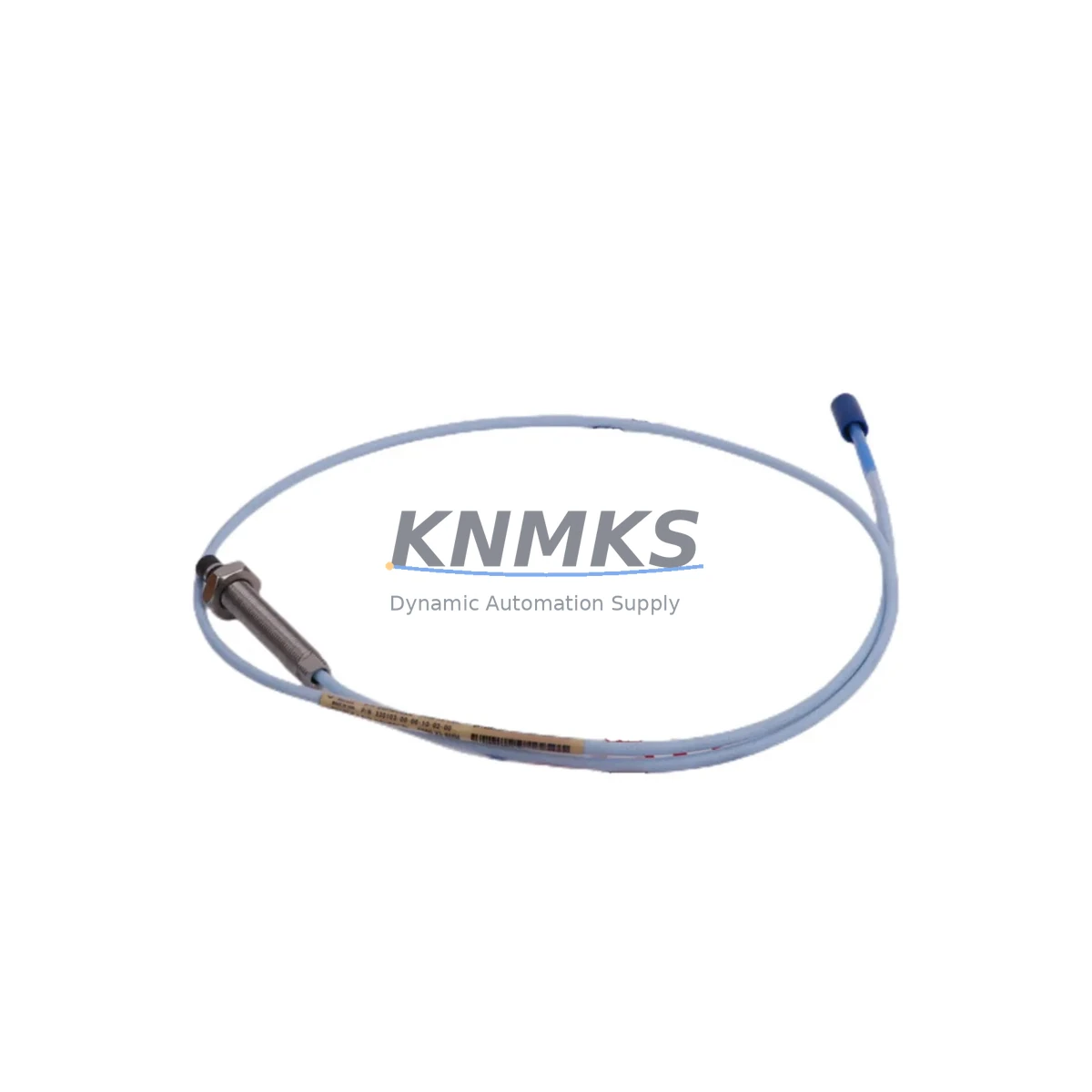

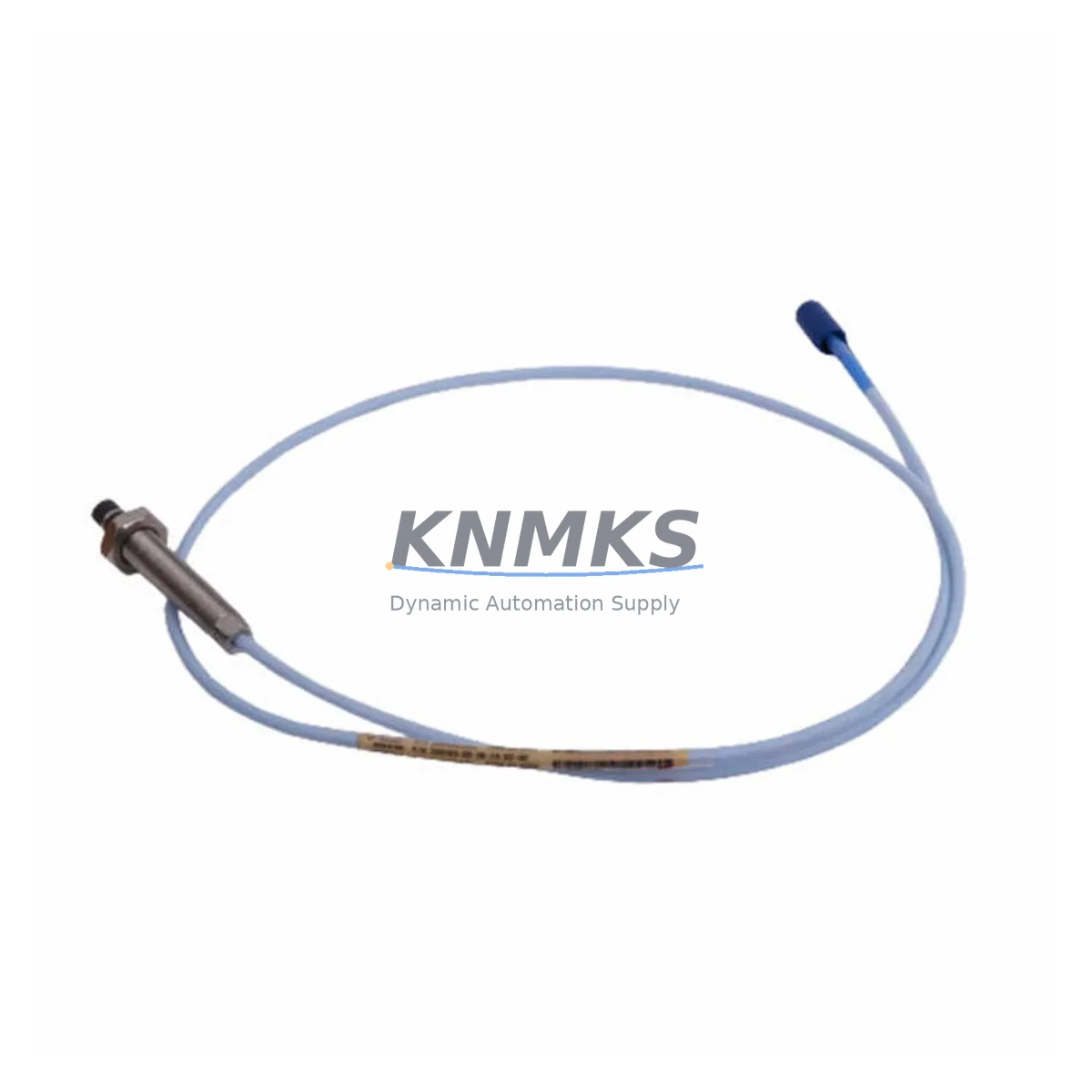

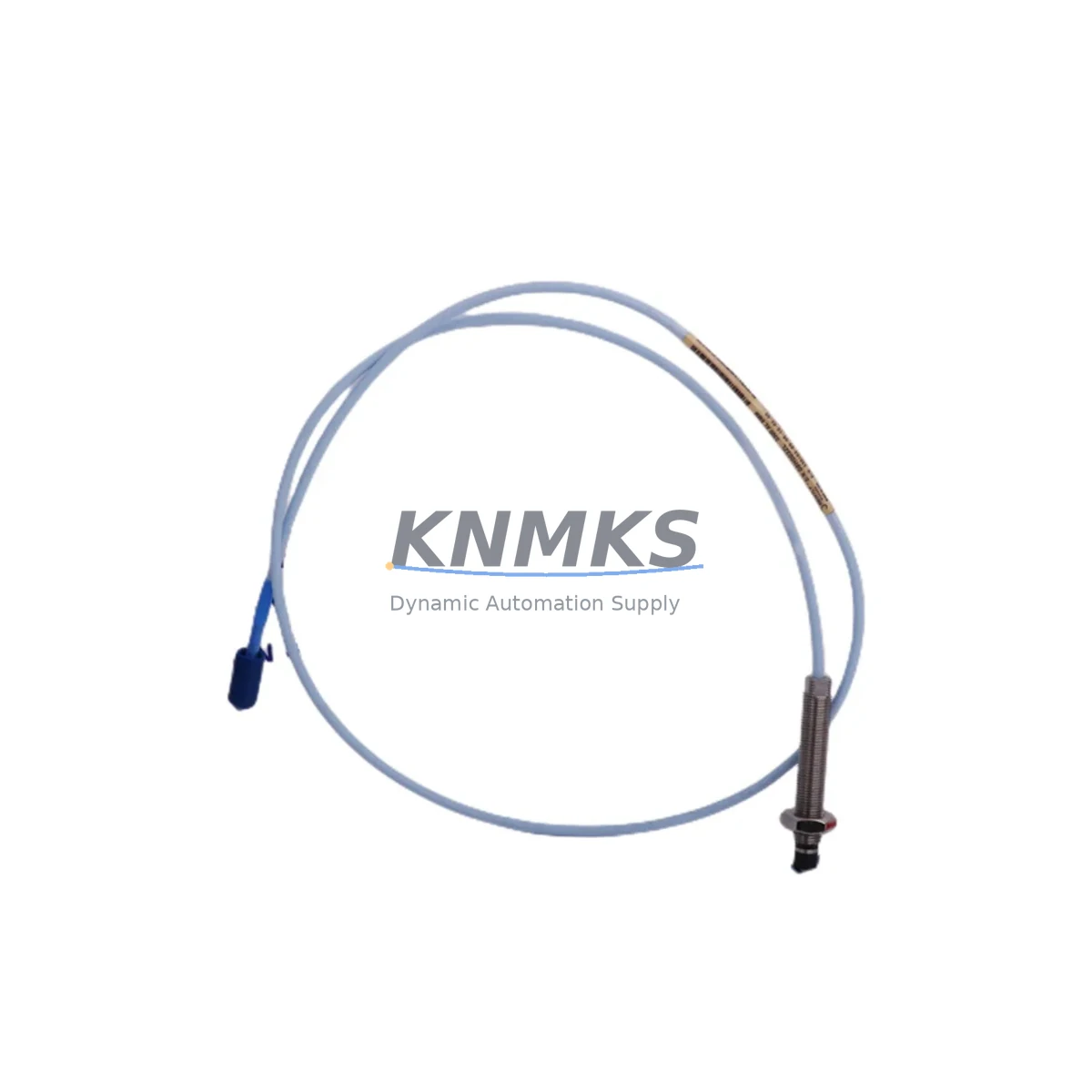

The Bently Nevada 330103-00-06-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy turbomachinery protection systems age and OEM support windows close, this probe remains a critical drop-in replacement for facilities managing deferred upgrades, partial retrofits, or long-cycle maintenance programs. Whether you are restoring a failed channel on an existing 3300 XL rack or executing a phased migration from an older 3300/05 or 3300/16 monitor architecture, the 330103-00-06-10-02-00 provides verified electrical and mechanical compatibility without requiring firmware changes or signal recalibration on the monitor side.

In retrofit and upgrade projects, the probe is typically paired with a Bently Nevada 330130-040-00-00 extension cable and a 3300 XL 8mm Proximitor® Sensor (such as the 330180-X1-05 or 330180-X1-10 series) to form a complete proximity transducer system. Facilities replacing worn or damaged probes on compressors, steam turbines, pumps, and gearboxes should confirm the existing Proximitor® model and cable length before ordering, as the 330103 series is available in multiple tip configurations and cable lengths. The -06-10-02-00 suffix designates a 6-inch (150 mm) probe with a 10-foot (3 m) integral cable, 2-meter extension, and standard connector — a configuration widely used in horizontal shaft applications where radial vibration and axial position are monitored simultaneously.

For plants operating Bently Nevada 3500 Series racks alongside legacy 3300 XL infrastructure, the 330103-00-06-10-02-00 remains compatible with 3300 XL Proximitor® sensors and does not require replacement of the full transducer chain when only the probe tip is damaged. This is a significant advantage in minimizing downtime during unplanned outages. Engineers should verify the 3300 XL Proximitor® gap voltage (typically –10.0 VDC ±0.5 V at the nominal air gap of 1.0 mm for 8mm probes) after installation to confirm the replacement probe is operating within the linear range of the system.

When integrating this probe into a control cabinet upgrade that also involves replacing a Bently Nevada 3300/16 Dual Voting Logic monitor or migrating to a 3500/42M Proximitor®/Seismic Monitor, the wiring termination at the I/O terminal block must be verified against the new monitor’s input impedance and bias voltage specifications. Incorrect termination can introduce measurement offset errors that are difficult to diagnose during commissioning without a calibrated gap simulator. Facilities should retain the original wiring diagram and confirm shield grounding practices match the new monitor’s requirements — single-point grounding at the monitor end is standard for 3300 XL and 3500 Series installations.

In systems where the Bently Nevada 1900/65A General Purpose Equipment Monitor or a third-party DCS is used to process vibration signals, the 330103-00-06-10-02-00 probe output (–24 VDC supply, 200 mV/mil sensitivity) must be confirmed compatible with the downstream signal conditioning module. Some older DCS analog input cards require a signal isolator or barrier to protect against ground loops, particularly in hazardous area installations where intrinsic safety barriers such as the MTL 787S+ or P+F KFD2-STC4-Ex1 are in the signal path. Confirming barrier compatibility before probe replacement prevents costly rework during the commissioning phase.

All units supplied by KNMKS are sourced from verified distribution channels, functionally tested prior to shipment, and covered by a support terms confirmed by quotation against manufacturing defects. Stock availability is maintained to support both emergency replacement and planned maintenance schedules. Lead times and quantity pricing are available upon request at admin@knmks.com.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 330103-00-06-10-02-00 begins with a systematic audit of the existing transducer chain. In most legacy installations, the probe, extension cable, and Proximitor® sensor were installed as a matched set and calibrated together. When replacing only the probe, the extension cable — typically a Bently Nevada 330130 Series armored cable — should be inspected for jacket damage, connector corrosion, and continuity before reuse. A damaged extension cable will introduce resistance errors that shift the gap voltage reading and can trigger false alarms or missed trips on the 3300 XL Dual Voting Logic or 3500/42M monitor.

For facilities migrating from a Bently Nevada 3300/05 Proximitor® Monitor to a modern 3500/42M, the rack backplane wiring must be re-terminated to match the 3500 Series I/O module pinout. The 3500 rack uses a different terminal block layout than the 3300 rack, and the 3500/20 Rack Interface Module (RIM) must be configured for the correct channel type before the probe signal is connected. Failure to configure the RIM correctly will result in the channel reporting an invalid transducer fault, even if the probe and cable are functioning correctly.

In control cabinet upgrades where the 3500/92 Communication Gateway is added to provide Modbus TCP or PROFIBUS DP connectivity to a plant DCS or SCADA system, the probe channel data (vibration amplitude, gap position, speed) must be mapped to the correct register addresses in the gateway configuration. This mapping should be validated against the HMI faceplate displays to confirm that the engineering units and alarm setpoints shown on the operator screen match the monitor’s internal configuration. Discrepancies between the HMI display and the monitor’s actual trip setpoints are a common source of commissioning delays.

Where signal isolators or intrinsic safety barriers are present in the signal path, the probe replacement should be treated as a full loop calibration event. The barrier’s input and output characteristics affect the effective sensitivity of the transducer system, and any change in probe model or cable length requires re-verification of the loop calibration. KNMKS recommends retaining a calibration record for each channel as part of the retrofit documentation package.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement or monitor migration requires a structured pre-outage preparation process. Before the maintenance window opens, the replacement 330103-00-06-10-02-00 probe should be bench-tested with a calibrated gap simulator to confirm output sensitivity and bias voltage are within specification. This eliminates the risk of installing a defective unit and discovering the fault only after the machine is returned to service.

During the outage, the original probe should be removed carefully to avoid damaging the mounting boss threads, which are often corroded in steam turbine and compressor environments. The replacement probe should be installed to the correct gap setting using a non-ferrous feeler gauge, and the gap voltage should be confirmed at the Proximitor® output before the monitor channel is re-enabled. If the monitor is a 3300 XL unit with a latching OK relay, the relay must be manually reset after the gap is confirmed within the linear range.

For migrations involving a full rack replacement — for example, retiring a 3300/16 rack and installing a 3500 Series rack in the same cabinet space — the installation footprint must be confirmed in advance. The 3500 rack occupies a standard 19-inch rack mount space but requires additional depth for the I/O module connectors and communication gateway cabling. Pre-staging the new rack with all modules installed and firmware loaded before the outage begins is the most effective way to compress the migration window and protect the original control program logic from being lost during the transition.

KNMKS maintains ready stock of the 330103-00-06-10-02-00 and related 3300 XL and 3500 Series components to support both emergency and planned maintenance requirements. All units are shipped with a functional test report and are covered by a support terms confirmed by quotation from the shipment date.

Retrofit Support FAQ

Q1: Is the 330103-00-06-10-02-00 a direct drop-in replacement for the original Bently Nevada probe in a 3300 XL system?
Yes. The 330103-00-06-10-02-00 is a factory-specification 8mm proximity probe for the 3300 XL platform. It is electrically and mechanically compatible with existing 3300 XL Proximitor® sensors and extension cables. No reconfiguration of the monitor is required when replacing a probe of the same part number. Gap voltage should be verified after installation as a standard commissioning step.

Q2: Can this probe be used with a Bently Nevada 3500 Series monitor?
Yes, with the appropriate 3500 XL 8mm Proximitor® sensor. The 330103-00-06-10-02-00 probe is compatible with the 3500 Series transducer chain when paired with a 3500-compatible Proximitor® sensor. The 3500/42M monitor must be configured for the correct transducer type and sensitivity. Firmware version compatibility should be confirmed with the monitor’s configuration software before installation.

Q3: What is included with each unit, and what support terms coverage applies?
Each 330103-00-06-10-02-00 unit supplied by KNMKS is functionally tested prior to shipment and includes a test report confirming output sensitivity and bias voltage. All units are covered by a support terms confirmed by quotation from the shipment date against manufacturing defects. Replacement or credit is provided for units that fail within the confirmed support period under normal operating conditions. Contact admin@knmks.com for support requests or technical support.

Q4: How quickly can KNMKS ship the 330103-00-06-10-02-00 for an emergency replacement?
KNMKS maintains stock of the 330103-00-06-10-02-00 for immediate dispatch. Emergency orders placed before the daily cutoff time are typically shipped the same business day. Contact admin@knmks.com or call +86 18359268345 to confirm current stock availability and lead time for your location.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-06-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-06-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
