Bently Nevada 330103-00-06-05-02-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330103-00-06-05-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

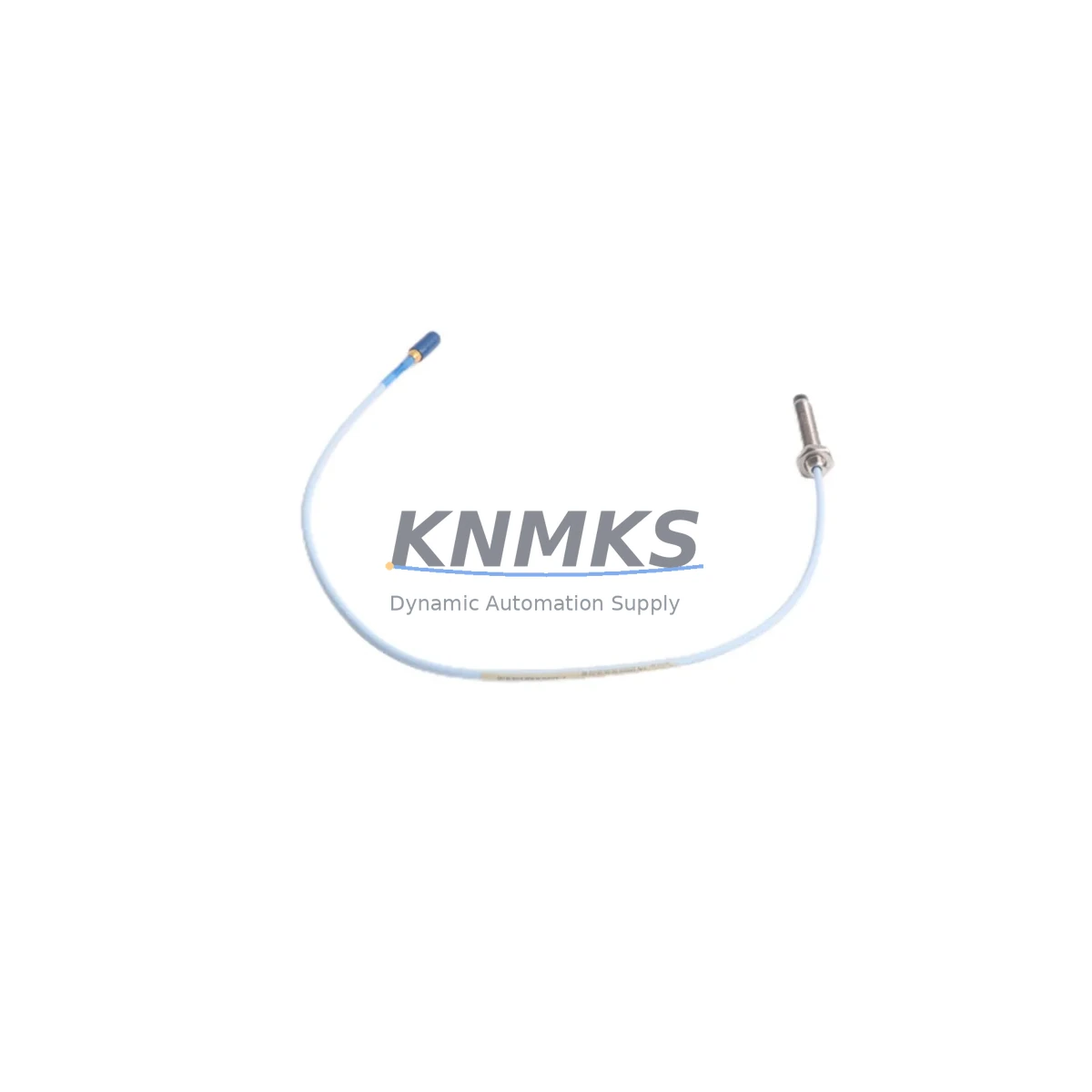

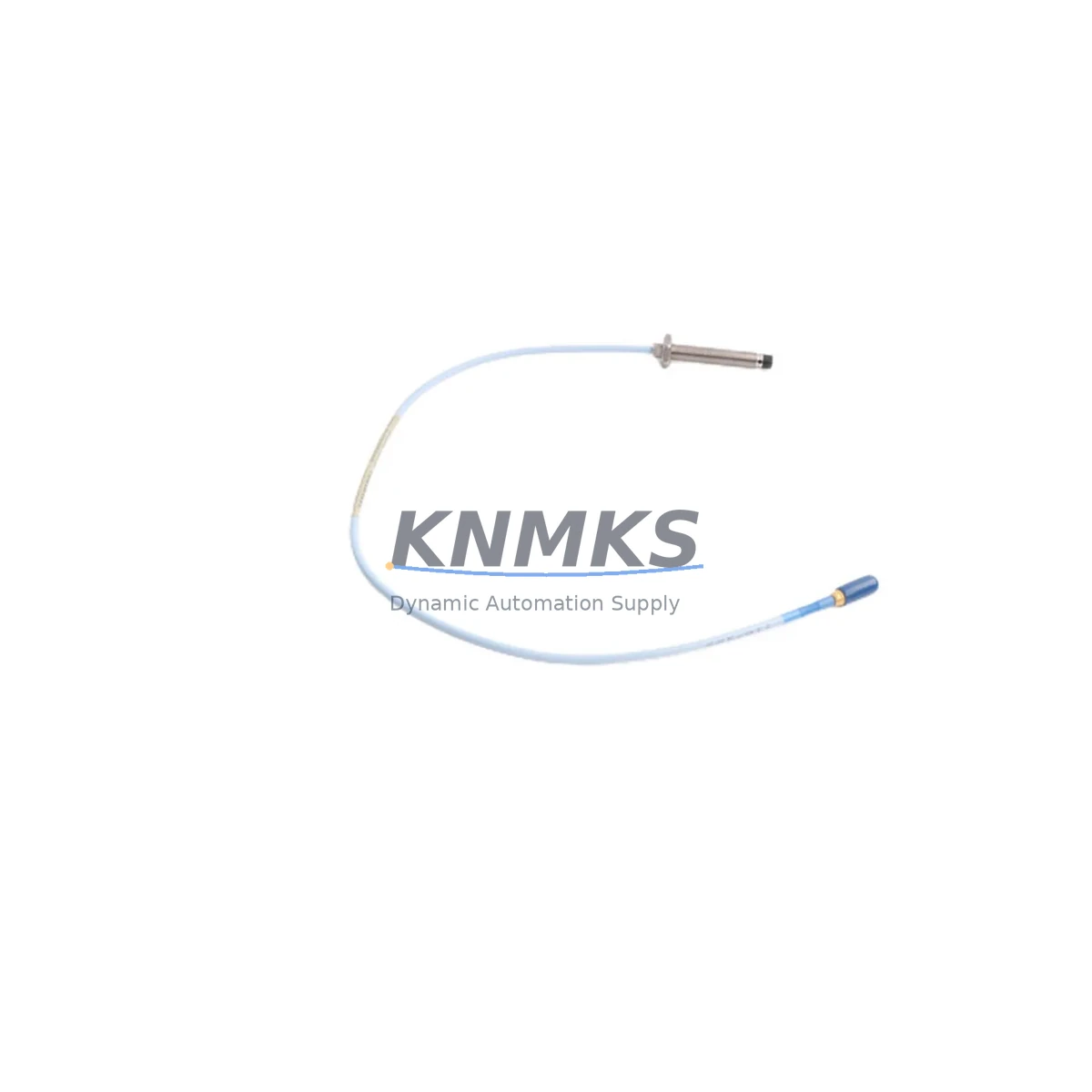

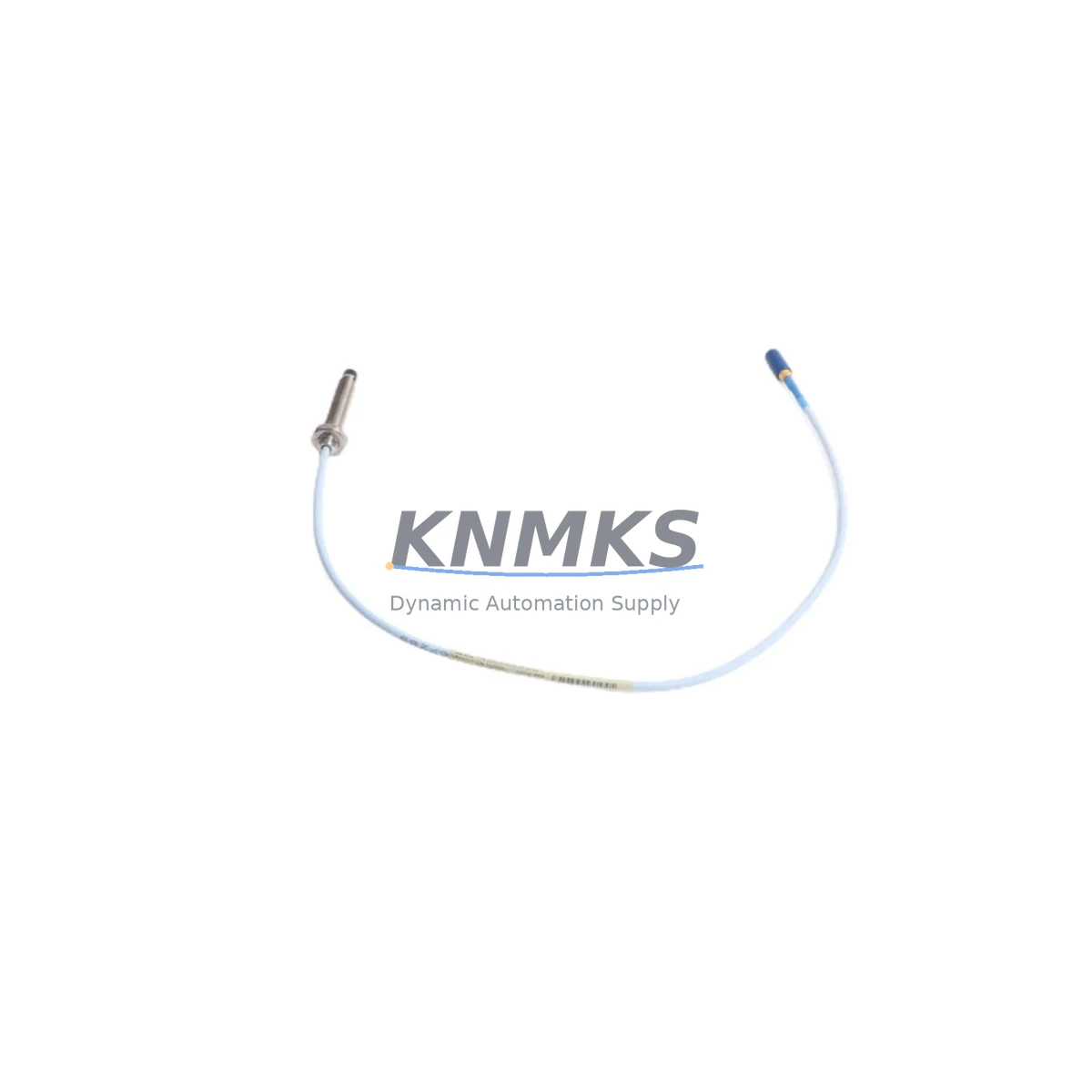

The Bently Nevada 330103-00-06-05-02-00 is an 8mm proximity probe engineered for direct integration into the 3300 XL Series continuous machinery monitoring platform. As legacy vibration monitoring systems approach end-of-life and OEM support windows close, this probe serves as a verified drop-in replacement for aging field sensors across rotating machinery applications including turbines, compressors, pumps, and gearboxes. Whether you are executing a planned control system modernization or responding to an unplanned sensor failure, the 330103-00-06-05-02-00 is stocked and ready for immediate dispatch with full compatibility documentation.

Facilities migrating from earlier Bently Nevada 3300 Series architectures will find this probe fully compatible with the 3300 XL Proximitor® sensor ecosystem. The probe operates on the standard Bently Nevada eddy-current sensing principle, delivering a linear output voltage proportional to the gap between the probe tip and the observed shaft surface. Signal conditioning is handled downstream by the companion 330180 series Proximitor® sensor module, which interfaces directly with the 3500 Series rack-based monitoring system — the most common upgrade destination for sites retiring older 3300 standalone monitors.

During retrofit planning, engineers must confirm several critical parameters before committing to a replacement order. Cable length selection — in this case the 06 designation indicating a 6-foot (approximately 1.8m) integral cable — must match the physical distance from the probe mounting boss to the junction box or field barrier. The 05 extension cable length code and the 02 driver designation must align with the installed Proximitor® sensor model to maintain calibrated sensitivity of 200 mV/mil (7.87 V/mm). Mismatched driver-probe combinations will produce calibration errors that cannot be corrected through software offset alone and will require field recalibration using a Bently Nevada calibration fixture or the portable 330910 calibration tool.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330103-00-06-05-02-00 into an operating plant requires a structured pre-outage engineering review. Begin by auditing the existing wiring from the probe junction box back to the monitoring rack. If the site is running a legacy 3300 Non-Contacting Vibration Monitor, the signal path will terminate at a standalone monitor rather than a 3500 Series rack slot. In this scenario, the probe replacement must be coordinated with the installation of a 3500/42M Proximitor®/Seismic Monitor module, which occupies a standard 3500 rack slot and accepts the 330180 Proximitor® sensor output directly.

For sites already operating on the 3500 platform, the replacement workflow is more straightforward. Confirm the rack slot assignment for the affected channel, verify that the 3500/42M or 3500/40M monitor module firmware is current, and document the existing gap voltage at the probe tip before removal — typically between -10 VDC and -18 VDC for a properly gapped 8mm probe. After installing the 330103-00-06-05-02-00, re-gap the probe to achieve the same baseline gap voltage, then verify the OK/Not OK relay status in the 3500 rack configuration software before returning the machine to service.

In multi-shaft train applications — such as a gas turbine driving a centrifugal compressor through a gearbox — it is common to replace probes across multiple measurement planes simultaneously. A single outage window may require the replacement of both X and Y radial probes at each bearing location, along with the associated 330130 series extension cables and the 330180 Proximitor® sensors. If the site is also upgrading the operator interface, the 3500 rack communicates via Modbus TCP or OPC-DA to the plant DCS or historian, and the HMI tag mapping must be verified against the new channel assignments before the system is returned to automatic protection mode.

Power supply integrity is another critical checkpoint. The 3500 rack power supply module — typically a 3500/15 or 3500/15E — must have sufficient headroom to support any additional I/O modules added during the upgrade. Each Proximitor® channel draws approximately 25 mA from the rack supply, and adding multiple new probe channels without verifying total rack current draw can cause intermittent supply dropouts that are difficult to diagnose under load. Always perform a rack power budget calculation before finalizing the bill of materials for a multi-probe retrofit.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires pre-staging all replacement components — including the 330103-00-06-05-02-00 probe, the matching 330130 extension cable, and the 330180 Proximitor® sensor — at the work site before the maintenance window opens. Each component should be bench-tested using a 330910 portable calibration kit to confirm output linearity before installation, eliminating the risk of discovering a defective replacement part after the machine has been taken offline.

The original program logic in the 3500 rack does not require modification when replacing a like-for-like probe within the same SKU family. Alert and danger setpoints, time delays, and voting logic remain valid provided the replacement probe is gapped to the same baseline gap voltage as the removed unit. This is a significant advantage over migrations that involve changing probe diameter or sensitivity range, which would require a full setpoint review and potentially a management-of-change authorization before restart.

For sites where continuous operation is mandatory, consider a temporary bypass strategy: configure the affected channel to a bypassed state in the 3500 rack software, complete the probe swap, re-gap, and verify the OK status before removing the bypass. This approach maintains protection on all other channels throughout the replacement and limits the window of reduced protection to the minimum time required for physical installation and gap verification. Document the bypass start and end times in the site maintenance management system to satisfy audit requirements.

All units supplied by KNMKS are subject to pre-shipment functional testing. Each 330103-00-06-05-02-00 probe is verified for output sensitivity, insulation resistance, and connector integrity before dispatch. A support terms confirmed by quotation cover manufacturing defects from the date of shipment, providing assurance for both planned retrofit projects and emergency replacement scenarios.

Retrofit Support FAQ

Q: Is the 330103-00-06-05-02-00 a direct replacement for earlier 3300 Series proximity probes?
A: Yes, for most 3300 XL applications. The 8mm probe body, M10 x 1 mounting thread, and 200 mV/mil sensitivity are consistent across the 3300 XL family. However, confirm the extension cable code (05) and driver code (02) match your installed Proximitor® sensor model. If your site uses a non-XL 3300 monitor, a rack upgrade to the 3500 platform may be required to maintain full system diagnostics.

Q: What commissioning steps are required after installation?
A: After physical installation, measure the gap voltage at the Proximitor® output terminals with the machine stationary. Adjust the probe gap to achieve the site-specific baseline gap voltage (typically -12 VDC for mid-range gapping on an 8mm probe). Verify the OK relay energizes in the 3500 rack, confirm channel status in the rack configuration software, and perform a slow-roll vibration check before returning the machine to full speed.

Q: Can I use this probe with a 3500/42M monitor module?
A: Yes. The 330103-00-06-05-02-00 paired with a 330180 Proximitor® sensor is fully compatible with the 3500/42M Proximitor®/Seismic Monitor module. Ensure the monitor module is configured for the correct probe type and sensitivity in the Rack Configuration Software (RCS) before energizing the channel.

Q: What is the support terms and lead time?
A: KNMKS stocks the 330103-00-06-05-02-00 for immediate dispatch. All units carry a support terms confirmed by quotation from the date of shipment covering manufacturing defects. Pre-shipment testing is performed on every unit. Contact admin@knmks.com or +86 18359268345 for availability confirmation and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-06-05-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-06-05-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
