Bently Nevada 330103-00-05-20-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330103-00-05-20-02-05 Fail-Safe Proximity Probe: Fault Protection for Critical Industrial Control Reliability

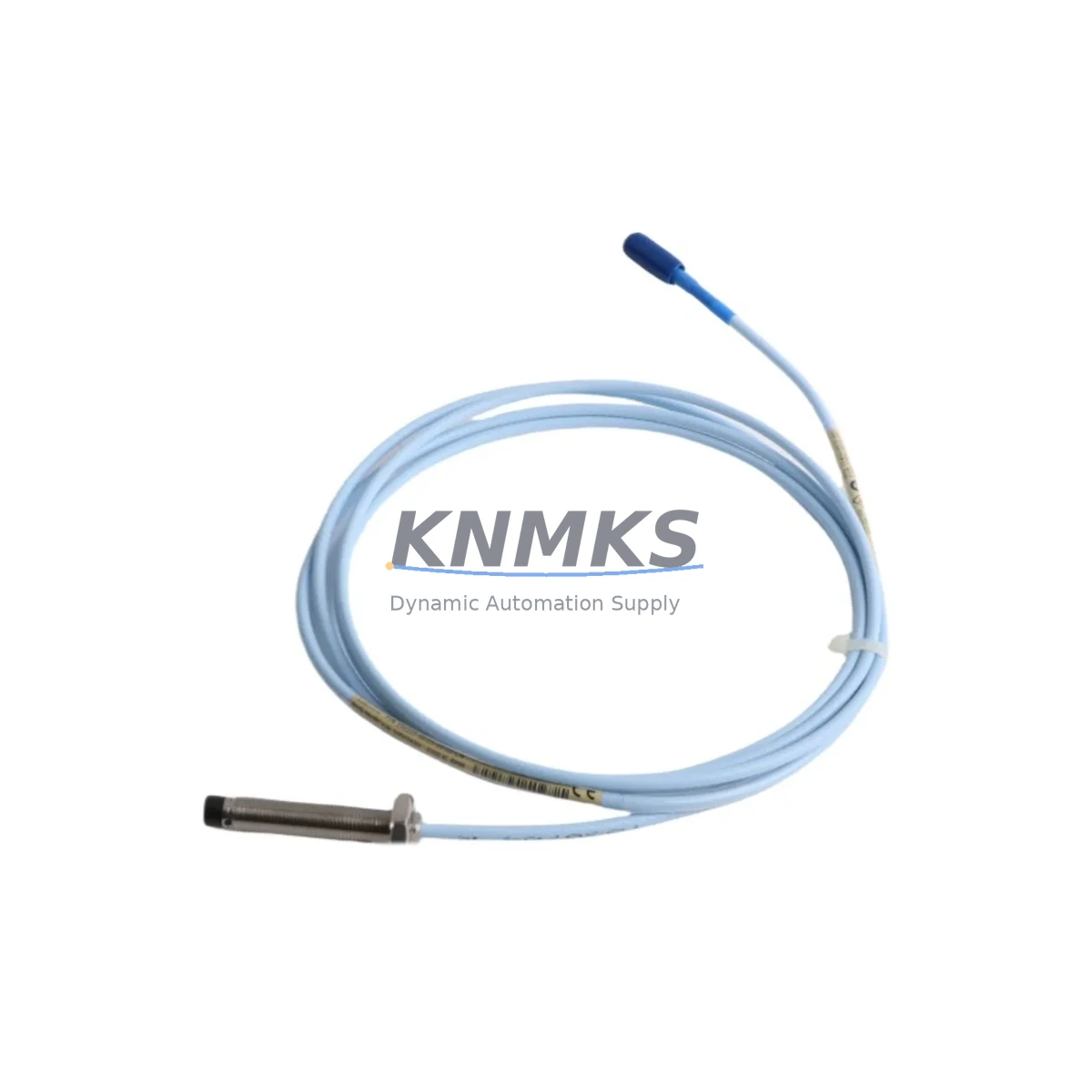

The Bently Nevada 330103-00-05-20-02-05 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate within Bently Nevada’s tightly integrated condition monitoring architecture, this probe delivers stable, drift-free output signals even under severe electromagnetic interference, mechanical vibration, high ambient temperatures, and moisture-laden atmospheres — conditions that routinely compromise lesser sensing components.

In rotating machinery protection systems — turbines, compressors, pumps, and motors — undetected shaft displacement or vibration anomalies can escalate from a minor deviation to a catastrophic failure within seconds. The 330103-00-05-20-02-05 is purpose-built to eliminate that risk. Its hardened coaxial cable construction and precision-wound sensing coil maintain signal integrity across the full operating range, ensuring that the 3300 XL Proximitor® Sensor (the signal conditioning module paired with this probe) receives a clean, accurate gap voltage at all times. This closed-loop reliability is the foundation of any credible machinery protection strategy.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable proximity sensing is only as strong as the system surrounding it. In a well-engineered machinery protection cabinet, the 330103-00-05-20-02-05 probe operates as the field-sensing front end of a layered protection architecture. The signal travels through a matched 330130-045-00-00 extension cable to the 3300 XL Proximitor® Sensor, which conditions the raw gap voltage into a clean 4–20 mA or voltage output suitable for the 3500/42M Proximitor®/Seismic Monitor — Bently Nevada’s rack-based machinery protection module responsible for alarm and trip decisions.

Within the control cabinet, power quality is a silent threat. Voltage sags, switching transients, and ground loops can introduce noise that mimics real vibration events, triggering nuisance trips or — more dangerously — masking genuine fault conditions. Pairing the proximity probe system with a dedicated 3500/15 Power Supply Module ensures that the Proximitor® sensor receives clean, regulated DC power, eliminating supply-induced signal artifacts. For installations in high-EMI environments such as variable frequency drive (VFD) rooms or switchgear bays, additional shielding of the extension cable run and proper grounding of the 3500 Rack chassis are essential steps that protect signal fidelity from the probe tip all the way to the monitor output.

Where the machinery protection system interfaces with a DCS or safety PLC — such as a Honeywell Safety Manager or Triconex TRICON safety controller — the 3500/42M monitor’s relay outputs and analog outputs must be wired with appropriate surge protection and galvanic isolation to prevent ground potential differences from corrupting the trip signal. This end-to-end signal chain integrity is what separates a genuinely fail-safe protection system from one that merely appears compliant on paper.

Critical Industrial Safety Applications

The 330103-00-05-20-02-05 is deployed across a broad spectrum of critical industrial sectors where unplanned machinery downtime carries severe safety and financial consequences.

In petrochemical and refinery facilities, this probe monitors shaft radial vibration and axial position on process-critical compressors and pumps handling flammable or toxic media. A missed vibration alarm in these environments can result in seal failure, process release, and potential ignition — making the fail-safe performance of the 3300 XL probe non-negotiable.

In power generation plants — both thermal and combined-cycle — steam turbine shaft monitoring relies on proximity probes to detect rotor instability, oil whirl, and rub events before they escalate to bearing failure or blade damage. The probe’s wide frequency response (DC to 10,000 Hz) ensures that both low-speed runout and high-frequency sub-synchronous instabilities are captured with equal fidelity.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives operate in environments saturated with dust, vibration, and electrical noise. The 330103-00-05-20-02-05’s IP67-equivalent environmental sealing and shielded coaxial construction maintain measurement accuracy where open-frame sensors would fail within weeks.

In water and wastewater treatment facilities, high-speed centrifugal pumps and blowers require continuous vibration monitoring to prevent bearing failures that would interrupt treatment processes and create regulatory compliance risks. The probe’s stable DC gap output enables precise axial position monitoring — critical for detecting impeller wear and thrust bearing degradation before catastrophic failure.

In metallurgical and steel plants, rolling mill drives and continuous caster pinch rolls operate under extreme thermal and mechanical stress. The probe’s rated operating temperature of up to 177°C makes it suitable for monitoring machinery in close proximity to hot metal processes, where conventional sensors would suffer thermal drift or premature failure.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330103-00-05-20-02-05?
The support terms confirmed by quotation cover all manufacturing defects, signal performance deviations from published specifications, and connector integrity failures under normal operating conditions. Each unit undergoes pre-shipment functional testing — including gap sensitivity verification and cable continuity checks — before dispatch. Support requests are supported with direct technical assistance and replacement unit coordination.

Q2: How is the probe tested before shipment?
Every 330103-00-05-20-02-05 unit is bench-tested against Bently Nevada’s published sensitivity specification (7.87 V/mm ± 10%) using a calibrated Proximitor® driver circuit. Cable insulation resistance, connector seating, and coil impedance are verified. A test report is available upon request for quality-critical installations.

Q3: Is this probe compatible with existing 3300 XL Proximitor® Sensors and 3500 Series monitors?
Yes. The 330103-00-05-20-02-05 is fully backward-compatible with all 3300 XL Proximitor® Sensor variants and integrates directly with the 3500/42M Proximitor®/Seismic Monitor. It is also compatible with legacy 3300 Series monitors when used with the appropriate extension cable. No firmware changes or recalibration of the monitor are required for direct replacement of a like-for-like probe.

Q4: Can long-term supply continuity be guaranteed for maintenance programs?
Yes. We maintain standing inventory of the 330103-00-05-20-02-05 to support blanket-order and scheduled maintenance programs. For facilities operating multiple machines with this probe model, we offer reserved stock arrangements to eliminate lead-time risk during planned turnarounds or emergency replacements. Contact our team to discuss multi-unit pricing and supply agreements.
