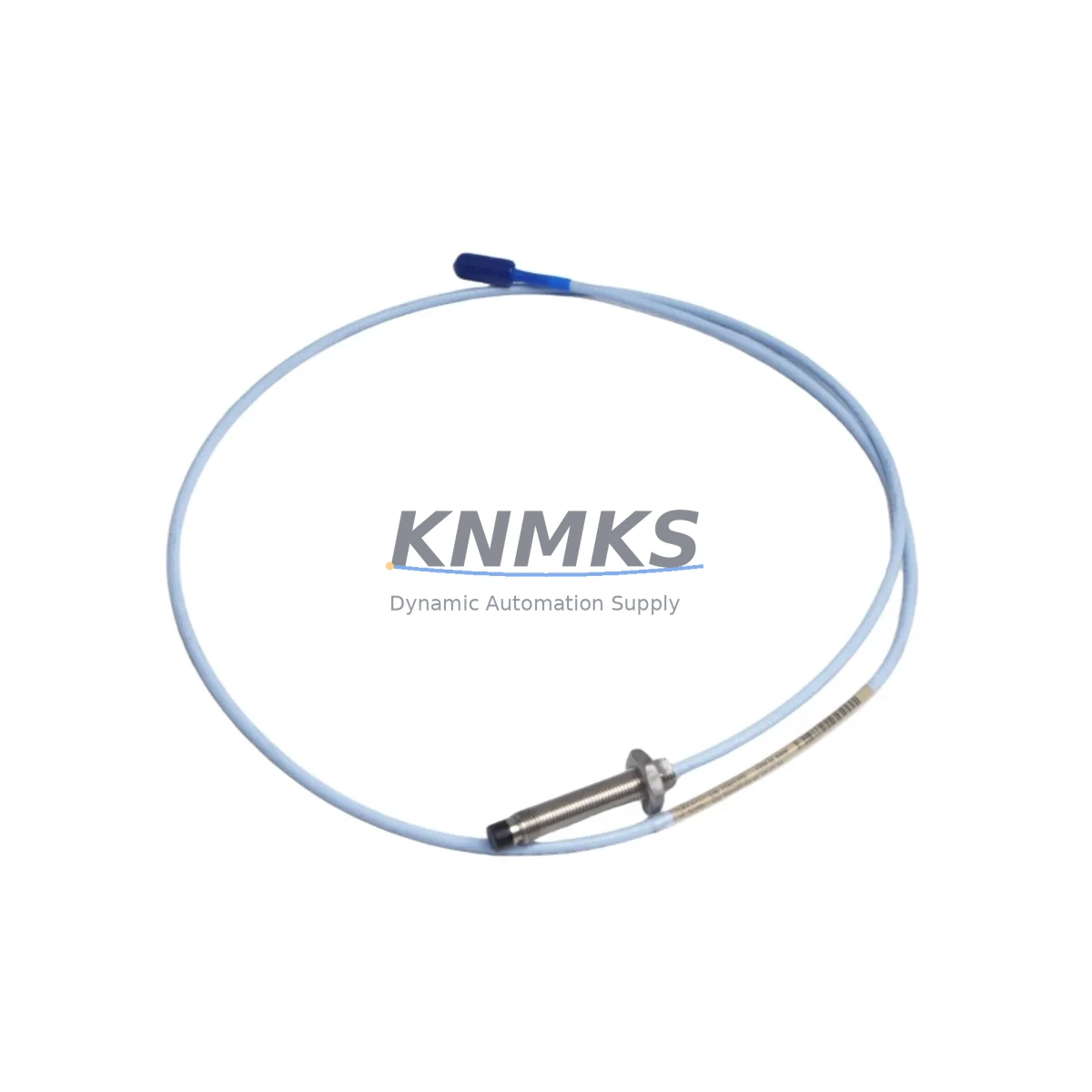

Bently Nevada 330103-00-05-10-12-00 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330103-00-05-10-12-00 is a high-precision eddy current proximity probe from the industry-proven 3300 XL 5mm Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial control environments. Designed to operate reliably in high electromagnetic interference (EMI), extreme temperature fluctuations, heavy vibration, moisture ingress, and dust-laden atmospheres, this probe delivers the signal integrity and mechanical durability that critical rotating machinery protection demands.

In continuous production facilities — petrochemical plants, power generation stations, metallurgical mills, mining operations, water treatment infrastructure, and port logistics — unplanned machinery downtime is not merely a cost event; it is a safety event. The 330103-00-05-10-12-00 is purpose-built to eliminate the root causes of control interruption: signal drift under thermal cycling, false trips from EMI-induced noise, and sensor failure from mechanical shock or corrosive exposure. Its eddy current sensing principle operates without physical contact with the target shaft, eliminating wear-induced degradation and ensuring measurement fidelity across the full service life of the probe.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 330103-00-05-10-12-00 within a machinery protection control cabinet requires a coordinated approach to signal integrity, power quality, and system-level fault tolerance. The probe operates as the field sensing element within the Bently Nevada 3300 XL Proximity Transducer System, and its performance is directly dependent on the quality of the associated driver and signal conditioning chain.

The matched Bently Nevada 3300/16 or 3300/20 Proximitor Sensor converts the probe’s raw impedance signal into a calibrated DC voltage output, providing the clean, drift-compensated signal that machinery protection monitors require. For installations where the probe-to-driver cable run exceeds the integral cable length, a 3300 XL Extension Cable (e.g., 330130-045-00-00) maintains signal fidelity across the full transmission distance without introducing impedance mismatch or noise pickup.

Within the control cabinet, power supply stability is critical. Voltage fluctuations or ripple on the ±24 VDC supply rail feeding the Proximitor can introduce measurement offset errors that mimic real shaft displacement events, triggering spurious alarms or — more dangerously — masking genuine fault conditions. Pairing the system with a Bently Nevada 3500/15 Power Supply Module or an equivalent regulated, isolated DC supply ensures the Proximitor operates within its specified input voltage window under all load conditions, including during cabinet-level transient events such as contactor switching or VFD start sequences.

For safety instrumented system (SIS) architectures, the proximity measurement loop should be routed through a Bently Nevada 3500/22M Transient Data Interface or integrated with a 3500/42M Proximitor I/O Module to enable SIL-rated voting logic, redundant channel comparison, and automated bypass management. In high-EMI environments — common in motor control centers, arc furnace bays, and variable frequency drive enclosures — installing Bently Nevada I/O Isolation Barriers between the field wiring and the rack I/O modules prevents ground loop currents and common-mode noise from corrupting the vibration signal. This layered cabinet protection strategy — probe, driver, power supply, I/O isolation, and monitoring rack — forms a complete, fail-safe machinery protection loop capable of sustaining reliable operation through the harshest electrical and mechanical disturbances.

Critical Industrial Safety Applications

The Bently Nevada 330103-00-05-10-12-00 is deployed across a broad spectrum of critical industrial safety applications where rotating machinery failure carries severe consequences for personnel safety, environmental integrity, and production continuity.

In petrochemical and refinery operations, this probe monitors shaft radial vibration on compressors, pumps, and turbines within safety instrumented systems (SIS). A bearing failure on a high-pressure compressor in a hydrocarbon processing train can result in catastrophic release events; the 330103-00-05-10-12-00 provides the early-warning vibration signal that enables the SIS to initiate a controlled shutdown before mechanical failure propagates to a safety-critical event.

In power generation facilities — both thermal and combined-cycle — the probe is installed on steam turbine and gas turbine bearing housings to monitor shaft position and vibration continuously. Turbine trip systems rely on the accuracy and fail-safe behavior of the proximity measurement: an open-circuit probe output is interpreted as a fault condition, driving the turbine to a safe state rather than allowing continued operation with a degraded sensor.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives operate under extreme vibration and dust loading. The non-contact eddy current sensing principle of the 330103-00-05-10-12-00 eliminates the wear and contamination failure modes that affect contact-type sensors, providing reliable shaft monitoring even in environments where conventional instrumentation would require frequent replacement.

In metallurgical and steel plant applications, the probe monitors rolling mill drive shafts and continuous caster pinch roll drives, where thermal cycling, scale contamination, and high-frequency vibration from roll pass impacts create a severe sensor environment. The probe’s high-temperature rating and robust cable construction sustain measurement integrity through these conditions without signal degradation.

In water and wastewater treatment infrastructure, large pump stations and blower installations rely on continuous vibration monitoring to prevent unplanned outages that would compromise public health and regulatory compliance. The 330103-00-05-10-12-00 provides the long-term, maintenance-free monitoring capability that these critical utility assets require.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330103-00-05-10-12-00?
All units are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions. Support requests are supported with direct technical assistance and replacement dispatch to minimize field downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 330103-00-05-10-12-00 undergoes full functional verification and calibration confirmation prior to dispatch. Testing includes impedance measurement, cable continuity and shielding integrity check, and output linearity verification against a calibrated target. A test report is available upon request.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL system installations?
Yes. The 330103-00-05-10-12-00 is a direct, back-to-back compatible replacement for existing 3300 XL 5mm probe installations. It is compatible with all 3300 XL Series Proximitor Sensors, extension cables, and 3500 Series monitoring rack I/O modules without requiring recalibration of the driver or modification of the monitoring system configuration.

Q4: Can long-term supply continuity be assured for critical spare parts programs?
Yes. We maintain dedicated stock of the 330103-00-05-10-12-00 and related 3300 XL Series components to support blanket-order and scheduled-release spare parts programs. For facilities operating multiple Bently Nevada-equipped machines, we recommend establishing a consignment or scheduled replenishment arrangement to eliminate lead-time risk for this safety-critical sensor.
