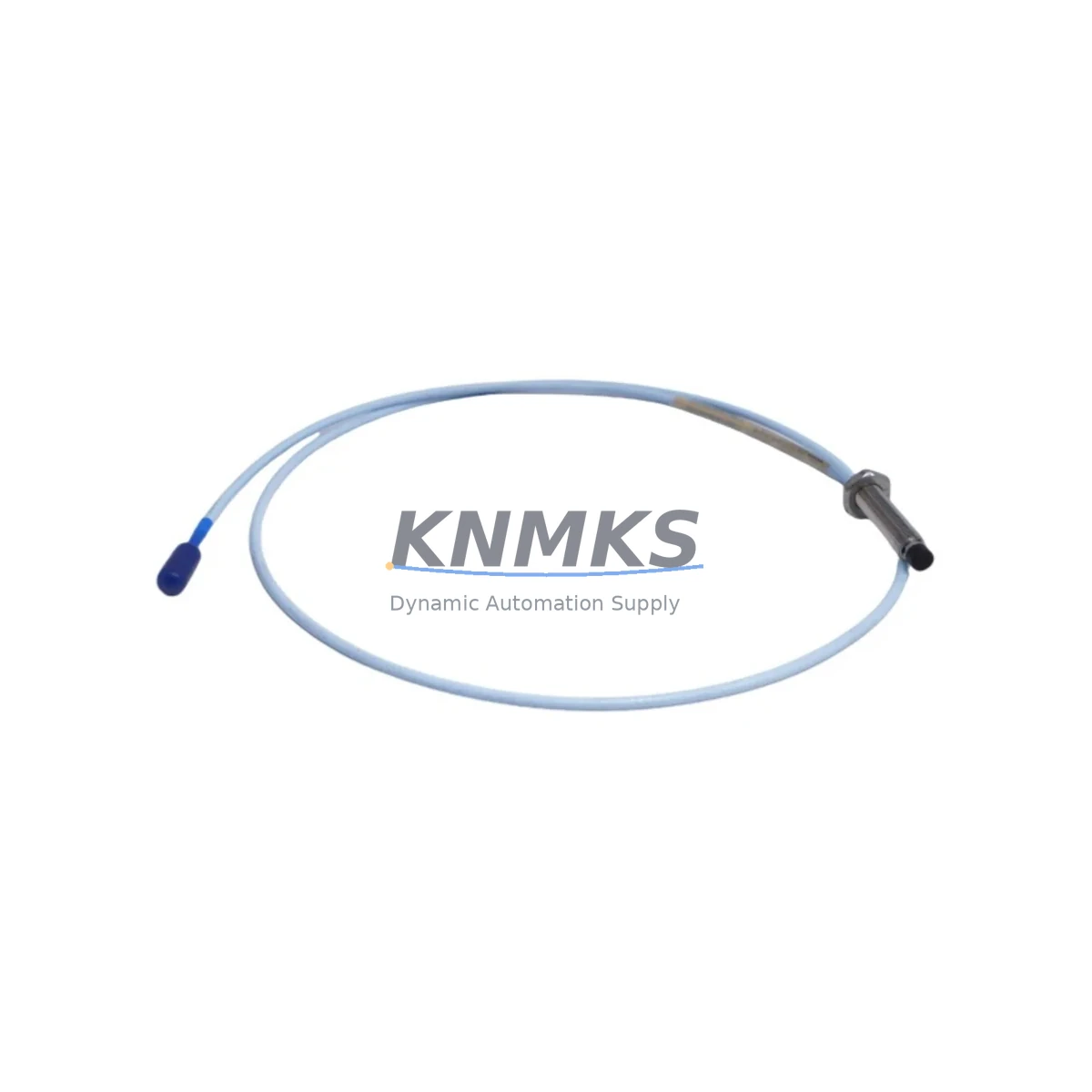

Bently Nevada 330103-00-05-10-11-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330103-00-05-10-11-00 is an 8mm eddy current proximity probe engineered for direct, migration-ready deployment in legacy 3300 XL vibration monitoring systems. As rotating machinery protection programs age and original Bently Nevada probe assemblies reach end-of-life, maintenance engineers face the dual challenge of sourcing discontinued spare parts while keeping critical turbines, compressors, and pumps online. This probe is stocked, tested, and ready to ship — eliminating the extended lead times that typically accompany legacy component procurement.

Designed as a drop-in replacement within the 3300 XL platform, the 330103-00-05-10-11-00 maintains full signal chain compatibility with the 3300 XL proximitor/seismic monitor and associated I/O modules. Engineers migrating from worn or obsolete probe assemblies can retain existing field wiring, terminal block assignments, and monitor channel configurations without reprogramming the host system. This is particularly valuable in facilities where the 3500 series migration has not yet been approved or budgeted, and where the 3300 XL rack must remain operational through the next planned outage window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 330103-00-05-10-11-00 retrofit begins well before the maintenance window opens. The first step is a full audit of the existing probe assembly: confirm the probe body condition, extension cable continuity, and the condition of the mating 330180-series proximitor. In many aging 3300 XL installations, the proximitor itself shows drift or sensitivity degradation that can mask a probe fault — replacing the probe alone without verifying the proximitor output may not resolve the alarm condition. If the proximitor is also suspect, the 330180-91-00 or equivalent 3300 XL 8mm proximitor should be staged alongside the replacement probe.

Terminal block wiring at the 3300 XL I/O rack should be documented before disconnection. The probe signal (OK, Vibration, and common) terminates at the monitor’s front-panel or rear-terminal I/O connector. Photograph or sketch the existing wiring before removal, particularly in installations where field labels have faded. The 3300 XL rack power supply — typically a 3300/20 or 3300/25 power supply module — should be verified for output voltage stability before the new probe is energized; a sagging supply rail will produce erratic gap voltage readings that mimic a faulty probe.

For facilities planning a longer-term migration toward the Bently Nevada 3500 platform, the 330103-00-05-10-11-00 provides a cost-effective bridge solution. The 3500/42M six-channel monitor accepts the same 8mm probe and proximitor combination, meaning the field-installed probe assembly can be reused when the rack is eventually upgraded — reducing the total cost of the 3500 migration. During the interim period, the 3300 XL rack’s communication output (typically a 4–20 mA or relay output routed to a DCS analog input card) remains unchanged, preserving the existing DCS historian trend and alarm logic without modification.

Where the 3300 XL system feeds a Honeywell Experion PKS or Emerson DeltaV DCS via hardwired analog I/O, the signal chain from probe to DCS input card should be end-to-end verified after probe replacement. A loop calibrator applied at the proximitor output confirms the millivolt-per-mil sensitivity before the machine is returned to service. Signal isolators installed between the proximitor and DCS analog input — common in older installations to prevent ground loops — should also be inspected, as degraded isolator modules can introduce offset errors that appear as probe calibration faults.

Downtime Control During System Migration

Minimizing unplanned downtime during a 330103-00-05-10-11-00 probe replacement requires a structured pre-outage checklist. Before the machine is taken offline, the existing probe gap voltage and vibration baseline should be recorded from the 3300 XL monitor front panel or from the DCS historian. These values serve as the acceptance benchmark after the new probe is installed and gapped.

The physical swap — removing the old probe, cleaning the probe holder threads, installing the new 330103-00-05-10-11-00, and setting the air gap — typically takes 30 to 60 minutes per probe position when the bearing housing is accessible. The critical path item is gap setting: the probe must be adjusted to the nominal gap voltage specified on the 3300 XL proximitor calibration label (usually −10.4 VDC ± 0.5 VDC at 1.0 mm gap). A digital multimeter connected to the proximitor output terminals confirms the gap before the machine is restarted.

Once the gap is confirmed, the 3300 XL monitor channel should be checked for OK status and the vibration reading compared against the pre-outage baseline. If the reading is within ±5% of the historical baseline at the same operating speed, the replacement is complete. The original program logic, alarm setpoints, and DCS faceplate configuration require no modification — the 330103-00-05-10-11-00 is a direct functional replacement that preserves all upstream control and monitoring logic intact.

For facilities with redundant probe configurations (X-Y probe pairs at each bearing), it is best practice to replace both probes in a pair during the same outage, even if only one has failed. Mismatched probe ages in an X-Y pair can produce phase angle errors in orbit plots, complicating future vibration diagnostics. Staging a second 330103-00-05-10-11-00 as a paired replacement eliminates this risk and extends the maintenance interval before the next probe-related outage.

Retrofit Support FAQ

Q1: Is the 330103-00-05-10-11-00 a direct replacement for the original Bently Nevada probe in a 3300 XL system?
Yes. The 330103-00-05-10-11-00 is a migration-ready replacement for the original 3300 XL 8mm probe assembly. It maintains the same thread specification (M10 × 1.0), sensitivity (200 mV/mil), and cable length (5m), allowing direct installation into the existing probe holder without modification to the proximitor, monitor channel, or DCS wiring.

Q2: What commissioning steps are required after installation?
After physical installation, set the probe air gap to achieve the nominal gap voltage (typically −10.4 VDC) as specified on the 3300 XL proximitor calibration label. Verify OK status on the monitor channel, confirm the vibration reading against the pre-outage baseline, and check that the DCS analog input is receiving a valid signal. No software changes, firmware updates, or monitor reconfiguration are required.

Q3: How is the probe tested before shipment?
Each 330103-00-05-10-11-00 unit undergoes bench testing with a compatible 3300 XL 8mm proximitor prior to shipment. Gap voltage linearity, sensitivity, and cable continuity are verified against Bently Nevada factory specifications. A test report is available upon request. Units are shipped in anti-static packaging with protective tip covers to prevent tip damage in transit.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the date of shipment. In the event of a confirmed failure under normal operating conditions, a full replacement unit will be dispatched. The support terms does not cover damage resulting from incorrect gap setting, installation in an incompatible proximitor system, or physical damage caused during handling. Contact [email protected] with the order reference and failure description to initiate a support terms claim.
