Bently Nevada 330103-00-05-10-01-05 Spare Part for Factory Uptime

Overview

Bently Nevada 330103-00-05-10-01-05 Spare Part for Factory Uptime

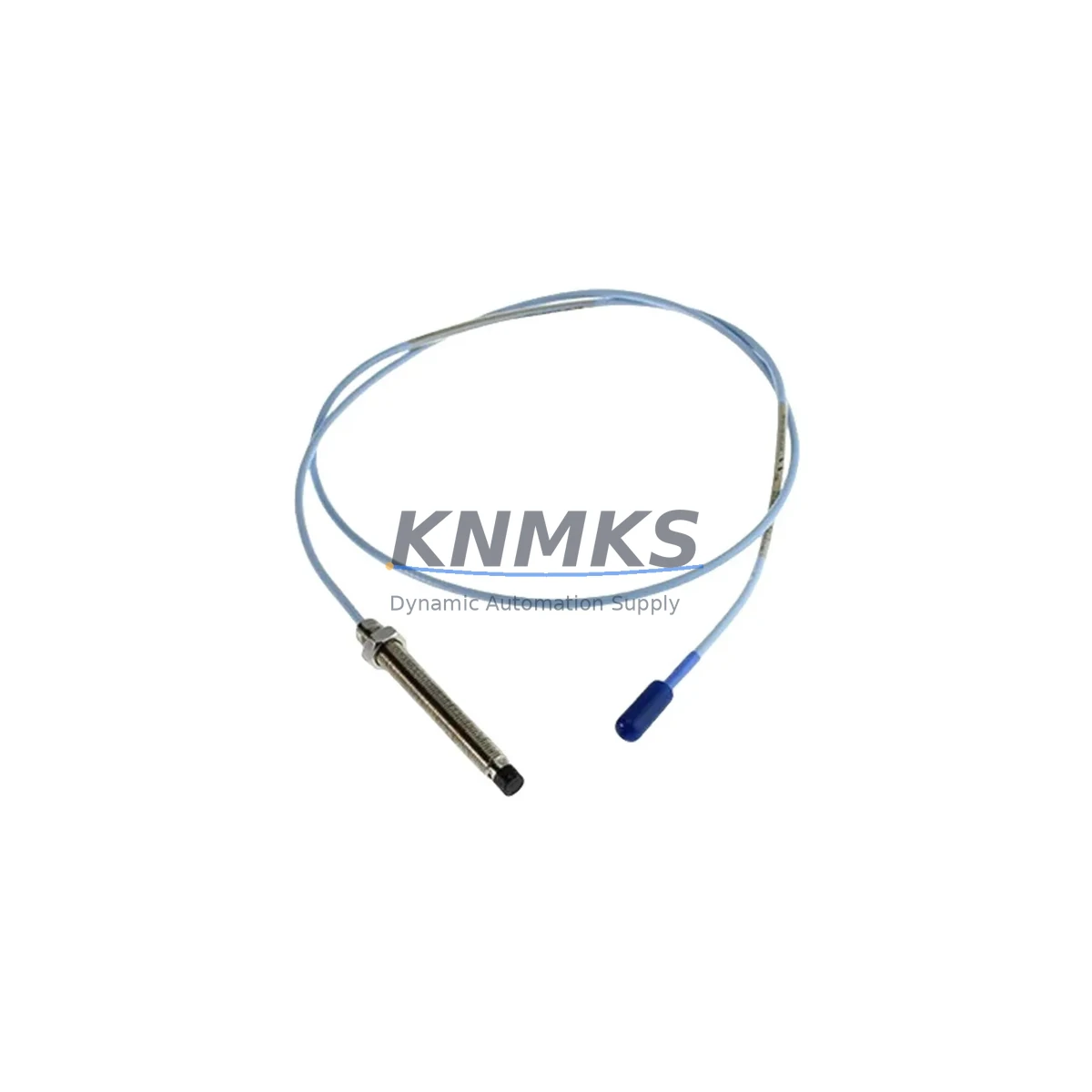

The Bently Nevada 330103-00-05-10-01-05 is an 8mm proximity probe engineered for the 3300 XL Series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Designed to deliver precise non-contact displacement measurement, this probe is a critical component in turbine, compressor, pump, and motor protection circuits where shaft vibration, radial position, and axial thrust monitoring are essential for safe, continuous operation.

For maintenance engineers managing aging DCS or machinery protection infrastructure, sourcing a verified, OEM-compatible replacement for the 330103-00-05-10-01-05 is a non-negotiable step in any planned or emergency maintenance event. This spare is stocked, pre-shipment tested, and backed by a support terms confirmed by quotation — ensuring your replacement cycle is predictable, auditable, and low-risk.

Whether you are executing a scheduled annual overhaul, responding to a high-vibration trip alarm, or building a strategic spare parts buffer for a critical asset, the 330103-00-05-10-01-05 is a direct-fit solution that eliminates compatibility guesswork and reduces mean time to repair (MTTR).

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330103-00-05-10-01-05 proximity probe in a 3300 XL monitoring loop, a thorough site inspection of the entire measurement chain is essential to avoid repeat failures and ensure signal integrity from probe tip to monitor rack.

Begin with the 3300 XL Proximitor Sensor (typically a 330180-XX-XX or 330190-XX-XX driver module) — the probe and driver form a matched system, and a degraded driver will produce erroneous gap voltage readings even with a new probe installed. Inspect the driver’s output voltage at the recommended air gap (typically 1.0–1.5mm) and confirm it falls within the -10 VDC to -12 VDC nominal range.

Next, inspect the extension cable assembly (commonly 330130-XX-XX series) for jacket abrasion, connector corrosion, and continuity. Extension cable damage is a leading cause of intermittent vibration signal faults and is frequently overlooked during probe-only replacements. Verify shield grounding at the junction box end to eliminate common-mode noise.

At the monitor rack, confirm the 3300/16 or 3500/42 I/O module channel configuration matches the probe system’s sensitivity and gap range. A misconfigured channel scale factor will cause the monitor to report false OK or false danger states. Review the channel’s OK limit setpoints and alarm thresholds after probe replacement.

For installations where the 330103-00-05-10-01-05 is used in axial thrust monitoring, also inspect the thrust position reference target and verify the probe-to-target gap is within the linear range of the system. Axial probe replacement without gap re-verification is a common source of post-maintenance nuisance trips.

If the asset is part of a broader machinery protection cabinet, include a visual inspection of terminal blocks, signal isolators, and fuse holders within the probe signal circuit. Loose terminations and blown signal fuses are frequently discovered during proximity probe replacement events and should be addressed proactively to avoid a second unplanned outage.

For sites running legacy 3300 Series monitors alongside newer 3500 Series racks, consider stocking both the 330103-00-05-10-01-05 and its 3500-compatible equivalent to cover both platforms from a single spare parts buffer — reducing procurement lead time risk during emergency callouts.

Site Replacement Workflow

Step 1 — Isolation & Permit: Coordinate with operations to place the affected channel in bypass mode on the 3300/3500 monitor before physical work begins. Confirm the bypass is acknowledged in the DCS or safety system to prevent spurious trips during probe removal.

Step 2 — Gap Measurement & Probe Removal: Record the existing probe gap voltage before removal. Use a non-sparking feeler gauge to measure the physical air gap. Document both values for post-installation comparison. Remove the probe by unscrewing the locknut and rotating the probe body counterclockwise — avoid pulling on the integral cable.

Step 3 — Thread Inspection & Cleaning: Inspect the probe bracket threads for corrosion or damage. Clean with a thread chaser if necessary. Verify the bracket is mechanically secure and has not shifted due to vibration-induced loosening.

Step 4 — New Probe Installation: Install the 330103-00-05-10-01-05 and set the air gap to the system-specified value (typically 1.0–1.5mm for 8mm probes). Secure the locknut to the specified torque. Route the integral cable away from heat sources and rotating components, using cable ties at recommended intervals.

Step 5 — Signal Verification: With the driver powered, measure the gap voltage at the monitor terminal. Confirm the reading is within the system’s linear range and matches the pre-removal baseline (adjusted for any intentional gap change). Check the OK relay status on the monitor channel.

Step 6 — Bypass Removal & Return to Service: Remove the channel bypass, confirm alarm setpoints are active, and log the replacement in the asset maintenance record. Update the spare parts inventory to trigger reorder of a replacement 330103-00-05-10-01-05 for the next event.

Spare Parts Support FAQ

Q1: Is the 330103-00-05-10-01-05 compatible with both 3300 and 3500 Series monitors?
The 330103-00-05-10-01-05 is natively designed for the 3300 XL 8mm system. It is compatible with 3500 Series monitors when used with the appropriate 3500/42 Proximitor I/O module configured for 8mm probe sensitivity. Always verify channel configuration in the 3500 Rack Configuration Utility before installation.

Q2: What is included with the spare and how is it tested before shipment?
Each 330103-00-05-10-01-05 unit undergoes functional output verification — gap voltage linearity and OK relay response are confirmed against OEM specifications before dispatch. The unit ships with protective end caps on the probe tip and connector. A support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions.

Q3: How should I manage long-term inventory for this probe in a multi-unit plant?
For plants operating multiple assets on 3300 XL or 3500 Series protection, a minimum buffer of 2–3 units per probe model is recommended. Given that proximity probes are consumable items with a service life influenced by operating temperature, vibration amplitude, and installation quality, annual inspection and proactive replacement during planned outages is preferable to reactive replacement during unplanned trips. Coordinate with your procurement team to establish a standing order or consignment arrangement for high-usage SKUs.

Q4: Can this probe replace older 330103 variants with different cable lengths or connector types?
The 330103 series uses a structured part number where cable length, connector type, and armored/non-armored options are encoded in the suffix. The -00-05-10-01-05 suffix specifies a 5m integral cable with standard connector configuration. If your existing installation uses a different cable length or connector, confirm the full part number before ordering to ensure a direct-fit replacement. Cross-referencing with the Bently Nevada 3300 XL System Installation Manual is recommended for suffix decoding.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-05-10-01-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-05-10-01-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
