Bently Nevada 330103-00-05-05-12-05 Maintenance-Proven Spare Part for Factory Uptime

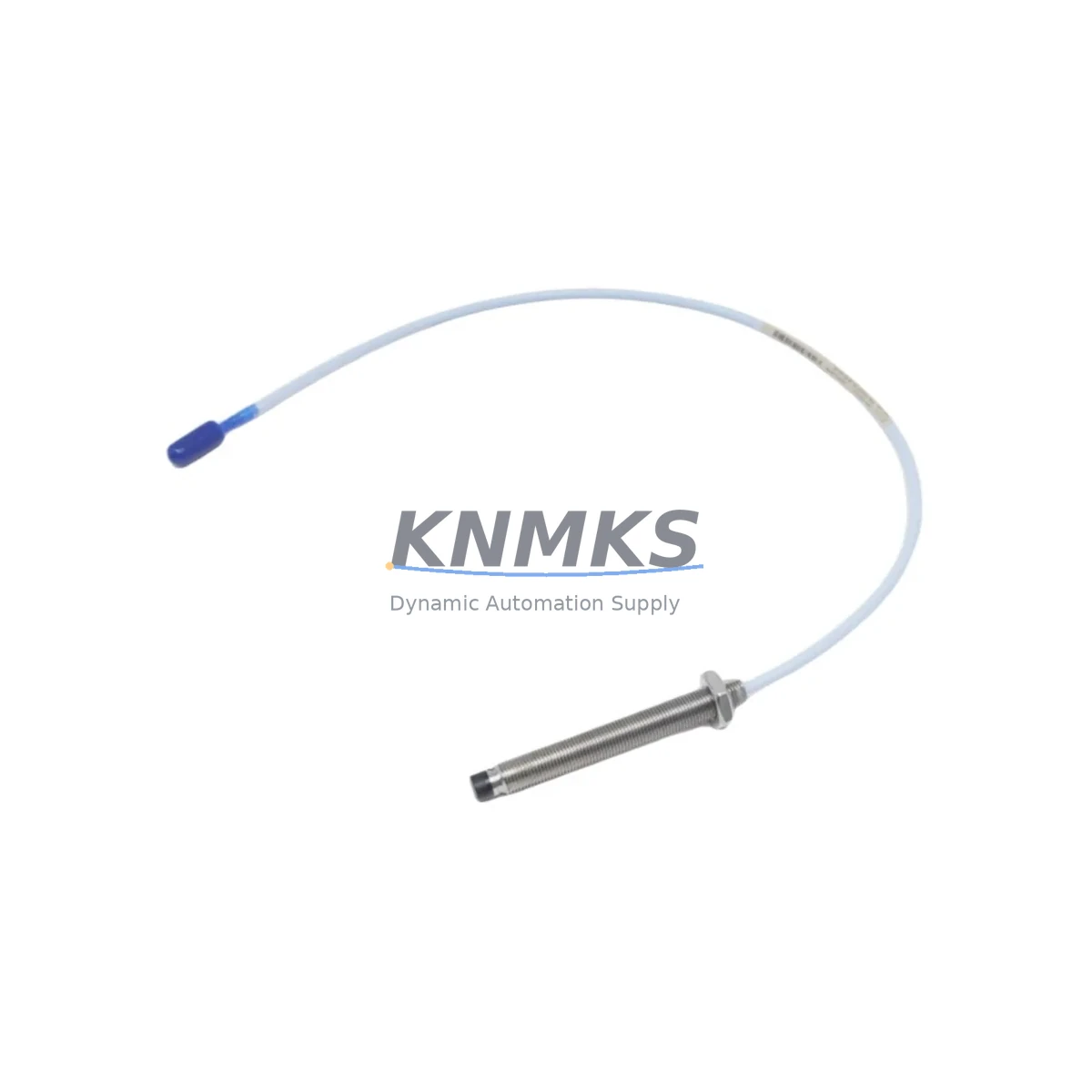

The Bently Nevada 330103-00-05-05-12-05 is an 8mm proximity transducer designed for the 3300 XL Series continuous machinery monitoring system. As a direct OEM-equivalent spare, this unit is engineered to deliver reliable non-contact vibration and position measurement in rotating machinery applications — including steam turbines, gas compressors, centrifugal pumps, and large induction motors. Maintaining a verified stock of this transducer is a cornerstone of any proactive maintenance strategy for facilities running Bently Nevada 3300 XL monitoring infrastructure.

For maintenance engineers managing critical rotating assets, unplanned downtime caused by a failed proximity transducer can cascade into hours of lost production. The 330103-00-05-05-12-05 is a field-proven replacement that restores full vibration monitoring capability without requiring system reconfiguration. Its 5-meter integral cable and standard 8mm sensing tip geometry ensure drop-in compatibility with existing 3300 XL monitor racks and field wiring, minimizing replacement time during emergency shutdowns or scheduled turnarounds.

Procurement engineers sourcing this part for MRO inventory should note that the 330103-00-05-05-12-05 is a long-lifecycle SKU within the Bently Nevada 3300 XL platform. Stocking one to three units per monitored machine train is a widely adopted practice in petrochemical, power generation, and heavy manufacturing facilities to support both emergency response and planned annual overhauls.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330103-00-05-05-12-05 proximity transducer during a planned outage or emergency intervention, a thorough inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure monitoring system integrity. The transducer operates as part of a three-component system: the probe itself, the extension cable, and the driver (proximitor). If the transducer has failed due to cable damage, moisture ingress, or mechanical impact, the 3300 XL Extension Cable (typically 5m or 9m, matched to the probe) should be inspected for continuity and insulation resistance before reuse — a degraded extension cable will cause erratic gap voltage readings even with a new probe installed.

The Bently Nevada 3300 XL Proximitor/Seismic Monitor module in the rack should be verified for correct bias voltage output (nominally -18 VDC) and alarm setpoint configuration after any transducer swap. If the monitor card shows a fault LED or the OK relay has dropped out, the card itself may require replacement or recalibration — stocking a spare 3300 XL Monitor Card alongside the transducer is recommended for facilities with zero-tolerance downtime requirements.

For installations in high-vibration or high-temperature environments, the proximity probe mounting bracket and lock nut should be inspected for fretting wear and thread integrity. A loose probe gap setting — even by 0.1 mm — will shift the DC gap voltage outside the linear range and trigger false alarms or missed trips. Additionally, the field junction box connecting the extension cable to the monitor rack wiring should be checked for terminal corrosion, moisture ingress, and proper grounding, as ground loops are a common source of noise in eddy-current measurement systems.

Facilities running mixed Bently Nevada platforms should also verify that the 3500 Series rack (if present alongside 3300 XL) is not sharing power supply rails with the 3300 XL system in a way that introduces common-mode noise. A dedicated 24 VDC industrial power supply for the monitoring rack, with adequate filtering and surge protection, is a best practice that extends the service life of all connected transducers and monitor cards. Where signal isolation is required between the monitoring system and the DCS or historian, a signal isolator/conditioner should be installed on the 4–20 mA or voltage output to prevent ground-referenced interference from corrupting vibration trend data.

Site Replacement Workflow

Replacing the 330103-00-05-05-12-05 in the field follows a straightforward procedure that minimizes downtime when the correct spare is on hand. Begin by de-energizing the proximitor supply to the affected channel and confirming the gap voltage has dropped to zero on the monitor display. Remove the lock nut and unthread the probe from its mounting bracket, taking care not to bend the integral cable at the connector end. Disconnect the extension cable at the field junction box or directly at the probe connector, noting the cable routing for reinstallation.

Install the new 330103-00-05-05-12-05 by threading it into the bracket and setting the gap to the manufacturer-specified nominal value (typically 1.0 mm / 40 mil for 8mm probes) using a non-ferrous feeler gauge or a calibrated gap-setting tool. Reconnect the extension cable, restore power to the proximitor, and verify the DC gap voltage reads within the linear range on the monitor. Confirm the OK relay has picked up and that vibration readings are within expected baseline values before returning the machine to service.

For legacy systems where the 330103-00-05-05-12-05 is replacing an older 330103 series probe with a different cable length or connector type, verify that the total system scale factor (probe + extension cable + proximitor) matches the monitor card configuration. Mismatched scale factors will result in incorrect engineering unit readings and may require a monitor card reconfiguration or firmware update. Documenting the as-found and as-left gap voltage values in the maintenance management system (CMMS) provides a baseline for future condition trending and supports predictive maintenance scheduling.

Spare Parts Support FAQ

Q1: Is the 330103-00-05-05-12-05 compatible with both 3300 XL and 3500 Series Bently Nevada racks?
The 330103-00-05-05-12-05 is natively designed for the 3300 XL system. It can be used with 3500 Series racks in some configurations, but compatibility depends on the specific monitor card and scale factor settings. Always verify the system scale factor and proximitor model before installation in a 3500 Series rack. Contact our technical team for confirmation if you are unsure.

Q2: What is included in the support terms confirmed by quotation and how is it applied?
All units shipped by KNMKS carry a support terms confirmed by quotation from the date of dispatch. Each unit undergoes functional testing — including bias voltage verification and output linearity check — before shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, mechanical impact, or operation outside the specified temperature and gap range.

Q3: How many units should we stock for a facility with 20 monitored machine trains?
For a facility with 20 machine trains, a minimum stock of 4–6 units of the 330103-00-05-05-12-05 is recommended, assuming each train has 2–4 proximity measurement points. This provides coverage for one emergency replacement per train type while maintaining a buffer for annual overhaul cycles. Facilities with critical or continuous-duty machines (e.g., main steam turbines, boiler feed pumps) should consider blanket purchase orders to ensure long-term supply availability.

Q4: Can KNMKS support long-term or repeat supply of this SKU?
Yes. KNMKS maintains multi-region inventory of the 330103-00-05-05-12-05 and can support scheduled blanket orders, annual MRO contracts, and emergency spot purchases with express global shipping. Lead times for standard orders are typically 3–7 business days. For large-volume or project-based requirements, contact [email protected] or call +86 18359268345 to discuss pricing and delivery terms.
