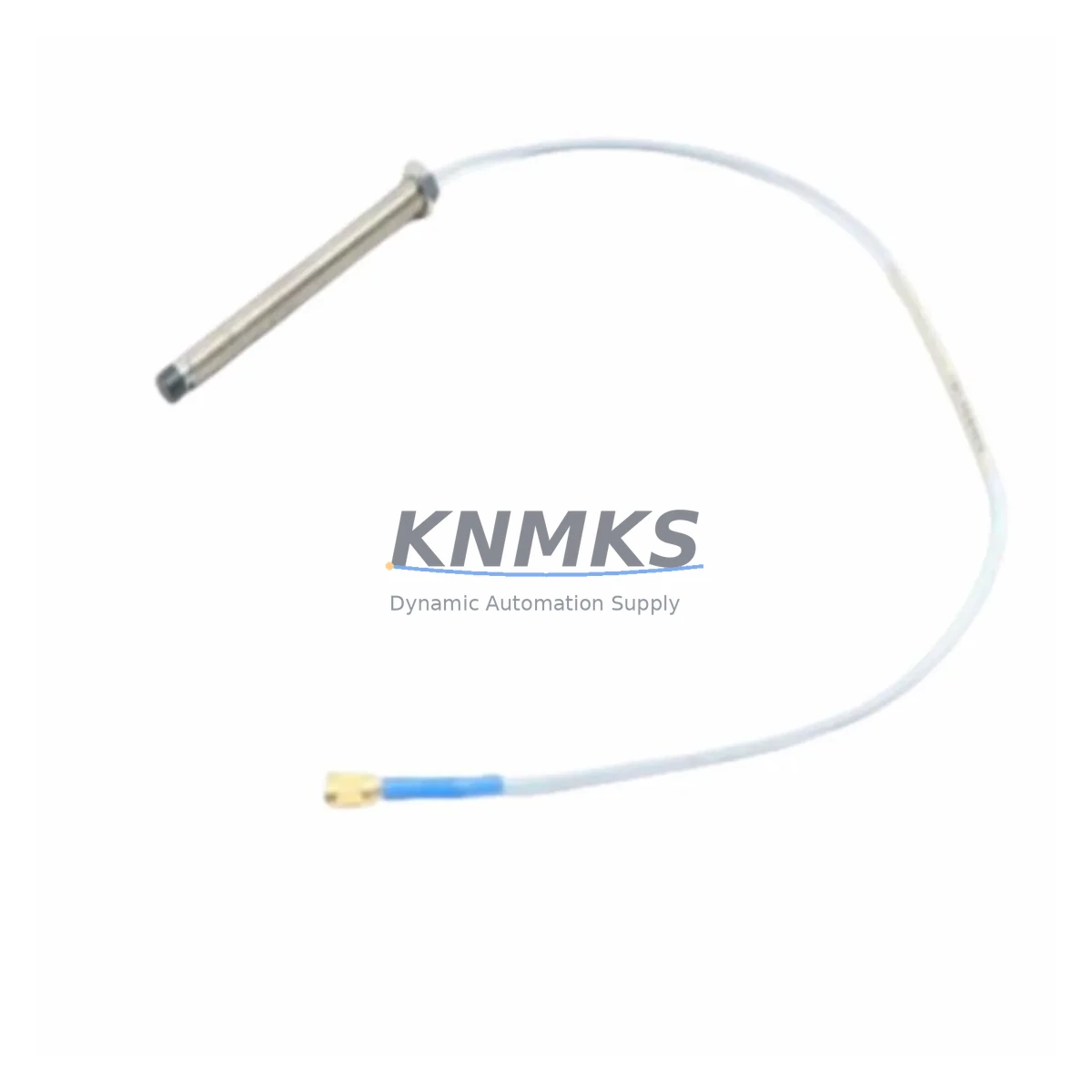

Bently Nevada 330103-00-05-05-02-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330103-00-05-05-02-CN Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330103-00-05-05-02-CN is a 5mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to deliver uninterrupted signal integrity across rotating machinery, compressors, turbines, and critical drive trains, this probe is a cornerstone component in any safety-conscious control architecture where unplanned downtime is not an option.

In petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port cranes, and marine propulsion systems, the consequences of a missed vibration signal or a false trip can be catastrophic. The 330103-00-05-05-02-CN addresses these risks head-on with a robust eddy current sensing mechanism that operates without physical contact, eliminating mechanical wear and ensuring long-term measurement stability even under continuous load cycles.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the probe tip but extends through the entire signal chain within the control cabinet. The 330103-00-05-05-02-CN is designed to integrate seamlessly with the Bently Nevada 3300 XL Proximitor® Sensor, which conditions the raw eddy current signal into a clean, calibrated voltage output suitable for direct input to the Bently Nevada 3500/42M Proximitor®/Seismic Monitor rack module. This three-component chain — probe, extension cable, and monitor — forms the backbone of a certified vibration protection loop.

Within the control cabinet, signal integrity is further protected by pairing this probe system with a Phoenix Contact TRABTECH surge protection device on the signal lines, guarding against transient overvoltages from nearby motor starts, welding operations, or lightning-induced surges. For power supply stability, a Siemens SITOP PSU100S 24V DC power supply provides regulated, low-ripple power to the Proximitor® sensor, preventing measurement drift caused by supply voltage fluctuations common in heavy industrial environments.

In high-EMI environments such as variable frequency drive (VFD) cabinets or arc furnace control rooms, the shielded coaxial construction of the 330103-00-05-05-02-CN cable assembly, combined with proper grounding through a Rittal TS 8 enclosure grounding rail, ensures that electromagnetic noise does not corrupt the vibration signal. For installations requiring remote I/O integration, the conditioned signal can be routed through a Beckhoff EL3174 analog input terminal into a TwinCAT-based safety PLC, enabling real-time vibration trending and automated shutdown logic without introducing additional signal latency.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments such as crude distillation units and catalytic cracking columns, rotating equipment including centrifugal pumps, compressors, and expanders must be monitored 24/7. The 330103-00-05-05-02-CN provides the non-contact, wear-free measurement required for API 670-compliant machinery protection systems, where any sensor failure must trigger a defined safe state rather than a silent fault.

Power Generation: Steam turbines and gas turbines in power plants operate at shaft speeds exceeding 3,000 RPM under extreme thermal gradients. The 3300 XL probe’s wide operating temperature range and high-vibration rating make it suitable for both bearing journal monitoring and thrust position measurement, feeding directly into turbine protection relays that initiate controlled shutdowns before catastrophic bearing failure occurs.

Mining & Mineral Processing: Ball mills, SAG mills, and conveyor drive gearboxes in mining operations are subject to severe shock loads, dust ingress, and moisture. The IP67-rated construction of the 330103-00-05-05-02-CN ensures reliable operation in these conditions, providing early warning of shaft eccentricity or bearing wear that could otherwise lead to unplanned mill stoppages costing tens of thousands of dollars per hour.

Water & Wastewater Treatment: High-speed centrifugal pumps and blowers in water treatment facilities require continuous vibration monitoring to prevent seal failures and bearing damage. The non-contact eddy current principle eliminates the risk of probe contamination from process fluids, ensuring measurement accuracy throughout the pump’s service life.

Metallurgy & Steel Mills: Rolling mill drives, continuous casters, and ladle turrets operate in environments with intense electromagnetic interference from high-current bus bars and induction furnaces. The shielded signal path of the 330103-00-05-05-02-CN maintains measurement fidelity in these conditions, supporting predictive maintenance programs that reduce unscheduled roll change downtime.

Port Cranes & Marine Propulsion: Slewing ring drives on ship-to-shore cranes and propulsion shaft bearings on vessels require vibration monitoring under variable load and corrosive salt-air conditions. The robust mechanical construction and sealed connector of this probe support reliable long-term deployment in marine-grade installations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330103-00-05-05-02-CN?
All units carry a support terms confirmed by quotation covering manufacturing defects, signal output accuracy, and mechanical integrity. Support requests are supported with replacement dispatch within 5 business days upon confirmed fault diagnosis. Documentation including test reports is available upon request.

Q2: What pre-shipment testing is performed on each probe?
Every 330103-00-05-05-02-CN unit undergoes outgoing quality inspection including gap-versus-voltage linearity verification, insulation resistance testing, and connector integrity checks before dispatch. Units are shipped with individual test records to support site commissioning and audit requirements.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL system installations?
Yes. The 330103-00-05-05-02-CN is a direct form-fit-function replacement for standard 3300 XL 5mm probe assemblies. It is compatible with all Bently Nevada 3300 XL Proximitor® sensors and 3500 Series rack monitors without requiring recalibration of the existing system, provided the extension cable and Proximitor® are also 3300 XL series components.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
Yes. We maintain dedicated buffer stock of the 330103-00-05-05-02-CN to support planned maintenance shutdowns, emergency replacements, and annual spare parts procurement programs. Customers with critical fleet requirements are encouraged to contact our sales team to establish a scheduled supply agreement with priority allocation.
