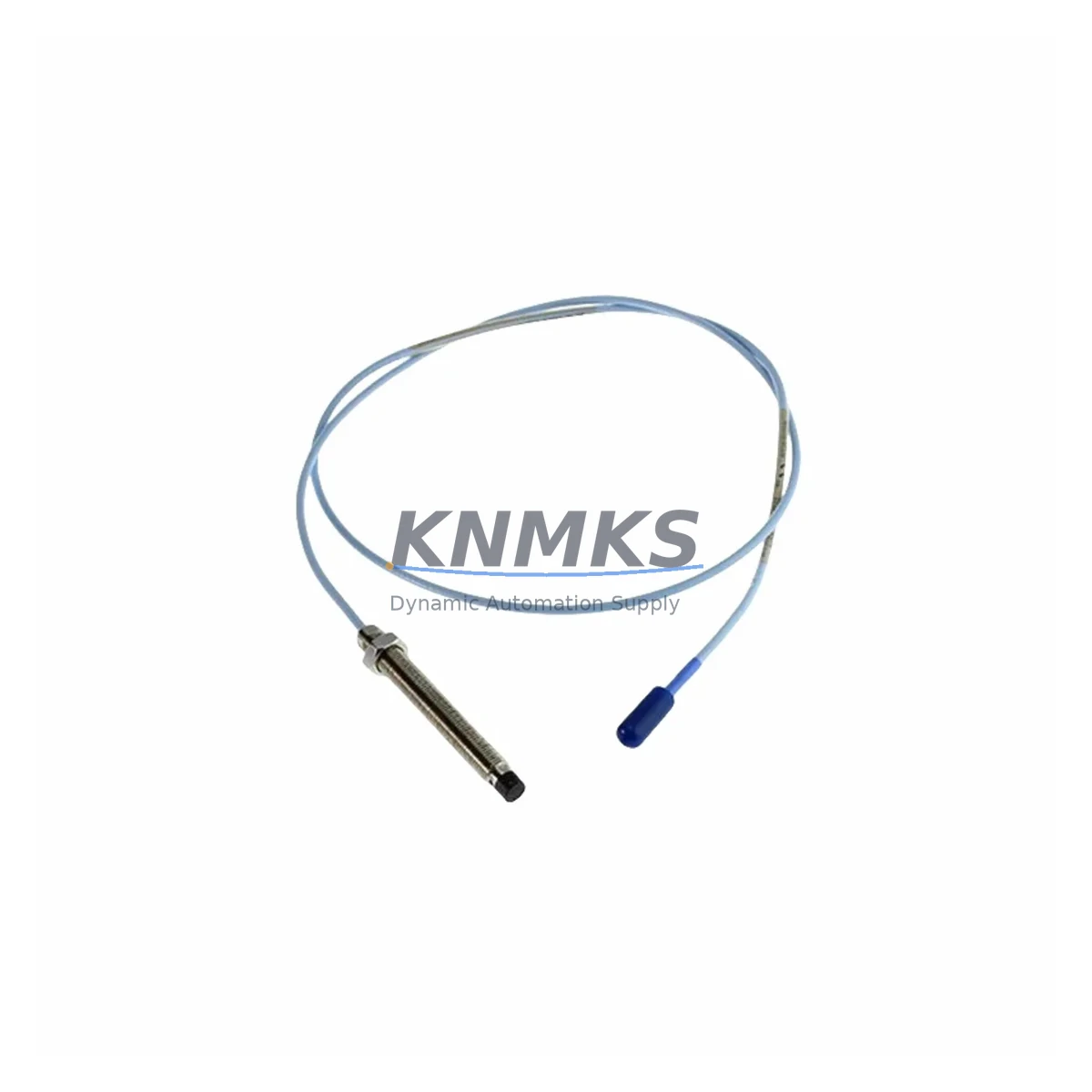

The Bently Nevada 330103-00-05-05-02-05 is an 8mm eddy current proximity probe engineered for continuous vibration and position monitoring in rotating machinery. As a core sensing element within the 3300 XL Series monitoring system, this probe delivers the measurement accuracy and signal stability that maintenance engineers depend on to protect turbines, compressors, pumps, and motors from catastrophic failure. Sourced as an original spare, the 330103-00-05-05-02-05 is pre-tested prior to dispatch and backed by a support terms confirmed by quotation, making it a reliable choice for both emergency replacement and planned maintenance inventory.

For maintenance and procurement engineers managing rotating equipment reliability programs, holding a verified spare of the 330103-00-05-05-02-05 is a fundamental risk-control measure. Eddy current probes are wear-sensitive components subject to cable fatigue, connector corrosion, and tip damage from debris contact. A failed probe can trigger false shutdowns or, worse, mask genuine shaft displacement events. Keeping a tested spare on the shelf eliminates the lead-time risk associated with OEM procurement cycles and ensures that any unplanned outage can be resolved within a single shift.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330103-00-05-05-02-05 in the field, a disciplined maintenance engineer will treat the probe swap as an opportunity to audit the entire measurement chain. The 3300 XL system is a tightly integrated architecture: probe performance is directly dependent on the condition of the mating 330130 series extension cable, which should be inspected for jacket cracking, connector pin corrosion, and continuity before the new probe is commissioned. A degraded extension cable will introduce gap voltage errors that invalidate the calibration of the replacement probe.

The 330180 series Proximitor Sensor (driver module) should be verified for correct bias voltage output — typically -18 VDC to -24 VDC at the recommended gap — before the new probe is installed. If the Proximitor is out of specification, replacing the probe alone will not restore system accuracy. Similarly, the 3300 XL rack power supply should be checked for output voltage stability; ripple or sag on the DC bus can cause erratic probe readings that are often misdiagnosed as probe failure.

At the monitor card level, confirm that the 3300/16 or 3300/20 series vibration monitor is correctly configured for the 8mm probe system and that alert and danger setpoints have not drifted from the baseline established during commissioning. If the installation includes a 3300/55 series keyphasor module, verify that the keyphasor gap and signal amplitude are within specification, as phase reference errors will corrupt synchronous vibration data across all channels sharing that reference.

For installations where the 330103-00-05-05-02-05 is used in axial position monitoring, the thrust bearing clearance should be physically measured and compared against the monitor’s position setpoints during the maintenance window. This is also the appropriate time to inspect the terminal strip and field wiring within the machinery protection cabinet for loose terminations, moisture ingress, and insulation breakdown — conditions that are frequently overlooked during probe-only replacements and that can cause nuisance trips after the new probe is installed.

Site Replacement Workflow

The 330103-00-05-05-02-05 is a direct replacement for earlier 8mm probe configurations used in legacy 3300 Series (non-XL) installations, provided the corresponding Proximitor and extension cable are also updated to 3300 XL-compatible variants. This upgrade path allows maintenance teams to modernize aging machinery protection systems without replacing the monitor rack or rewiring the field junction boxes, significantly reducing the scope and cost of the maintenance outage.

Step 1 — Isolation: De-energize the Proximitor driver and confirm zero voltage at the probe connector before disconnecting the extension cable. Do not pull the probe cable under tension.

Step 2 — Gap verification: Before removing the old probe, record the existing gap voltage as a baseline reference. This value will be used to set the initial gap of the replacement probe.

Step 3 — Installation: Thread the 330103-00-05-05-02-05 into the probe mount to the recorded gap depth. Use a non-conductive feeler gauge to confirm the physical gap matches the target voltage specification from the system datasheet.

Step 4 — Cable routing: Reconnect the extension cable, ensuring the connector is fully seated and the locking collar is engaged. Route the cable away from high-voltage conductors and secure with appropriate cable clamps to prevent vibration-induced fatigue.

Step 5 — Commissioning: Re-energize the Proximitor and confirm bias voltage, gap voltage, and signal noise floor are within OEM specification. Document the as-left values in the equipment maintenance record.

Step 6 — Functional test: Simulate shaft movement or use a calibrated target to verify that the monitor card responds correctly across the full measurement range before returning the machine to service.

Spare Parts Support FAQ

Q1: Is the 330103-00-05-05-02-05 compatible with both 3300 Series and 3300 XL Series systems?
The 330103-00-05-05-02-05 is designed for the 3300 XL system. It can be used in legacy 3300 Series installations when paired with 3300 XL-compatible extension cables and Proximitor sensors. Mixing XL probes with non-XL drivers is not recommended without verifying the complete system calibration curve.

Q2: What pre-shipment testing is performed on this spare?
Each unit undergoes electrical continuity verification, insulation resistance testing, and gap voltage output confirmation against OEM specification before dispatch. A test record is available upon request. This ensures the spare is ready for immediate installation without additional bench testing on site.

Q3: What is the recommended inventory strategy for this probe?
For critical rotating machinery operating continuously, a minimum of two spare probes per machine train is recommended — one for immediate replacement and one as a secondary buffer. Given OEM lead times that can extend to 8–16 weeks for specialty configurations, maintaining a 12-month forward stock position is the most effective way to eliminate procurement risk during unplanned outages.

Q4: What support terms coverage applies to this spare part?
All units are covered by a support terms confirmed by quotation from the date of dispatch. The support terms covers manufacturing defects and electrical performance deviations from OEM specification. Units that have been physically damaged during installation or exposed to conditions outside the rated operating envelope are not covered. For support requests or long-term supply agreements, contact the sales team directly.
