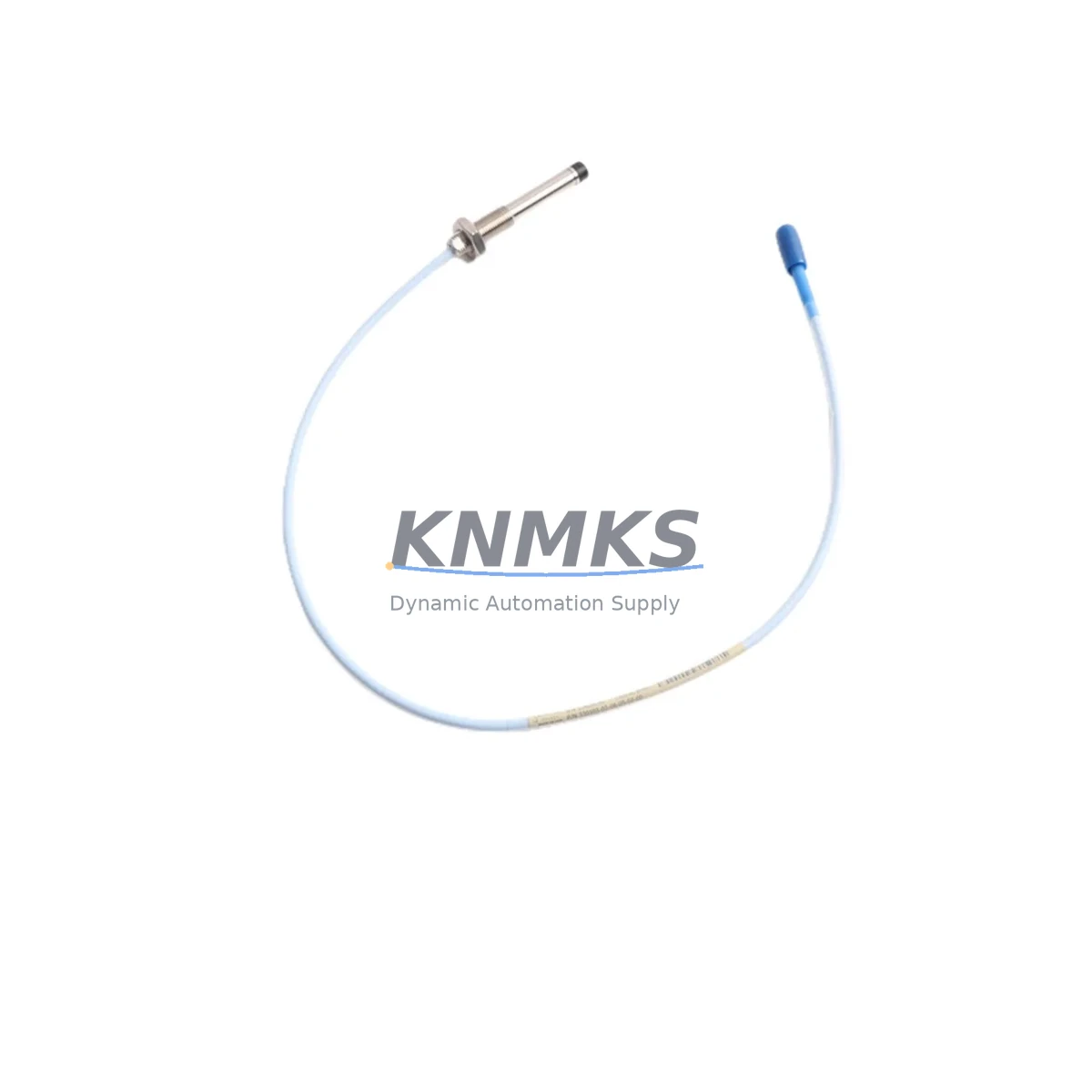

Bently Nevada 330103-00-05-05-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330103-00-05-05-02-00 Fail-Safe Proximity Probe: Fault-Protection and Critical Industrial Field Reliability

The Bently Nevada 330103-00-05-05-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed to operate in the most demanding industrial environments, this probe delivers fail-safe shaft displacement and radial vibration measurement for rotating machinery in safety-critical control loops. Whether deployed in petrochemical compressor trains, power generation turbines, or heavy-duty mining equipment, the 330103-00-05-05-02-00 provides the measurement integrity that modern industrial safety architectures demand.

In continuous production facilities where unplanned downtime carries severe operational and financial consequences, the reliability of every sensing element in the vibration monitoring chain is non-negotiable. The 330103-00-05-05-02-00 probe is built to maintain stable output under high electromagnetic interference (EMI), mechanical vibration, thermal cycling, moisture ingress, and particulate contamination — conditions routinely encountered in rotating machinery enclosures and field-mounted control cabinets. Its ruggedized construction and precision-wound coil assembly ensure that signal drift, false trips, and measurement anomalies are minimized across the full service life of the probe.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330103-00-05-05-02-00 proximity probe does not operate in isolation — it is one element of a tightly integrated vibration monitoring and machinery protection architecture. In a properly configured control cabinet or machinery protection panel, this probe connects to a Bently Nevada 3300 XL proximitor/driver (such as the 330180-X1-05 or 330130-040-00-00 series), which conditions the raw eddy-current signal into a calibrated analog output suitable for the monitoring system’s input cards.

For safety-critical applications, the proximitor output feeds directly into a Bently Nevada 3500 Series machinery protection rack — a modular, SIL-rated platform that processes vibration, position, and speed signals and triggers protective relay outputs when alarm or danger thresholds are exceeded. The 3500 rack’s 3500/42M Proximitor/Seismic Monitor module is the typical destination for signals from the 330103-00-05-05-02-00 in high-integrity interlock loops.

To protect the signal path from surge events and ground loops — common in large motor control centers and variable-frequency drive (VFD) environments — engineers frequently install Bently Nevada 3500/05 Power Supply modules with redundant input capability, ensuring that power fluctuations do not corrupt vibration data or cause spurious trips. In installations with long cable runs between the probe and the monitoring rack, 330130 series extension cables are used to maintain signal integrity without introducing impedance mismatches that could cause measurement drift.

Where the machinery protection system interfaces with a plant DCS or safety PLC, Bently Nevada TDXnet communication gateway modules or standard 4–20 mA analog output cards bridge the vibration data into the broader process control architecture, enabling integrated alarming, historian logging, and safety interlock coordination. This complete signal chain — from the 330103-00-05-05-02-00 probe tip to the safety relay output — forms the backbone of a robust, fail-safe rotating machinery protection strategy.

Critical Industrial Safety Applications

Petrochemical & Refinery Compressor Trains: In ethylene crackers, gas compression stations, and LNG processing facilities, the 330103-00-05-05-02-00 monitors shaft radial vibration on centrifugal and reciprocating compressors. Continuous vibration data feeds safety interlock systems that initiate controlled shutdowns before bearing failure or rotor rub can escalate to catastrophic equipment loss or process release.

Power Generation Turbines: Steam and gas turbines in utility and cogeneration plants rely on proximity probe arrays to detect rotor eccentricity, oil whirl, and critical speed crossings. The 3300 XL probe system provides the measurement resolution required to distinguish normal operational vibration from developing faults, enabling condition-based maintenance rather than time-based overhaul schedules.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject monitoring equipment to extreme vibration, dust loading, and temperature swings. The ruggedized construction of the 330103-00-05-05-02-00 maintains measurement accuracy in these environments, supporting continuous operation monitoring and reducing the risk of unplanned mill stoppages that carry significant production cost.

Water & Wastewater Treatment: High-speed centrifugal pumps and blowers in water treatment facilities benefit from proximity probe monitoring to detect impeller imbalance and bearing degradation before pump failure disrupts treatment capacity. The probe’s resistance to moisture and chemical exposure makes it suitable for wet, corrosive pump house environments.

Metallurgy & Steel Production: Rolling mill drives, continuous casters, and large induction furnace cooling pumps operate under severe mechanical and electrical stress. Proximity probe monitoring integrated with the plant’s safety PLC architecture provides early warning of mechanical deterioration, supporting the high-availability requirements of continuous casting and hot rolling operations.

Port & Marine Applications: Shipboard propulsion systems, cargo pump turbines, and port crane drives increasingly incorporate machinery protection systems based on the Bently Nevada 3300 XL platform. The 330103-00-05-05-02-00’s tolerance for high humidity, salt-laden air, and shipboard vibration makes it a reliable choice for marine rotating machinery monitoring.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330103-00-05-05-02-00?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. Each probe undergoes functional verification and output calibration checks prior to dispatch. In the event of a confirmed defect within the confirmed support period, KNMKS provides replacement or repair support with priority handling to minimize field downtime.

Q2: How is the probe tested before shipment?
Prior to shipment, each 330103-00-05-05-02-00 unit is inspected for physical integrity, connector condition, and cable continuity. Functional output verification is performed against 3300 XL system specifications to confirm that the probe meets Bently Nevada’s published sensitivity and linearity requirements. Documentation is available upon request for quality-critical procurement processes.

Q3: Is the 330103-00-05-05-02-00 a direct replacement for existing 3300 XL installations?
Yes. The 330103-00-05-05-02-00 is designed as a direct, interchangeable replacement within the Bently Nevada 3300 XL probe, extension cable, and proximitor driver system. It maintains full compatibility with 3300 XL monitors, 3500 Series protection racks, and associated signal conditioning hardware without requiring recalibration of the monitoring system, provided the replacement probe matches the original cable length and connector configuration.

Q4: Can long-term supply and spare parts availability be assured?
KNMKS maintains stocked inventory of the 330103-00-05-05-02-00 and related 3300 XL series components to support both planned maintenance programs and emergency spare requirements. For facilities operating multiple Bently Nevada monitoring systems, KNMKS can assist with consolidated spare parts planning to ensure critical components are available when needed, reducing the risk of extended outages due to parts unavailability.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-05-05-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-05-05-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
