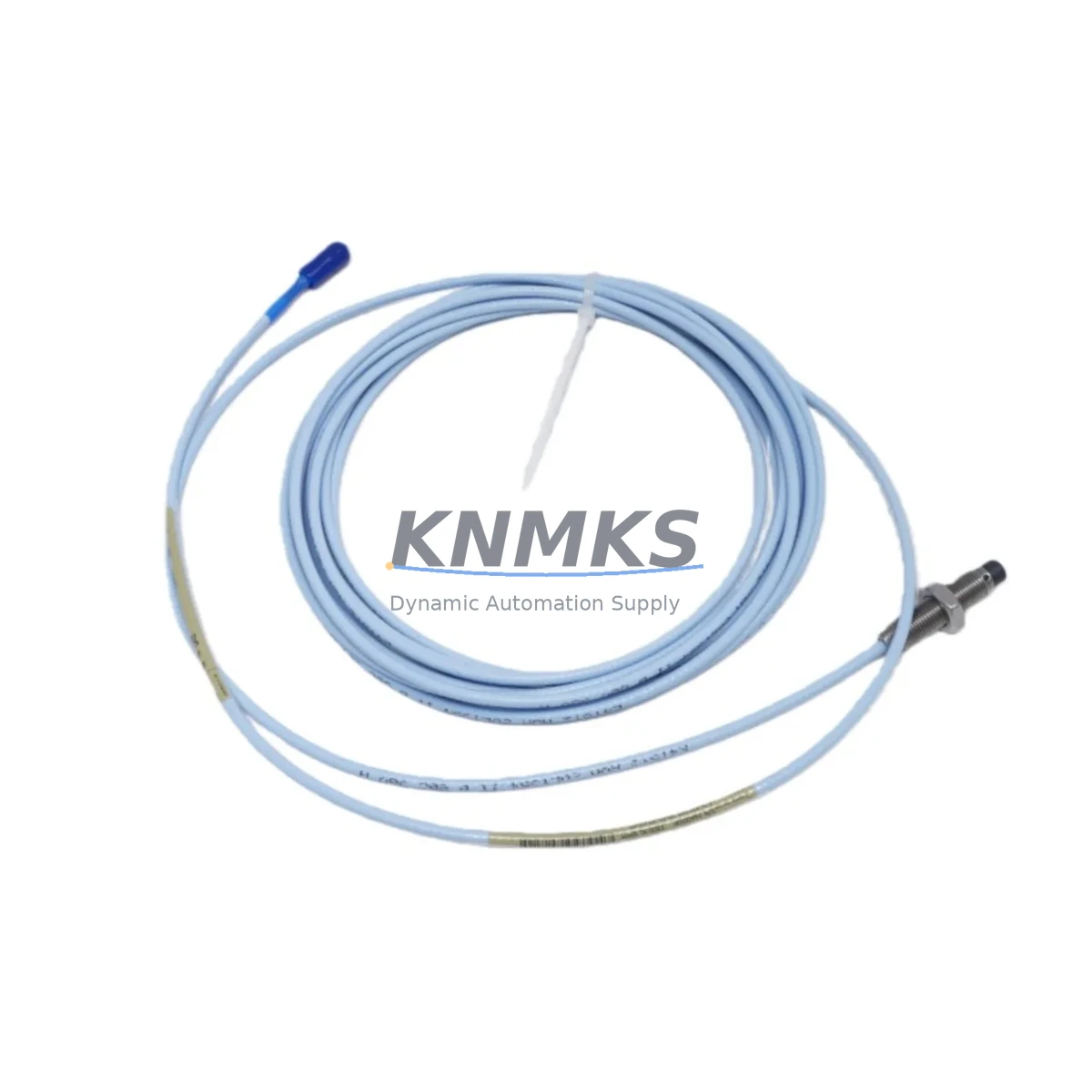

Bently Nevada 330103-00-04-50-12-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330103-00-04-50-12-CN Fail-Safe Proximity Probe: Fault-Tolerant Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330103-00-04-50-12-CN is a 5mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe shaft vibration and position monitoring in the most demanding industrial environments. Designed to operate within Safety Instrumented Systems (SIS) and critical machinery protection loops, this probe delivers stable, drift-free output even under sustained mechanical vibration, high electromagnetic interference, elevated ambient temperatures, and corrosive or high-humidity field conditions. For rotating equipment protection in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and offshore platforms, the 330103-00-04-50-12-CN represents a proven, field-validated solution for unplanned shutdown prevention.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330103-00-04-50-12-CN does not operate in isolation. It forms the sensing front-end of a complete vibration monitoring chain. The probe signal is conditioned by the Bently Nevada 3300 XL Proximitor Sensor (typically 330180-X1-05 or 330130-040-00-00), which converts the raw eddy-current gap signal into a calibrated 4–20 mA or voltage output suitable for the Bently Nevada 3500/22M Transient Data Interface or the 3500/42M Proximitor Monitor rack module. These rack modules provide relay-based trip outputs directly wired into the plant’s Emergency Shutdown System (ESD) or Safety PLC — such as a Rockwell Automation GuardLogix 5580 or Siemens SIMATIC S7-300F — ensuring that a confirmed high-vibration event triggers an automatic, fail-safe machine trip within the required response time.

To protect the signal integrity of the probe cable inside the control cabinet, proper cable segregation from high-voltage power conductors is essential. Surge protection devices — such as the Phoenix Contact TRABTECH MCR-VAL-MS-I-DC transient surge arrester — are recommended at the cabinet entry point to guard against lightning-induced or switching transients that could saturate the Proximitor input or cause false trip signals. For cabinets operating in high-vibration or high-temperature zones, the Bently Nevada 3500 Rack Power Supply (3500/15) provides regulated, isolated DC power to the monitoring rack, eliminating power-rail noise that could otherwise appear as spurious vibration readings. Thermal management within the cabinet — using forced-air cooling modules or cabinet air conditioners — further ensures that the Proximitor electronics remain within their rated operating window, preserving measurement accuracy and preventing nuisance trips caused by thermal drift.

Critical Industrial Safety Applications

The 330103-00-04-50-12-CN is deployed across a wide range of safety-critical rotating equipment applications:

Petrochemical & Refinery: Installed on centrifugal compressors, reactor charge pumps, and boiler feed pumps where API 670 machinery protection is mandatory. The probe monitors radial shaft displacement in real time, enabling the SIS to initiate a controlled shutdown before bearing failure or seal damage occurs — preventing both catastrophic equipment loss and hazardous process release.

Power Generation: Used on steam turbine shaft monitoring systems at coal-fired, gas-fired, and nuclear power stations. Continuous proximity measurement provides early warning of rotor instability, oil whirl, and rub events, allowing operators to take corrective action before forced outage.

Mining & Mineral Processing: Applied to large ball mill pinion bearings, SAG mill trunnion shafts, and slurry pump impeller shafts operating in high-dust, high-vibration environments. The armored cable construction of the 330103-00-04-50-12-CN resists abrasion and crush damage from cable trays shared with heavy power cables.

Water & Wastewater Treatment: Monitors vertical turbine pumps and blower shafts in wet, corrosive atmospheres. The probe’s IP67-equivalent sealing prevents moisture ingress that would otherwise cause signal drift or open-circuit faults in the monitoring loop.

Metallurgy & Steel: Deployed on rolling mill drive shafts and continuous caster pinch roll drives, where high ambient temperatures and electromagnetic noise from large drive inverters challenge conventional sensors. The shielded coaxial construction maintains signal integrity in these high-EMI environments.

Port & Marine: Used on ship propulsion shaft monitoring systems and port crane hoist motor bearings, where saltwater corrosion resistance and vibration immunity are essential for uninterrupted operation.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover all manufacturing defects, functional failures, and out-of-specification performance identified under normal operating conditions. Support requests are supported with replacement unit dispatch or documented resolution support, subject to return inspection. The confirmed support period begins from the date of confirmed shipment.

Q2: What outgoing inspection and testing is performed before shipment?
Every 330103-00-04-50-12-CN unit undergoes a full functional test prior to dispatch: gap-versus-output linearity verification across the rated linear range, cable continuity and insulation resistance check, connector integrity inspection, and dimensional verification of the probe tip and cable assembly. A test report is available upon request.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor systems already installed in the field?
Yes. The 330103-00-04-50-12-CN is a direct form-fit-function replacement for the standard Bently Nevada 3300 XL 5mm probe family. It is fully compatible with all 3300 XL Proximitor Sensors and 3500 Series rack monitors without requiring recalibration of the existing system, provided the target material and gap setting remain unchanged.

Q4: Can long-term supply and spare parts availability be guaranteed?
KNMKS maintains dedicated safety-critical spare parts inventory for Bently Nevada 3300 XL Series components, including the 330103-00-04-50-12-CN, to support planned maintenance shutdowns, emergency replacements, and long-term service agreements. Customers with high-volume or scheduled maintenance requirements are encouraged to contact our team to discuss consignment stock arrangements and priority allocation.
