Bently Nevada 330103-00-04-20-02-05 Migration-Ready 8mm Probe

Overview

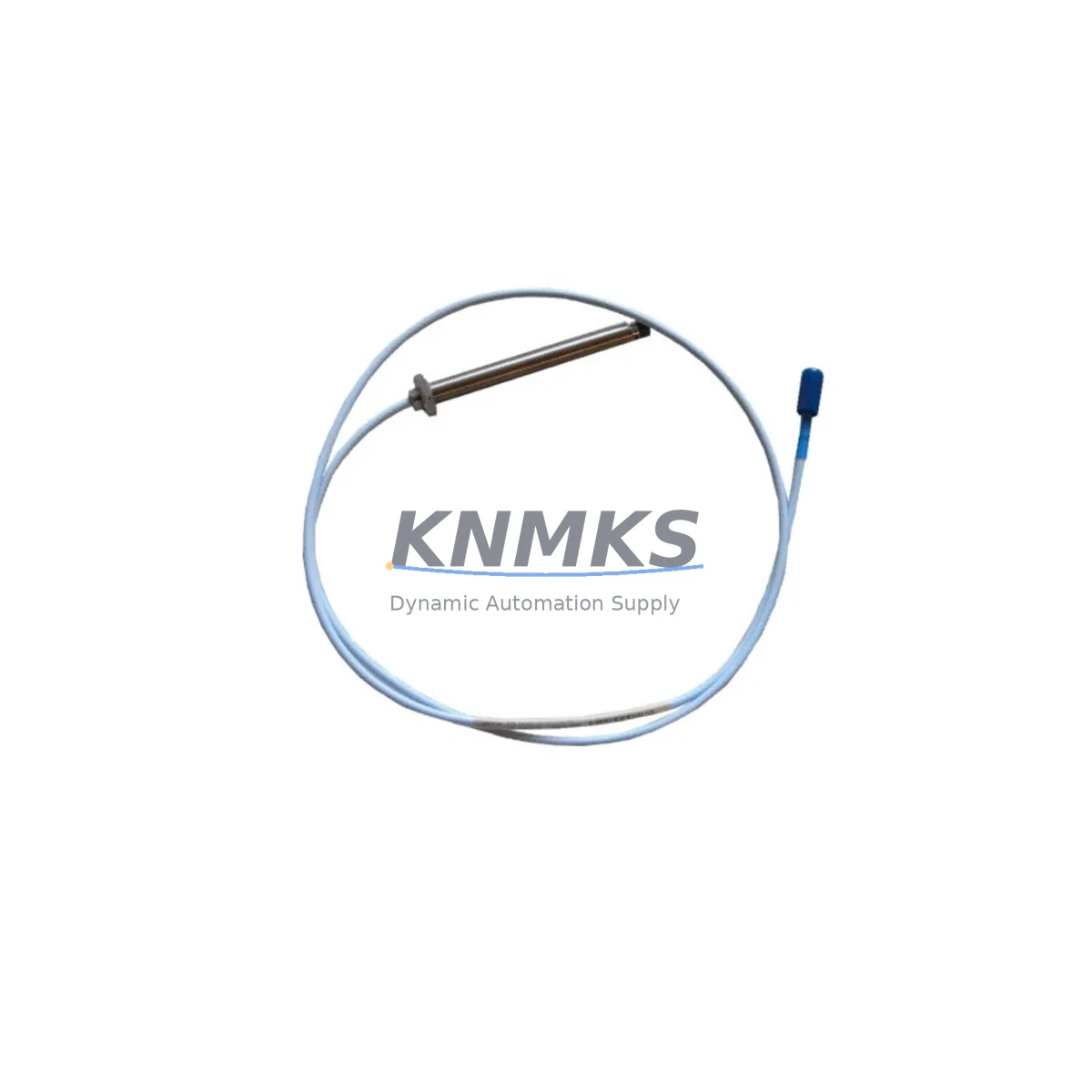

Bently Nevada 330103-00-04-20-02-05 Migration-Ready 8mm Probe for Legacy Control Systems

The Bently Nevada 330103-00-04-20-02-05 is a migration-ready 8mm eddy-current proximity probe engineered for direct integration into Bently Nevada 3300 XL vibration monitoring systems. As legacy rotating machinery protection platforms approach end-of-life or face discontinued spare parts availability, this probe provides a verified drop-in replacement path that preserves existing wiring infrastructure, terminal assignments, and signal conditioning chains — minimising retrofit risk and unplanned downtime across turbine, compressor, and pump train applications.

Designed for engineers managing ageing condition monitoring architectures, the 330103-00-04-20-02-05 maintains full electrical compatibility with the 3300 XL proximitor/seismic interface module, delivering a –200 mV/mil (–7.87 V/mm) output scale factor consistent with the original system calibration. The 8mm probe tip diameter and 5-metre integral cable assembly match the physical envelope of the predecessor unit, eliminating the need for conduit rerouting or bracket modification during changeout. Probe gap voltage at the recommended 50-mil (1.27 mm) installation gap remains within the –10 VDC ±0.2 V specification required by the 3300 XL monitor rack.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330103-00-04-20-02-05 into an operating plant begins well before the maintenance window opens. The first step is a full audit of the 3300 XL monitor rack configuration: confirm the number of occupied slots, verify that the proximitor/seismic module paired with this probe channel — typically a 3300/16 or 3300/20 proximitor — is still within its calibration interval, and document the existing gap voltage reading at the current probe installation. This baseline reading becomes the acceptance criterion after the new probe is installed and gapped.

Terminal wiring should be traced from the probe junction box back to the 3300 XL I/O termination card. The three-conductor shielded cable (power, common, output) must be verified for continuity and insulation resistance before the new probe is connected. Where the original installation used a 330130 extension cable to bridge the distance between the probe and the proximitor, confirm that the extension cable length is compatible with the 330103 series probe — the combined probe-plus-extension length must fall within the proximitor’s specified linear range. If the extension cable shows signs of jacket degradation or connector corrosion, replacement with a new 330130 extension cable during the same outage window eliminates a future failure point.

For plants running a broader Bently Nevada 3300 XL architecture, the probe changeout is often coordinated with inspection of adjacent monitoring channels. Thrust position probes on the same shaft — frequently a second 330103 series unit or a 330180 proximity probe for larger shaft diameters — should be gap-checked at the same time to avoid a second outage. Keyphasor probes, such as the 330980 series, which provide the once-per-revolution reference signal for phase and speed measurement, should also be inspected for tip wear and cable integrity during the same access window.

On the power supply side, confirm that the –24 VDC rail feeding the 3300 XL rack has sufficient current headroom for the replacement probe. The 3300 XL power supply module — often a 3300/05 or equivalent — should be load-tested if the rack is near capacity. Insufficient supply margin can cause intermittent OK/NOT OK relay chatter after probe replacement, which is frequently misdiagnosed as a probe fault. Document the supply rail voltage under full rack load before and after the probe swap.

Where the plant’s condition monitoring data feeds into a DCS or safety instrumented system via a 4–20 mA output card or a Modbus gateway, verify that the analogue output from the 3300 XL monitor channel remains within the expected engineering unit range after re-gapping. HMI faceplates displaying shaft vibration trends should be checked for correct tag scaling — a common oversight when a probe is replaced without updating the associated instrument tag database. If the plant uses System 1 Evolution or a third-party condition monitoring platform connected to the 3300 XL via a serial or Ethernet interface, confirm that the channel configuration in the software matches the new probe’s scale factor and gap voltage.

Downtime Control During System Migration

Minimising production loss during a proximity probe changeout on a critical rotating machine requires a structured pre-outage preparation protocol. Before the machine is taken offline, prepare a complete probe replacement kit: the 330103-00-04-20-02-05 probe, a calibrated gap-setting tool, a digital voltmeter for gap voltage verification, and a copy of the existing monitor configuration printout from the 3300 XL rack. Having all materials staged at the work site eliminates delays caused by last-minute parts searches.

The original program logic in the 3300 XL monitor — including OK relay setpoints, ALERT and DANGER vibration thresholds, time delays, and latching behaviour — must be documented before any hardware is disturbed. Most 3300 XL monitors store configuration in non-volatile memory, but a configuration export to a laptop running the Bently Nevada configuration software provides a recovery baseline in the event of an unexpected power interruption during the changeout. This step is particularly important in plants where the monitor configuration has been modified from the factory default over years of operation and no current-revision configuration file exists in the maintenance management system.

Once the new 330103-00-04-20-02-05 probe is installed and gapped, the gap voltage should be measured at the proximitor output terminals before the monitor is returned to service. The measured value must fall within the monitor’s configured OK gap voltage window — typically –9.5 VDC to –10.5 VDC for a 50-mil gap on an 8mm probe. Only after this verification should the monitor channel be enabled and the machine brought back online. A final trend review in the condition monitoring system, confirming that the vibration baseline matches pre-outage levels, closes the retrofit record and supports the support terms confirmed by quotation claim period.

Retrofit Support FAQ

Q: Is the 330103-00-04-20-02-05 a direct replacement for the original Bently Nevada 330103 series probe in a 3300 XL system?
A: Yes. The 330103-00-04-20-02-05 is dimensionally and electrically compatible with the 3300 XL proximitor interface. No monitor reconfiguration or recalibration is required provided the installation gap is set correctly and the extension cable length is within specification.

Q: What wiring checks are required before connecting the replacement probe?
A: Verify continuity and insulation resistance on the three-conductor shielded cable from the junction box to the 3300 XL I/O termination card. Confirm that the shield drain wire is grounded at one end only (typically at the monitor rack) to avoid ground loops that can introduce noise into the vibration signal.

Q: How is the probe gap verified after installation?
A: With the machine stationary and the proximitor powered, measure the DC voltage at the proximitor output terminals. For a standard 8mm probe at a 50-mil (1.27 mm) gap, the output should read approximately –10 VDC. Adjust the probe axial position until the measured voltage falls within the monitor’s configured OK gap window, then lock the probe in position and re-verify.

Q: What does the support terms confirmed by quotation cover, and how is a claim initiated?
A: The support terms confirmed by quotation cover manufacturing defects and premature failure under normal operating conditions from the date of shipment. Each unit ships with a pre-shipment functional test report. To initiate a support terms claim, contact [email protected] with the order reference, installation date, and a description of the observed fault. Replacement units are dispatched from stock to minimise machine downtime.
