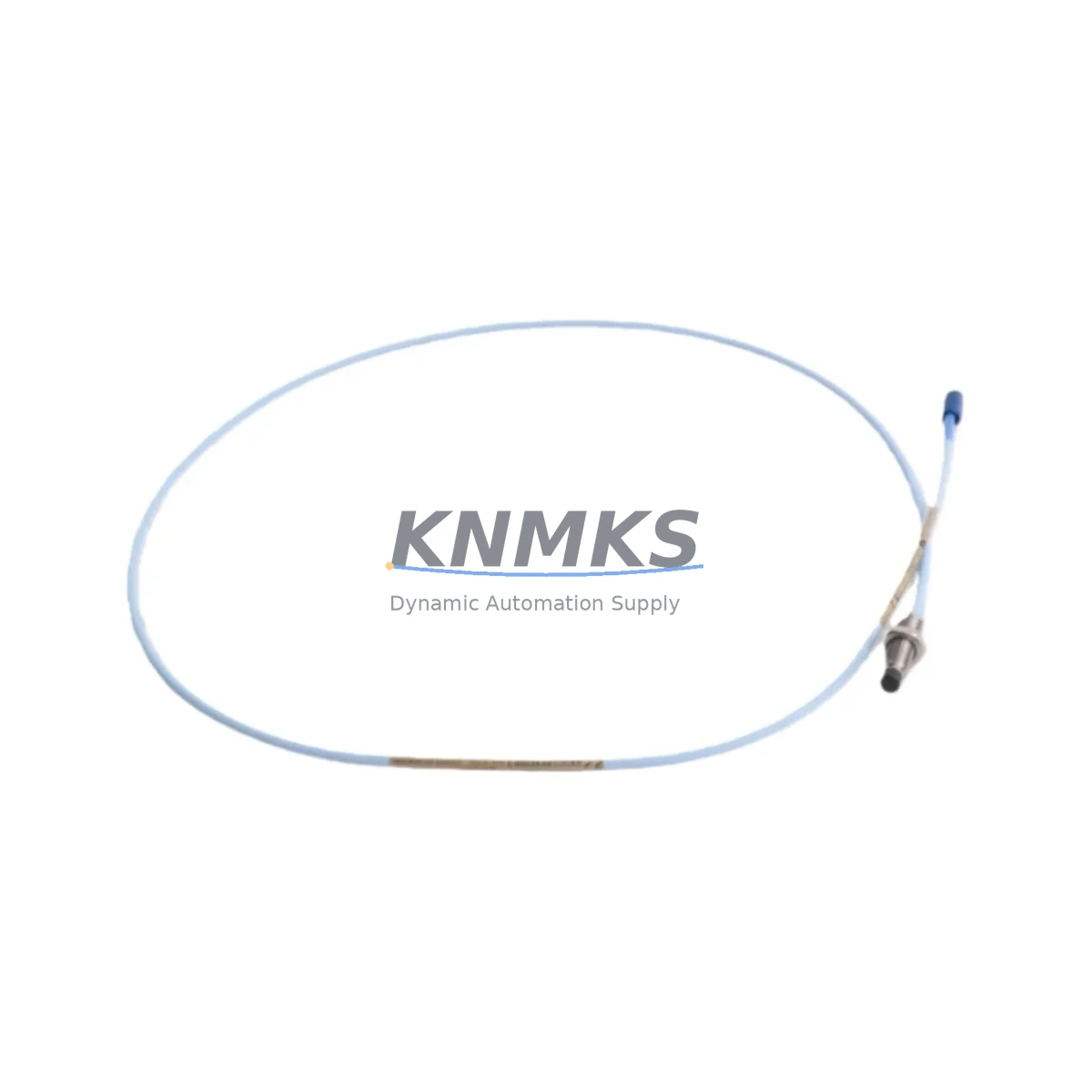

Bently Nevada 330103-00-04-10-12-CN Proximity Probe

Overview

Bently Nevada 330103-00-04-10-12-CN Proximity Probe: Migration-Ready Replacement for Legacy Vibration Monitoring Systems

The Bently Nevada 330103-00-04-10-12-CN is an 8mm eddy-current proximity probe designed for the 3300 XL Series machinery protection platform. As aging vibration monitoring infrastructure reaches end-of-life across petrochemical, power generation, and rotating equipment facilities, this probe serves as a verified drop-in replacement for decommissioned or obsolete field sensors — enabling engineers to restore full system functionality without replacing the entire monitoring chain.

This unit is fully compatible with the Bently Nevada 3300 XL monitor rack, including the 3300/16 and 3300/20 series monitor cards. The probe operates on the standard Bently Nevada proximitor/extension cable architecture, meaning existing field wiring, conduit runs, and terminal block assignments can typically be preserved during swap-out. Before installation, engineers should confirm the proximitor model in use — commonly the 330180 or 330130 series — to ensure the gap voltage range and sensitivity factor (V/mm) remain within calibrated limits for the target machine train.

When retrofitting into legacy control cabinets, the 330103-00-04-10-12-CN integrates with standard DIN-rail mounted terminal blocks and requires no modification to existing cable shield grounding schemes. The probe tip-to-target gap should be set between 1.0 mm and 1.5 mm (approximately -10 VDC at midrange) using a calibrated gap tool, consistent with Bently Nevada field commissioning procedures for 8mm probes.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful migration of a Bently Nevada proximity probe system requires a structured approach that accounts for the full signal chain — from the probe tip through the proximitor, extension cable, monitor rack, and ultimately to the plant DCS or safety PLC. In most legacy installations, the 330103-00-04-10-12-CN is paired with a 330130-045-00-00 or 330180-X1-05 proximitor mounted near the machine, connected via a matched extension cable such as the 330130-080-00-00. Engineers should verify that the total cable system length does not exceed the proximitor’s rated range, as impedance mismatch can cause calibration drift and false alarms on the 3300 XL monitor card.

Within the control cabinet, the monitor rack’s analog output channels feed into the plant’s distributed control system via standard 4–20 mA signal loops. If the facility is migrating from an older Bently Nevada 3500 Series rack to the 3300 XL platform, the I/O mapping and channel address assignments in the DCS historian must be updated to reflect the new rack slot configuration. This is particularly important when the vibration data feeds into a GE Mark VI or Emerson DeltaV controller, where tag names and alarm setpoints are tied to specific I/O module addresses.

For facilities running legacy HMI screens built on Wonderware InTouch or Rockwell FactoryTalk, the vibration trend displays and alarm banners linked to the old probe channels will need to be remapped to the new signal source. This is typically a low-risk change but should be validated in simulation mode before live cutover. Signal isolators may be required if the new probe signal is shared between the machinery protection system and a secondary SCADA historian to prevent ground loop interference.

Where installation space is constrained — particularly in older turbine control cabinets with limited conduit clearance — the compact form factor of the 330103-00-04-10-12-CN (1.0m probe body) simplifies routing compared to longer probe assemblies. Confirm that the mounting boss thread (M10 x 1.0) matches the existing bracket before ordering, and verify that the target material (typically 4140 steel shaft) is within the probe’s calibrated material range.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement is a primary concern for rotating equipment engineers. The 330103-00-04-10-12-CN is designed for rapid field swap-out: the coaxial connector interface allows the probe to be disconnected and reconnected without disturbing the extension cable or proximitor wiring, reducing hands-on time at the machine to under 30 minutes in most installations.

Before initiating the swap, the original program logic in the machinery protection system should be documented — including alarm setpoints, danger thresholds, and bypass relay states — so that post-installation verification can confirm that no logic changes occurred during the hardware replacement. If the monitor card supports online configuration (as with the 3300/16 with a Bently Nevada System 1 software connection), the channel can be placed in bypass mode during probe replacement to prevent spurious trips to the turbine trip relay or emergency shutdown system.

For facilities with redundant probe configurations (X-Y radial vibration pairs), the replacement can often be staged: one probe is replaced and verified while the second remains in service, maintaining continuous vibration monitoring throughout the process. After installation, a full gap calibration check, cable continuity test, and monitor card channel verification should be completed before removing the bypass. Final commissioning should include a slow-roll vibration baseline to confirm that the new probe output matches historical trend data within acceptable tolerance.

KNMKS maintains ready stock of the 330103-00-04-10-12-CN and associated proximitor/extension cable assemblies to support emergency replacement scenarios. All units are functionally tested prior to shipment, with a test report available upon request. Standard lead time is 3–7 business days for international destinations, with expedited options available for critical plant shutdowns.

Retrofit Support FAQ

Q1: Is the 330103-00-04-10-12-CN a direct replacement for my existing Bently Nevada 8mm probe?
A: Yes, provided your existing installation uses the standard Bently Nevada 3300 XL monitor platform and a compatible 330130 or 330180 series proximitor. The probe connector, sensitivity factor, and gap voltage characteristics are consistent with the original Bently Nevada specification. Confirm the proximitor model and total cable system length before installation.

Q2: What commissioning steps are required after installing this probe?
A: After mechanical installation, set the probe gap to achieve approximately -10 VDC at the proximitor output (1.0–1.5 mm tip-to-target). Verify cable continuity and shield grounding, confirm the monitor card channel is correctly assigned, and check that alarm setpoints are restored to pre-replacement values. A slow-roll baseline vibration reading is recommended to validate signal quality.

Q3: Can this probe be used with a Bently Nevada 3500 Series rack?
A: The 330103-00-04-10-12-CN is specified for the 3300 XL platform. While the physical connector is similar, the 3500 Series uses a different proximitor and calibration standard. Cross-platform use requires verification of sensitivity factor compatibility and is not recommended without engineering review.

Q4: What support terms and testing does KNMKS provide?
A: All units carry a support terms confirmed by quotation covering manufacturing defects and functional performance. Each probe is tested prior to shipment, and a functional test report is available upon request. KNMKS maintains inventory for rapid dispatch to support planned maintenance and emergency replacement requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-04-10-12-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-04-10-12-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
