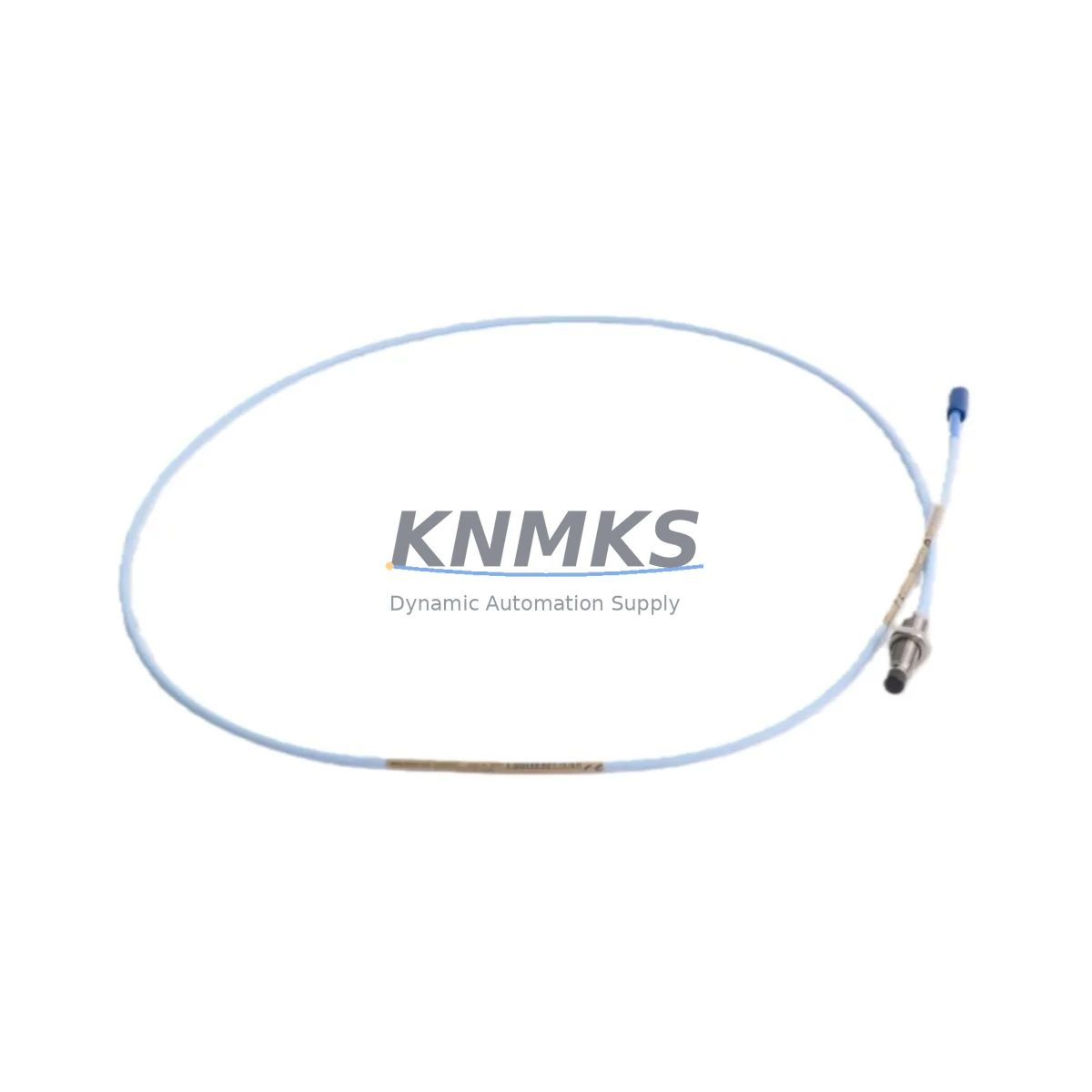

Bently Nevada 330103-00-04-10-12-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330103-00-04-10-12-05 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330103-00-04-10-12-05 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this probe delivers stable, drift-free output signals even under severe electromagnetic interference, high-temperature cycling, mechanical vibration, and corrosive or moisture-laden atmospheres. For plant engineers and reliability teams responsible for critical rotating assets — turbines, compressors, pumps, and motors — the 330103-00-04-10-12-05 represents a proven, drop-in replacement that eliminates unplanned downtime and safeguards personnel and equipment.

The probe operates within the Bently Nevada 3300 XL proximity system architecture, which pairs the sensing element with a compatible 3300 XL extension cable and a 3300 XL proximitor sensor (driver). This three-component measurement chain is calibrated as a matched set, ensuring signal linearity and system accuracy across the full operating gap range. The 330103-00-04-10-12-05 features a 4-metre (approximately 13-foot) integral cable, a 10-32 UNF reverse-mount thread, and a stainless-steel housing rated for continuous immersion in lubricating oil and process fluids. Its output sensitivity of 200 mV/mil (7.87 V/mm) is fully compatible with Bently Nevada 3500 Series rack-mounted monitoring systems, enabling seamless integration into existing machinery protection infrastructure without recalibration or signal conditioning changes.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330103-00-04-10-12-05 proximity probe is never deployed in isolation. Its signal integrity depends on the quality of the entire measurement chain and the robustness of the surrounding protection architecture. The probe connects via a matched Bently Nevada 330130 extension cable, which maintains the coaxial impedance and shielding continuity required for accurate eddy-current measurement over long cable runs in high-EMI environments such as motor control centers and variable-frequency drive (VFD) enclosures.

At the rack level, the Bently Nevada 3500/40M proximitor I/O module conditions the probe signal and provides configurable alert and danger setpoints for radial vibration, axial position, and differential expansion. For power supply redundancy — a non-negotiable requirement in SIL-rated safety loops — the Bently Nevada 3500/15 power supply module with dual-input redundancy ensures that a single power source failure does not interrupt the protection system. In high-vibration or high-temperature cabinets, supplementary thermal management using cabinet-mounted heat exchangers and vibration-damped DIN rail mounting hardware further extends the service life of all installed components.

For plants operating Bently Nevada 3500 Series racks alongside Emerson Ovation or DeltaV distributed control systems, the 3500/22M transient data interface module provides high-speed waveform capture and Modbus/TCP or OPC-UA communication to the plant historian, enabling predictive maintenance decisions based on real-time spectral data rather than periodic manual readings. This integrated approach — probe, extension cable, proximitor, I/O module, redundant power supply, and DCS interface — forms a complete, fail-safe vibration monitoring loop that minimizes the risk of undetected shaft rubs, bearing failures, and catastrophic rotor events.

Critical Industrial Safety Applications

The Bently Nevada 330103-00-04-10-12-05 is qualified for use in the most safety-critical rotating machinery applications across heavy industry. In petrochemical and refinery environments, it monitors radial shaft vibration on centrifugal compressors, steam turbines, and boiler feed pumps operating in classified hazardous areas, where an undetected bearing failure or rotor imbalance can escalate to a process safety incident. The probe’s stainless-steel construction and oil-immersion rating make it suitable for direct installation in gearbox housings and bearing pedestals exposed to hot lubricating oil at temperatures exceeding 150°C.

In power generation — including coal-fired, gas turbine, and hydroelectric plants — the 330103-00-04-10-12-05 is used in turbine supervisory instrumentation (TSI) systems to monitor shaft eccentricity, differential expansion, and thrust position on large turbogenerators. These measurements feed directly into the turbine protection system (TPS), where a danger-level trip signal initiates an automatic shutdown to prevent catastrophic blade or seal damage. In mining and mineral processing, the probe monitors crusher drives, ball mill pinion bearings, and slurry pump shafts in environments characterized by extreme dust loading, high ambient vibration, and frequent wash-down cycles — conditions that would rapidly degrade inferior sensing technologies.

Water and wastewater treatment facilities rely on the 3300 XL proximity system to protect large vertical turbine pumps and blower trains that must operate continuously with minimal maintenance intervention. In metallurgical plants — including electric arc furnace (EAF) facilities and rolling mills — the probe’s immunity to electromagnetic interference from high-current bus bars and induction heating systems ensures reliable signal transmission without false trips or missed alarms. Port and marine applications, including shipboard propulsion systems and crane drive monitoring, benefit from the probe’s resistance to salt-laden air and mechanical shock.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330103-00-04-10-12-05?
The support terms confirmed by quotation cover all manufacturing defects, signal output failures, and housing integrity issues from the date of shipment. Each unit undergoes pre-shipment functional testing, including gap voltage verification and cable continuity checks, with test records available upon request. Support requests are processed with priority turnaround to minimize plant downtime.

Q2: Is the 330103-00-04-10-12-05 compatible with existing Bently Nevada 3500 Series monitoring racks?
Yes. The 330103-00-04-10-12-05 is fully compatible with Bently Nevada 3500 Series I/O modules, including the 3500/40M and 3500/42M proximitor input cards, when used with the correct matched extension cable (330130 series). No recalibration of the monitoring rack is required when replacing a like-for-like probe in the same measurement chain.

Q3: Can this probe be used in SIL-rated safety instrumented systems (SIS)?
The Bently Nevada 3300 XL proximity system has been applied in SIL 1 and SIL 2 machinery protection loops in accordance with IEC 61511. For formal SIL validation, the complete measurement chain — probe, extension cable, and proximitor — must be assessed as a subsystem. We recommend consulting the Bently Nevada functional safety manual and engaging a certified functional safety engineer (CFSE) for SIS design verification.

Q4: What is your long-term supply commitment for this part?
We maintain dedicated stock of the 330103-00-04-10-12-05 and related 3300 XL series components to support long-term maintenance and turnaround planning. For customers with annual maintenance schedules or multi-year supply agreements, we offer reserved inventory allocation and priority fulfillment to ensure parts availability aligns with planned outage windows. Contact our team to discuss blanket order arrangements.

—
