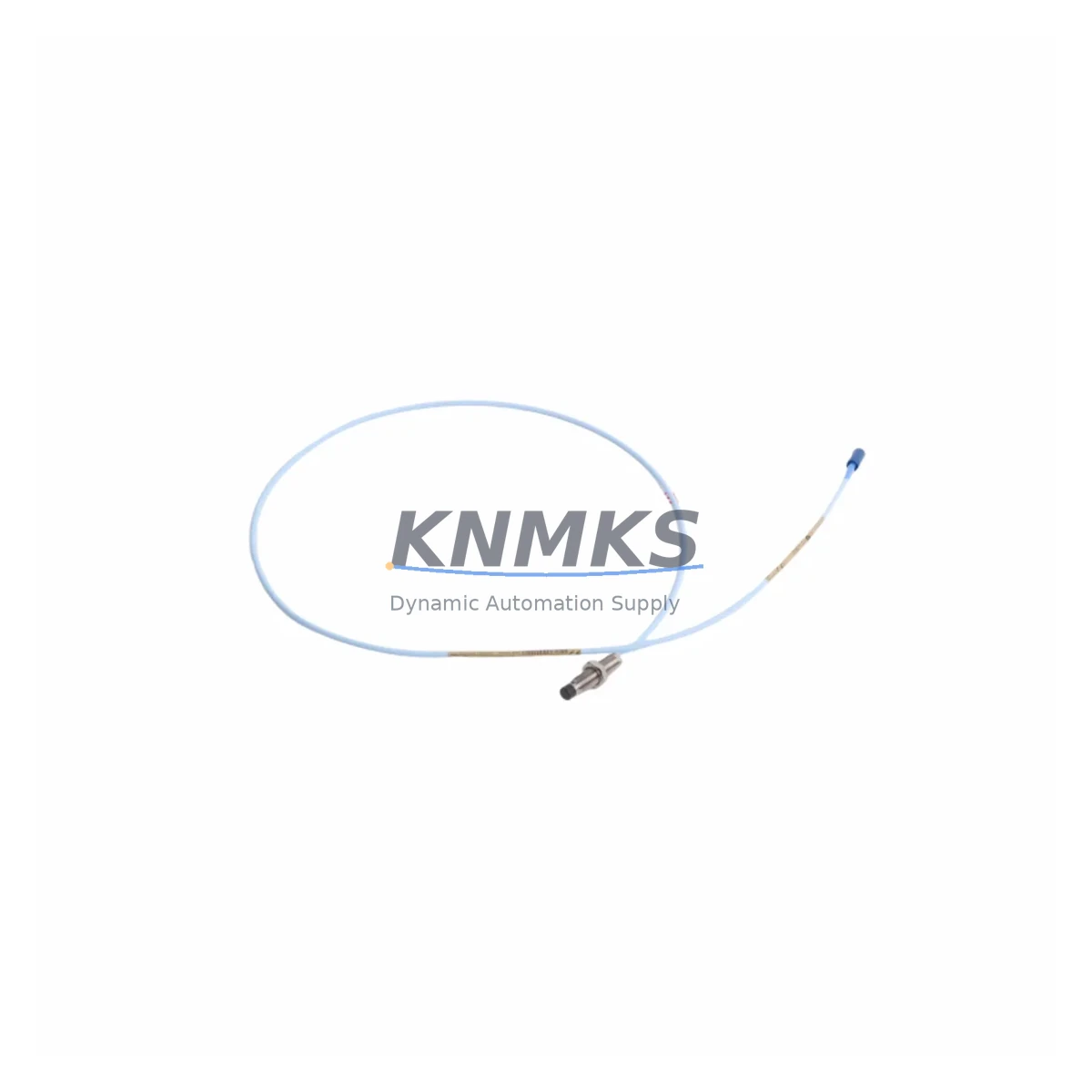

Bently Nevada 330103-00-04-10-12-00 Migration-Ready Proximity Transducer

Overview

Bently Nevada 330103-00-04-10-12-00 Migration-Ready Proximity Transducer: Legacy System Migration and Compatible Upgrade

The Bently Nevada 330103-00-04-10-12-00 is a 3300 XL Series eddy-current proximity transducer engineered for continuous shaft vibration and position monitoring in rotating machinery protection systems. As legacy Bently Nevada 3300 Series installations approach end-of-service life, plant engineers and reliability teams face increasing pressure to source verified drop-in replacements that maintain signal integrity, preserve existing wiring infrastructure, and avoid costly control system revalidation. This unit is stocked and pre-shipment tested to meet those demands, with a support terms confirmed by quotation and fast global dispatch to minimize unplanned downtime exposure.

The 330103-00-04-10-12-00 is a 5-metre extension cable system transducer, designed for use with the 3300 XL proximitor/sensor system. It operates on the standard Bently Nevada eddy-current measurement principle, delivering a linear output voltage proportional to the gap between the probe tip and the observed shaft surface. When replacing a failed or end-of-life unit, engineers must confirm the existing proximitor model — typically a 330180 or 330130 Series proximitor — remains compatible with the replacement probe, as mismatched system components will produce calibration errors and false trip conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330103-00-04-10-12-00 within an active machinery protection system requires a structured approach to avoid introducing new failure modes during the changeover. The most common retrofit scenario involves a Bently Nevada 3500 Series rack-based monitoring system, where the proximity transducer feeds directly into a 3500/40M or 3500/42M vibration monitor module. Before removing the failed probe, maintenance teams should document the existing gap voltage reading, confirm the proximitor power supply rail (typically -24 VDC from the 3500 rack power supply module), and verify that the armour cable routing and junction box connections are intact.

In installations where the 3300 XL proximitor — such as the 330180-51-05 — has also been flagged for replacement, it is advisable to replace the probe and proximitor as a matched system rather than individually. Mismatched probe-proximitor combinations within the 3300 XL ecosystem can introduce scale factor errors that will not be caught by standard rack self-test routines. If the site is also upgrading from a legacy 3300 rack to a 3500 Series rack, the I/O terminal block wiring assignments must be remapped, as the two rack families use different channel-to-terminal conventions.

For plants running Bently Nevada System 1 condition monitoring software, the transducer replacement should be followed by a database point update to reflect the new probe serial number and calibration constants. Where the control narrative feeds vibration trip signals into a DCS — such as a Honeywell Experion PKS or an Emerson DeltaV system — the analog input card receiving the 4–20 mA converted signal should be verified for range scaling consistency after the probe swap. Signal isolators installed between the proximitor output and the DCS analog input card may require re-zeroing if the new probe’s gap voltage at the operating position differs from the previous unit.

In multi-shaft train applications — such as compressor trains with a driver, gearbox, and driven machine — replacing a single transducer on one shaft journal requires the maintenance team to confirm that the overall system trip logic remains coherent. Bently Nevada 3500/20 keyphasor modules and their associated keyphasor probes should be checked for signal continuity after any wiring disturbance in the junction box, as keyphasor signal loss will suppress all relative vibration readings across the affected rack channels.

Downtime Control During System Migration

Minimising production downtime during a proximity transducer replacement depends on preparation quality rather than execution speed. The 330103-00-04-10-12-00 is supplied pre-tested and factory-calibrated, which eliminates the most time-consuming on-site step — initial output verification against a calibrated gap standard. With a verified unit in hand, a trained technician can complete a like-for-like probe replacement, re-gap to the target voltage, and restore the monitor channel to normal operation within a planned maintenance window of two to four hours, depending on access conditions.

Where the replacement must be performed online — on a machine that cannot be taken offline — the 3500 rack’s channel bypass function should be used to suppress the trip output on the affected channel while the probe is changed. This prevents a spurious machinery trip during the brief period when the probe is disconnected. The bypass must be logged, time-limited, and cleared immediately after the new probe is gapped and the output voltage confirmed within the normal operating band. Original program logic in the 3500 rack requires no modification for a like-for-like probe replacement; only the gap adjustment and output verification steps are required at commissioning.

For sites where the transducer failure has already caused an unplanned shutdown, the priority is restoring the protection system to a fully armed state before restarting the machine. This means the replacement probe must be gapped, the monitor channel must be taken out of bypass, and the rack self-test must be run and cleared before the machine is released for start-up. Keeping a verified spare 330103-00-04-10-12-00 in the site critical spares inventory — alongside matched proximitor and extension cable assemblies — is the most effective strategy for controlling mean time to repair on future events.

Retrofit Support FAQ

Q: Is the 330103-00-04-10-12-00 a direct drop-in replacement for the original 3300 Series probe of the same cable length?
A: Yes. The 3300 XL series maintains dimensional and electrical compatibility with the original 3300 Series probes of equivalent cable length. The M10 x 1 thread, 8 mm tip diameter, and -18 VDC nominal output are unchanged. Re-gapping at installation is required regardless of the source unit.

Q: Does this unit require any wiring changes at the junction box or proximitor terminal?
A: No wiring changes are required for a like-for-like replacement. The coaxial cable connector and armour termination are identical to the original 3300 Series configuration. If the proximitor is also being replaced, verify terminal assignments against the 3300 XL installation drawing for the specific proximitor model.

Q: What pre-shipment testing is performed on this unit?
A: Each 330103-00-04-10-12-00 is functionally tested prior to dispatch. Output voltage linearity is verified against a calibrated gap standard, and the coaxial cable assembly is checked for continuity and insulation integrity. A test certificate is available on request.

Q: What support terms and stock availability does KNMKS provide for this part?
A: This unit carries a support terms confirmed by quotation from the date of dispatch. Stock is maintained across multiple locations to support emergency replacement requirements. Orders are processed for fast global dispatch. Contact [email protected] or +86 18359268345 for lead time confirmation and volume pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-04-10-12-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-04-10-12-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
