Bently Nevada 330103-00-04-10-02-CN 3300 XL Probe: Migration-Ready Eddy-Current Solution for Legacy Vibration Monitoring Systems

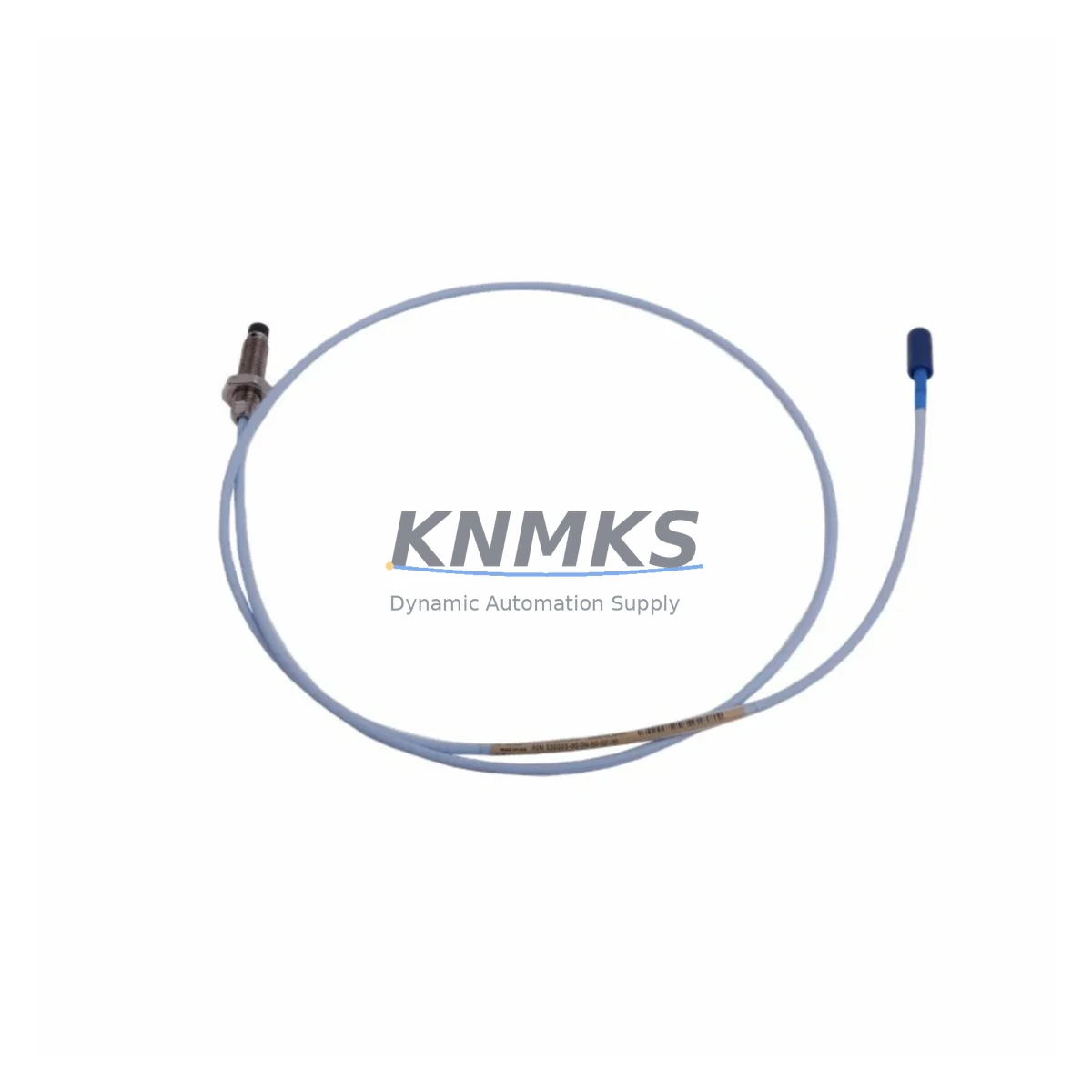

The Bently Nevada 330103-00-04-10-02-CN is an 8mm eddy-current proximity probe designed for the 3300 XL series continuous vibration monitoring platform. As aging machinery protection systems approach end-of-life or face discontinued spare parts availability, this probe serves as a direct retrofit replacement for legacy 3300 series installations, enabling facilities to extend operational continuity without full system overhaul. Whether you are managing a turbine protection rack, a compressor monitoring cabinet, or a pump vibration loop, the 330103-00-04-10-02-CN integrates into existing wiring infrastructure with minimal field modification.

This probe is engineered to interface with the Bently Nevada 3300 XL proximitor/extension cable system. It operates within the standard -24 VDC bias voltage range and delivers a linear output of -7.87 V/mm (200 mV/mil), maintaining full signal compatibility with installed 3300 XL monitors such as the 3300/16 and 3300/20 rack-mounted cards. When replacing a failed or end-of-life probe in an existing loop, engineers must verify the total system scale factor, confirm the extension cable length (typically 5m or 9m), and ensure the proximitor model — commonly the 330180 or 330130 series — matches the probe’s gap range and sensitivity specification.

For facilities operating legacy Bently Nevada 7200 series or older 3300 standard (non-XL) probes, the 330103-00-04-10-02-CN is not a direct cross-series replacement without recalibration. In such migration scenarios, the entire transducer loop — probe, extension cable, and proximitor — must be replaced as a matched set to maintain API 670 compliance and avoid false trip conditions. The 330130-045-00-05 proximitor and 330130-080-00-05 extension cable are commonly paired with this probe in new retrofit installations.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330103-00-04-10-02-CN into a legacy vibration monitoring loop requires a structured pre-installation audit. Begin by documenting the existing transducer loop: record the installed proximitor model number (e.g., 330180-51-00 or 330130-045-00-05), the extension cable part number, and the current gap voltage reading at the monitor terminal. This baseline allows the commissioning engineer to confirm that the replacement probe will restore the loop to its original calibrated state without triggering nuisance alarms or bypassing protection logic.

In control cabinets where multiple 3300 XL monitor cards are installed — such as combined radial vibration, axial position, and phase reference channels — it is critical to isolate only the affected channel during probe replacement. The 3300/16 dual-channel vibration monitor and 3300/20 four-channel monitor both support individual channel bypass via the front-panel keyswitch or DCS inhibit signal, allowing maintenance to proceed without shutting down adjacent protection channels. Coordinate with the DCS operator to confirm the inhibit status is logged and time-stamped before disconnecting the probe cable.

When the retrofit involves migrating from an older 3300 standard (non-XL) rack to a 3300 XL platform, additional planning is required. The rack backplane pinout and power distribution differ between generations, and the 3300 XL power supply module — typically the 3300/05 or 3300/10 — must be verified for adequate current capacity to support the full complement of installed monitor cards and transducer loops. If the existing installation includes a 3300/55 keyphasor module or a 3300/95 communication gateway, confirm that these modules are compatible with the XL-generation rack before committing to the migration plan.

For facilities that also operate Bently Nevada 3500 series racks in adjacent machinery trains, the 330103-00-04-10-02-CN probe can be used in 3500 series loops provided the paired proximitor is a 3500-compatible model such as the 330180 or 330130 series with appropriate firmware. The 3500/42M six-channel monitor and 3500/40M proximitor I/O module are commonly encountered in such hybrid installations. Signal isolation between the 3300 XL and 3500 racks should be verified at the junction box level to prevent ground loop interference, particularly in high-noise environments near variable frequency drives or large motor starters.

Where I/O expansion is part of the retrofit scope — for example, adding a new radial vibration channel to an existing machinery protection system — the 330103-00-04-10-02-CN can be installed in a new probe bracket alongside existing sensors without disrupting the live channels. Ensure the new bracket is machined to the correct probe bore diameter and that the installation depth allows the probe tip to achieve the nominal 1.0mm gap to the shaft surface. A signal isolator or barrier may be required if the new channel is routed through a hazardous area junction box.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires preparation that begins well before the maintenance window opens. The most effective approach is to pre-stage all replacement components — probe, extension cable, proximitor, and connector hardware — and verify each item against the as-built loop documentation before the equipment is taken offline. A pre-shipment functional test report, provided with every 330103-00-04-10-02-CN unit shipped from our inventory, confirms that the probe meets sensitivity and linearity specifications and reduces the risk of discovering a defective component after the machine is already shut down.

During the replacement, protect the existing program logic and HMI configuration by placing the affected monitor channel in bypass mode rather than removing power from the entire rack. Most 3300 XL monitor cards support channel-level bypass without interrupting the rack’s communication link to the DCS or safety system. This preserves the HMI display for all other channels and avoids the need to re-acknowledge alarms or reconfigure setpoints after the maintenance is complete.

After installing the replacement probe and re-gapping to the nominal setpoint, perform a slow-roll check at low shaft speed to verify that the DC gap voltage is within the expected range (typically -10V to -12V at 1.0mm gap) before returning the channel to normal monitoring mode. If the installation is part of a broader control system upgrade that includes firmware updates to the 3300 XL monitor cards, schedule the firmware update as a separate step after the probe replacement has been verified, to isolate variables and simplify troubleshooting if any issue arises.

Our standard lead time for the 330103-00-04-10-02-CN is 3–7 business days from confirmed order, with expedited shipping available for emergency maintenance situations. Stocking a minimum of one spare probe per critical machinery train is recommended to eliminate procurement lead time as a factor in unplanned downtime events.

Retrofit Support FAQ

Q1: Is the 330103-00-04-10-02-CN a direct drop-in replacement for the standard (non-XL) 330103 series probe?
The 330103-00-04-10-02-CN is designed for the 3300 XL transducer system. While the physical probe dimensions are similar to earlier 330103 variants, the XL-series probe is calibrated as part of a matched system with the XL-series proximitor. Using this probe with a non-XL proximitor may result in a scale factor mismatch. Always replace the complete transducer loop (probe + extension cable + proximitor) when migrating between generations.

Q2: What commissioning steps are required after installing the replacement probe?
After mechanical installation, verify the DC gap voltage at the monitor terminal using a calibrated voltmeter. Adjust the probe position until the gap voltage falls within the linear range specified for your monitor card. Perform a slow-roll vibration check to confirm the dynamic signal is clean and free of electrical noise. Document the as-left gap voltage and compare it to the as-found value recorded before removal.

Q3: Can this probe be used in a hazardous area (Zone 1 / Division 1) installation?
The 330103-00-04-10-02-CN is not intrinsically safe as supplied. For hazardous area installations, a certified Zener barrier or galvanic isolator must be installed in the signal loop between the proximitor and the monitor card. Consult the applicable area classification documentation and confirm that the barrier model is approved for use with Bently Nevada 3300 XL transducer systems before installation.

Q4: What does the support terms confirmed by quotation cover, and what is included with shipment?
Every unit is covered by a support terms confirmed by quotation against manufacturing defects from the date of shipment. Each shipment includes a pre-shipment functional test report confirming sensitivity, linearity, and connector integrity. Support requests are processed within 5 business days of receipt of the returned unit. Expedited replacement units are available for critical machinery applications with confirmed downtime impact.
