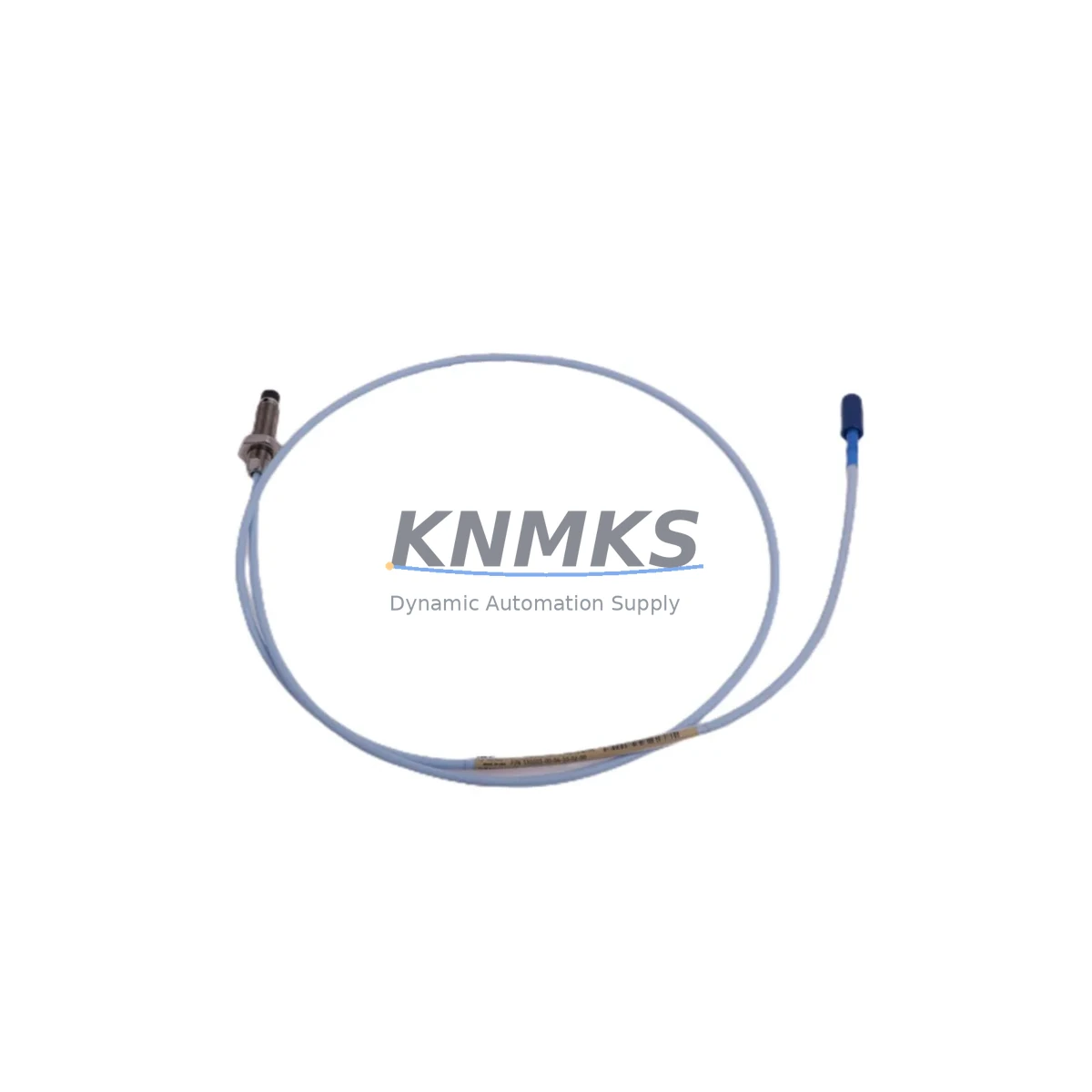

Bently Nevada 330103-00-04-10-02-00 Maintenance-Proven Spare Part

Overview

Bently Nevada 330103-00-04-10-02-00 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 330103-00-04-10-02-00 is an OEM 8mm proximity transducer from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery applications including turbines, compressors, pumps, and motors. As a direct original spare, this unit is fully compatible with Bently Nevada 3300 XL monitoring systems and delivers the measurement accuracy and signal integrity that maintenance engineers depend on for reliable machinery protection.

For maintenance and procurement engineers managing aging turbomachinery or critical rotating equipment, sourcing a verified original 330103-00-04-10-02-00 is essential. Counterfeit or non-OEM proximity transducers introduce calibration drift, signal noise, and false trip events that can cause unplanned shutdowns far more costly than the component itself. Every unit we supply is tested prior to dispatch and backed by a support terms confirmed by quotation, giving your maintenance team confidence in both the part and the supply chain.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330103-00-04-10-02-00 proximity probe in the field, a disciplined maintenance approach requires inspecting the entire measurement chain — not just the probe tip. The 3300 XL system uses a three-component architecture: the probe, the extension cable (such as the 330130 series), and the Proximitor sensor (such as the 330180 or 330190 series). A worn or damaged extension cable will introduce impedance mismatches that corrupt the output signal even with a new probe installed. Always inspect the extension cable connectors for corrosion, mechanical damage, and continuity before closing the junction box.

The Proximitor sensor itself should be checked for correct supply voltage (nominally -24 VDC) and verified against the system’s OK relay output. If the 3500 Series monitoring rack is in use, confirm that the corresponding 3500/42M or 3500/40M I/O module is correctly configured for the probe type and gap voltage range. Incorrect module configuration is a common source of nuisance trips after probe replacement.

For control cabinet inspections, verify that terminal blocks and signal wiring between the Proximitor and the rack are secure and free of ground loops. Signal isolation barriers or Zener barriers used in hazardous area installations should be tested for correct clamping voltage. Fuses protecting the -24 VDC supply rail to the Proximitor should be checked and replaced on a scheduled basis — a blown fuse will produce a valid-looking OK status on some older rack configurations while the measurement channel is actually dead.

Annual maintenance schedules for turbomachinery should include a full gap voltage verification for all installed 330103-00-04-10-02-00 probes, documented against the baseline established at commissioning. Probes showing gap voltage drift beyond ±0.5V from baseline should be flagged for replacement at the next planned outage. Maintaining a minimum of two spare probe assemblies per critical machine train is standard practice for facilities targeting less than 24-hour mean time to repair on vibration monitoring channels.

Site Replacement Workflow

1. Isolate and document: Before removing the existing probe, record the current gap voltage from the rack display or DCS historian. This baseline is essential for verifying correct installation of the replacement unit.

2. Remove and inspect: Unthread the probe from the bracket. Inspect the probe tip for mechanical damage, pitting, or contamination. Inspect the coaxial connector and the mating extension cable connector for corrosion or bent pins.

3. Install replacement: Thread the new 330103-00-04-10-02-00 into the bracket. Set the gap to the manufacturer-specified distance (typically 1.0–1.5mm for 8mm probes on steel targets). Tighten the locknut to the specified torque.

4. Verify gap voltage: Power the Proximitor and measure the output voltage at the rack terminal. Compare against the documented baseline. Acceptable gap voltage for this probe on a standard steel target is typically -10V to -11V at 1.0mm gap.

5. Confirm OK status and restore: Verify the OK relay is energized and the channel is reading correctly in the 3500 rack or DCS. Clear any latched alarms, restore the machine to service, and update the maintenance record.

This workflow minimizes downtime by ensuring the replacement is verified before the machine is returned to load, avoiding a second outage for re-work. Keeping a pre-tested 330103-00-04-10-02-00 in your on-site spare parts inventory reduces mean time to repair from days to hours.

Spare Parts Support FAQ

Q: Is the 330103-00-04-10-02-00 compatible with both the 3300 XL and 3500 Series monitoring systems?
A: The probe is natively designed for the 3300 XL Proximitor system. It can be used with the 3500 Series rack when paired with the appropriate 3500/40M or 3500/42M I/O module configured for 8mm probe parameters. Always verify module configuration before installation.

Q: How do you verify the part is genuine before shipment?
A: Each 330103-00-04-10-02-00 unit undergoes electrical testing including output voltage linearity check and connector integrity verification prior to dispatch. Units are supplied with original labeling and packaging where available. A support terms confirmed by quotation is provided on all units.

Q: What is your lead time and can you support long-term supply agreements?
A: Standard in-stock units are dispatched within 1–3 business days. For facilities requiring scheduled annual replenishment or blanket orders to support multi-machine fleets, long-term supply agreements are available. Contact [email protected] to discuss volume and scheduling requirements.

Q: Should the probe and extension cable be replaced together?
A: Bently Nevada recommends replacing the probe and extension cable as a matched, calibrated set whenever possible. If only the probe is replaced, the extension cable must be tested for correct impedance and the full system gap voltage must be re-verified. Mixing unmatched components can introduce measurement errors that are difficult to diagnose in the field.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

BENTLY NEVADA
Bently Nevada

Model / Series

330103-00-04-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: BENTLY NEVADA 330103-00-04-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
