Bently Nevada 330103-00-04-10-01-05 Maintenance-Proven Spare Part for Factory Uptime

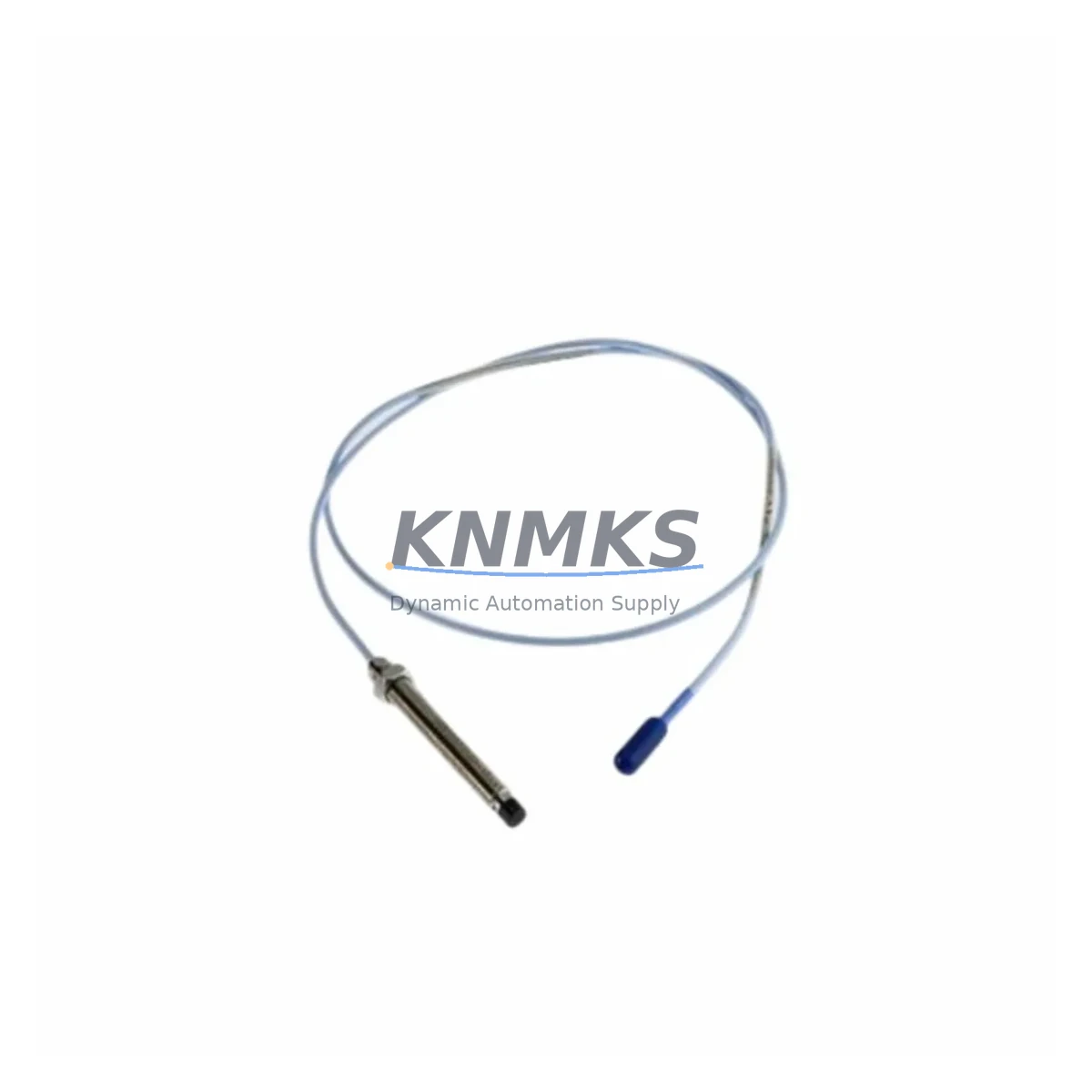

The Bently Nevada 330103-00-04-10-01-05 is an original 3300 XL Series proximity transducer engineered for continuous vibration monitoring in rotating machinery applications. Designed for use in turbines, compressors, pumps, and motors across oil & gas, power generation, petrochemical, and heavy manufacturing environments, this transducer delivers reliable shaft displacement measurement critical to predictive maintenance programs and machinery protection systems.

Maintenance engineers and procurement teams managing aging DCS or machinery protection infrastructure rely on this SKU to sustain uptime during scheduled outages, emergency replacements, and annual turnarounds. With multi-region stock availability, pre-shipment functional testing, and a support terms confirmed by quotation, the 330103-00-04-10-01-05 is a dependable choice for both emergency procurement and planned spare parts inventory replenishment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330103-00-04-10-01-05 proximity transducer during a planned outage or emergency shutdown, maintenance engineers should treat the replacement as part of a broader loop integrity check rather than a single-component swap. The 3300 XL transducer system is a three-component assembly: the probe, the extension cable, and the Proximitor driver. Replacing only the probe without verifying the condition of the paired 3300 XL Proximitor driver (e.g. 330180-X1-05) and the 3300 XL extension cable can result in calibration drift or false trip signals after restart.

During cabinet inspection, technicians should also verify the integrity of the Bently Nevada 3500/22M transient data interface or the relevant rack I/O module that receives the –24 VDC Proximitor output. Loose terminal connections, corroded barrier strips, or degraded shielded cable runs between the field junction box and the 3500 rack are common sources of noise that mimic probe failure. Checking the 3500 rack power supply module for stable –24 VDC output is a mandatory step before condemning a transducer.

For facilities running Bently Nevada 3500 Series machinery protection racks, the 3500/42M Proximitor I/O module should be inspected for channel alarm setpoints and OK relay status. If the system has been in service for more than five years, procurement teams should consider stocking a spare 3500/42M I/O module alongside the 330103-00-04-10-01-05 probe to cover both field and rack-side failure modes in a single maintenance event.

In rotating machinery applications where axial position monitoring is critical — such as steam turbines or centrifugal compressors — the 330130-080-00-00 thrust position probe is frequently installed in the same control cabinet. Annual inspection should include both radial vibration probes and thrust probes to ensure the full protection loop remains within calibration. Additionally, verifying the Keyphasor transducer (commonly the 330980 series) for signal quality ensures that phase-referenced vibration analysis remains accurate after any probe replacement.

Procurement engineers should maintain a minimum of two 330103-00-04-10-01-05 units in on-site spare inventory for critical rotating assets. Given the end-of-production status of many 3300 XL components, securing long-term supply agreements with verified distributors reduces the risk of extended lead times during unplanned outages.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the machinery protection loop at the 3500 rack. Confirm the OK relay status is de-energized before disconnecting the field probe.

Step 2 — Probe Removal: Disconnect the extension cable at the field junction box. Remove the 330103-00-04-10-01-05 probe from the bearing housing bracket, noting the gap voltage reading (typically –10.0 VDC ±0.5 VDC at nominal gap) for reference during reinstallation.

Step 3 — Inspection: Inspect the probe tip for mechanical damage, corrosion, or contamination. Inspect the extension cable connector for pin damage or moisture ingress. Replace the extension cable if continuity or insulation resistance is out of specification.

Step 4 — Installation: Install the replacement 330103-00-04-10-01-05 probe. Set the air gap per the 3300 XL calibration curve (typically 1.0 mm / 40 mil for –10.0 VDC output). Torque the locknut to the manufacturer’s specification.

Step 5 — Loop Verification: Reconnect the extension cable and Proximitor. Power up the Proximitor and verify the gap voltage at the 3500 rack terminal. Confirm the OK relay energizes and alarm setpoints are within the configured band.

Step 6 — Return to Service: Clear the work permit, restore the protection loop, and log the replacement in the CMMS with the new probe serial number and gap voltage reading. Update the spare parts inventory record.

This workflow minimizes downtime by ensuring the replacement is fully verified before the machine is returned to service, avoiding repeat shutdowns caused by incomplete commissioning.

Spare Parts Support FAQ

Q1: Is the 330103-00-04-10-01-05 a direct drop-in replacement for older 3300 XL probes?
Yes. The 330103-00-04-10-01-05 is fully compatible with the Bently Nevada 3300 XL Proximitor system and is a direct replacement for earlier 3300 XL probe variants with the same tip diameter and cable configuration. Always verify the gap voltage calibration after installation to confirm the replacement is within specification for your specific application.

Q2: What pre-shipment testing is performed on this unit?
Each 330103-00-04-10-01-05 unit undergoes functional verification prior to dispatch, including output sensitivity check and insulation resistance test. Units are shipped with test documentation. The support terms confirmed by quotation cover functional defects identified after installation under normal operating conditions.

Q3: How should this SKU be managed in a long-term spare parts inventory strategy?
Given the age of the 3300 XL platform, procurement engineers should classify the 330103-00-04-10-01-05 as a critical long-lead spare and maintain a minimum of two units per critical rotating asset. Establishing a supply agreement with a verified distributor ensures priority access during peak demand periods or unplanned outages when market availability may be constrained.

Q4: Can this transducer be used with non-Bently Nevada monitoring systems?
The 330103-00-04-10-01-05 is designed for use with the Bently Nevada 3300 XL Proximitor driver. While the eddy-current output signal (–200 mV/mil) is a standard format, compatibility with third-party monitoring systems depends on the input impedance and signal conditioning of the receiving module. Consult your system integrator or contact our technical team to confirm compatibility before installation in a non-Bently Nevada rack.
