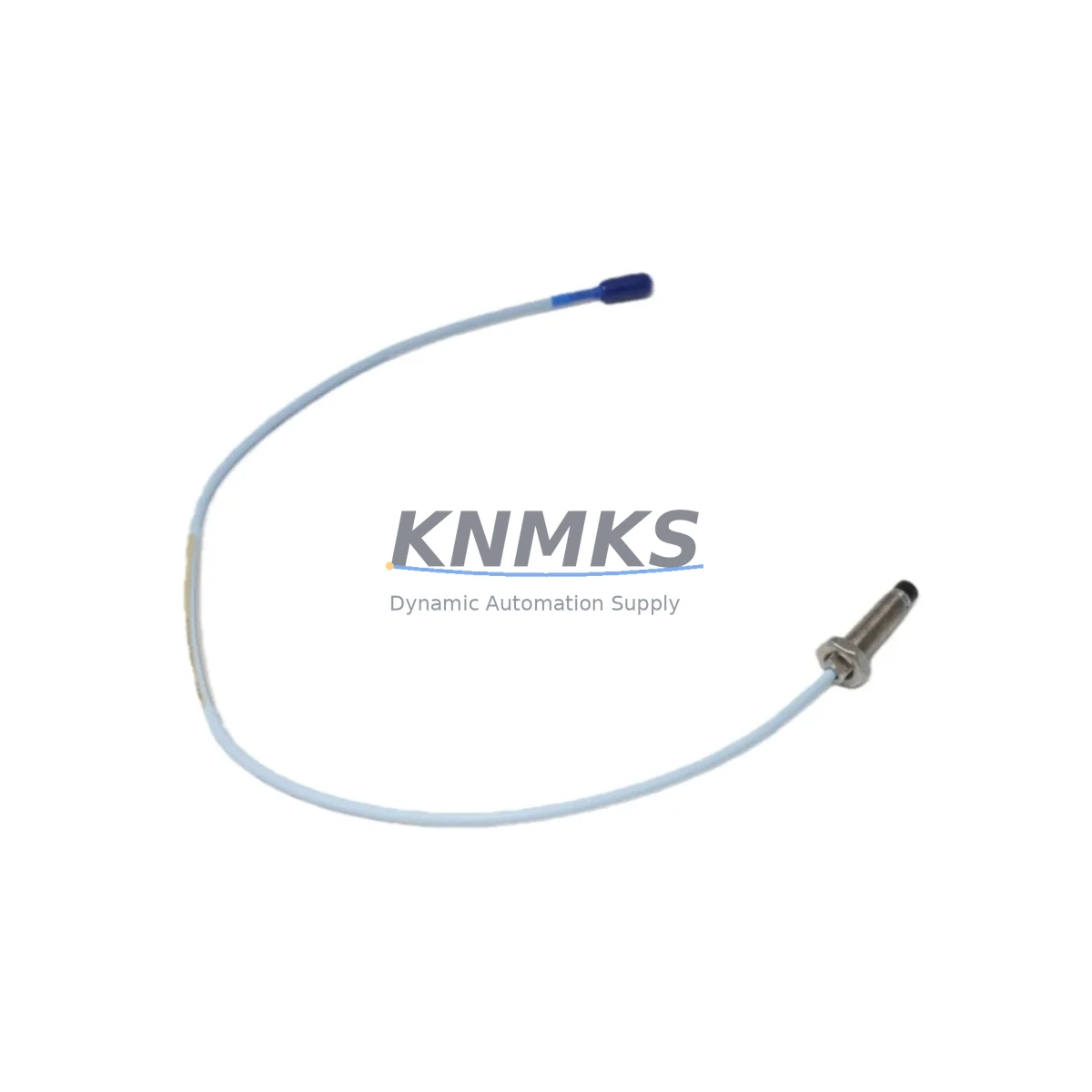

Bently Nevada 330103-00-04-05-12-05 Retrofit Proximity Probe

Overview

Bently Nevada 330103-00-04-05-12-05 Retrofit Proximity Probe: Migration-Ready Replacement for Legacy 3300 XL Vibration Monitoring Systems

The Bently Nevada 330103-00-04-05-12-05 is a 3300 XL Series eddy current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery applications. As legacy Bently Nevada 3300 Series systems approach end-of-service life across turbines, compressors, pumps, and gearboxes, this probe serves as a verified, migration-ready replacement that preserves existing wiring infrastructure, signal conditioning architecture, and monitor compatibility without requiring full system redesign.

For maintenance engineers and reliability teams managing aging control cabinets, the 330103-00-04-05-12-05 offers a direct retrofit path into operational 3300 XL monitor racks. The probe’s 5-meter (extension cable) and 1.2-meter (probe cable) configuration is factory-matched to work with the 3300 XL 8-mm proximity transducer system, maintaining the standard -24 VDC bias voltage output and linear range required by installed Bently Nevada 3300/20 or 3300/16 monitors. Before installation, engineers should confirm the existing Proximitor® sensor model — typically a 330180 or 330130 series — to ensure the probe-extension-Proximitor combination remains within the qualified system gap voltage range of -2 VDC to -18 VDC.

Terminal wiring during replacement requires careful attention to the three-conductor shielded cable: the center conductor (CON), shield (SHD), and drain wire must be reconnected to the Proximitor sensor terminal block in the correct orientation. Incorrect polarity or shield grounding at both ends will introduce noise into the vibration signal and trigger false alerts on the 3300 XL monitor. It is strongly recommended to verify gap voltage at the Proximitor output terminal (typically between -9 VDC and -11 VDC at nominal air gap) before returning the machine to service.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330103-00-04-05-12-05 into a legacy control environment requires a structured pre-replacement audit. Begin by documenting the existing probe mounting bracket thread size and standoff distance — the 8 mm probe tip must achieve the correct air gap (typically 1.0 mm to 2.25 mm for AISI 4140 targets) to remain within the Proximitor’s linear output range. If the existing bracket is corroded or dimensionally non-standard, a replacement stainless steel probe holder should be sourced concurrently to avoid delays during the maintenance window.

In control cabinets where the 3300 XL monitor rack also houses a 3300/20 Radial Vibration Monitor or a 3500/40M Proximitor Monitor, the channel configuration — including full-scale range, alert setpoints, and danger setpoints — must be recorded before probe removal. These parameters are stored in the monitor’s non-volatile memory but should be backed up via the System 1 condition monitoring software or the 3500 Rack Configuration Software prior to any hardware change. If the site runs an older 3300/16 monitor, confirm that the firmware version supports the sensitivity specification of the replacement probe (typically 7.87 V/mm or 200 mV/mil).

For plants migrating from the legacy 3300 Series to the newer 3500 Series rack architecture, the 330103-00-04-05-12-05 probe remains compatible when paired with the appropriate 3500-series Proximitor module, allowing a phased migration strategy where probes are retained while monitor cards are upgraded incrementally. This approach significantly reduces capital expenditure and limits the scope of I/O rewiring in the junction box. During this transition, the 330180-90-00 Proximitor sensor is commonly used as the signal conditioning interface between the probe and the upgraded monitor rack.

Where I/O expansion is required — for example, when adding axial position monitoring alongside existing radial vibration channels — a 3500/42M Proximitor Monitor can be added to the rack to accommodate additional probe inputs without replacing the existing wiring home runs. Signal isolation between channels should be verified to prevent ground loop interference, particularly in older facilities where cable routing passes through electrically noisy environments near VFDs or high-voltage switchgear.

For sites using a Bently Nevada TK-3 programming cable or equivalent USB-to-serial interface for monitor configuration, ensure the laptop running the configuration software is isolated from the plant network during parameter upload to prevent communication timeouts. After probe installation and gap setting, perform a full channel functional test: apply a known displacement using a calibrated target simulator or verify against a reference machine coast-down signature to confirm the channel is reading correctly before re-enabling protection trips.

Downtime Control During System Migration

Minimizing unplanned downtime during proximity probe replacement requires pre-staging all replacement components — including the 330103-00-04-05-12-05 probe, extension cable, and Proximitor sensor if applicable — at the work site before the maintenance window opens. A pre-verified spare, gap-set and bench-tested against a steel target, eliminates the most common source of installation delay: discovering a faulty component after the machine is already offline.

To protect existing program logic and HMI display configurations, inhibit the affected vibration channel in the 3300 XL or 3500 monitor before disconnecting the probe. This prevents spurious danger trips from propagating to the DCS or safety PLC during the swap. If the site’s control system interfaces with a Honeywell DCS or Emerson DeltaV via hardwired relay outputs from the Bently Nevada rack, coordinate with the control room operator to place the relevant interlock in bypass mode for the duration of the replacement.

After reinstallation, restore the channel from inhibit only after confirming the gap voltage is within specification and the vibration reading is stable at the expected baseline level for the machine’s normal operating speed. Document the as-found and as-left gap voltage readings in the maintenance management system (CMMS) to support future trend analysis and predictive maintenance scheduling. A structured commissioning checklist — covering gap voltage, sensitivity verification, alert/danger setpoint confirmation, and HMI channel label validation — should be completed and signed off before the machine is returned to automatic protection.

For critical machinery where even brief unmonitored operation is unacceptable, a temporary portable vibration monitor can be connected to the Proximitor output terminals during the swap to maintain continuous vibration surveillance. This approach is particularly valuable during hot standby changeovers on turbine-driven compressors or boiler feed pumps where protection system bypass duration must be minimized per site safety procedures.

Retrofit Support FAQ

Q1: Is the 330103-00-04-05-12-05 a direct drop-in replacement for my existing 3300 XL probe?
In most cases, yes — provided the existing installation uses an 8 mm probe system with a 1.2 m probe cable and 5 m extension cable, and the Proximitor sensor is a compatible 330180 or 330130 series unit. Always verify the probe-extension-Proximitor combination is a qualified system per Bently Nevada documentation before installation. Cable length variants (e.g., 8 ft or 25 ft extension) require a different part number suffix.

Q2: What pre-shipment testing is performed on this probe?
Each unit undergoes gap voltage output verification, sensitivity check (7.87 V/mm ± 10%), and insulation resistance testing before dispatch. A test report is available upon request. Units are shipped in anti-static packaging with protective tip covers to prevent damage in transit.

Q3: Can this probe be used with a 3500 Series monitor rack?
Yes. The 330103-00-04-05-12-05 is compatible with 3500 Series Proximitor monitors (e.g., 3500/40M, 3500/42M) when used as part of a qualified 3300 XL transducer system. Confirm the monitor’s input configuration is set for 8 mm probe sensitivity and that the Proximitor sensor model matches the qualified system combination.

Q4: What is the support terms coverage and what does it include?
All units are covered by a support terms confirmed by quotation from the shipment date. The support terms covers manufacturing defects, electrical performance outside published specifications, and physical defects present at time of delivery. It does not cover damage resulting from incorrect installation, improper gap setting, or operation outside the specified supply voltage range. Support requests are supported with replacement dispatch within 5 business days upon defect confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-04-05-12-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-04-05-12-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
