Bently Nevada 330103-00-04-05-02-00 Spare Part for Factory Uptime

Overview

Bently Nevada 330103-00-04-05-02-00 Spare Part for Factory Uptime

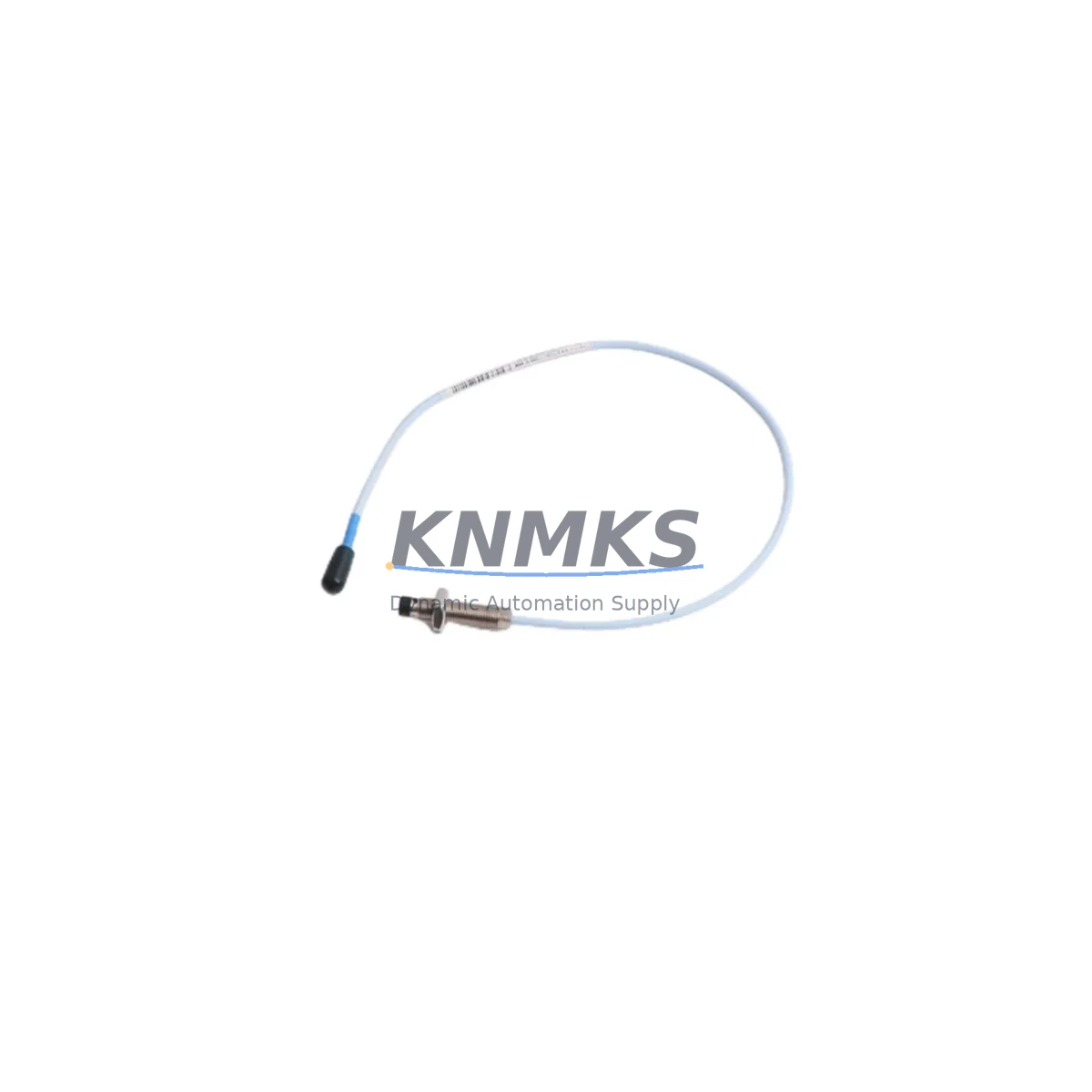

The Bently Nevada 330103-00-04-05-02-00 is a 5mm proximity probe designed for the 3300 XL Series continuous vibration monitoring system. In rotating machinery environments — turbines, compressors, pumps, and gearboxes — this probe is a critical sensing element for shaft radial vibration, axial position, and differential expansion measurement. Maintaining a verified spare on the shelf is the single most effective action a maintenance team can take to reduce unplanned downtime when a probe circuit fails during operation.

This unit ships as an original spare, pre-shipment tested against Bently Nevada 3300 XL system specifications, and is backed by a support terms confirmed by quotation covering manufacturing defects and electrical performance. Each unit is inspected for tip condition, cable integrity, connector seating, and output linearity before dispatch. Global shipping is available with lead times confirmed at order placement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330103-00-04-05-02-00 probe is replaced in the field, the maintenance scope should extend beyond the probe itself. The 3300 XL measurement chain is a system: probe, extension cable, and Proximitor sensor must all be verified together to restore accurate vibration data and avoid nuisance trips or missed fault detection.

Begin with the extension cable — the 330130 series extension cables are the most common failure point after the probe tip. Inspect for jacket damage, connector corrosion, and continuity. A degraded extension cable will introduce gap voltage errors even with a new probe installed. Next, verify the 3300 XL Proximitor Sensor (330180 series): check the -24 VDC supply rail, confirm the output voltage is within the linear range at the known gap, and inspect the terminal block connections for fretting corrosion.

At the control cabinet level, confirm the 3300 XL monitor module (such as the 3300/16 or 3300/20 series) is reading the correct gap voltage and that alarm setpoints have not drifted. If the cabinet houses a 3500 Series rack alongside legacy 3300 XL hardware, verify that the I/O module assignments and channel configurations are intact after any wiring disturbance. Check the terminal board connections and confirm that the barrier or isolator in the intrinsically safe circuit (where applicable) has not been compromised — a failed Zener barrier will clamp the probe output and produce a false low-vibration reading.

For sites running System 1 condition monitoring software, confirm that the channel tag, engineering unit scaling, and full-scale range are correctly mapped to the replacement probe’s sensitivity. A mismatch between software configuration and probe sensitivity (7.87 V/mm vs. 200 mV/mil unit selection) is a common post-replacement error that produces incorrect vibration amplitude readings without triggering a hardware fault.

Annual maintenance schedules should include a complete probe-to-monitor loop check: apply a known gap using a calibration fixture, verify the Proximitor output, and confirm the monitor display and System 1 trend match. This loop check validates the entire measurement chain and provides documented evidence of system health for compliance and insurance purposes. Stocking one spare 330103-00-04-05-02-00 probe, one matched extension cable, and one spare Proximitor sensor per critical machine train is the minimum recommended inventory posture for sites with uptime SLAs.

Site Replacement Workflow

1. Isolate and document. Before removing the failed probe, record the gap voltage from the Proximitor output (or monitor display) and photograph the probe mounting orientation and cable routing. This baseline is essential for post-installation verification.

2. Remove the failed probe. Loosen the locknut and unthread the probe body from the bracket. Disconnect the integral cable from the extension cable at the connector. Inspect the bracket threads and the target area surface for damage or contamination.

3. Install the replacement 330103-00-04-05-02-00. Thread the new probe to the same gap setting as the original (typically 1.0 mm / 40 mil for 5mm probes, per the machine OEM specification). Secure the locknut. Reconnect the extension cable — ensure the connector is fully seated and the locking sleeve is engaged.

4. Verify gap voltage. With the machine at rest, measure the Proximitor output voltage. For a 1.0 mm gap, the expected output is approximately -10.2 VDC (using 7.87 V/mm sensitivity from the -24 VDC supply). Adjust the probe gap if the measured voltage deviates by more than ±0.5 VDC from the target.

5. Confirm monitor and software readings. Check the 3300 XL monitor channel display and the System 1 trend to confirm the gap value is within the OK band and no alarms are active. Document the as-left gap voltage and probe serial number in the maintenance record.

6. Return to service. Clear any latched alarms at the monitor, confirm the machine protection system is armed, and return the machine to normal operation. File the replacement record and update the spare parts inventory log.

Spare Parts Support FAQ

Q: Is the 330103-00-04-05-02-00 a direct drop-in replacement for earlier 3300 XL 5mm probes?
A: Yes. The 330103-00-04-05-02-00 is fully compatible with the 3300 XL measurement chain, including 330130 series extension cables and 330180 series Proximitor sensors. No reconfiguration of the monitor or software is required provided the replacement probe is installed at the same gap as the original.

Q: What pre-shipment testing is performed before dispatch?
A: Each unit undergoes output linearity verification across the full gap range, tip condition inspection, cable continuity check, and connector seating confirmation. A test record is available on request. Units that do not meet Bently Nevada 3300 XL performance specifications are not dispatched.

Q: What is the support terms coverage and how is a claim initiated?
A: All units carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and electrical performance failures under normal operating conditions. To initiate a support terms claim, contact [email protected] with the order number, installation date, and a description of the failure. Replacement units are dispatched after fault confirmation.

Q: Can long-term supply be arranged for sites with multiple machine trains using this probe model?
A: Yes. Blanket order arrangements and scheduled delivery programs are available for sites requiring ongoing supply of 330103-00-04-05-02-00 probes and matched extension cables. Contact [email protected] or +86 18359268345 to discuss volume pricing, lead time commitments, and consignment stocking options.
