Bently Nevada 330103-00-03-10-12-00 Maintenance-Proven Spare Part for Factory Uptime

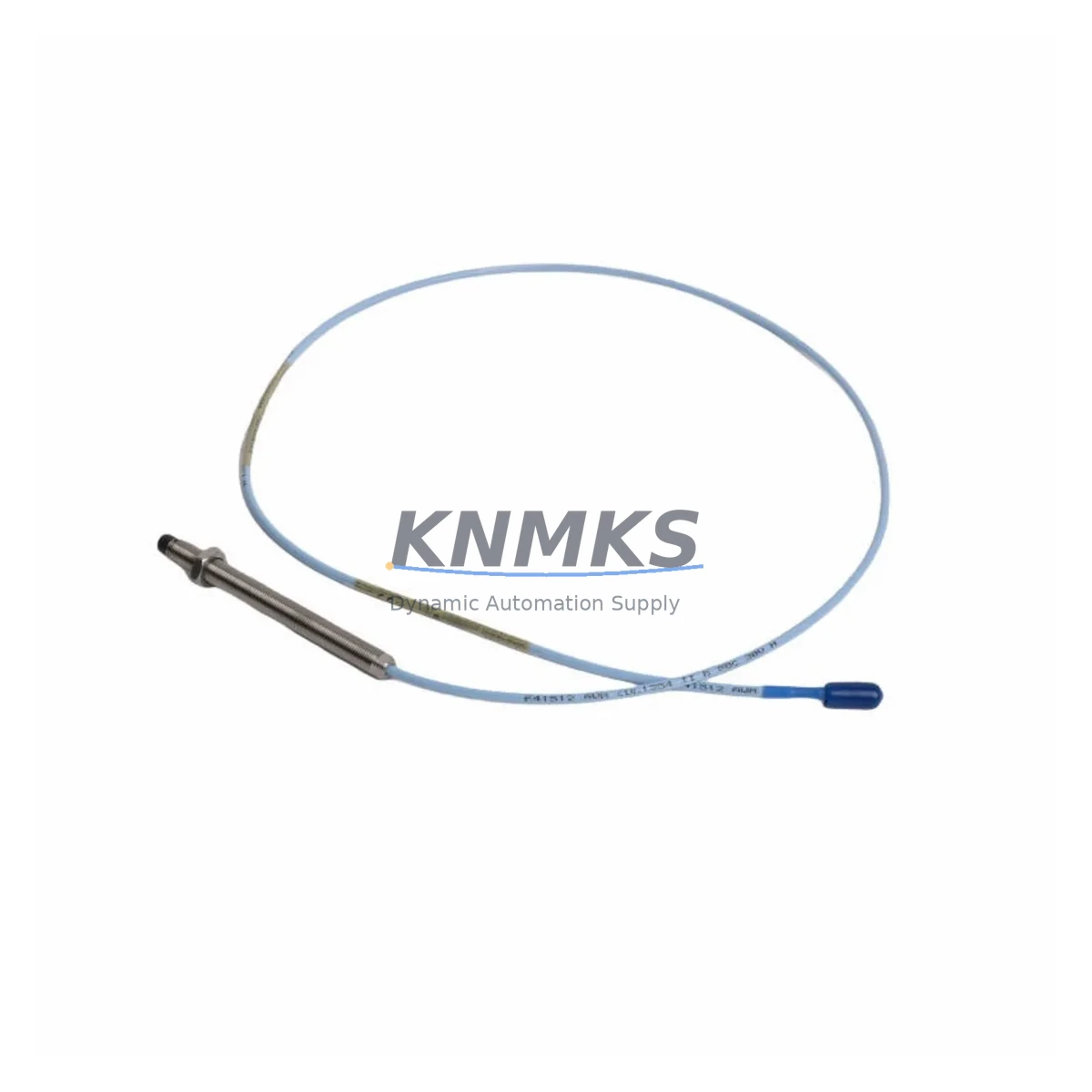

The Bently Nevada 330103-00-03-10-12-00 is an original proximity transducer designed for continuous vibration and position monitoring in rotating machinery applications. As a core component of the Bently Nevada 3300 XL Series monitoring system, this transducer delivers reliable eddy-current sensing performance in demanding industrial environments including turbines, compressors, pumps, and motors. Maintenance engineers and procurement teams managing critical rotating equipment rely on this part to sustain uninterrupted plant operations, reduce unplanned downtime, and meet predictive maintenance schedules.

This spare part is sourced as an original Bently Nevada component, fully tested prior to shipment, and backed by a support terms confirmed by quotation. It is compatible with the 3300 XL monitoring system architecture and is suitable for direct replacement of worn, damaged, or end-of-life transducers in the field. Whether you are executing a planned annual overhaul, responding to a vibration alarm, or building a strategic spare parts inventory, the 330103-00-03-10-12-00 is a proven choice for minimizing replacement risk and maintaining system integrity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330103-00-03-10-12-00 proximity transducer in the field, a thorough inspection of the surrounding monitoring circuit is essential to ensure the replacement resolves the root cause and prevents repeat failures. Maintenance engineers should begin by verifying the condition of the Bently Nevada 3300 XL Extension Cable (330130 series), which connects the transducer to the proximitor. Cable insulation degradation, connector corrosion, or mechanical damage to the extension cable are common contributors to erratic vibration readings and should be addressed simultaneously with the transducer swap.

The Bently Nevada 3300 XL Proximitor (330180 series) should also be inspected and tested. The proximitor converts the transducer’s eddy-current signal into a usable voltage output for the monitor, and a faulty proximitor can mimic transducer failure symptoms. Keeping a spare proximitor in your cabinet inventory alongside the transducer significantly reduces diagnostic time during emergency shutdowns.

At the monitor level, verify that the Bently Nevada 3300/16 Monitor or 3500 Series Monitor rack is receiving correct bias voltage and that channel configuration matches the replacement transducer’s gap range. I/O module integrity within the monitor rack should be confirmed, particularly if the system has experienced power surges or environmental contamination. Fuse integrity on the power supply feeding the monitor rack is a quick but often overlooked check — a blown fuse on the 24 VDC rail can cause false channel faults that are misdiagnosed as transducer failures.

For facilities running integrated condition monitoring, the signal path from the transducer through to the DCS or PLC should be validated after replacement. Signal isolators or barriers in the loop, particularly in hazardous area installations, should be tested for correct output scaling. If the plant uses a Bently Nevada System 1 software platform for vibration data trending, recalibrate the channel after installation to ensure historical baseline data remains valid for predictive maintenance analysis.

Procurement engineers building or refreshing spare parts kits for rotating machinery should consider stocking the 330103-00-03-10-12-00 alongside compatible extension cables, a spare proximitor, and monitor channel cards as a complete transducer loop kit. This approach reduces mean time to repair (MTTR) and eliminates the risk of sourcing delays during unplanned outages.

Site Replacement Workflow

Step 1 — Isolation and Safety: Follow site LOTO (Lockout/Tagout) procedures. Isolate the monitor channel associated with the faulty transducer. Record the existing gap voltage reading before removal as a reference for reinstallation.

Step 2 — Transducer Removal: Disconnect the extension cable from the transducer. Carefully unthread the transducer from its mounting bracket. Inspect the mounting threads and bracket for wear or damage. Clean the target area on the shaft and verify the target material is compatible with the eddy-current sensing range of the replacement unit.

Step 3 — Installation of 330103-00-03-10-12-00: Thread the replacement transducer into the bracket and adjust the gap to the manufacturer-specified initial gap (typically 1.0–1.5 mm / 40–60 mil for 3300 XL systems). Reconnect the extension cable, ensuring connector seating is secure and the cable is routed away from heat sources and mechanical contact points.

Step 4 — System Verification: Restore power to the monitor channel. Verify bias voltage output at the proximitor is within the –18 VDC to –24 VDC range. Confirm the monitor channel clears any fault indication and that vibration readings are within expected baseline range. Document the replacement in the site maintenance management system (CMMS).

Step 5 — Return to Service: Remove LOTO controls and return the machine to normal operation. Monitor the first 24–48 hours of operation for any anomalous vibration trends in System 1 or the DCS historian. Update the spare parts inventory record to trigger replenishment of the consumed transducer.

This workflow is applicable to both planned maintenance windows and emergency replacement scenarios. The 330103-00-03-10-12-00 is a direct replacement for the same SKU and is backward-compatible with existing 3300 XL mounting hardware, eliminating the need for bracket modifications or cable re-routing in most installations.

Spare Parts Support FAQ

Q1: Is the 330103-00-03-10-12-00 compatible with both the 3300 XL Monitor and the 3500 Series Monitor?
The 330103-00-03-10-12-00 is natively designed for the Bently Nevada 3300 XL monitoring system. It can be used with the 3500 Series Monitor in applications where the channel configuration and gap range are compatible, but compatibility should be verified against the specific 3500 monitor module specifications before installation. Our technical team can assist with compatibility confirmation prior to shipment.

Q2: What is included in the support terms confirmed by quotation, and how does the claims process work?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. Each unit is tested before shipment to verify electrical performance. In the event of a support terms claim, contact [email protected] with the order reference and a description of the fault. Replacement or repair will be arranged promptly to minimize your downtime exposure.

Q3: Can you support long-term or blanket purchase orders for this part?
Yes. KNMKS supports long-term supply agreements and blanket PO arrangements for the 330103-00-03-10-12-00 and related 3300 XL components. This is particularly beneficial for facilities managing multiple rotating machinery trains or operating under annual maintenance contracts. Contact us to discuss pricing, lead times, and inventory reservation options.

Q4: How do I verify the part is genuine before installation?
All units supplied by KNMKS are sourced as original Bently Nevada spare parts and include manufacturer labeling and part number markings. We recommend verifying the SKU marking on the transducer body against your purchase order upon receipt. Electrical testing — specifically bias voltage output and gap linearity check — should be performed during installation as part of standard commissioning practice, regardless of part source.
