Bently Nevada 330103-00-03-10-01-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330103-00-03-10-01-00 Fail-Safe Proximity Probe: Critical Industrial Field Reliability

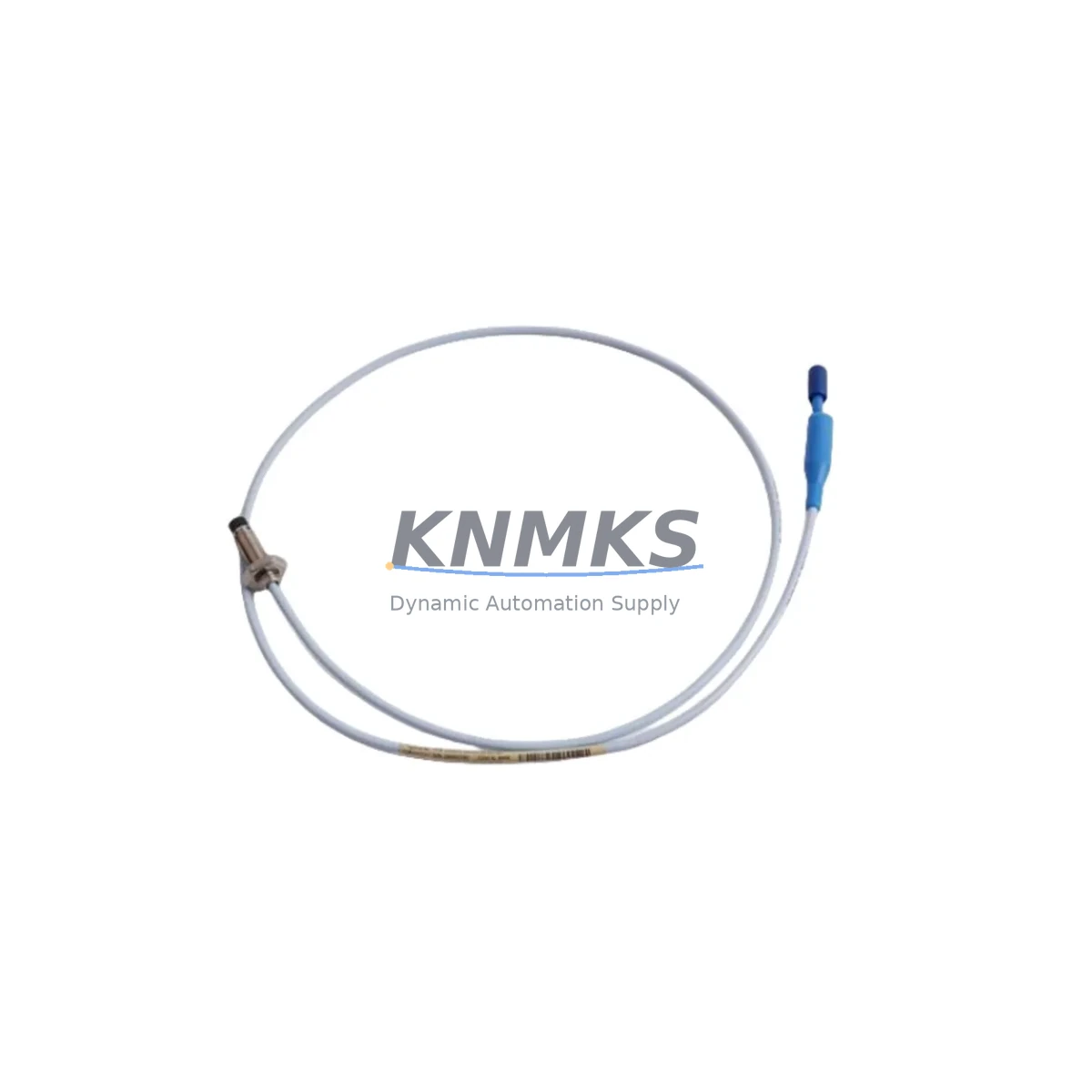

The Bently Nevada 330103-00-03-10-01-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to deliver continuous, high-accuracy shaft displacement measurements, this probe is a cornerstone component in critical machinery protection systems across petrochemical, power generation, mining, metallurgy, water treatment, and continuous manufacturing facilities worldwide.

In high-stakes industrial operations where unplanned downtime carries severe safety and financial consequences, the 330103-00-03-10-01-00 provides the measurement integrity and environmental resilience required to keep rotating machinery running safely. Its non-contact eddy-current sensing principle eliminates mechanical wear, ensuring long-term signal stability even under continuous operation. The probe is fully compatible with the Bently Nevada 3300 XL proximitor/seismic transducer system, enabling seamless integration into existing machinery protection architectures without costly rewiring or reconfiguration.

When paired with the Bently Nevada 3300 XL 8mm Extension Cable (330130 series) and the 3300 XL Proximitor Sensor (330180 series), this probe forms a complete, calibrated measurement chain that meets the stringent signal accuracy requirements of SIL-rated safety instrumented systems. The system’s output is directly compatible with Bently Nevada 3500 Series Machinery Protection Rack inputs, allowing direct connection to trip and alarm logic without additional signal conditioning.

In control cabinet environments where electromagnetic interference from variable frequency drives, high-current bus bars, and switching power supplies can corrupt sensor signals, the 330103-00-03-10-01-00’s shielded coaxial cable construction and differential signal architecture provide robust noise immunity. This makes it a reliable choice for installation in dense control cabinets alongside Bently Nevada 3500/42M Proximitor I/O Module assemblies, where signal integrity directly determines trip reliability.

The probe’s IP67-rated housing withstands immersion, high-pressure washdowns, heavy condensation, and airborne particulate contamination — conditions routinely encountered in paper mills, offshore platforms, and chemical processing units. Its operating temperature range accommodates both cryogenic compressor applications and high-temperature turbine bearing housings, making it a universal solution across diverse rotating equipment types including centrifugal compressors, steam turbines, gearboxes, and large electric motors.

For facilities managing long-term spare parts programs, the 330103-00-03-10-01-00 is stocked and available for immediate dispatch, supporting both planned maintenance shutdowns and emergency replacement scenarios. Each unit undergoes full factory calibration and functional verification prior to shipment, ensuring plug-and-play compatibility with installed 3300 XL proximitor systems. This eliminates the field calibration burden and reduces the risk of measurement error during critical equipment restart sequences.

When building a comprehensive machinery protection strategy, the 330103-00-03-10-01-00 probe is frequently deployed alongside the Bently Nevada 330780-50-00 Velomitor Piezo-Velocity Sensor for complementary seismic vibration coverage, and the Bently Nevada 330400-00-00 Key Phasor Transducer for rotational speed and phase reference — together forming a complete API 670-compliant monitoring suite for critical rotating machinery.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 330103-00-03-10-01-00 within a machinery protection cabinet requires careful attention to signal routing and grounding discipline. The probe’s coaxial cable should be routed away from high-voltage power conductors and VFD output cables to preserve signal integrity. Within the protection rack, the Bently Nevada 3500/42M Proximitor I/O Module provides the dedicated input channel conditioning and trip relay outputs required for API 670-compliant overvibration protection.

Power supply stability is equally critical. The 3300 XL proximitor system requires a stable -24 VDC bias supply; facilities should ensure that the cabinet’s Bently Nevada 3500/15 Power Supply Module or equivalent redundant DC supply is properly sized and protected against voltage transients and surge events. Surge protection devices installed at the cabinet entry point prevent lightning-induced transients from propagating into the sensitive measurement circuitry.

For communication and data integration, the Bently Nevada 3500/92 Communication Gateway Module enables Modbus or Ethernet/IP connectivity between the protection rack and the plant DCS or SCADA system, allowing real-time vibration trend data to be monitored at the control room level without interrupting the hardwired trip logic. This architecture ensures that the safety function remains independent of the communication network — a fundamental requirement for SIL-rated machinery protection systems.

In facilities where the 330103-00-03-10-01-00 is installed on equipment subject to high shaft runout or electrical runout, the Bently Nevada 3300 XL Proximitor Sensor (330180 series) should be configured with the appropriate gap voltage and scale factor to maximize the usable linear range and minimize false trip events during startup transients.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 330103-00-03-10-01-00 is widely deployed on centrifugal compressors, reactor charge pumps, and cooling tower fans in refinery and petrochemical complexes. In these environments, an undetected bearing failure or rotor rub can escalate rapidly into a process safety incident. The probe’s continuous, non-contact measurement provides the early warning margin required to initiate a controlled shutdown before mechanical damage propagates to adjacent equipment or process containment is compromised.

Power Generation: Steam turbine and gas turbine generator sets in power plants rely on API 670-compliant proximity probe systems to protect against catastrophic rotor failure. The 330103-00-03-10-01-00, integrated into a Bently Nevada 3500 Series protection rack, provides the radial shaft vibration and eccentricity measurements required for both normal operation monitoring and emergency trip actuation, ensuring grid stability and personnel safety.

Mining & Minerals Processing: Large ball mills, SAG mills, and slurry pumps in mining operations operate in environments characterized by extreme vibration, heavy dust loading, and aggressive chemical exposure. The IP67-rated 330103-00-03-10-01-00 maintains measurement accuracy in these conditions, providing the shaft displacement data needed to detect bearing wear, misalignment, and rotor imbalance before they result in unplanned production stoppages.

Water & Wastewater Treatment: High-service pumps and blower units in water treatment facilities operate continuously, often without standby redundancy. The 330103-00-03-10-01-00 enables condition-based maintenance strategies that extend equipment life and reduce the risk of service interruption, supporting regulatory compliance and public health protection objectives.

Metallurgy & Steel: Rolling mill drives, continuous caster pinch rolls, and blast furnace blowers in steel plants demand vibration monitoring solutions that can withstand high ambient temperatures, heavy electromagnetic interference from large motor drives, and aggressive mechanical shock loads. The 330103-00-03-10-01-00’s robust construction and high EMI immunity make it a proven choice for these demanding applications.

Safety and Quality FAQ

Q: What support terms coverage is provided for the 330103-00-03-10-01-00?
A: Every unit is covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides direct support for support requests and replacement coordination to minimize your equipment downtime.

Q: What pre-shipment testing is performed on each probe?
A: Each 330103-00-03-10-01-00 unit undergoes full functional verification prior to dispatch, including scale factor confirmation, linear range verification, and cable continuity testing. Units are shipped with test documentation to support your incoming inspection and commissioning records.

Q: Is the 330103-00-03-10-01-00 a direct drop-in replacement for existing 3300 XL installations?
A: Yes. The 330103-00-03-10-01-00 is fully compatible with the Bently Nevada 3300 XL proximitor system and 3500 Series protection rack inputs. No recalibration of the proximitor or rack configuration is required when replacing a like-for-like probe in an existing installation, provided the gap voltage is verified during recommissioning.

Q: Can long-term supply availability be guaranteed for ongoing maintenance programs?
A: We maintain dedicated stock of the 330103-00-03-10-01-00 to support both planned maintenance shutdowns and emergency replacement requirements. For facilities with multi-unit installations or annual maintenance contracts, we recommend establishing a standing spare parts agreement to ensure priority allocation and fixed pricing over your maintenance cycle.
