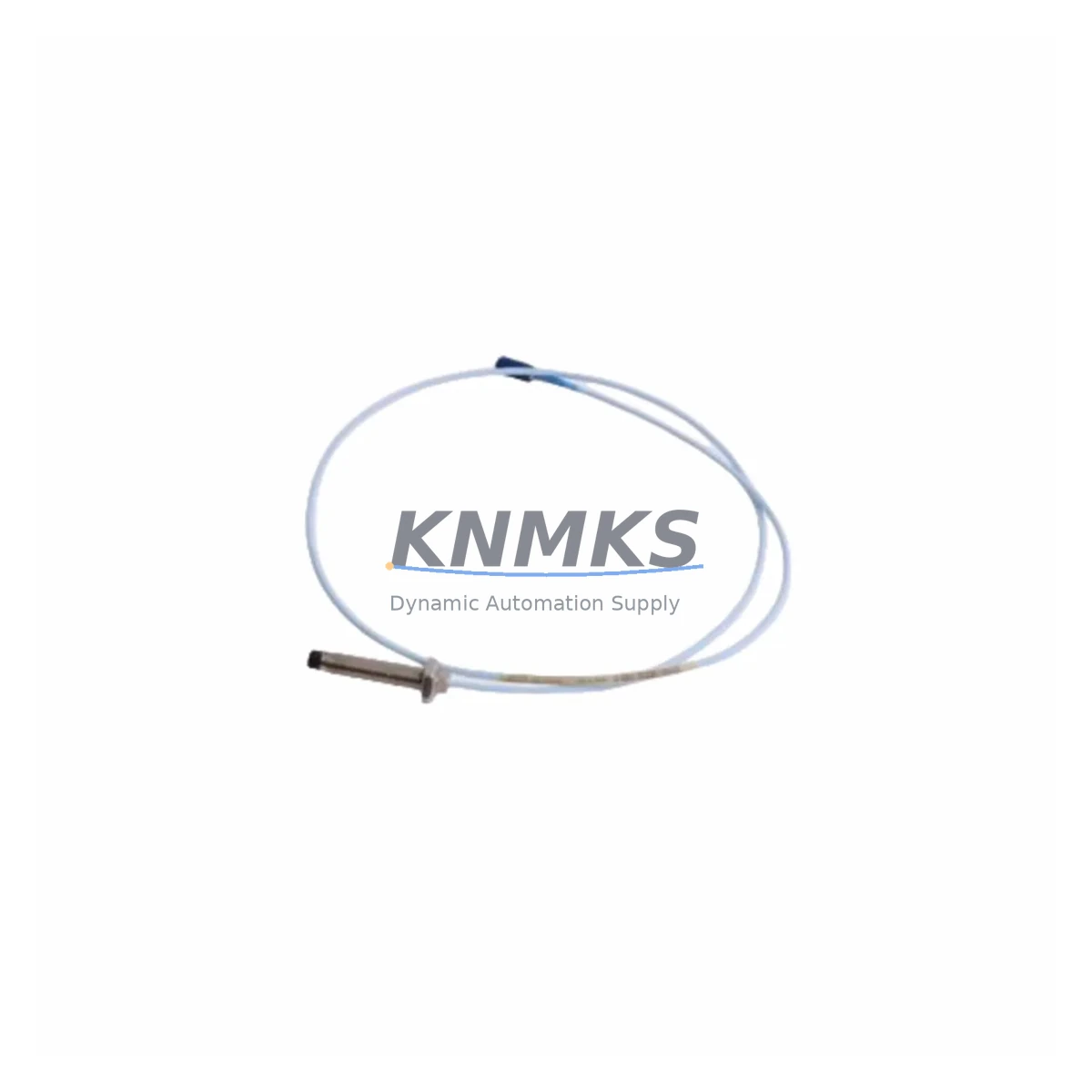

Bently Nevada 330103-00-03-05-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330103-00-03-05-02-05 Fail-Safe Proximity Probe: Fault-Protected Vibration Monitoring for Critical Industrial Machinery

The Bently Nevada 330103-00-03-05-02-05 is an 8mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to integrate directly into safety instrumented systems (SIS) and critical machinery protection loops, this probe delivers high-resolution, non-contact measurement with exceptional immunity to electromagnetic interference, mechanical shock, and harsh ambient conditions. Whether deployed in rotating machinery protection, turbine shaft monitoring, compressor radial vibration measurement, or high-speed spindle surveillance, the 330103-00-03-05-02-05 provides the signal integrity and long-term reliability that safety-critical operations demand.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, and port or marine propulsion systems — unplanned machinery downtime is not merely a cost issue; it is a safety and regulatory risk. The 330103-00-03-05-02-05 is purpose-built to eliminate the root causes of control interruption: signal drift under thermal cycling, false trips from electromagnetic noise, probe gap instability from vibration-induced connector loosening, and measurement degradation in high-humidity or dusty enclosures. Its eddy current sensing principle operates without physical contact, removing wear as a failure mode and ensuring measurement continuity across the full machinery lifecycle.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 330103-00-03-05-02-05 within a machinery protection cabinet requires a coordinated approach to signal integrity, power quality, and communication reliability. The probe operates in conjunction with the Bently Nevada 330180-91-00 3300 XL 8mm Proximitor module, which conditions the raw eddy current signal into a calibrated DC voltage output suitable for direct input to the 3500 Series Machinery Protection System rack. Within the same protection cabinet, the 3500/22M Transient Data Interface and the 3500/42M Proximitor I/O Module manage channel configuration, alarm setpoints, and relay output logic for trip and alert functions.

To protect the measurement loop from power surges and transient overvoltages — common in heavy industrial switchgear environments — surge protection devices rated for low-voltage instrumentation circuits should be installed at the cabinet entry point. Shielded twisted-pair signal cables and proper grounding of the Proximitor chassis are essential to suppress common-mode noise from variable frequency drives (VFDs), large motor starters, and high-current bus bars operating in proximity to the control enclosure.

For installations in high-temperature or high-vibration machinery rooms, the 330130-080-00-00 extension cable provides the necessary reach from the probe tip to the Proximitor without compromising signal fidelity. In safety instrumented system architectures, the probe output feeds into a voted logic solver — such as a Triconex TRICON or Rockwell Automation GuardLogix safety PLC — where 2oo3 or 1oo2D voting logic determines machinery trip commands. Pairing the 330103-00-03-05-02-05 with a Bently Nevada 3500/15 Power Supply module ensures stable, regulated DC power to the Proximitor under all load conditions, preventing measurement errors caused by supply voltage fluctuation during motor starts or grid disturbances.

In dusty or moisture-prone environments such as cement plants, offshore platforms, or coastal power stations, the probe’s armored coaxial cable and sealed tip construction maintain measurement accuracy without requiring additional enclosure protection at the sensing end. Cabinet-level thermal management — through forced-air cooling modules or heat exchanger panels — further protects the Proximitor electronics from ambient temperature excursions that could otherwise introduce zero-drift errors into the vibration measurement chain.

Critical Industrial Safety Applications

The 330103-00-03-05-02-05 is deployed across a broad spectrum of safety-critical industrial sectors where continuous machinery availability and early fault detection are non-negotiable operational requirements.

In petrochemical and refinery operations, the probe monitors radial vibration on centrifugal compressors, reactor feed pumps, and crude oil transfer turbines. API 670-compliant machinery protection systems rely on this probe to detect shaft imbalance, bearing wear, and rotor rub conditions before they escalate to catastrophic failure, protecting both personnel and high-value rotating assets.

In power generation facilities — including gas turbine, steam turbine, and hydro generator installations — the probe provides continuous shaft position and vibration data to the turbine control system. Early detection of rotor eccentricity or bearing degradation enables condition-based maintenance scheduling, reducing forced outage frequency and extending overhaul intervals.

In mining and mineral processing environments, where high dust loading, mechanical shock, and wide ambient temperature swings are routine, the probe’s robust construction and non-contact sensing principle ensure reliable operation on ball mills, SAG mills, conveyor drive gearboxes, and slurry pump trains. Undetected bearing failure in these applications can result in extended production shutdowns and significant structural damage to process equipment.

In water and wastewater treatment infrastructure, the probe monitors large vertical turbine pumps, blower trains, and centrifuge drives. Continuous vibration surveillance enables operators to identify impeller imbalance or cavitation-induced shaft deflection before seal failure leads to process contamination or unplanned pump replacement.

In metallurgical and steel production facilities, the probe is installed on rolling mill drive trains, continuous caster pinch roll assemblies, and blast furnace blower compressors. The high-temperature operating range and EMI immunity make it well-suited to the electrically noisy, thermally aggressive environment of primary metals production.

In port, marine, and offshore applications, the probe monitors propulsion shaft vibration, thruster bearing condition, and auxiliary machinery on vessels and offshore platforms. Its resistance to salt-laden humid air and mechanical vibration from hull flexure ensures measurement continuity in environments where conventional contact sensors would rapidly degrade.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330103-00-03-05-02-05?
All units are supplied with a support terms confirmed by quotation from the date of dispatch. The support terms covers manufacturing defects, calibration non-conformance, and functional failure under normal operating conditions. Support requests are supported with direct technical assistance and priority replacement dispatch to minimize site downtime.

Q2: What pre-shipment testing is performed before dispatch?
Every 330103-00-03-05-02-05 unit undergoes full functional verification prior to shipment, including eddy current sensitivity calibration, output linearity check across the specified gap range, cable continuity and insulation resistance testing, and connector integrity inspection. Test records are available upon request for quality documentation purposes.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
Yes. The 330103-00-03-05-02-05 is fully compatible with the Bently Nevada 3300 XL 8mm Proximitor (330180 Series) and integrates directly with 3500 Series Machinery Protection System racks via standard coaxial interconnection. It is also compatible with third-party monitoring systems that accept a -18 VDC eddy current probe signal, subject to system-level verification by the end user.

Q4: Can long-term supply agreements be arranged for ongoing maintenance and spare parts programs?
Yes. Multi-unit supply agreements and scheduled replenishment programs are available to support planned maintenance outages, spare parts inventory programs, and long-term machinery protection strategies. Multi-region stock is maintained to support fast global dispatch for both emergency replacement and scheduled procurement requirements. Contact our technical sales team to discuss volume pricing and supply continuity arrangements.
