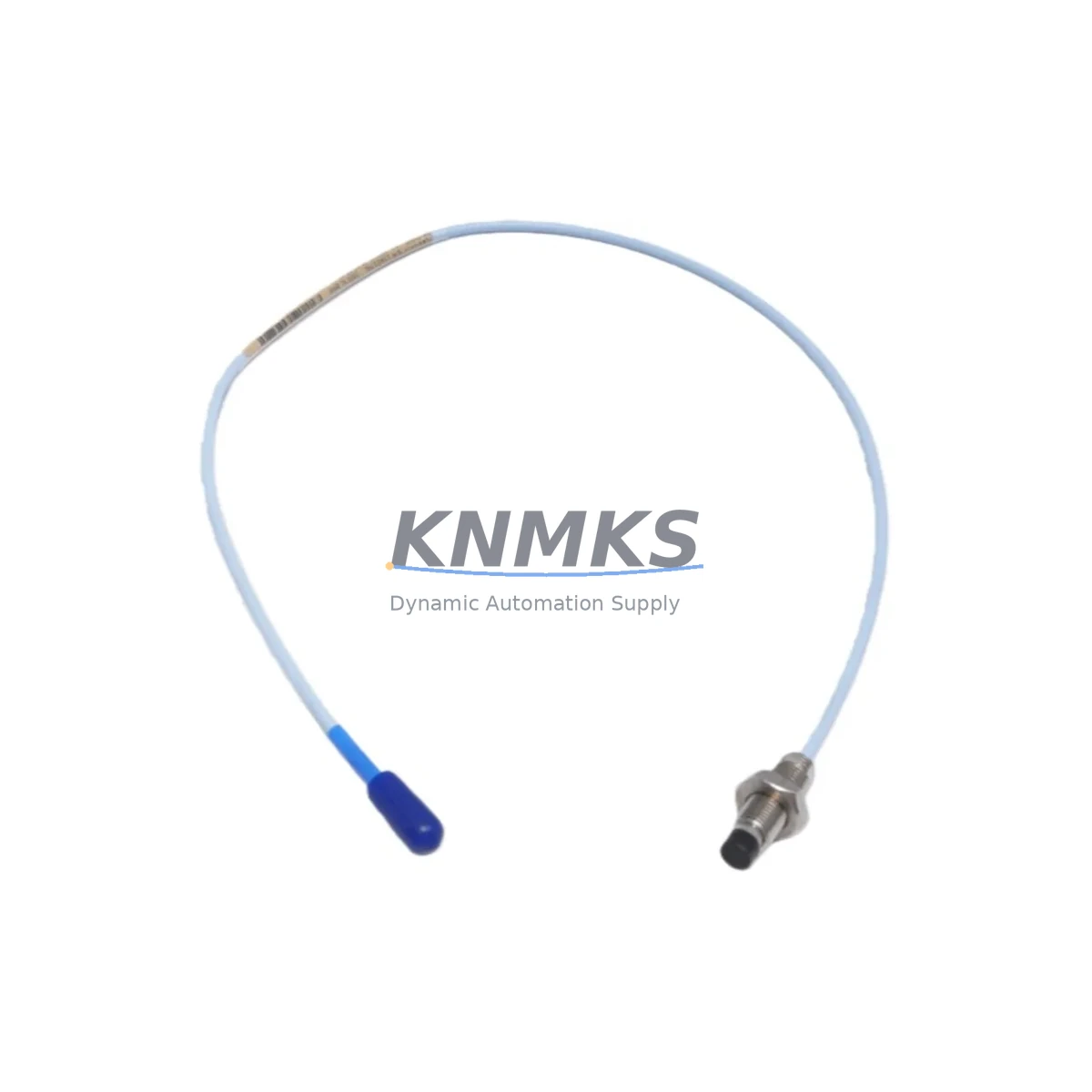

Bently Nevada 330103-00-03-05-02-02 Fail-Safe Proximity Probe

Overview

Bently Nevada 330103-00-03-05-02-02 Fail-Safe Proximity Probe: Critical Fault Protection for Industrial Vibration Monitoring

The Bently Nevada 330103-00-03-05-02-02 is an 8mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this probe delivers stable, drift-free output signals even under conditions of high electromagnetic interference, mechanical vibration, elevated temperature, and corrosive atmospheres. For facilities where unplanned downtime carries catastrophic operational and safety consequences, the 330103-00-03-05-02-02 represents a front-line defense against machinery failure and control loop disruption.

In critical industrial sites — including petrochemical compressor trains, power generation turbines, mining hoists, and continuous process reactors — vibration monitoring is not optional. It is the primary early-warning mechanism that separates a controlled shutdown from a catastrophic mechanical failure. The 330103-00-03-05-02-02 integrates directly into Bently Nevada 3300 XL monitoring systems, providing real-time radial vibration, axial position, and differential expansion data to the control room. Its eddy current sensing principle operates without physical contact, eliminating wear-related signal degradation and ensuring measurement integrity across the full service life of the probe.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330103-00-03-05-02-02 proximity probe does not operate in isolation — it is one element of a layered machinery protection architecture. In a properly configured control cabinet, the probe signal is routed through a Bently Nevada 3300 XL proximitor/driver module, which conditions the raw eddy current signal into a clean, calibrated voltage output for the monitoring system. The proximitor module provides the regulated -24 VDC bias supply required by the probe and performs signal buffering to prevent ground loops and common-mode noise from corrupting vibration data.

For turbine and compressor protection panels, the 3300 XL system is typically paired with a Bently Nevada 3500 Series rack-based monitoring system, which provides multi-channel vibration, position, and speed monitoring with relay output for automatic trip functions. Within the same safety loop, a Bently Nevada 330130 extension cable is used to bridge the distance between the probe and the proximitor when machine geometry requires extended reach — maintaining signal integrity without impedance mismatch.

Power supply stability is equally critical. Unregulated or noisy DC supplies feeding the proximitor can introduce baseline drift in the probe output, leading to false alarms or, more dangerously, masked fault conditions. A dedicated, isolated DC power supply module — such as those used in Bently Nevada 3500/15 power supply cards — ensures the -24 VDC rail remains stable under load transients and surge events. For installations in high-EMI environments such as variable frequency drive (VFD) rooms or switchgear panels, additional shielding conduit and ferrite suppression on signal cables further protect measurement accuracy.

In safety instrumented systems (SIS), the proximity probe output may feed directly into a safety PLC or a dedicated overspeed detection module. In these architectures, the 330103-00-03-05-02-02 must maintain its calibrated output under all foreseeable fault conditions, including cable open-circuit, short-circuit, and target loss — all of which produce out-of-range voltages that the monitoring system interprets as a fault state, triggering protective action rather than allowing silent failure.

Critical Industrial Safety Applications

The 330103-00-03-05-02-02 is deployed across a wide range of critical industrial sectors where rotating machinery reliability is directly linked to process safety and production continuity.

In petrochemical and refinery facilities, this probe monitors radial shaft vibration on centrifugal compressors, pumps, and expanders operating in flammable and toxic service. Early detection of rotor imbalance, bearing wear, or seal degradation allows operators to schedule maintenance during planned turnarounds rather than responding to emergency shutdowns. In power generation plants — both thermal and combined-cycle — the probe is installed on steam turbine journal bearings and generator shaft extensions, providing continuous data to the turbine supervisory instrumentation (TSI) system.

In mining and mineral processing operations, the 330103-00-03-05-02-02 is used on large ball mills, SAG mills, and crusher drives where bearing failure can result in multi-week production losses. The probe’s IP67 rating and high-temperature tolerance make it suitable for the dusty, wet, and thermally variable conditions typical of mineral processing plants. In water and wastewater treatment facilities, it monitors high-speed pump and blower shafts in continuous-duty service, where unplanned outages affect public health infrastructure.

Metallurgical and steel plants rely on this probe for rolling mill drive monitoring, where vibration signatures indicate roll wear, coupling misalignment, or gearbox deterioration. In port and marine applications, the probe is used on propulsion shaft monitoring systems and cargo pump drives aboard vessels and offshore platforms, where access for manual inspection is limited and remote condition monitoring is essential for safe operation.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330103-00-03-05-02-02?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects, signal output accuracy, and connector integrity. Support requests are supported with replacement or documented resolution support, and our technical team provides application guidance throughout the confirmed support period.

Q2: What pre-shipment testing is performed on each probe?
Every 330103-00-03-05-02-02 unit undergoes functional verification prior to dispatch, including output voltage linearity check, cable continuity and insulation resistance test, and connector seating inspection. Units are shipped with individual test records available upon request.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
Yes. The 330103-00-03-05-02-02 is a direct OEM-equivalent replacement for Bently Nevada 3300 XL 8mm probe systems. It is calibrated to the standard 7.87 V/mm sensitivity and is electrically and mechanically compatible with 3300 XL proximitor/driver modules and 3500 Series monitoring racks without requiring recalibration of the monitoring system.

Q4: Can long-term supply and spare parts availability be guaranteed?
KNMKS maintains dedicated inventory of the 330103-00-03-05-02-02 and associated 3300 XL series components to support long-term maintenance contracts and critical spare programs. We offer supply agreements for facilities requiring guaranteed stock availability, with lead times confirmed at order placement and expedited shipping available for emergency replacement scenarios.
