Bently Nevada 330103-00-03-05-02-00 Maintenance-Proven Spare for Factory Uptime

Overview

Bently Nevada 330103-00-03-05-02-00 Maintenance-Proven Spare for Factory Uptime

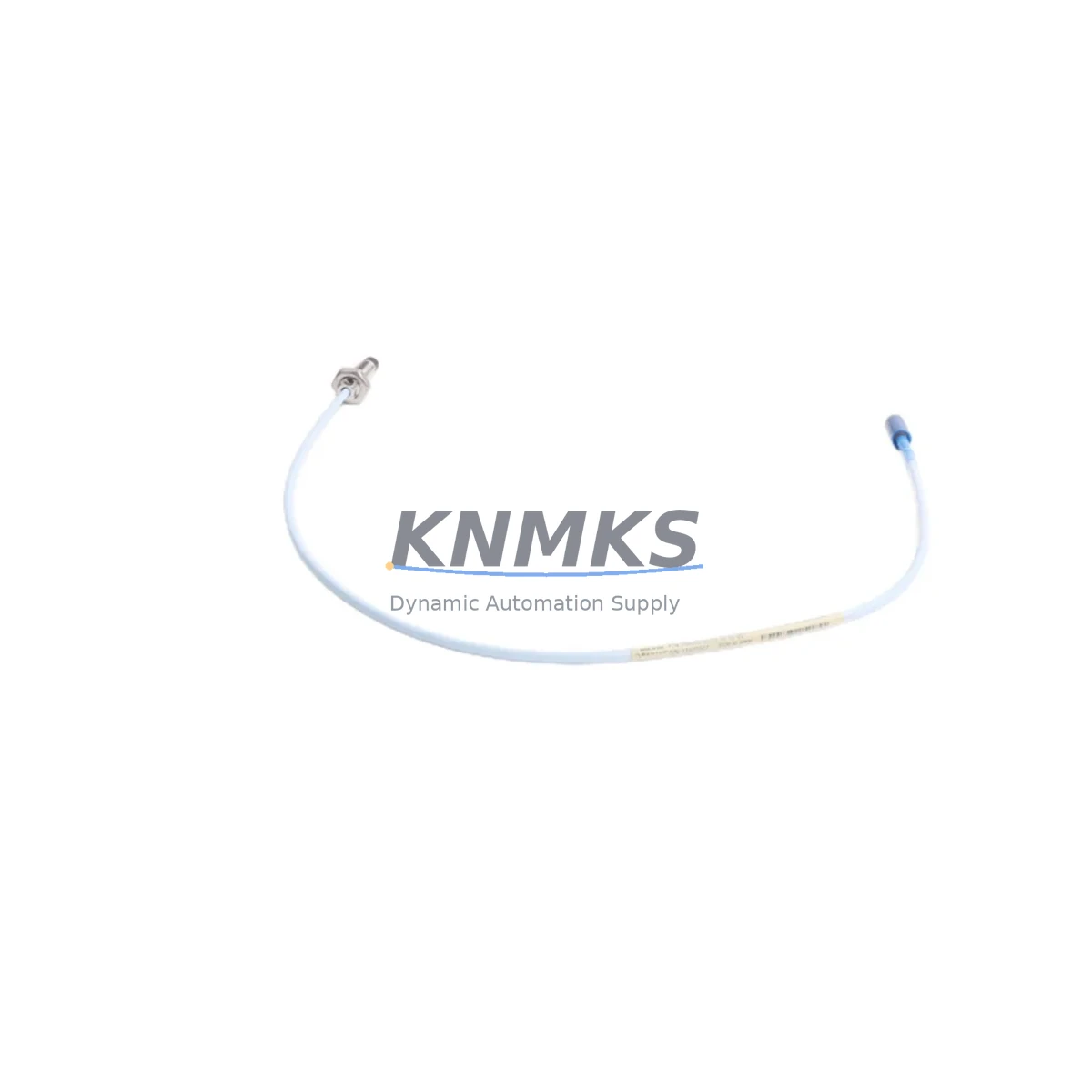

The Bently Nevada 330103-00-03-05-02-00 is an original eddy-current proximity probe from the 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. Designed for turbines, compressors, pumps, and generators operating in critical process environments, this probe delivers the measurement accuracy and long-term reliability that maintenance engineers depend on during both scheduled outages and emergency replacements.

For plants running Bently Nevada 3300 XL monitoring systems, maintaining a verified spare of the 330103-00-03-05-02-00 is a fundamental element of any predictive maintenance program. Probe failures are among the most common causes of unplanned vibration system downtime — and with rotating machinery, even a brief monitoring gap can escalate into a costly trip event or missed fault detection. Stocking this SKU eliminates that risk.

Each unit supplied by KNMKS is sourced from verified channels, pre-shipment tested for signal output, impedance, and dimensional conformance, and backed by a support terms confirmed by quotation. Multi-region stock ensures fast global dispatch to support both emergency callouts and planned annual inspection cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330103-00-03-05-02-00 probe is flagged for replacement — whether during a routine point inspection, a vibration alarm investigation, or a full annual outage — experienced maintenance engineers know that the probe itself is rarely the only component that warrants attention. A thorough replacement workflow should include inspection of the complete measurement chain.

Start with the extension cable (typically a Bently Nevada 330130 series matched cable). Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown, particularly in high-temperature or high-vibration environments. A degraded extension cable will introduce noise and offset errors even with a new probe installed. Similarly, the proximitor sensor — commonly the 3300 XL 8 mm proximitor (e.g., 330180-X1-05) — should be verified for output voltage and gap calibration after any probe swap, as proximitor drift can mask or mimic probe faults.

At the monitor rack level, confirm that the associated 3300 XL monitor card (such as the 3300/16 or 3300/25 dual-channel vibration monitor) is reading within specification. Loose backplane connections and worn rack backplane connectors are a common source of intermittent channel faults that are misdiagnosed as probe failures. While the cabinet is open, inspect the 24 VDC power supply module feeding the proximitor loop — voltage sag or ripple will directly affect measurement accuracy.

For plants with older 3300 XL installations, this is also an appropriate time to audit terminal block wiring at the field junction box, check for shield continuity on the coaxial cable run, and verify that signal conditioner or barrier modules (where installed for hazardous area compliance) are within calibration. If the machine is also monitored for axial position or differential expansion, inspect the paired axial probe and its dedicated monitor channel simultaneously — these channels share the same maintenance window and the same failure modes.

Procurement engineers should note that the 330103-00-03-05-02-00 is a long-lead item from OEM channels. Maintaining a minimum buffer stock of two units per critical machine train — alongside matched extension cables and at least one spare proximitor — is the industry-standard approach for plants that cannot tolerate extended monitoring outages.

Site Replacement Workflow

Step 1 — Isolation and documentation: Before removing the probe, record the current gap voltage from the monitor display or DCS historian. This baseline reading confirms the existing installation gap and provides a reference for the new probe setup.

Step 2 — Mechanical removal: Loosen the probe locknut and back the probe out carefully. Inspect the probe tip for impact marks or contamination. Clean the probe bore and check the target surface for scoring or runout anomalies that may have contributed to the fault.

Step 3 — New probe installation: Thread the 330103-00-03-05-02-00 into the bracket and set the gap to the system-specified value (typically 50 mil / 1.27 mm for standard 3300 XL installations). Tighten the locknut to the specified torque. Reconnect the extension cable and verify connector seating.

Step 4 — System verification: Power up the proximitor and confirm the gap voltage at the monitor input falls within the linear range (nominally –10 VDC ±1 VDC at 50 mil gap). Check the monitor channel for alarm inhibit status and clear any latched alerts before returning the channel to service.

Step 5 — Documentation and stock replenishment: Log the replacement in the CMMS with the new probe serial number, installation date, and gap voltage. Immediately initiate a purchase order to replenish the consumed spare — do not allow the buffer stock to remain at zero.

This workflow applies equally to planned outage replacements and emergency callouts. The 330103-00-03-05-02-00 is a direct drop-in replacement for earlier 330103 series probes in the same 8 mm, 3-inch configuration, requiring no wiring changes or monitor reconfiguration in standard 3300 XL installations.

Spare Parts Support FAQ

Q1: Is the 330103-00-03-05-02-00 compatible with all 3300 XL monitor cards?
Yes. The 330103-00-03-05-02-00 is designed for use with the full Bently Nevada 3300 XL monitor family, including the 3300/16, 3300/20, 3300/25, 3300/46, and 3300/55 series cards, when paired with a compatible 3300 XL 8 mm proximitor sensor. Always verify the proximitor part number and gap calibration after installation to confirm system-level compatibility.

Q2: What pre-shipment testing is performed before dispatch?
Every 330103-00-03-05-02-00 unit supplied by KNMKS undergoes output voltage verification, gap calibration check, insulation resistance measurement, and physical inspection of the probe tip, cable jacket, and connector. A test record is available upon request. Units that do not meet specification are quarantined and not shipped.

Q3: Can KNMKS support long-term supply agreements for this SKU?
Yes. KNMKS maintains multi-region buffer stock for the 330103-00-03-05-02-00 and can support blanket purchase orders, annual supply agreements, and consignment arrangements for plants with recurring demand. Contact [email protected] to discuss volume pricing and lead-time commitments.

Q4: What does the support terms confirmed by quotation cover?
The support terms covers signal output performance, mechanical integrity of the probe body and tip, cable jacket condition, and connector functionality under normal installation and operating conditions. Support requests are processed with a replacement unit dispatched within 5 business days of fault confirmation. Physical damage from improper installation or impact is excluded.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-03-05-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-03-05-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
