Bently Nevada 330103-00-03-05-01-00 Migration-Ready Proximity Transducer

Overview

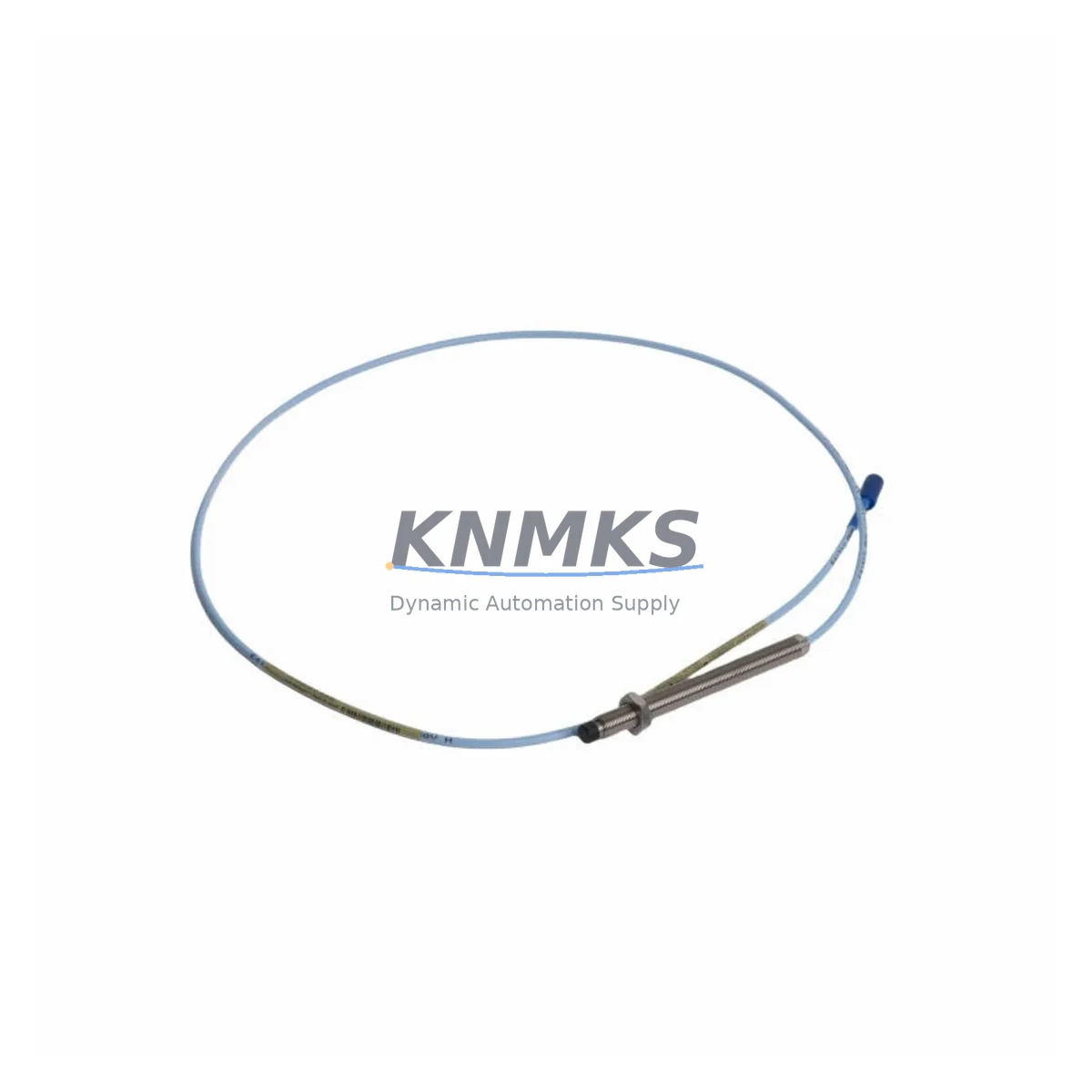

Bently Nevada 330103-00-03-05-01-00 Migration-Ready Proximity Transducer for Legacy Control Systems

The Bently Nevada 330103-00-03-05-01-00 is a 3300 XL Series eddy-current proximity transducer engineered for direct drop-in replacement of discontinued and end-of-life vibration monitoring components in legacy rotating machinery protection systems. Whether you are managing a planned shutdown upgrade, an emergency spare parts replacement, or a full control cabinet modernization, this transducer is stocked, tested, and ready to ship with a support terms confirmed by quotation.

Industrial facilities running aging Bently Nevada 3300 Series platforms frequently encounter obsolescence challenges when original OEM spare parts reach end-of-life. The 330103-00-03-05-01-00 addresses this directly: it maintains full electrical and mechanical compatibility with the 3300 XL monitoring system, allowing maintenance engineers to restore machine protection coverage without rewriting existing vibration monitoring logic or reconfiguring rack-mounted monitor modules such as the 3300/16 or 3300/20 series.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330103-00-03-05-01-00 into an existing machinery protection system requires a structured pre-installation review. Before removing the legacy transducer, maintenance teams should document the current gap voltage reading from the associated monitor module — typically a 3300/16 or 3300/20 rack-mounted unit — and record the existing alarm and danger setpoints. This baseline ensures that post-installation calibration restores the exact protection thresholds the machine has been operating under.

Power supply capacity is a critical checkpoint. The 3300 XL transducer system draws regulated -24 VDC from the rack power supply. If the control cabinet also houses a 3300/55 power supply module or a third-party DIN-rail 24 VDC supply feeding multiple channels, verify that adding or replacing a transducer channel does not push total current draw beyond the supply’s rated output. In aging cabinets where the power supply itself may be approaching end-of-life, it is advisable to inspect the 3300/55 or equivalent module for output voltage stability before completing the transducer swap.

Terminal wiring should be inspected at both the junction box and the monitor module terminal block. The 330103-00-03-05-01-00 uses a coaxial cable assembly with a standard 3300 XL connector; however, in older installations the extension cable — often a 330130-series coaxial extension — may show insulation degradation or connector wear. Replacing the extension cable alongside the transducer during the same maintenance window eliminates a common source of signal noise and intermittent faults that can trigger nuisance trips.

For facilities migrating from older 3300 Series monitors to the newer 3500 Series platform, the 330103-00-03-05-01-00 remains compatible with 3500/42 and 3500/45 monitor modules, provided the correct sensitivity and gap voltage parameters are entered during configuration. The 3500 Series Rack Configuration Software (RCS) allows engineers to import existing channel configurations, significantly reducing the risk of setpoint transcription errors during the migration. If the facility also operates a System 1 condition monitoring software platform, transducer channel data mapping should be verified in the System 1 database after any hardware change to maintain historian continuity.

Where I/O expansion is part of the broader upgrade scope — for example, adding keyphasor channels or expanding to monitor additional bearing positions — the 330103-00-03-05-01-00 can be deployed alongside additional 3300 XL or 3500 Series transducer channels without requiring changes to the existing rack backplane wiring, provided spare monitor slots are available. Installation space confirmation is essential: measure the available probe access window on the machine casing and confirm the 5 mm tip diameter and cable routing path before ordering additional transducer assemblies.

Downtime Control During System Migration

Minimizing unplanned downtime during a transducer replacement or system migration is a primary concern for any rotating machinery protection upgrade. The 330103-00-03-05-01-00 is designed to support a rapid swap procedure: because it is a direct electrical and mechanical replacement for the original 3300 XL transducer, the physical installation — removing the old probe, threading in the replacement, and reconnecting the coaxial extension cable — can typically be completed within a planned maintenance window of two to four hours, depending on machine access conditions.

To protect existing program logic and alarm configurations, engineers should export the current monitor module configuration using the applicable Bently Nevada configuration tool before beginning work. This configuration backup preserves all gap voltage calibration data, sensitivity scale factors, alarm setpoints, and channel identification labels. If the replacement transducer requires a gap voltage recalibration — which is standard practice and takes approximately 15 to 30 minutes per channel — the exported configuration file provides the reference baseline for restoring all parameters to their pre-maintenance values.

For facilities where continuous machine protection coverage is operationally critical, a bypass or inhibit function available in the 3300 or 3500 Series monitor module can be activated during the swap window to prevent nuisance trips while the channel is temporarily out of service. This inhibit should be logged, time-stamped, and cleared immediately upon completion of gap voltage verification and alarm setpoint restoration. Maintaining a clear commissioning checklist — covering gap voltage confirmation, sensitivity verification, alarm trip test, and System 1 data point validation — ensures that the machine returns to full protection status before the maintenance window closes.

All units of the 330103-00-03-05-01-00 supplied by KNMKS are subject to outgoing functional testing prior to shipment, verifying output voltage linearity and connector integrity. This pre-shipment test reduces the risk of receiving a non-functional unit and supports the goal of completing the replacement within a single planned maintenance window.

Retrofit Support FAQ

Q: Is the 330103-00-03-05-01-00 a direct replacement for my existing 3300 XL proximity transducer?
A: Yes. The 330103-00-03-05-01-00 is a direct drop-in replacement for the original Bently Nevada 3300 XL proximity transducer of the same part number. It maintains identical electrical specifications, connector type, thread size, and cable length, allowing installation without rewiring or reconfiguration of the monitor module — though gap voltage recalibration is always recommended after any transducer replacement.

Q: What commissioning steps are required after installation?
A: After physical installation, connect the coaxial extension cable and power the monitor channel. Measure the gap voltage at the nominal air gap specified for your machine and compare it against the original calibration record. Adjust the probe position as needed to achieve the target gap voltage, then verify that all alarm and danger setpoints are active and correctly configured in the monitor module. Perform a functional trip test if your maintenance procedure requires it before returning the machine to service.

Q: Can this transducer be used with the Bently Nevada 3500 Series monitoring system?
A: Yes. The 330103-00-03-05-01-00 is compatible with 3500/42 and 3500/45 monitor modules. When migrating from a 3300 Series to a 3500 Series platform, enter the transducer sensitivity and gap voltage parameters into the 3500 Series Rack Configuration Software during commissioning. Verify System 1 data point mapping if the facility uses condition monitoring software.

Q: What support terms and supply assurance does KNMKS provide?
A: Every 330103-00-03-05-01-00 unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional performance. Units are functionally tested prior to shipment. KNMKS maintains inventory stock to support urgent replacement requirements and can provide documentation including test records upon request. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
