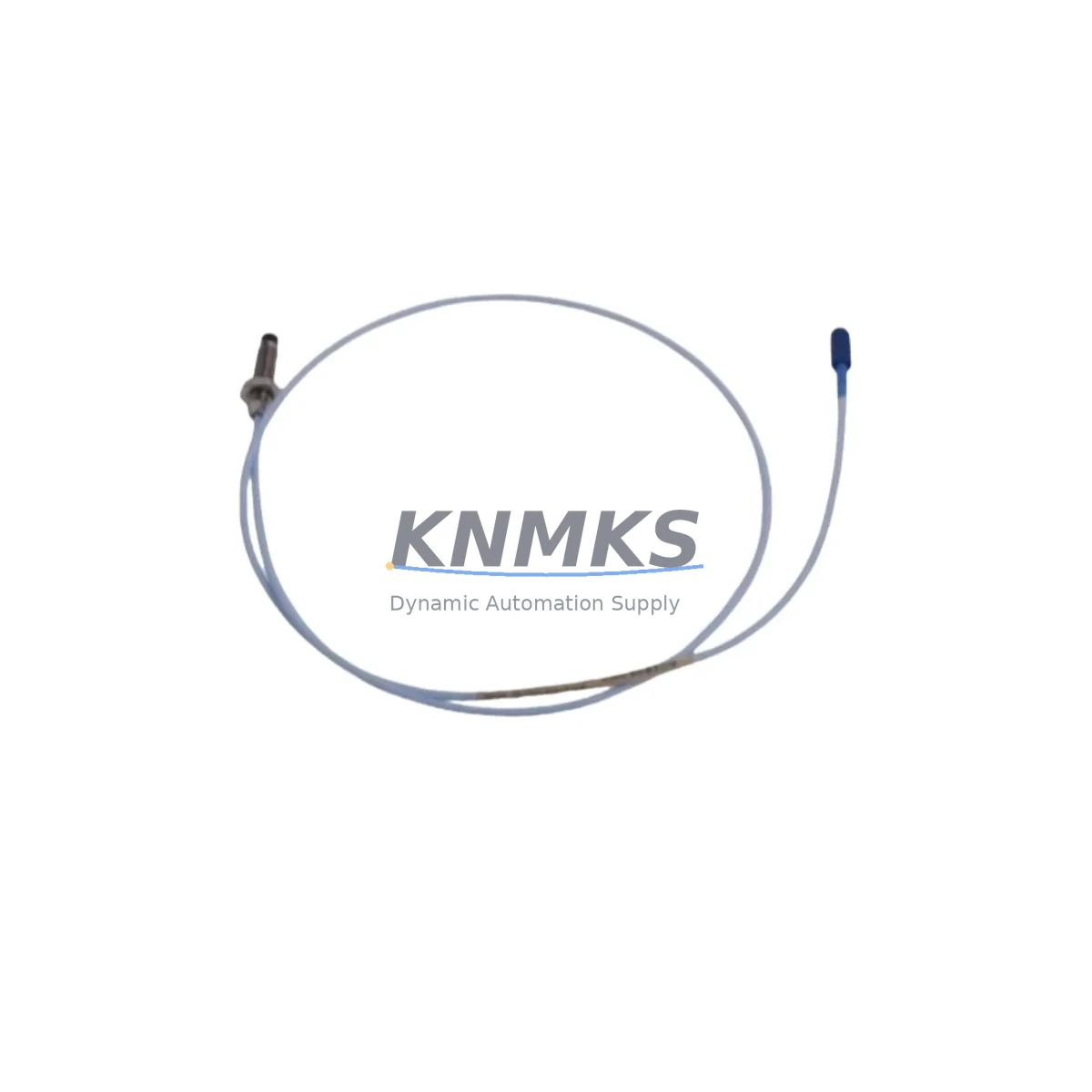

The Bently Nevada 330103-00-02-20-02-05 is an 8mm eddy current proximity probe engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series condition monitoring system, this probe delivers uncompromising signal integrity and mechanical durability where control interruption is simply not an option. Designed to meet the rigorous demands of rotating machinery protection, it provides real-time shaft displacement data to safeguard turbines, compressors, pumps, and motors operating under high load, high temperature, and high electromagnetic interference conditions.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical smelters, port crane systems, and marine propulsion platforms — unplanned downtime caused by vibration monitoring failure can result in catastrophic equipment damage, safety incidents, and multi-million dollar production losses. The 330103-00-02-20-02-05 is purpose-built to eliminate these risks. Its eddy current sensing technology operates without physical contact with the rotating shaft, eliminating mechanical wear and ensuring long-term measurement stability even in environments with heavy dust accumulation, moisture ingress, chemical exposure, and persistent mechanical vibration.

Signal drift — one of the most insidious failure modes in proximity measurement — is actively suppressed through the probe’s precision-wound coil assembly and thermally stable housing. Whether installed in a high-temperature bearing housing adjacent to a steam turbine or in a moisture-laden pump room, the 330103-00-02-20-02-05 maintains calibrated output within specification, preventing false trips and missed alarms that could compromise both equipment integrity and personnel safety.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330103-00-02-20-02-05 proximity probe does not operate in isolation — its reliability is maximized when integrated within a properly engineered control cabinet and machinery protection architecture. In a typical rotating machinery protection loop, this probe connects to the Bently Nevada 3300 XL 8mm Proximitor Sensor (330180-91-00), which conditions the raw eddy current signal into a calibrated DC voltage output suitable for the Bently Nevada 3500/42M Proximitor Monitor. The monitor processes radial vibration, axial position, and differential expansion data simultaneously, providing the relay outputs required for automatic machine trip and alarm functions.

Power supply stability is critical in any safety-rated monitoring loop. Surge events, voltage sags, and high-frequency conducted noise from variable frequency drives and large motor starters can corrupt proximity signal baselines and trigger nuisance trips. Pairing the monitoring system with a Phoenix Contact QUINT-PS/1AC/24DC/10 DIN-rail power supply — featuring SFB (Selective Fuse Breaking) technology — ensures that the 24VDC supply rail remains stable even during downstream short-circuit events, protecting the Proximitor and associated I/O modules from power-induced signal anomalies.

In control cabinets operating in high electromagnetic interference environments — common near large transformers, arc furnaces, and VFD banks — the signal cable from the 330103-00-02-20-02-05 probe should be routed separately from power conductors and terminated with proper EMI shielding grounded at a single point. Supplementing the cabinet with Weidmüller VSSC4 surge protection terminal blocks on all field signal inputs provides an additional layer of transient voltage suppression, preventing surge-induced damage to the Proximitor input circuitry.

For facilities implementing functional safety architectures per IEC 61511, the proximity monitoring loop incorporating the 330103-00-02-20-02-05 can be integrated with a Pilz PNOZmulti 2 safety relay module to form a certified safety instrumented function (SIF). This configuration enables automatic machine shutdown upon detection of excessive shaft vibration or axial displacement, satisfying SIL 2 requirements for rotating machinery protection in process industries. Communication of vibration trend data to the plant DCS or historian is typically achieved via the Bently Nevada System 1 Condition Monitoring Software over Modbus TCP or OPC-UA, enabling predictive maintenance scheduling without interrupting continuous production.

Critical Industrial Safety Applications

The Bently Nevada 330103-00-02-20-02-05 proximity probe is deployed across the full spectrum of heavy industry where rotating machinery reliability is directly linked to operational safety and production continuity.

In petrochemical and refinery environments, it monitors shaft radial vibration on centrifugal compressors, boiler feed pumps, and crude oil transfer pumps — machines where bearing failure without warning can result in seal rupture, hydrocarbon release, and fire. The probe’s IP67 rating and wide operating temperature range make it suitable for installation in classified hazardous areas when used with appropriate intrinsically safe barriers.

In power generation facilities — both thermal and hydroelectric — the probe is installed on steam turbine journal bearings and generator shaft extensions, providing the continuous displacement data required by API 670-compliant protection systems. Its DC-to-10,000 Hz frequency response captures both slow-roll runout and high-frequency subsynchronous instability events that precede catastrophic bearing failure.

In mining and mineral processing operations, where ball mills, SAG mills, and slurry pumps operate in extreme dust and vibration conditions, the 330103-00-02-20-02-05 provides reliable shaft monitoring without the signal degradation that affects optical or capacitive sensing technologies in particulate-laden atmospheres.

In water and wastewater treatment plants, the probe monitors vertical turbine pumps and blower shafts in high-humidity, chemically aggressive environments. Its corrosion-resistant housing and sealed cable entry prevent moisture ingress that would otherwise cause measurement drift and false alarms in critical pumping stations.

In metallurgical and steel production facilities, proximity probes of this specification are used on rolling mill drive shafts and continuous casting machine rolls, where thermal cycling, scale buildup, and intense electromagnetic fields from induction furnaces create one of the harshest sensing environments in industry. The probe’s shielded coaxial cable construction and thermally stable sensing coil maintain measurement accuracy across the full operating temperature range.

In port and marine applications — including ship propulsion systems, bow thrusters, and crane hoist drives — the probe’s resistance to salt spray, vibration, and wide temperature swings makes it the preferred choice for shaft monitoring in confined machinery spaces where access for maintenance is limited and reliability between service intervals is paramount.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330103-00-02-20-02-05?
The support terms confirmed by quotation cover all manufacturing defects, calibration failures, and functional anomalies under normal operating conditions as specified in the Bently Nevada 3300 XL Series documentation. If the probe fails to meet its published scale factor, linearity, or frequency response specifications within the confirmed support period, we provide direct replacement from stock. Support requests are processed within 5 business days of receipt of the returned unit.

Q2: What pre-shipment testing is performed on each unit?
Every 330103-00-02-20-02-05 unit undergoes functional verification prior to dispatch, including scale factor confirmation, cable continuity and insulation resistance testing, and connector integrity inspection. Units sourced from original manufacturer stock are accompanied by traceability documentation. Refurbished or exchange units are tested to the same functional specification and clearly identified as such.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor Sensors and 3500 Series monitors already installed in our facility?
Yes. The 330103-00-02-20-02-05 is a direct form-fit-function replacement for all 8mm probes in the Bently Nevada 3300 XL family. It is fully compatible with the 3300 XL 8mm Proximitor Sensor and the 3500/42M Proximitor Monitor without requiring recalibration of the monitoring system, provided the existing system is configured for the standard 200 mV/mil scale factor. Always verify the installed Proximitor part number before replacement to confirm compatibility.

Q4: Can you guarantee long-term supply availability for ongoing maintenance and spare parts programs?
We maintain dedicated inventory of the 330103-00-02-20-02-05 to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. For facilities with critical rotating machinery protection requirements, we recommend establishing a consignment stock arrangement or blanket purchase order to ensure zero lead-time availability during unplanned outages. Contact our technical sales team to discuss long-term supply agreements tailored to your maintenance schedule.
