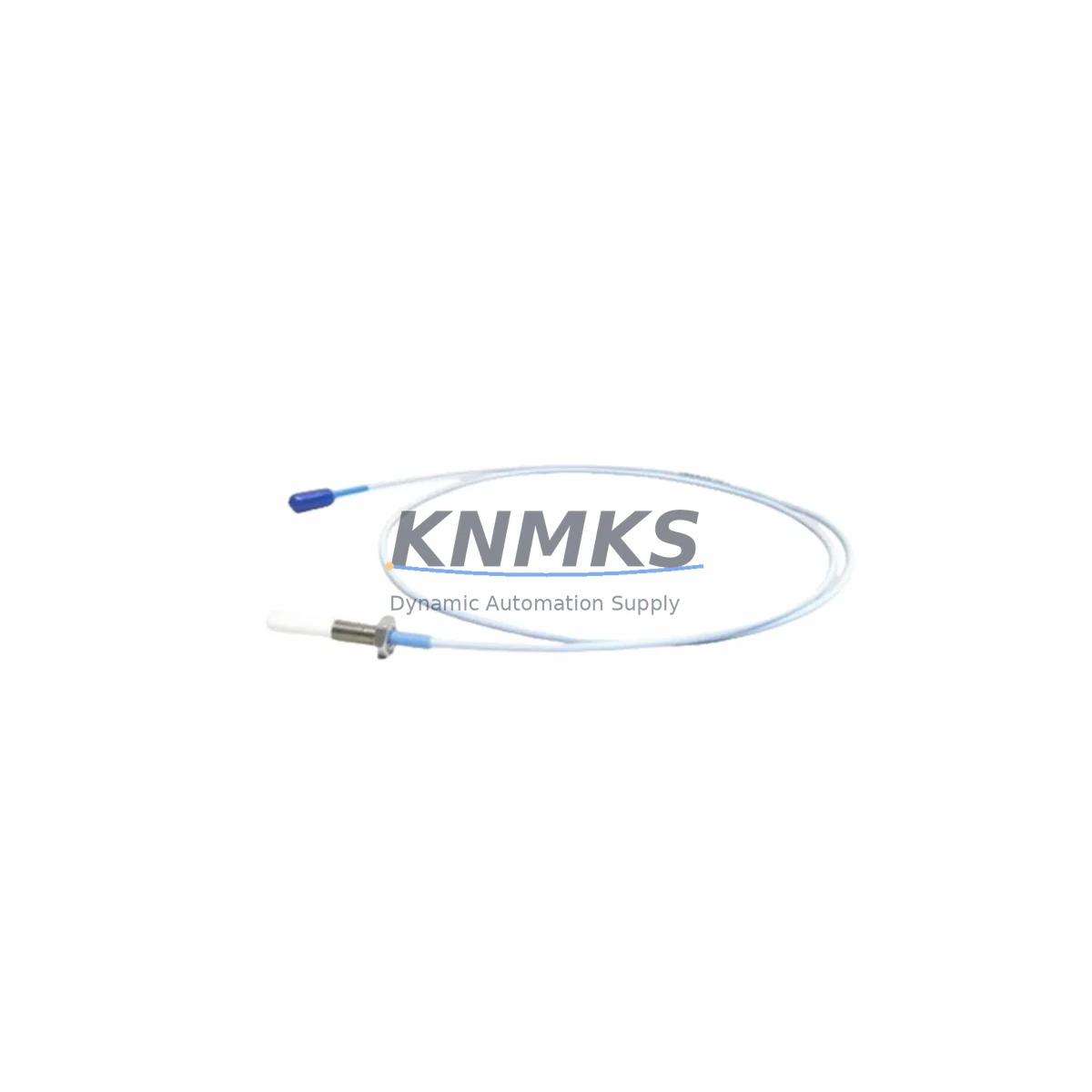

Bently Nevada 330103-00-02-10-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330103-00-02-10-02-05 Fail-Safe Proximity Probe for Industrial Control Reliability

The Bently Nevada 330103-00-02-10-02-05 is an 8mm eddy-current proximity probe from the 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to integrate directly into Bently Nevada’s 3300 XL monitoring system architecture, this probe delivers high-accuracy, non-contact displacement measurement with the signal integrity and environmental resilience required for critical machinery protection in petrochemical, power generation, mining, metallurgical, and continuous manufacturing facilities.

In high-stakes control environments — where a single sensor failure can trigger unplanned shutdowns, cascade interlock trips, or machinery damage — the 330103-00-02-10-02-05 provides the measurement stability and fault-tolerant performance that safety engineers and reliability teams depend on. Its eddy-current sensing principle eliminates mechanical wear, ensuring consistent output even under sustained vibration, shaft runout, and thermal cycling. The probe’s shielded cable construction and robust tip geometry resist signal drift caused by electromagnetic interference, oil contamination, and surface oxidation, making it a trusted front-line component in rotating machinery protection loops.

Every unit supplied by KNMKS is pre-shipment tested against Bently Nevada OEM specifications, confirming sensitivity factor (V/mm), gap voltage linearity, and cable continuity before dispatch. Stock is maintained across multiple regional warehouses to support emergency replacement and scheduled outage windows without lead-time risk.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330103-00-02-10-02-05 proximity probe operates as the primary sensing element within a layered machinery protection architecture. In a typical critical control cabinet, it connects to the Bently Nevada 3300 XL 8mm Extension Cable (330130-045-00-00) to bridge the gap between the probe tip and the monitor rack, maintaining signal integrity over longer routing paths without impedance mismatch. The signal is then conditioned and processed by the Bently Nevada 3500/42M Proximitor I/O Module, which converts the raw gap voltage into calibrated vibration and position data for the protection system.

Within the same control cabinet, the Bently Nevada 3500/15 Power Supply Module provides regulated, isolated DC power to the monitoring rack, protecting the entire measurement chain from power line transients, voltage sags, and surge events that are common in heavy industrial switchgear environments. For installations where shaft absolute vibration is required alongside relative shaft displacement, the 330103-00-02-10-02-05 is frequently paired with a Bently Nevada 330500 Velomitor Seismic Sensor mounted on the bearing housing, enabling dual-channel vibration monitoring per API 670 machinery protection standards.

In high-EMI environments such as variable frequency drive (VFD) motor control centers or arc furnace control rooms, the probe’s shielded coaxial cable is routed in dedicated conduit, separated from power cabling, and terminated at the Bently Nevada 3500/22M Transient Data Interface for waveform capture and diagnostics. This configuration ensures that electromagnetic noise from adjacent Schneider Electric Altivar 71 VFD drives or high-current bus bars does not corrupt the proximity signal, preserving the integrity of vibration trip setpoints and alarm thresholds that protect rotating assets from catastrophic failure.

Critical Industrial Safety Applications

In petrochemical and refinery facilities, the 330103-00-02-10-02-05 is deployed on centrifugal compressors, reactor feed pumps, and steam turbine trains where continuous shaft vibration monitoring is a process safety requirement under IEC 61511 functional safety standards. Any signal loss or sensor drift in these loops can trigger a spurious shutdown or, worse, mask a developing mechanical fault — both outcomes with severe safety and financial consequences.

In power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — this probe monitors turbine shaft eccentricity and bearing clearance in real time, feeding data to the plant DCS and safety instrumented system (SIS). Early detection of rotor imbalance or bearing wear allows maintenance teams to schedule corrective action during planned outages rather than responding to emergency trips.

In mining and mineral processing operations, where crushers, ball mills, and slurry pumps operate in high-dust, high-vibration environments with frequent electrical transients, the 330103-00-02-10-02-05’s robust construction and EMI-resistant cable ensure reliable measurement even when installed adjacent to large motor starters and high-voltage switchgear.

In metallurgical and steel mill environments, the probe monitors rolling mill drive shafts and continuous caster pinch roll assemblies, where thermal gradients, scale contamination, and mechanical shock are constant challenges. Its wide operating temperature range and non-contact sensing principle make it one of the few sensor types capable of sustained, maintenance-free operation in these conditions.

In water treatment and municipal utility plants, the probe is used on large vertical turbine pumps and blower trains, where undetected bearing failure can disrupt water supply to entire municipalities. The support terms confirmed by quotation and pre-tested supply chain from KNMKS ensure that replacement units are available on short notice, minimizing the risk of extended outage during emergency maintenance windows.

Safety and Quality FAQ

Q1: Does the 330103-00-02-10-02-05 come with a support terms, and what does it cover?
Yes. Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects, sensitivity deviation beyond OEM tolerance, and cable or connector failure under normal operating conditions. Support requests are processed with priority dispatch of a replacement unit to minimize site downtime.

Q2: What pre-shipment testing is performed before dispatch?
Each 330103-00-02-10-02-05 unit undergoes a full functional test prior to shipment, including sensitivity factor verification (V/mm), gap voltage linearity check across the full linear range, and cable continuity and insulation resistance measurement. Test records are available upon request for quality documentation and site acceptance procedures.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series monitor racks without hardware modification?
Yes. The 330103-00-02-10-02-05 is a direct OEM-equivalent replacement for the Bently Nevada 3300 XL 8mm probe family. It is electrically and mechanically compatible with 3300 XL Proximitor extension cables and 3500 Series monitor I/O modules without requiring recalibration of trip setpoints or modification of existing cable runs, provided the correct extension cable length is used to maintain the system’s calibrated sensitivity.

Q4: Can KNMKS support long-term or scheduled supply agreements for this SKU?
Yes. KNMKS maintains multi-region stock of the 330103-00-02-10-02-05 and can support blanket purchase orders, scheduled outage kitting, and emergency same-day dispatch for critical sites. Contact our team to discuss volume pricing, consignment stock arrangements, and lead-time guarantees for planned maintenance programs.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-02-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-02-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
