Bently Nevada 330103-00-02-05-02-CN Spare Part

Overview

Bently Nevada 330103-00-02-05-02-CN Maintenance-Proven Spare Part for Factory Uptime

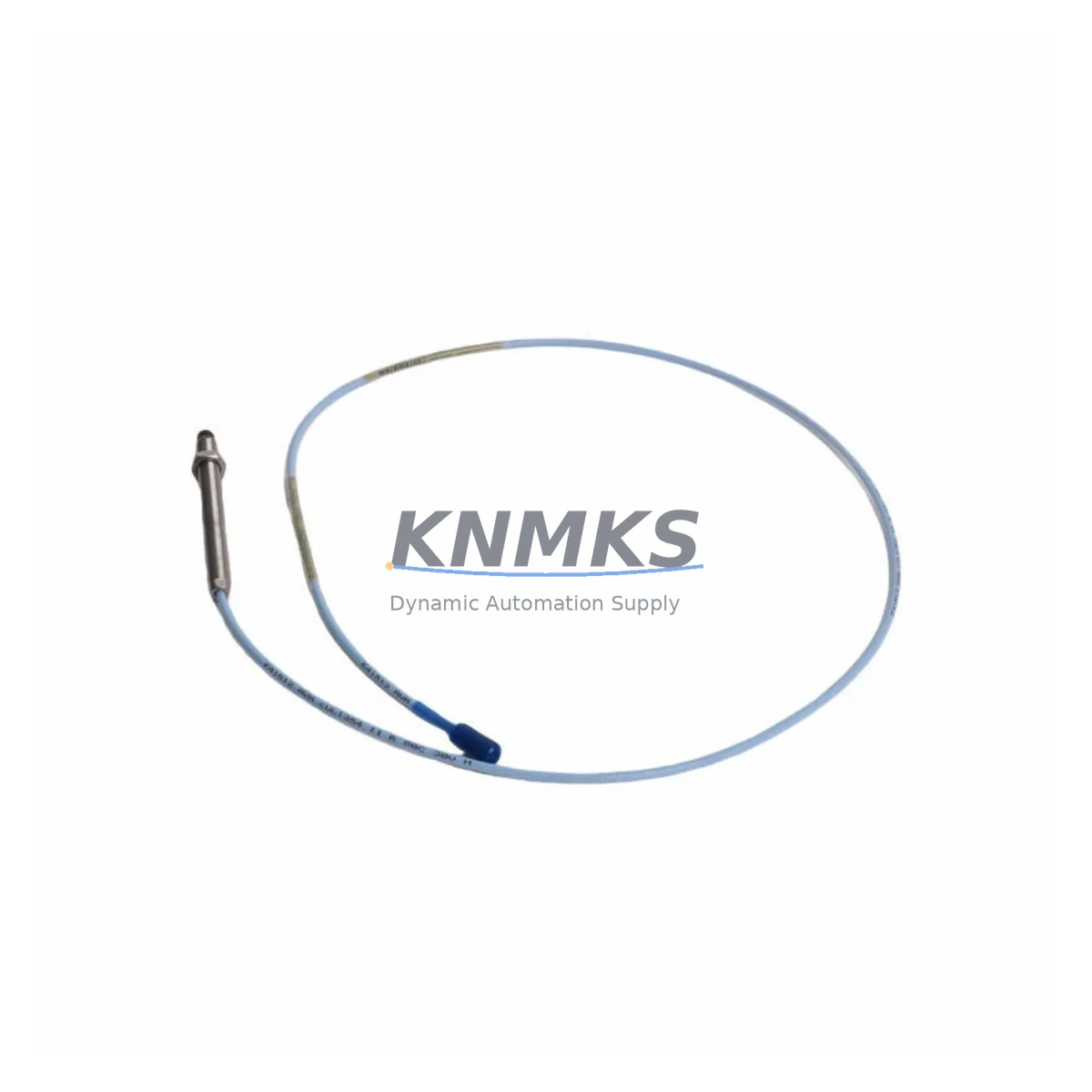

The Bently Nevada 330103-00-02-05-02-CN is an 8mm proximity transducer designed for the 3300 XL Series continuous vibration monitoring system. As a critical sensing element in rotating machinery protection, this transducer measures radial shaft vibration, axial position, and differential expansion in turbines, compressors, pumps, and motors. Maintaining a verified stock of this spare part is essential for any facility operating Bently Nevada 3300 XL monitoring systems, where unplanned downtime can result in significant production losses and safety risks.

At KNMKS, every unit of the 330103-00-02-05-02-CN is sourced from authorized supply channels, inspected for physical integrity, and tested for electrical performance before shipment. Each unit ships with a support terms confirmed by quotation, providing procurement engineers with the confidence needed for long-term spare parts planning and MRO inventory management.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 330103-00-02-05-02-CN proximity transducer during planned maintenance or emergency shutdown recovery, maintenance engineers should treat this as part of a broader system inspection rather than an isolated component swap. The 3300 XL proximity system operates as an integrated measurement chain, and the reliability of the transducer output depends on the condition of every element in that chain.

Begin by verifying the condition of the 3300 XL Proximitor Sensor (typically the 330180 series), which conditions the transducer signal and provides the -24 VDC bias voltage. A degraded Proximitor can produce erratic gap voltage readings even with a new probe installed. Simultaneously, inspect the extension cable assembly (such as the 330130 series) for insulation damage, connector corrosion, or continuity faults — extension cable failures are a leading cause of false vibration alarms and should be replaced as a matched set with the transducer whenever possible.

At the rack level, confirm that the 3300/16-channel monitor or equivalent 3300 XL monitor card is functioning correctly. Check the I/O terminal block connections for tightness and signs of oxidation, particularly in high-humidity or chemically aggressive environments. If the facility uses a 3300/55 Keyphasor module for phase reference, verify its gap voltage and signal quality as part of the same inspection cycle, since Keyphasor faults can mask or distort vibration data across multiple channels.

For facilities running Bently Nevada System 1 or 3500 series racks alongside legacy 3300 XL systems, ensure that signal isolators or barriers between the monitoring rack and the DCS or PLC I/O cards are tested for proper isolation resistance. Degraded isolation can introduce ground loops that corrupt vibration trend data. Also inspect rack power supply modules — the 3300 XL system requires stable, clean DC power, and any ripple or voltage sag will directly affect transducer linearity and alarm reliability.

Finally, during annual overhaul or control cabinet inspection, review the condition of terminal strips, cable glands, and conduit seals at the field junction box. Moisture ingress at these points is a common root cause of transducer drift and premature failure. Proactive replacement of the 330103-00-02-05-02-CN as part of a scheduled maintenance kit — alongside the extension cable and Proximitor — significantly reduces the risk of unplanned trips and extends the operational life of the overall vibration monitoring system.

Site Replacement Workflow

Replacing the 330103-00-02-05-02-CN in the field follows a structured process to minimize downtime and ensure system compatibility. Before removing the existing transducer, record the current gap voltage displayed on the monitor or System 1 interface — this baseline reading confirms the probe-to-shaft gap and serves as a reference for the new installation.

Disconnect the extension cable from the Proximitor sensor and carefully unthread the transducer from its mounting bracket. Inspect the mounting threads and bracket for wear or corrosion. Install the new 330103-00-02-05-02-CN and adjust the gap to the manufacturer-specified linear midpoint (typically 1.0 mm to 1.5 mm, corresponding to approximately -10 VDC to -12 VDC gap voltage). Reconnect the extension cable, power the Proximitor, and verify the gap voltage reading on the monitor before returning the channel to service.

This replacement procedure is fully compatible with existing 3300 XL system configurations and does not require firmware changes or monitor recalibration, making it one of the most straightforward field replacements in the Bently Nevada ecosystem. For facilities transitioning from older 3300 series (non-XL) probes, confirm connector and sensitivity compatibility before installation, as earlier series used different sensitivity factors.

KNMKS maintains ready stock of the 330103-00-02-05-02-CN to support both emergency same-week dispatch and planned annual procurement cycles. All units are tested before shipment and packaged to prevent transit damage, ensuring the part arrives ready for immediate installation.

Spare Parts Support FAQ

Q1: Is the 330103-00-02-05-02-CN compatible with both new and legacy 3300 XL systems?
Yes. The 330103-00-02-05-02-CN is designed for the Bently Nevada 3300 XL 8mm proximity system and is compatible with all standard 3300 XL Proximitor sensors and monitor cards. It is not directly interchangeable with non-XL 3300 series probes due to differences in sensitivity and connector configuration — always verify the system series before ordering.

Q2: How does KNMKS verify the quality of spare parts before shipment?
Every 330103-00-02-05-02-CN unit undergoes pre-shipment electrical testing, including continuity, insulation resistance, and output voltage verification. Physical inspection confirms connector integrity and cable condition. Units that do not meet specification are not shipped. A support terms confirmed by quotation is provided on all units from the date of delivery.

Q3: What is the recommended inventory strategy for this transducer?
For facilities with multiple 3300 XL monitoring channels, we recommend maintaining a minimum of two spare transducers per machine train, plus one matched extension cable set. This supports both emergency replacement and planned maintenance without waiting on lead times. For critical assets such as main steam turbines or high-pressure compressors, a higher buffer stock is advisable given the cost of unplanned downtime.

Q4: Can KNMKS support long-term or recurring supply of the 330103-00-02-05-02-CN?
Yes. KNMKS supports both one-time emergency orders and long-term supply agreements for the 330103-00-02-05-02-CN and related 3300 XL components. For procurement engineers managing annual MRO budgets, we can provide lead time commitments, batch pricing, and documentation packages including test reports and certificates of conformance. Contact us at [email protected] or +86 18359268345 to discuss your supply requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-02-05-02-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-02-05-02-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
