Bently Nevada 330103-00-02-05-02-00 Migration-Ready Proximity Probe

Overview

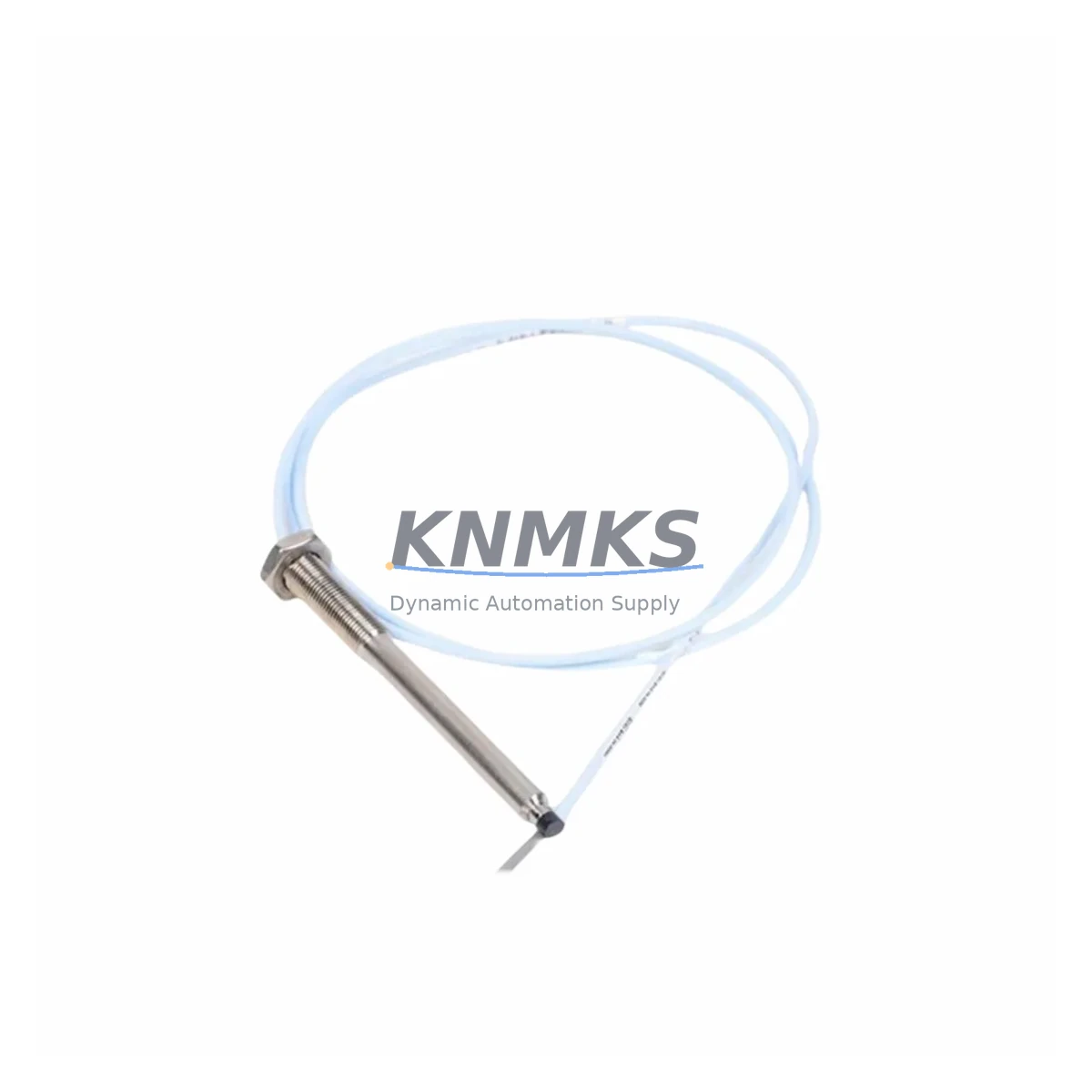

Bently Nevada 330103-00-02-05-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330103-00-02-05-02-00 is a 3300 XL Series eddy-current proximity probe engineered for direct drop-in replacement in legacy vibration monitoring and machinery protection systems. As original Bently Nevada 3300 XL hardware approaches end-of-support and spare parts become increasingly scarce, plant engineers and reliability teams face mounting pressure to source pre-tested, wiring-compatible replacements that can be installed during planned outages without reprogramming the host system or modifying existing conduit runs.

This unit ships pre-tested against Bently Nevada factory specifications, with a support terms confirmed by quotation covering both electrical performance and mechanical integrity. Multi-region stock is maintained to support emergency dispatch and scheduled turnaround windows globally. Whether you are executing a phased migration from a legacy 3300 XL rack to a modern System 1 platform, or simply extending the operational life of an existing machinery protection cabinet, the 330103-00-02-05-02-00 provides a verified, low-risk path forward.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 XL proximity probe replacement begins well before the maintenance window opens. Engineers should pull the existing wiring diagram for the affected measurement point and confirm the proximitor model — typically a Bently Nevada 3300 XL 8mm or 5mm proximitor — is still serviceable. If the proximitor itself is flagged for replacement, it is common practice to swap both the probe and the proximitor as a matched pair during the same outage, eliminating a second planned shutdown.

The extension cable connecting the probe to the proximitor must also be inspected. Bently Nevada 330130-080-00-00 extension cables are the standard pairing for this probe series; damaged or corroded connectors are a frequent source of signal noise that can be misdiagnosed as a probe fault. Replacing the extension cable alongside the 330103-00-02-05-02-00 probe is a low-cost step that significantly reduces post-installation troubleshooting.

On the monitor side, the 3300 XL monitor card — such as the Bently Nevada 3300/16 or 3300/20 — should be checked for correct sensitivity configuration (typically 7.87 V/mm for 5 mm probes). If the plant is executing a broader migration toward a Bently Nevada 3500 Series rack, the signal conditioning and monitor card architecture changes substantially, and the probe gap voltage range must be re-verified against the new 3500/42M or 3500/40M monitor card input specifications.

For plants running a hybrid architecture — where some measurement points have already migrated to the 3500 platform while others remain on legacy 3300 XL hardware — it is critical to maintain separate calibration records for each probe series. The Bently Nevada 3500/22M transient data interface card, if installed, will require its channel configuration to be updated to reflect any probe or proximitor changes made during the retrofit.

Power supply integrity is another pre-installation checkpoint. The 3300 XL rack power supply must deliver stable -24 VDC to the proximitor circuit. A degraded rack power supply can cause intermittent probe faults that persist even after a probe swap, leading to unnecessary repeat outages. Verifying supply voltage under load before closing the maintenance window is a standard step in any 3300 XL retrofit procedure.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist and a clear rollback plan. Before isolating the measurement point, capture the current gap voltage reading from the 3300 XL monitor card display or the System 1 software interface. This baseline reading serves as the acceptance criterion after the new 330103-00-02-05-02-00 probe is installed and gapped.

The original program logic in the host DCS or safety system does not require modification for a like-for-like probe swap. Trip setpoints, alert thresholds, and OK relay logic configured in the 3300 XL monitor card remain valid, provided the replacement probe and proximitor are from the same 3300 XL series and the gap is set to the same nominal value (typically 1.0–1.5 mm for most rotating machinery applications).

HMI screens referencing the affected measurement point should be reviewed to confirm that tag names and engineering unit scaling are unchanged. If the plant uses a Bently Nevada System 1 software interface, the channel configuration file should be backed up before the outage begins, so that any accidental parameter change can be reversed without re-entering all calibration data manually.

On-site commissioning after probe installation should include a static gap check using a calibrated gap tool, a dynamic signal verification at low shaft speed (if the machine can be barred over), and a confirmation that the OK relay output on the monitor card is energized before the machine is returned to service. Documenting the as-left gap voltage and probe serial number in the plant maintenance management system closes the loop and supports future spare parts planning.

Retrofit Support FAQ

Q1: Is the 330103-00-02-05-02-00 a direct replacement for all 3300 XL proximity probes?
The 330103-00-02-05-02-00 is a 5 mm, 2 m 3300 XL series probe. It is a direct replacement for probes with the same tip diameter, cable length, and connector configuration. Always cross-reference the full part number on the existing probe label before ordering to confirm length and tip size match. If the existing installation uses an 8 mm probe, a different 3300 XL part number is required.

Q2: Does this probe require any firmware update or monitor card reconfiguration after installation?
No. The 330103-00-02-05-02-00 is a passive eddy-current sensor with no embedded firmware. The 3300 XL monitor card configuration — including sensitivity, gap OK window, and trip setpoints — does not need to be changed for a like-for-like replacement. Only verify that the gap voltage after installation falls within the monitor card’s OK window before returning the machine to service.

Q3: What pre-shipment testing is performed, and what documentation is included?
Each unit undergoes full electrical continuity testing, insulation resistance verification, and gap calibration against a reference target before shipment. A test certificate is included with the shipment. This documentation supports your plant’s incoming inspection process and can be filed in the equipment maintenance record for the affected measurement point.

Q4: What is the support terms coverage and what does it include?
All units carry a support terms confirmed by quotation from the ship date, covering electrical performance degradation and mechanical defects under normal operating conditions. The support terms does not cover damage resulting from incorrect installation gap, connector over-torque, or exposure to fluids outside the probe’s rated environmental specification. In-stock units are available for immediate dispatch to support both emergency replacements and scheduled outage windows.
