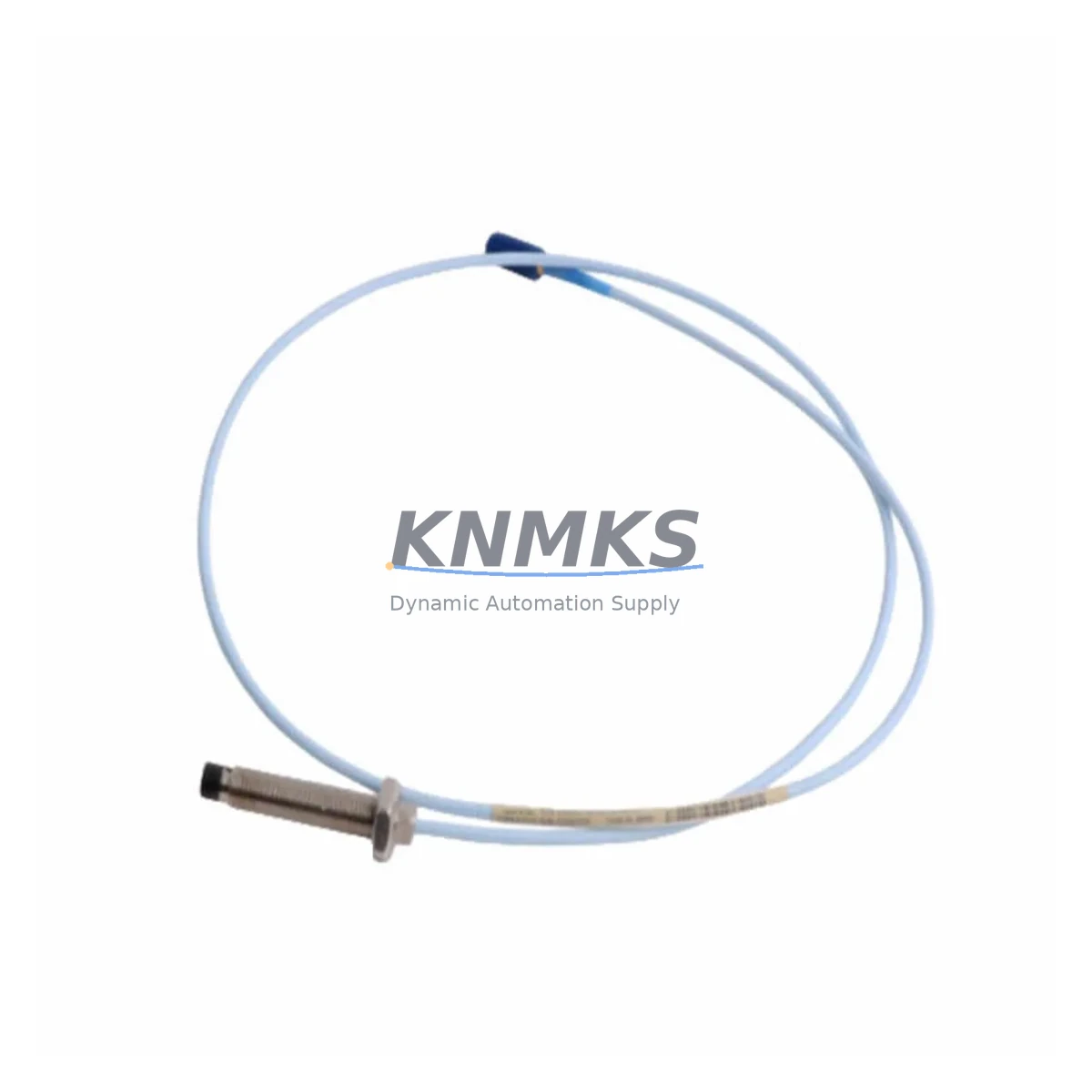

Bently Nevada 330103-00-02-05-01-00 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330103-00-02-05-01-00 Fail-Safe Proximity Transducer: Critical Industrial Field Reliability

The Bently Nevada 330103-00-02-05-01-00 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to deliver uninterrupted shaft displacement and radial vibration signals to protection systems, this transducer is a cornerstone component in rotating machinery safeguarding — from steam turbines and gas compressors to large centrifugal pumps and critical gearboxes. Its robust construction and precision signal output make it the preferred choice for plant engineers who cannot tolerate measurement drift, signal interruption, or false trips in high-stakes production environments.

In continuous manufacturing, petrochemical refining, power generation, and mining operations, unplanned machinery downtime carries catastrophic cost consequences. The 330103-00-02-05-01-00 addresses this risk directly: its eddy-current sensing principle operates without physical contact, eliminating mechanical wear and ensuring measurement integrity across millions of operating hours. The transducer’s output is inherently linear and immune to contamination from oil mist, process fluids, and conductive debris — conditions that routinely compromise optical or capacitive sensing alternatives. When paired with the Bently Nevada 3300 XL Extension Cable and a compatible 3300 XL Proximitor Sensor (such as the 330180-X1-05 or 330130-040-00-00), the complete measurement chain delivers a calibrated, temperature-compensated signal directly to the 3500 Series Machinery Protection System rack, enabling real-time alarm and trip logic without signal conditioning gaps.

High electromagnetic interference (EMI) is a persistent threat in heavy industrial control cabinets housing variable frequency drives, large contactors, and power bus bars. The 330103-00-02-05-01-00 is designed with shielded coaxial signal architecture that rejects common-mode noise and maintains signal fidelity even when routed alongside high-current power cables. This EMI resilience is critical in steel mill drive rooms, offshore platform motor control centers, and chemical plant distributed control system (DCS) marshalling cabinets where signal integrity directly determines whether a protection relay acts correctly or generates a nuisance trip.

Temperature extremes and mechanical vibration — the very phenomena this transducer measures — also stress the sensor itself. The 330103-00-02-05-01-00 is rated for operation across a wide ambient temperature range and is constructed with materials selected for dimensional stability under thermal cycling. Its stainless steel housing resists corrosion in humid, salt-laden, or chemically aggressive atmospheres, making it suitable for coastal power stations, pulp and paper mills, and offshore installations. The connector interface is sealed to IP67 standards, preventing moisture ingress that could cause insulation breakdown or signal offset in wet or washdown environments.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable vibration monitoring loop extends well beyond the transducer itself. In a properly engineered control cabinet or machinery protection panel, the 330103-00-02-05-01-00 operates as the field-sensing element within a layered protection architecture. The signal travels through a matched Bently Nevada 3300 XL Armored Extension Cable — selected for its low-capacitance, double-shielded construction — to a 3300 XL Proximitor Sensor (e.g., 330180-51-05) mounted in a junction box or directly on the machinery skid. The Proximitor conditions the raw eddy-current signal into a calibrated DC voltage that feeds the Bently Nevada 3500/40M Proximitor I/O Module within the 3500 rack.

Within the 3500 rack, the I/O module interfaces with the 3500/20 Rack Interface Module for Modbus or Ethernet/IP communication to the plant DCS or SCADA system, ensuring that vibration data is continuously available to operators without polling delays. For installations requiring SIL-rated safety loops, the 3500 system’s voted trip logic — combined with redundant 330103-00-02-05-01-00 transducers in a 2-of-3 (2oo3) configuration — provides the fault tolerance demanded by IEC 61511 functional safety standards. Surge protection at the cabinet entry point, using DIN-rail mounted transient voltage suppressors compatible with the –24 VDC Proximitor supply rail, further shields the measurement chain from lightning-induced surges and switching transients generated by nearby variable frequency drives (VFDs) or large motor starters.

Cabinet thermal management is equally critical: the 3500 rack and associated Proximitor power supplies generate heat that must be controlled to prevent measurement drift. Pairing the protection system with properly rated cabinet cooling units and maintaining cable separation between the coaxial signal cables and high-voltage power wiring preserves the signal-to-noise ratio that the 330103-00-02-05-01-00 is calibrated to deliver.

Critical Industrial Safety Applications

The 330103-00-02-05-01-00 is deployed across the full spectrum of critical rotating machinery in heavy industry. In petrochemical and refinery environments, it monitors compressor trains and pump sets that operate continuously for 3–5 year turnaround cycles, where any undetected bearing degradation or rotor imbalance can escalate to catastrophic mechanical failure, process release, or fire. The transducer’s non-contact measurement principle means it introduces no friction, no wear, and no process contamination risk — essential for API 670-compliant machinery protection on hydrocarbon-handling equipment.

In power generation — both thermal and combined-cycle plants — steam turbine shaft monitoring with the 3300 XL system provides the early warning margin that allows operators to schedule maintenance during planned outages rather than responding to emergency trips. Mining and mineral processing operations rely on the 330103-00-02-05-01-00 for SAG mill pinion bearing monitoring and crusher drive shaft surveillance, where the high-dust, high-vibration environment demands a sensor that maintains calibration without periodic recalibration shutdowns.

Water and wastewater treatment facilities use the transducer on large vertical turbine pumps and blower trains, where bearing failure leads to extended service outages and regulatory compliance risks. In metallurgical and steel plants, the sensor monitors rolling mill drive shafts and continuous caster pinch roll drives — applications where the combination of high electromagnetic noise from thyristor drives and extreme mechanical loading makes a robust, shielded eddy-current transducer the only viable measurement technology. Port and marine installations deploy the 3300 XL system on propulsion shaft lines and cargo pump turbines, where the corrosive salt atmosphere and vessel vibration demand the IP67 sealing and stainless construction that the 330103-00-02-05-01-00 provides.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330103-00-02-05-01-00?
The support terms confirmed by quotation cover manufacturing defects, signal output drift beyond calibrated tolerance, connector integrity failure, and housing corrosion under normal industrial operating conditions. Support requests are supported with replacement unit dispatch and return material authorization (RMA) processing. Long-term supply agreements with buffer stock are available for customers requiring guaranteed availability beyond standard lead times.

Q2: What pre-shipment testing is performed before dispatch?
Every 330103-00-02-05-01-00 unit undergoes 100% functional verification prior to shipment: gap linearity check across the full measurement range, output voltage verification at nominal –24 VDC supply, insulation resistance test between signal conductors and shield, and connector continuity inspection. Test records are available upon request for quality documentation requirements.

Q3: Is the 330103-00-02-05-01-00 compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330103-00-02-05-01-00 is a standard 3300 XL Series 8mm probe and is fully interchangeable with other 330103-XX-XX-XX-XX-XX variants within the same gap and cable length specification. It is compatible with all 3300 XL Proximitor Sensors and integrates directly with the Bently Nevada 3500 Machinery Protection System I/O modules without requiring reconfiguration of the rack software, provided the system is already calibrated for 8mm probe geometry.

Q4: Can long-term supply and replacement support be arranged for critical plant spares programs?
Yes. KNMKS maintains forward stock of the 330103-00-02-05-01-00 and related 3300 XL Series components to support planned maintenance, emergency replacement, and annual spare parts programs. Customers operating multiple machinery trains can arrange blanket purchase orders with scheduled releases to ensure availability without carrying excess on-site inventory. Contact our technical sales team to discuss a tailored supply agreement aligned with your plant turnaround schedule.
