Bently Nevada 330102-60-90-10-02-CN Fail-Safe Proximity Transducer

Overview

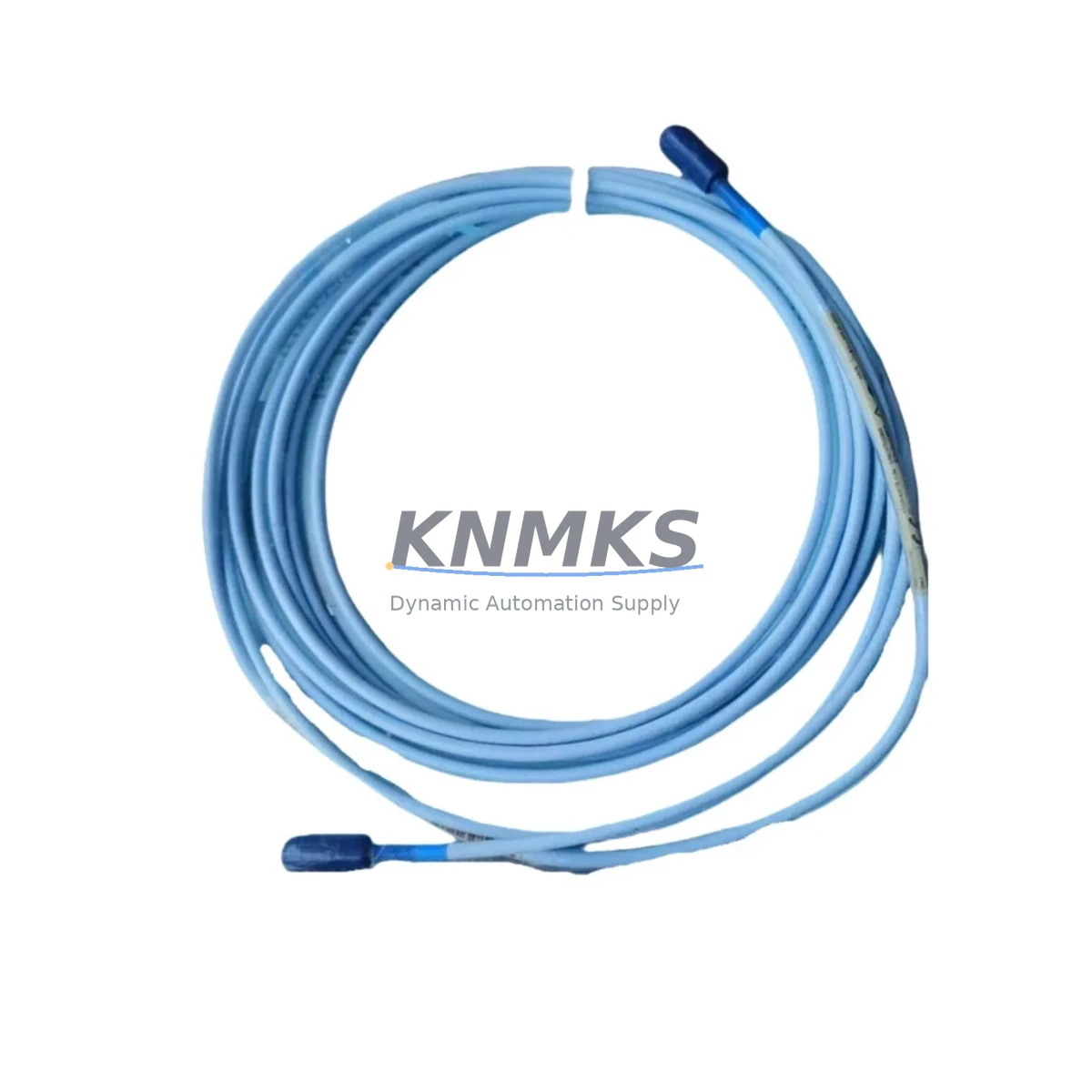

Bently Nevada 330102-60-90-10-02-CN Fail-Safe Proximity Transducer for Industrial Control Reliability

The Bently Nevada 330102-60-90-10-02-CN is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, fail-safe shaft vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port machinery, and marine propulsion systems, this transducer delivers the measurement accuracy and signal integrity that critical rotating machinery protection demands.

In high-stakes industrial control cabinets where unplanned downtime carries severe operational and safety consequences, the 330102-60-90-10-02-CN provides a stable, low-noise output signal that feeds directly into protective relay logic, DCS interlocks, and safety instrumented systems. Its robust construction resists signal drift caused by electromagnetic interference, ground loops, and power supply fluctuations — common failure modes in heavy industrial environments where variable-frequency drives, large motor starters, and high-current bus bars operate in close proximity to measurement instrumentation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable shaft monitoring begins at the transducer, but true fail-safe protection requires a coordinated system architecture within the control cabinet. The 330102-60-90-10-02-CN is designed to work in tandem with the Bently Nevada 3300 XL 8mm Proximitor® Sensor (330180-X1-05), which conditions the raw transducer signal into a calibrated DC voltage output suitable for direct input to the Bently Nevada 3500/42M Proximitor® / Seismic Monitor — a rack-mounted module that provides dual-channel vibration and position monitoring with built-in relay trip outputs for machinery protection interlocks.

In cabinets where power quality is a concern, pairing this transducer system with a Phoenix Contact QUINT-PS/1AC/24DC/10 DIN-rail power supply ensures a stable, regulated -24 VDC feed with active power boost and preventive function monitoring, eliminating the supply voltage fluctuations that can cause false proximity readings or nuisance trips. For installations in high-EMI environments — such as those near large variable-frequency drives or arc furnace control panels — the addition of Belden 9182 shielded instrumentation cable between the Proximitor and the monitoring rack further suppresses common-mode noise and ground-induced signal errors.

Where the 330102-60-90-10-02-CN is integrated into a Safety Instrumented System (SIS), it is commonly deployed alongside Pepperl+Fuchs KFD2-STC4-Ex1 intrinsic safety barriers to maintain ATEX/IECEx zone compliance in hazardous area installations, and with Rockwell Automation 1756-IB16 ControlLogix digital input modules to capture relay trip signals from the 3500 monitor rack into the plant-wide DCS for alarm management and historian logging. This multi-layer protection strategy — transducer, Proximitor, power supply, safety barrier, and DCS input — forms a complete, auditable safety loop that minimizes the risk of undetected machinery faults, control interruptions, and non-planned shutdowns.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 330102-60-90-10-02-CN is widely deployed on centrifugal compressors, boiler feed pumps, and reactor agitators where API 670 machinery protection is mandatory. Continuous shaft radial vibration and axial position monitoring by this transducer enables early detection of rotor instability, bearing wear, and seal degradation — allowing maintenance teams to schedule corrective action before a catastrophic failure triggers an emergency shutdown or process safety event.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 3300 XL proximity transducer system monitors turbine shaft eccentricity and differential expansion during startup and load transients, providing the turbine control system with the real-time position data needed to enforce safe operating envelopes and prevent blade-to-casing contact.

In mining and mineral processing, where crusher drives, ball mills, and slurry pumps operate under extreme mechanical loading and high ambient dust and moisture, the IP67-rated probe construction of the 330102-60-90-10-02-CN ensures measurement continuity without signal degradation from contamination ingress. Similarly, in metallurgical and steel mill environments, the transducer’s high-temperature tolerance and vibration-resistant design allow reliable operation on rolling mill drive trains and continuous casting machine drives where thermal cycling and mechanical shock are constant.

For water and wastewater treatment facilities operating large vertical turbine pumps and blower trains, and for port and marine applications monitoring propulsion shaft alignment and thruster bearing condition, the 330102-60-90-10-02-CN provides the measurement precision and environmental robustness required for unattended, continuous operation in remote or offshore installations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330102-60-90-10-02-CN?
All units are covered by a 12-month full functional support terms from the date of shipment. If the transducer fails to perform within its published specification under normal operating conditions during this period, we will provide a replacement unit or documented resolution support. Support requests are processed within 5 business days.

Q2: What pre-shipment testing is performed on each unit?
Every 330102-60-90-10-02-CN undergoes a multi-point functional test prior to dispatch, including output sensitivity verification at the nominal -24 VDC supply, gap-versus-voltage linearity check across the full 0.25–2.54 mm linear range, insulation resistance test on the coaxial cable assembly, and connector integrity inspection. A test record is available upon request.

Q3: Is this transducer compatible with existing 3300 XL Proximitor® drivers and 3500 monitor racks?
Yes. The 330102-60-90-10-02-CN is fully compatible with the Bently Nevada 3300 XL 8mm Proximitor® Sensor family and the 3500 Series monitor rack system. It is a direct form-fit-function replacement for equivalent 3300 XL 8mm probes with matching cable length and connector configuration. No recalibration of the Proximitor is required when replacing a like-for-like unit.

Q4: Can long-term supply and replacement support be arranged for critical plant spares programs?
Yes. We maintain standing inventory of the 330102-60-90-10-02-CN and can support blanket purchase orders, consignment stock arrangements, and scheduled delivery programs for customers with critical spares requirements. Lead time for standard orders is typically 1–3 business days from confirmed payment. For large-volume or long-term supply commitments, please contact our sales team to discuss dedicated stock reservation.
