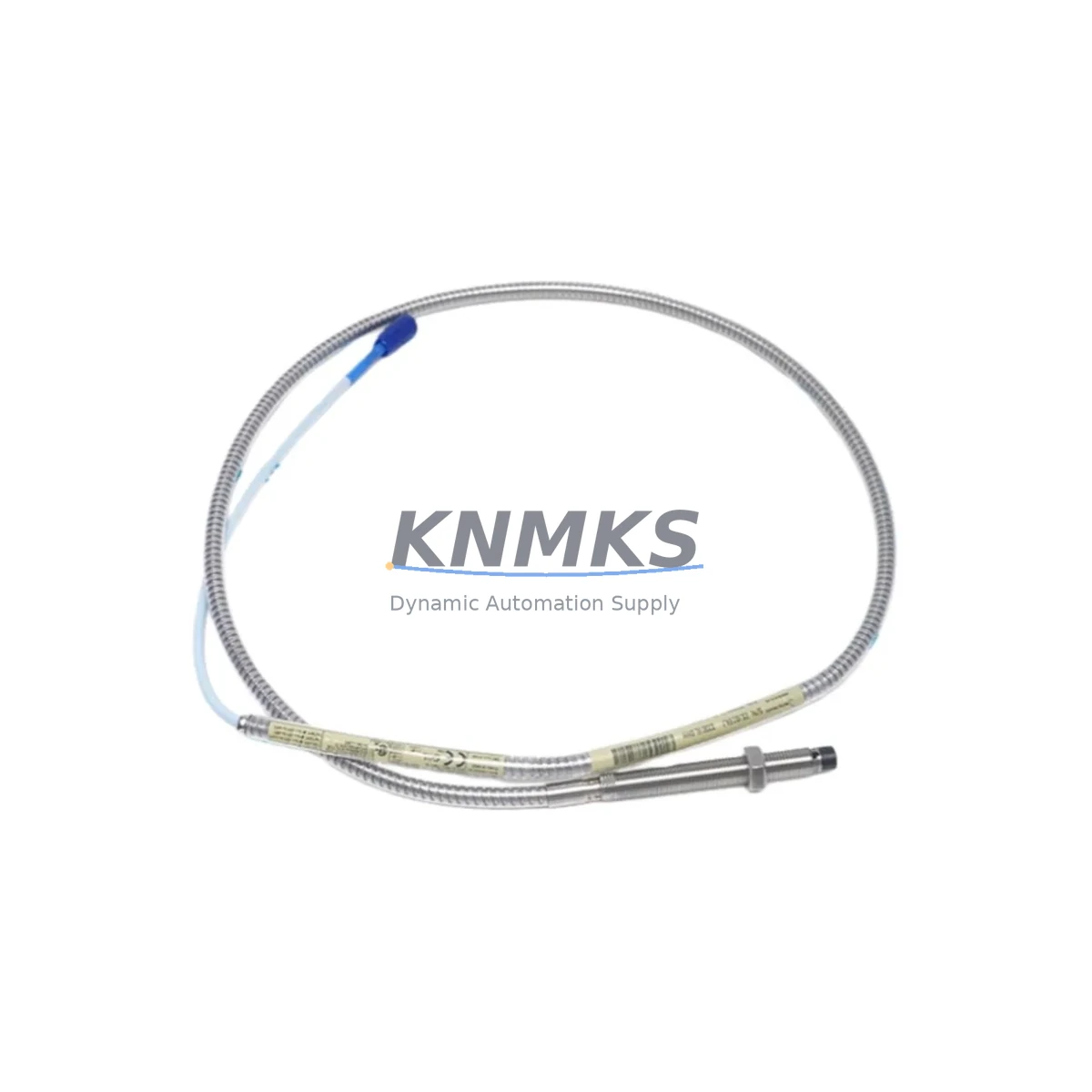

Bently Nevada 330102-40-70-10-02-CN Fail-Safe Extension Cable

Overview

Bently Nevada 330102-40-70-10-02-CN Fail-Safe Extension Cable: Fault-Protected Proximity Signal Integrity for Critical Industrial Sites

The Bently Nevada 330102-40-70-10-02-CN is a precision-engineered proximity extension cable designed for the 3300 XL Eddy Current Proximity System. Built to sustain uninterrupted signal transmission between proximity probes and Bently Nevada 3300 XL proximitor/seismic transducers, this cable is a cornerstone component in machinery protection systems deployed across rotating equipment, turbomachinery, compressors, and critical drive trains. In environments where signal drift, cable degradation, or connector failure can trigger unplanned shutdowns or dangerous machinery overspeed events, the 330102-40-70-10-02-CN delivers the fail-safe electrical continuity that safety-critical control loops demand.

Engineered to exact Bently Nevada specifications, this extension cable maintains the precise impedance, capacitance, and shielding characteristics required by the 3300 XL system. Any deviation in cable parameters directly affects the gap voltage output of the proximitor, which in turn impacts vibration and position measurement accuracy. The 330102-40-70-10-02-CN eliminates this risk by providing a factory-verified, drop-in replacement that preserves system calibration integrity without field re-tuning.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully integrated machinery protection architecture, the 330102-40-70-10-02-CN extension cable operates as the critical signal link between the field-mounted proximity probe and the 3300 XL Proximitor/Seismic Transducer housed in the control cabinet. Signal integrity across this link is non-negotiable: any capacitance mismatch, shield discontinuity, or connector oxidation introduces measurement error that can mask real vibration events or generate spurious trips.

To build a complete, fault-tolerant protection loop, the extension cable is typically paired with the Bently Nevada 330100-90-05 proximity probe at the field end, which provides the eddy current sensing element for shaft radial vibration and axial position measurement. At the cabinet end, the Bently Nevada 3300/16-02-01-00-00-00-00 proximitor module conditions the raw gap voltage signal and outputs a calibrated 4–20 mA or voltage signal to the safety system. For turbomachinery applications requiring overspeed protection, the Bently Nevada 3500/53 Overspeed Detection Module integrates directly with the proximity measurement chain, using the same signal infrastructure to enforce emergency shutdown logic.

Within the control cabinet, power supply stability is equally critical. The Bently Nevada 3500/15 Power Supply Module provides the regulated –24 VDC required by the 3300 XL proximitor, ensuring that voltage fluctuations on the plant bus do not propagate into the measurement circuit. For installations in high electromagnetic interference environments — such as variable frequency drive (VFD) rooms, large motor control centers, or switchgear bays — supplementary EMI filtering and proper cable routing away from power conductors are essential. The double-shielded construction of the 330102-40-70-10-02-CN provides inherent rejection of induced noise, but cabinet-level shielding practices using the Bently Nevada 3500 rack system’s grounding architecture further suppress common-mode interference. In multi-channel monitoring installations, the Bently Nevada 3500/22M Transient Data Interface can capture high-resolution waveform data from the same proximity channels, enabling post-event analysis of machinery behavior during process upsets or startup transients.

Critical Industrial Safety Applications

The 330102-40-70-10-02-CN is deployed across the most demanding continuous-process industries where rotating machinery failure carries severe safety and financial consequences.

In petrochemical and refinery facilities, this extension cable supports radial vibration and thrust position monitoring on centrifugal compressors, reactor charge pumps, and steam turbine-driven blowers. These machines operate continuously under API 670 machinery protection requirements, where the proximity measurement chain must remain functional through process upsets, steam ingress, and high-ambient-temperature conditions in compressor houses. The oil-resistant jacket and temperature-rated construction of the 330102-40-70-10-02-CN ensure cable integrity even when routed through hot pipe racks or near steam tracing systems.

In power generation plants — including coal-fired, gas turbine, and combined-cycle facilities — the extension cable is used on main turbine-generator sets, boiler feed pumps, and induced draft fans. Shaft eccentricity and differential expansion measurements on large turbines depend on stable, low-noise proximity signals. Any cable degradation that introduces signal noise can cause nuisance trips of the turbine protection system, resulting in costly generation outages. The 330102-40-70-10-02-CN’s matched impedance and shielding characteristics prevent this failure mode.

In mining and mineral processing operations, proximity monitoring is applied to large ball mills, SAG mills, slurry pumps, and conveyor drive gearboxes. These environments combine high vibration, dust ingress, moisture, and aggressive chemical exposure. The robust cable jacket and sealed connector assembly of the 330102-40-70-10-02-CN maintain measurement integrity in these conditions, supporting predictive maintenance programs that reduce unplanned downtime on critical ore processing equipment.

In water and wastewater treatment plants, the cable supports vibration monitoring on large vertical turbine pumps, blowers, and centrifuges operating in humid, corrosive atmospheres. In metallurgical facilities — steel mills, aluminum smelters, and copper refineries — it protects rolling mill drives, converter blowers, and electrolytic cell agitators from vibration-induced failures. In port and marine applications, it is used on ship propulsion systems, thruster drives, and cargo pump turbines where saltwater exposure and vessel motion create extreme cable stress conditions.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330102-40-70-10-02-CN?
All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, connector integrity, and cable electrical performance. KNMKS provides direct replacement support for any unit that fails to meet Bently Nevada 3300 XL system specifications during the confirmed support period.

Q2: What pre-shipment testing is performed on each cable?
Each 330102-40-70-10-02-CN undergoes continuity verification, insulation resistance testing, and connector contact inspection before dispatch. This ensures that every unit shipped is electrically sound and ready for immediate installation without field testing delays — critical for maintenance windows on continuous-process machinery.

Q3: Is this cable compatible with all Bently Nevada 3300 XL proximity probes and proximitors?
Yes. The 330102-40-70-10-02-CN is designed to the Bently Nevada 3300 XL system cable specification and is compatible with the full range of 330100 and 330101 series proximity probes and 3300 XL Proximitor/Seismic Transducers. It maintains the required system capacitance and impedance parameters to preserve factory calibration without adjustment.

Q4: Can long-term supply and spare parts support be arranged for plant maintenance programs?
KNMKS maintains stock inventory of the 330102-40-70-10-02-CN to support both emergency replacement and planned maintenance schedules. Long-term supply agreements and consignment stock arrangements are available for facilities with ongoing Bently Nevada 3300 XL system maintenance requirements. Contact our technical sales team to discuss stocking programs tailored to your plant’s spare parts strategy.
