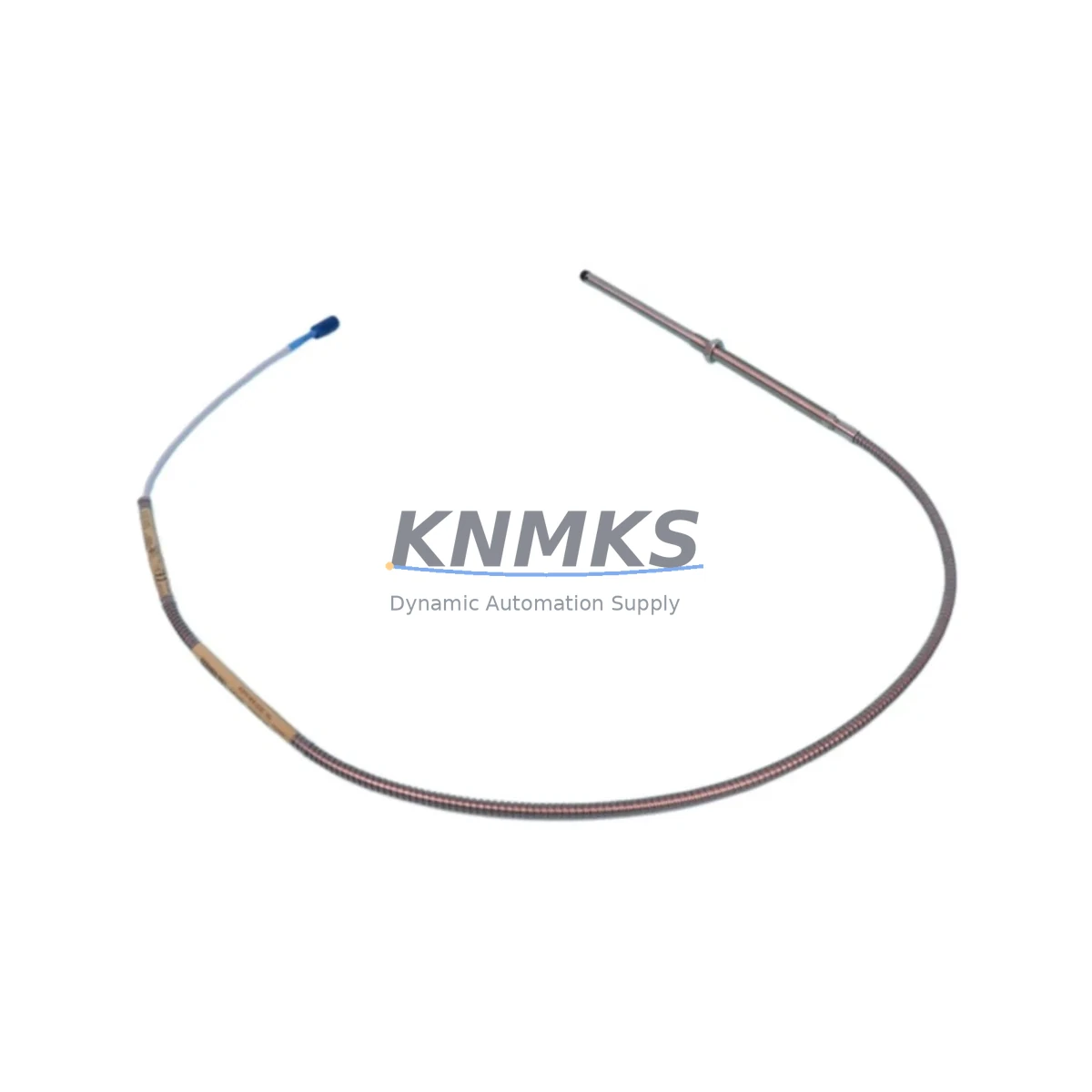

Bently Nevada 330102-37-78-10-02-05 Migration-Ready Probe: Legacy System Retrofit & Compatibility Upgrade

The Bently Nevada 330102-37-78-10-02-05 is an 8mm eddy current proximity probe from the 3300 XL Series, engineered for non-contact vibration and position measurement in rotating machinery protection systems. As legacy Bently Nevada 3300 Series installations reach end-of-life or face discontinued spare parts availability, this probe serves as a verified migration-ready replacement that preserves existing wiring infrastructure, signal conditioning compatibility, and machinery protection logic without requiring a full system overhaul.

For facilities operating aging turbomachinery protection panels built around the 3300 Series platform, the 330102-37-78-10-02-05 provides a direct upgrade path. The probe maintains the standard 8mm tip diameter, 5-metre integral cable configuration, and -24 VDC bias voltage output that the 3300 XL driver electronics — such as the 3300/16 proximitor — expect. Engineers replacing worn or failed probes can retain existing conduit runs, terminal block assignments, and Keyphasor reference wiring without modification, significantly reducing retrofit labor and downtime exposure.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330102-37-78-10-02-05 into an existing machinery protection architecture requires a structured pre-installation review. Before removing the failed or obsolete probe, maintenance teams should document the current gap voltage reading at the 3300/16 proximitor output — typically between -10 VDC and -12 VDC for a properly gapped 8mm probe on a steel target. This baseline reading becomes the acceptance criterion after the new probe is installed and gapped.

Terminal block wiring should be photographed and labeled before disconnection. The probe cable shield must be grounded at one end only — typically at the proximitor barrier — to prevent ground loop interference that can corrupt vibration readings on the 3500/22M monitor card or equivalent. If the installation is part of a broader migration from the 3300 platform to the Bently Nevada 3500 Series, a signal conditioning adapter or the 3500/42M Proximitor I/O Module may be required to bridge the analog probe output into the new digital rack architecture.

For control cabinets that also house a 3300/20 Rack Interface Module or a 3300/55 Keyphasor Module, the probe replacement should be coordinated with a review of the Keyphasor gap setting, since phase reference accuracy directly affects balance and runout compensation calculations stored in the System 1 condition monitoring software. If the plant is running an older version of System 1 (pre-v6), confirm that the probe sensitivity constant entered in the software matches the 200 mV/mil output of this unit.

Where I/O expansion is part of the retrofit scope — for example, adding radial vibration channels to a previously single-channel bearing — the 3300/16-02-01-00 dual-channel proximitor can accommodate two 330102-series probes on a single module, reducing backplane slot consumption and simplifying wiring in congested control cabinets. Spare backplane connectors and DIN rail mounting hardware should be confirmed available before scheduling the outage window.

For facilities that have already migrated their HMI layer to a modern SCADA platform, verify that the analog input card receiving the proximitor output is configured for the correct input range and that alarm setpoints in the DCS or safety instrumented system reflect the gap-corrected voltage thresholds rather than raw millivolt values. Mismatched scaling is a common source of nuisance trips during the first hours after probe replacement.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement or broader 3300 Series migration begins with pre-staging all replacement components — including the 330102-37-78-10-02-05 probe, extension cable if required, and a calibrated gap-setting tool — before the maintenance window opens. A pre-tested spare proximitor module should be on hand in case the existing 3300/16 unit shows degraded output after the probe swap, as proximitor and probe performance are interdependent.

The original program logic in the machinery protection monitor does not require modification when replacing a like-for-like 330102-series probe, provided the gap voltage is correctly re-established. Alert and danger setpoints, time delays, and voting logic configured in the 3300 or 3500 monitor cards remain valid. This is a critical advantage over full platform migrations, where setpoint re-entry and functional safety validation can extend outage duration by days.

To protect control continuity during the swap, consider placing the affected channel in bypass mode through the 3300 rack’s front-panel bypass switch or through the System 1 software before disconnecting the probe cable. This prevents a spurious danger trip from propagating to the turbine trip relay or the emergency shutdown system while the probe gap is being set. Restore the channel from bypass only after the gap voltage has been verified and the probe connector is fully seated and locked.

Post-installation, a slow-roll vibration check at low shaft speed — typically below 600 RPM — confirms that the probe is reading cleanly before the machine is brought to operating speed. Any DC offset error or noise floor above 50 mV peak-to-peak at slow roll should be investigated before proceeding. All installation steps, gap readings, and acceptance test results should be recorded in the plant maintenance management system to support future audits and support requests.

Retrofit Support FAQ

Q: Is the 330102-37-78-10-02-05 a direct replacement for other 330102 suffix variants?
A: The 330102 base part number is common across the 3300 XL 8mm probe family. The suffix encodes cable length, connector type, and temperature rating. The -37-78-10-02-05 suffix specifies a 78-inch cable with a standard armored jacket and a specific connector configuration. Before ordering, confirm that the cable length and connector type match your existing installation. If the original probe had a different cable length, an extension cable can bridge the difference without rewiring the terminal block.

Q: What commissioning steps are required after installation?
A: After mechanical installation, connect the probe to the 3300/16 proximitor and apply power. Measure the DC gap voltage at the proximitor output with a calibrated multimeter. Adjust the probe-to-target gap until the output reads within the linear range specified for your target material — typically -10 VDC to -12 VDC for steel at the nominal 1.0 mm gap. Record the final gap voltage and compare it to the previous baseline. Confirm that the vibration channel is reading below the slow-roll noise floor before releasing the machine for startup.

Q: Has this unit been tested before shipment, and what support terms is provided?
A: Yes. Every 330102-37-78-10-02-05 unit is bench-tested for output linearity, sensitivity (200 mV/mil ± 5%), and cable continuity before dispatch. A support terms confirmed by quotation cover manufacturing defects under normal operating conditions. A certificate of conformance is available upon request. Units are shipped in anti-static packaging with protective tip covers to prevent damage in transit.

Q: Is inventory available for immediate shipment?
A: Stock is maintained for the 330102-37-78-10-02-05 and related 3300 XL Series components to support urgent replacement requirements. Lead time for in-stock units is typically 1–3 business days for international express shipment. For large-quantity orders or scheduled maintenance programs requiring multiple probes, proximitor modules, or rack components, contact our sales team to confirm availability and arrange consolidated shipment.
