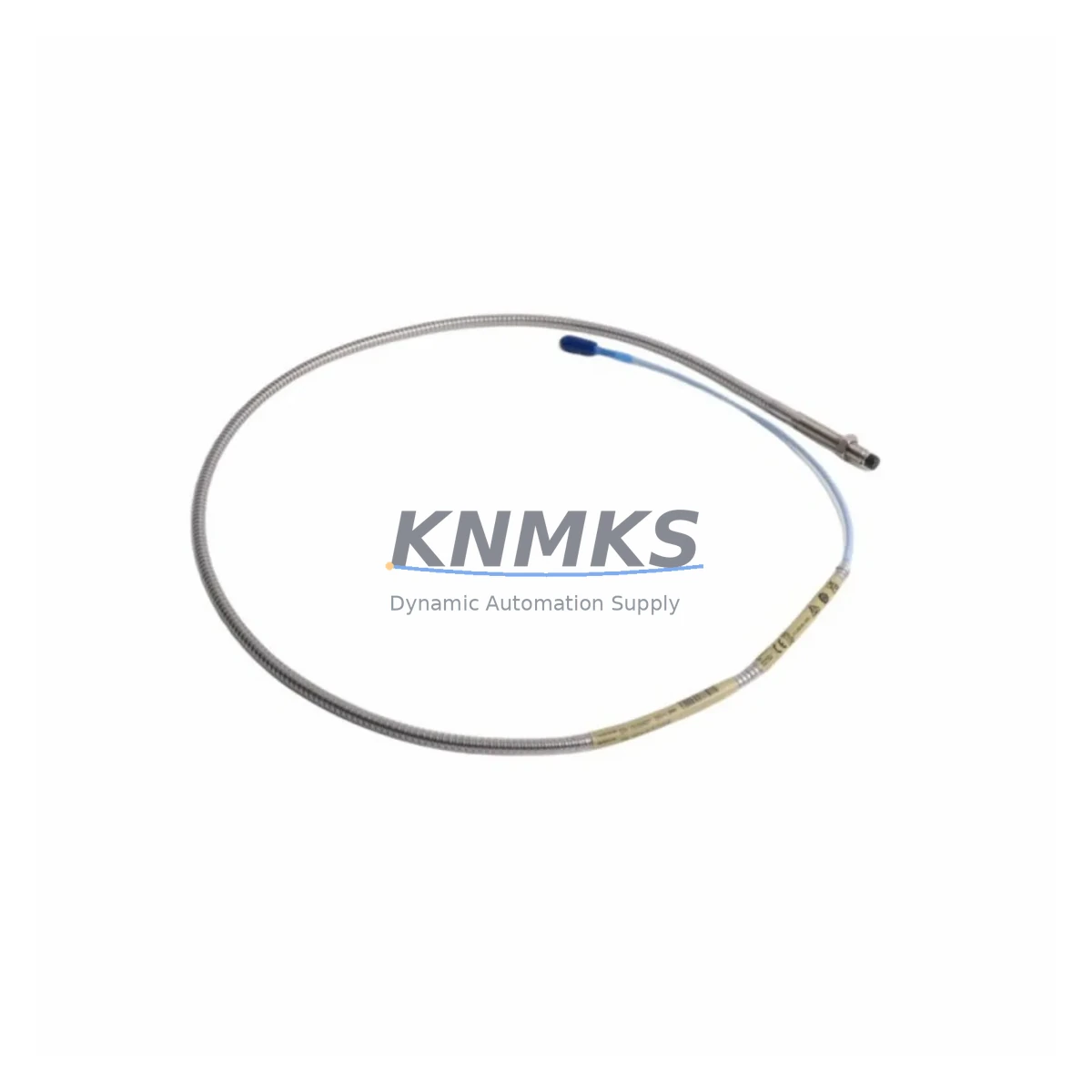

Bently Nevada 330102-27-46-10-02-05 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330102-27-46-10-02-05 Fail-Safe Proximity Transducer for Critical Industrial Reliability

The Bently Nevada 330102-27-46-10-02-05 is an 8mm proximity transducer from the industry-proven 3300 XL Series, engineered specifically for fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to deliver continuous, high-integrity signal output under conditions of high electromagnetic interference, mechanical vibration, extreme temperature cycling, and corrosive or moisture-laden atmospheres, this transducer is a cornerstone component in critical machinery protection systems across global heavy industries.

In continuous production facilities — petrochemical plants, power generation stations, metallurgical mills, and offshore platforms — unplanned machinery downtime is not merely a financial loss; it is a safety event. The 330102-27-46-10-02-05 addresses this reality by providing stable, drift-free proximity sensing that feeds accurate shaft displacement and vibration data into the plant’s safety instrumented system (SIS) and distributed control system (DCS). Its robust eddy-current sensing principle ensures that signal integrity is maintained even when conventional sensors would suffer from signal drift, noise injection, or output instability caused by nearby variable-frequency drives, high-current bus bars, or switching power supplies.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330102-27-46-10-02-05 transducer does not operate in isolation — its reliability is amplified when integrated into a well-engineered control cabinet and machinery protection architecture. In a typical critical rotating machinery protection loop, this probe works in conjunction with the Bently Nevada 3300 XL Proximitor Sensor (driver/oscillator module), which conditions the raw eddy-current signal into a clean DC voltage proportional to gap distance. This conditioned signal is then fed into a Bently Nevada 3500/42M Proximitor / Seismic Monitor module housed in the 3500 Series rack, where alarm and danger setpoints are enforced in real time.

Within the same control cabinet, surge protection is a non-negotiable requirement. Field-side transient events — caused by lightning strikes, motor switching, or ground faults — can propagate through signal cables and damage sensitive monitor inputs. Installing a dedicated signal surge arrester on each transducer channel at the cabinet entry point ensures that the 330102-27-46-10-02-05 and its associated monitor card are protected from transient overvoltage. Similarly, the power supply feeding the Proximitor driver must be a regulated, low-ripple DC source; a Bently Nevada 3500/15 Power Supply Module or equivalent redundant power supply unit is recommended to eliminate supply-side noise that could otherwise appear as false vibration readings.

In high-EMI environments such as those found near large synchronous motors, arc furnaces, or variable-speed drives, cable routing discipline is critical. The transducer extension cable should be routed in a dedicated metallic conduit, separated from power cables by a minimum of 300 mm, and terminated with proper shield grounding at a single point to prevent ground loops. When the machinery protection system must also interface with a plant-wide safety instrumented system, a Bently Nevada 3500/32 4-Channel Relay Module provides hardwired trip outputs that can directly actuate emergency shutdown valves or de-energize motor starters without relying on software-layer communication — a critical fail-safe design principle for SIL-rated loops. For facilities requiring remote diagnostics and condition monitoring integration, the System 1 Condition Monitoring Software platform connects seamlessly to the 3500 rack, enabling trend analysis, alarm history review, and predictive maintenance scheduling without interrupting the live protection function.

Critical Industrial Safety Applications

The 330102-27-46-10-02-05 proximity transducer is deployed across a wide spectrum of safety-critical industrial sectors where rotating machinery failure carries severe consequences for personnel, environment, and production continuity.

In petrochemical and refinery operations, this transducer monitors shaft radial vibration on high-speed centrifugal compressors and process pumps handling flammable or toxic media. A bearing failure in such a machine, if not detected within milliseconds, can escalate into a seal breach, fire, or toxic release. The 330102-27-46-10-02-05 provides the continuous, high-resolution displacement signal that allows the 3500 Series monitor to initiate an automatic shutdown before mechanical contact occurs.

In thermal and nuclear power generation, steam turbine shaft monitoring is a regulatory requirement. The transducer’s stable scale factor and low signal noise floor ensure that differential expansion measurements remain accurate across the full thermal transient range from cold startup to full-load operation, preventing blade-to-casing contact events that could cause catastrophic turbine failure.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives operate in environments saturated with conductive dust, high humidity, and severe mechanical vibration. The eddy-current sensing principle of the 330102-27-46-10-02-05 is inherently immune to contamination on the probe face, making it far more reliable than optical or capacitive alternatives in these conditions. Continuous shaft monitoring on these machines prevents unplanned stops that can halt an entire ore processing circuit.

In water and wastewater treatment, large vertical turbine pumps and blower trains serving municipal infrastructure require uninterrupted operation. The 330102-27-46-10-02-05 enables early detection of bearing wear and rotor imbalance, allowing maintenance teams to schedule corrective action during planned outages rather than responding to emergency failures that could disrupt water supply to entire communities.

In metallurgical and steel production facilities, rolling mill drive trains and continuous casting machine drives are subject to extreme shock loads and thermal cycling. The transducer’s wide operating temperature range and robust mechanical construction ensure reliable signal output even when mounted in close proximity to hot metal processing equipment.

In port and marine applications, propulsion shaft monitoring on large vessels and crane drive systems in port terminals benefit from the transducer’s corrosion-resistant construction and stable performance in high-humidity, salt-laden atmospheres.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330102-27-46-10-02-05?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional deviations from the published Bently Nevada 3300 XL specification. If the transducer fails to meet its specified scale factor, linearity, or temperature performance within the confirmed support period under normal operating conditions, we will provide a replacement unit or documented resolution support. Support requests are processed with priority to minimize your machinery downtime.

Q2: What outgoing inspection and testing is performed before shipment?
Every 330102-27-46-10-02-05 unit undergoes a full functional verification prior to dispatch. This includes scale factor measurement, gap-versus-output linearity check across the full measurement range, insulation resistance test on the cable assembly, and connector integrity inspection. A test report is available upon request. Units that do not meet specification are quarantined and not shipped.

Q3: Is this transducer compatible with existing Bently Nevada 3500 Series monitor racks?
Yes. The 330102-27-46-10-02-05 is fully compatible with the Bently Nevada 3300 XL Proximitor driver system, which in turn interfaces directly with 3500 Series monitor modules including the 3500/42M, 3500/40M, and 3500/45. It is also backward-compatible with legacy 3300 Series monitor systems. Always verify the extension cable length and connector configuration match your installed system before ordering.

Q4: Can long-term supply continuity be guaranteed for this part number?
We maintain dedicated inventory of the 330102-27-46-10-02-05 and other high-demand Bently Nevada 3300 XL series components to support both immediate replacement needs and planned maintenance programs. For facilities managing large fleets of rotating machinery, we offer reserved stock arrangements and scheduled delivery programs to ensure that critical spare parts are available when needed, eliminating the risk of extended lead times during emergency situations.
