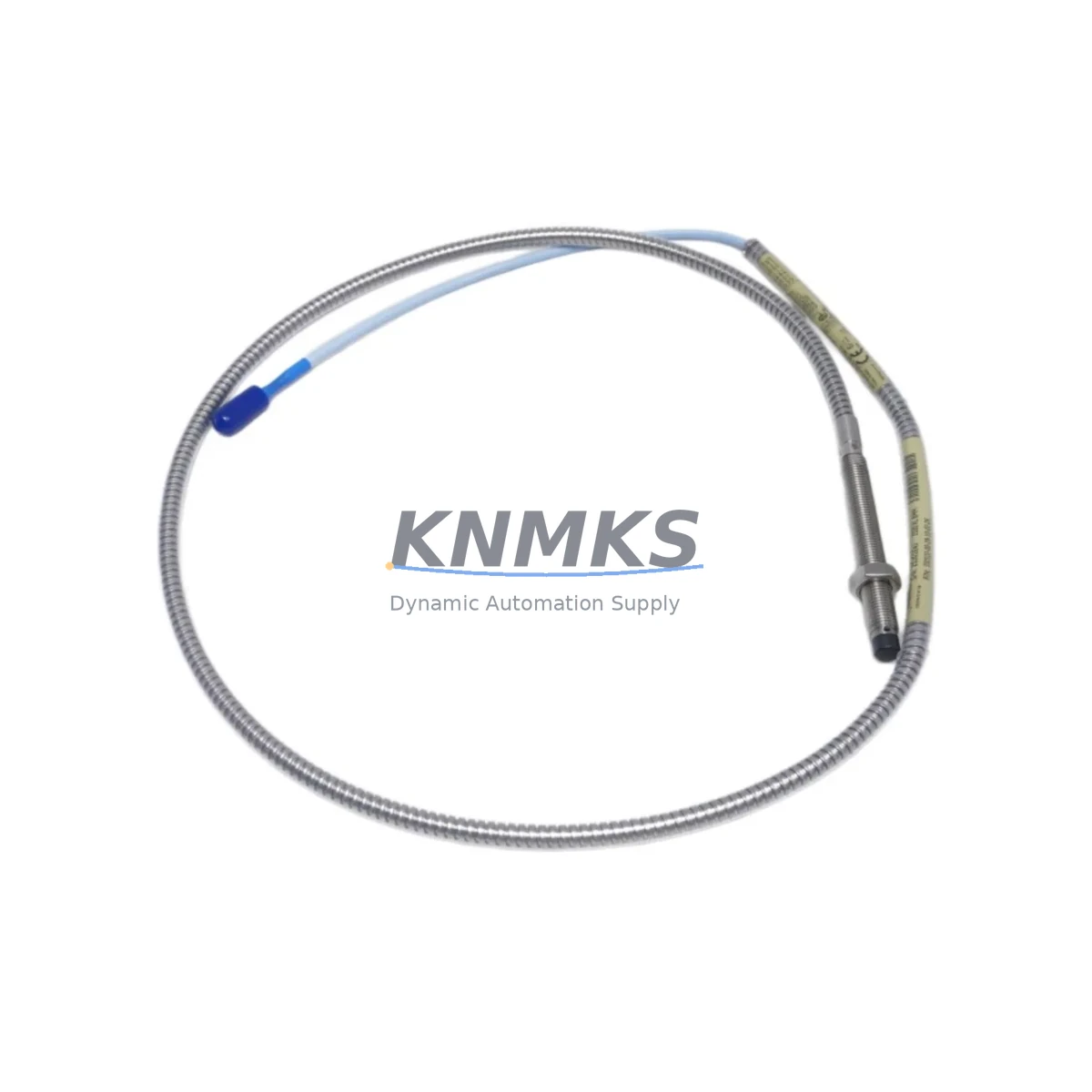

Bently Nevada 330102-24-72-10-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330102-24-72-10-02-00 is an 8mm proximity probe engineered for direct integration into Bently Nevada 3300 XL Series vibration monitoring systems. As legacy machinery protection platforms approach end-of-life and OEM spare parts become increasingly scarce, this migration-ready probe provides a verified drop-in replacement path for rotating equipment protection in power generation, petrochemical, oil & gas, and heavy manufacturing environments. Whether you are executing a planned control system upgrade or responding to an unplanned failure, the 330102-24-72-10-02-00 is stocked, tested, and ready to ship.

This probe is designed to interface directly with the Bently Nevada 3300 XL proximitor/driver, maintaining the original signal conditioning chain without requiring firmware changes or recalibration of the monitoring rack. Engineers replacing worn or failed probes in turbine, compressor, pump, and motor applications will find that the mechanical dimensions, cable length (24-inch extension), connector type, and sensitivity specification (200 mV/mil) are fully preserved, eliminating the need to modify existing conduit runs, terminal blocks, or DCS input scaling.

When planning a retrofit or spare parts replenishment for a 3300 XL-based machinery protection system, it is essential to verify the complete signal path. The 330102-24-72-10-02-00 probe pairs with the Bently Nevada 330130 extension cable and the 330180 proximitor to form a matched system. If the proximitor or extension cable has also degraded, replacing only the probe may not restore full system accuracy. Technicians should confirm that the proximitor output voltage at the gap distance specified in the original commissioning report falls within the ±0.5 VDC tolerance before returning the machine to service.

For sites migrating from older 7200 Series or 3300/16 rack-based systems to the current 3500 Series machinery protection platform, the probe itself is mechanically compatible, but the proximitor driver and rack I/O module must be evaluated separately. The Bently Nevada 3500/42M position monitor and 3500/40M proximitor I/O module accept the same probe signal format, allowing a phased migration strategy where probes are retained while the monitoring rack is upgraded. This approach significantly reduces installation downtime and preserves existing conduit and junction box infrastructure.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330102-24-72-10-02-00 into an operating machinery protection system requires a structured pre-installation review. Before removing the failed or degraded probe, document the existing gap voltage reading from the proximitor output terminal. This baseline value, typically between -10 VDC and -18 VDC depending on the target material and gap distance, will serve as the acceptance criterion after the new probe is installed and gapped.

In multi-channel monitoring racks, the 330102-24-72-10-02-00 typically occupies one channel of a Bently Nevada 3300/16 or 3300/20 rack module. When the rack itself is being replaced as part of a broader control system upgrade, engineers should confirm that the new rack — whether a 3500 Series chassis or a third-party vibration monitoring system — supports the same input impedance and signal range. The 3500/42M position monitor, for example, requires the same probe-proximitor-extension cable matched set and accepts the same analog signal, making it a natural upgrade target for sites standardizing on the current Bently Nevada platform.

For sites where the control cabinet is also being modernized, the retrofit plan should account for terminal block compatibility. The 330102-24-72-10-02-00 connects to the proximitor via a standard coaxial connector, and the proximitor output connects to the rack I/O via a dedicated terminal block strip. If the terminal block layout is being changed as part of the cabinet upgrade, ensure that the new wiring diagram preserves the shield grounding scheme specified in the original Bently Nevada installation drawing. Improper shield grounding is a common source of noise and false alarms in proximity probe systems.

Sites operating mixed fleets — where some machines use 3300 XL monitoring and others have already been upgraded to 3500 Series — should maintain a dedicated spare parts inventory that covers both platforms. In addition to the 330102-24-72-10-02-00 probe, a complete spare set for a 3300 XL channel typically includes the 330130 extension cable, the 330180 proximitor, and a spare rack I/O module. For 3500 Series channels, the equivalent spare set includes the 3500/42M monitor module and the appropriate proximitor driver. Maintaining both sets in the storeroom eliminates the risk of a single-point spare parts failure during an unplanned outage.

Downtime Control During System Migration

Minimizing downtime during a proximity probe replacement or monitoring system migration requires careful sequencing of the work steps. For a single-probe replacement on a running machine, the preferred approach is to use the bypass function available on most 3300 XL and 3500 Series rack modules to suppress the alarm output for the affected channel while the probe is being replaced. This prevents a nuisance trip during the brief period when the probe signal is interrupted. The bypass should be logged in the control system event record and removed immediately after the new probe is gapped and the output voltage is confirmed within specification.

For a full rack replacement or migration from a 3300 XL rack to a 3500 Series chassis, the recommended approach is to pre-configure and bench-test the new rack before the scheduled outage window. The 3500 Series rack can be configured offline using the Bently Nevada System 1 software, and the configuration file can be loaded and verified before the rack is installed in the cabinet. This eliminates configuration errors as a source of extended downtime and allows the commissioning team to focus on physical installation, wiring verification, and gap setting during the outage window.

During the outage, the original program logic in the DCS or safety system should not require modification if the probe signal range and scaling are preserved. However, if the new monitoring rack outputs a different signal format — for example, if a third-party vibration monitor uses a 4–20 mA output instead of the original voltage output — the DCS input card scaling and alarm setpoints must be updated before the machine is returned to service. This step is frequently overlooked and is a common cause of post-retrofit alarm nuisance or missed trips.

All units of the 330102-24-72-10-02-00 supplied by KNMKS are subject to outgoing inspection and functional testing prior to shipment. Each probe is verified for sensitivity, linearity, and connector integrity. A support terms confirmed by quotation cover manufacturing defects and signal performance from the date of shipment, providing assurance for both planned maintenance and emergency replacement scenarios.

Retrofit Support FAQ

Q1: Is the 330102-24-72-10-02-00 a direct replacement for the original Bently Nevada part?
Yes. The 330102-24-72-10-02-00 supplied by KNMKS is a migration-ready replacement that matches the original mechanical dimensions, cable length, connector type, and sensitivity specification. It is designed for direct installation into existing 3300 XL probe brackets and proximitor wiring without modification.

Q2: What commissioning checks are required after installation?
After installation, set the probe gap to the value specified in the original commissioning report (typically 1.0–1.5 mm for 8mm probes on steel targets). Verify the proximitor output voltage at the set gap distance. Confirm that the output falls within the expected range for the target material and gap. Remove any channel bypass and verify that the rack displays the correct vibration and gap readings before returning the machine to service.

Q3: Can this probe be used with a Bently Nevada 3500 Series rack?
Yes, with the correct matched proximitor. The 330102-24-72-10-02-00 probe is compatible with the 3500 Series platform when paired with the appropriate 3500 Series proximitor driver. Confirm the proximitor part number and input specification with your 3500 Series rack documentation before ordering.

Q4: What is the support terms and lead time?
All units carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and signal performance. KNMKS maintains stock of the 330102-24-72-10-02-00 for immediate dispatch. Standard lead time for in-stock units is 3–5 business days. Emergency shipment arrangements are available — contact [email protected] or call +86 18359268345 for urgent requirements.
