Bently Nevada 330102-12-60-10-02-05 Migration-Ready Eddy Current Probe for Legacy Control Systems

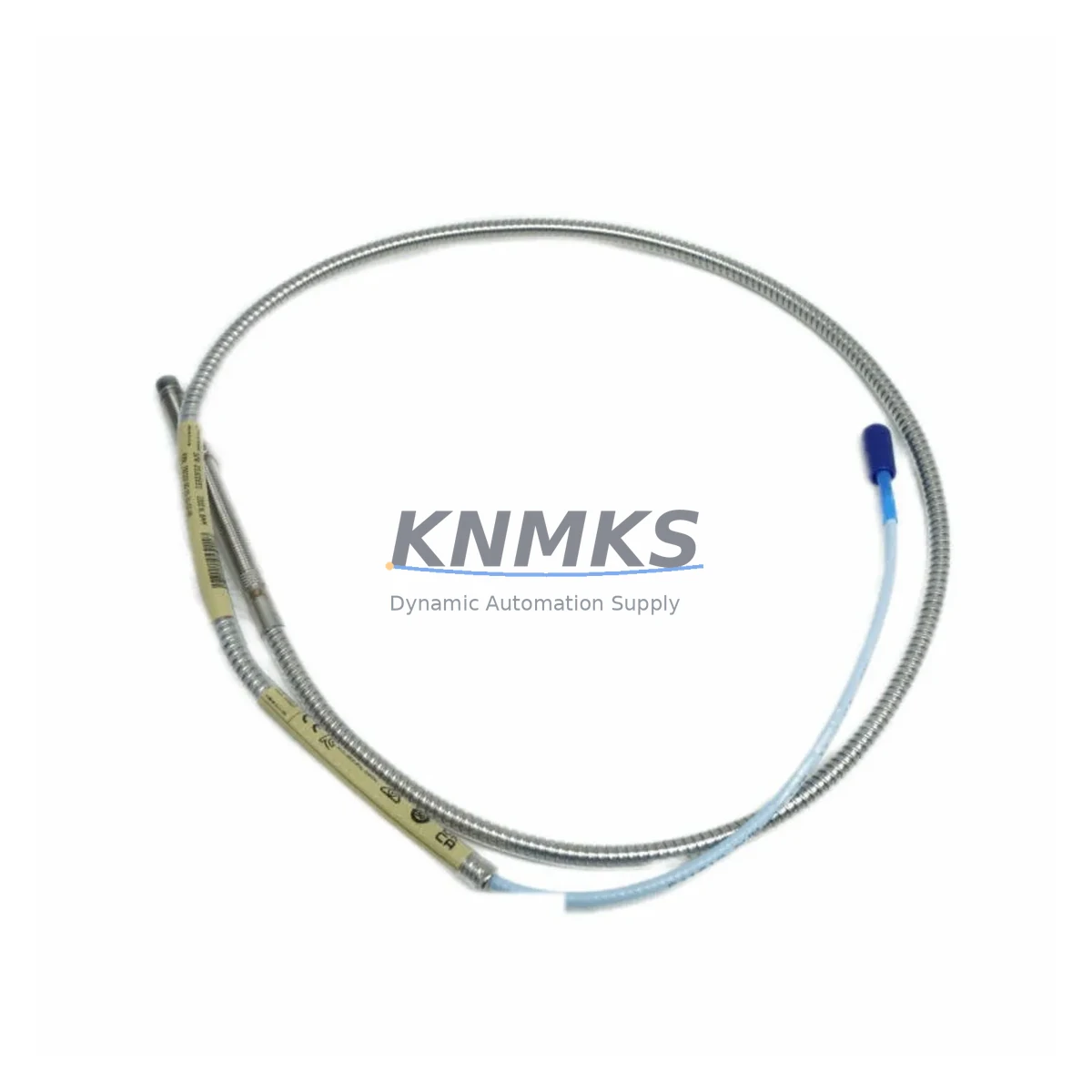

The Bently Nevada 330102-12-60-10-02-05 is an 8mm eddy current proximity probe engineered for the 3300 XL Series monitoring system. For facilities operating aging vibration monitoring infrastructure — including earlier 3300 Series and 7200 Series installations — this probe represents a validated, drop-in migration path that eliminates the need for full system overhauls. Whether you are replacing a discontinued probe on a critical rotating machine or upgrading a legacy control cabinet to meet modern reliability standards, the 330102-12-60-10-02-05 delivers the dimensional accuracy, signal linearity, and connector compatibility required for a controlled, low-risk retrofit.

The probe ships with a 330130 extension cable and is designed to interface directly with the 3300 XL proximitor/driver, maintaining the standard 5-metre system length configuration. Engineers migrating from older 330100 or 330101 probe assemblies will find that the connector pinout, thread specification (M10 x 1), and sensitivity output (200 mV/mil, 7.87 V/mm) remain consistent, significantly reducing rewiring time and eliminating the need to recalibrate the proximitor. The 330102-12-60-10-02-05 is rated for continuous operation in environments up to 177°C (350°F), making it suitable for high-temperature turbine bearing housings, compressor pedestals, and pump seal areas where legacy probes have historically been installed.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. When planning the replacement of a 330102-12-60-10-02-05 or its legacy predecessors, engineers should audit the full probe-to-rack signal chain. The 3300 XL proximitor/driver (330180) must be confirmed as the active driver in the rack; if the existing installation uses an older non-XL driver, the proximitor itself may also require replacement to maintain calibrated sensitivity. In multi-channel monitoring cabinets, it is common to find a mix of 3300 and 3300 XL modules occupying the same rack backplane — the 3500/42M Proximitor I/O Module is a frequent companion in upgraded systems, and its channel addressing must be verified against the DCS or safety system tag list before any probe swap is executed.

Terminal wiring at the junction box or marshalling cabinet should be photographed and documented before disconnection. The 330102-12-60-10-02-05 uses a standard coaxial signal path, but field installations often include signal isolators or barriers — particularly in hazardous area (Zone 1/Zone 2) applications — and these devices must be confirmed compatible with the new probe’s output impedance. Where Zener barriers or galvanic isolators are present, verify that the barrier’s working voltage and capacitance specifications do not attenuate the proximitor output signal beyond the acceptable range for the connected 3500 Series rack or legacy 3300 monitor card.

For systems where the vibration data feeds into a GE Mark VIe, Emerson DeltaV, or Honeywell Experion control platform via a 3500/92 Communication Gateway, confirm that the Modbus or OPC-DA tag mapping for the affected channel remains intact after the probe replacement. HMI faceplate displays tied to the vibration channel should be tested in simulation mode before the machine is returned to service. If the plant uses a System 1 Evolution condition monitoring platform, the probe replacement event should be logged as a configuration change to maintain data continuity in the trend historian.

Where installation space is constrained — such as in compact bearing housings on older steam turbines or gearboxes — confirm that the 330102-12-60-10-02-05’s 1.2m armored cable can be routed without sharp bends below the minimum bend radius of 50mm. In tight installations, a right-angle probe adapter or a shorter extension cable segment may be required. The 330130 extension cable should be inspected for jacket integrity and connector corrosion before reuse; if the existing extension cable shows signs of degradation, replacement with a new 330130 is recommended to avoid introducing signal noise into the measurement chain.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement requires a structured pre-outage preparation protocol. Before the machine is taken offline, the existing gap voltage and vibration baseline readings should be recorded from the 3300 XL monitor or the 3500 rack display. These values serve as the acceptance benchmark during post-installation commissioning — if the new 330102-12-60-10-02-05 is correctly installed and gapped, the static gap voltage should return to within ±0.2 VDC of the pre-outage reading.

To protect the original control logic, the DCS or PLC program should not be modified during the probe swap. The vibration channel input should be placed in manual override or bypass mode in the safety instrumented system (SIS) if applicable, and the bypass should be formally authorized under the plant’s management of change (MOC) procedure. This prevents a spurious trip during the installation gap-setting procedure, which requires the machine to be at rest with the probe tip positioned at the nominal 1.0mm gap from the shaft surface.

Once the probe is installed and the gap voltage confirmed, the bypass should be removed and the channel returned to automatic mode before the machine is restarted. A coast-down vibration check during the first run-up provides immediate confirmation that the probe is tracking shaft motion correctly. If the 3500/42M or 3300 XL monitor displays a “Not OK” status after installation, the most common causes are incorrect gap voltage, a damaged extension cable connector, or a proximitor driver that requires replacement — all of which can be diagnosed and resolved within the planned outage window without requiring additional machine downtime.

KNMKS pre-tests every 330102-12-60-10-02-05 unit prior to shipment, including static sensitivity verification and connector integrity checks, to ensure that the probe arrives ready for immediate installation. Units are shipped with a test report and are covered by a support terms confirmed by quotation from the date of shipment.

Retrofit Support FAQ

Q: Is the 330102-12-60-10-02-05 a direct replacement for the 330100-12-60-10-02-05?
A: Yes. The 330102-12-60-10-02-05 is the current production replacement for the discontinued 330100 and 330101 probe assemblies of the same dimensional configuration. The thread specification, cable length, connector type, and sensitivity output are identical, allowing a direct swap without modification to the probe boss, junction box wiring, or proximitor calibration.

Q: What commissioning checks are required after installation?
A: After mechanical installation, set the probe gap to achieve a static output of –10.0 VDC ±0.5 V as measured at the proximitor output terminals. Confirm the “OK” status on the 3300 XL or 3500 rack monitor. Record the gap voltage and compare it to the pre-outage baseline. Remove any SIS bypass and perform a run-up vibration check before returning the machine to normal operation.

Q: Can this probe be used with a non-XL 3300 Series proximitor driver?
A: The 330102-12-60-10-02-05 is designed for the 3300 XL 8mm proximitor (330180). It can operate with earlier 3300 Series drivers, but sensitivity calibration should be verified, as older drivers may have slightly different output characteristics. For critical applications, upgrading to the 330180 proximitor is recommended to ensure full specification compliance.

Q: What is the support terms and what does it cover?
A: All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, sensitivity out-of-specification conditions, and connector failures under normal operating conditions. Units are pre-tested before dispatch and shipped with a test report. For support requests or technical support, contact [email protected] or +86 18359268345.
