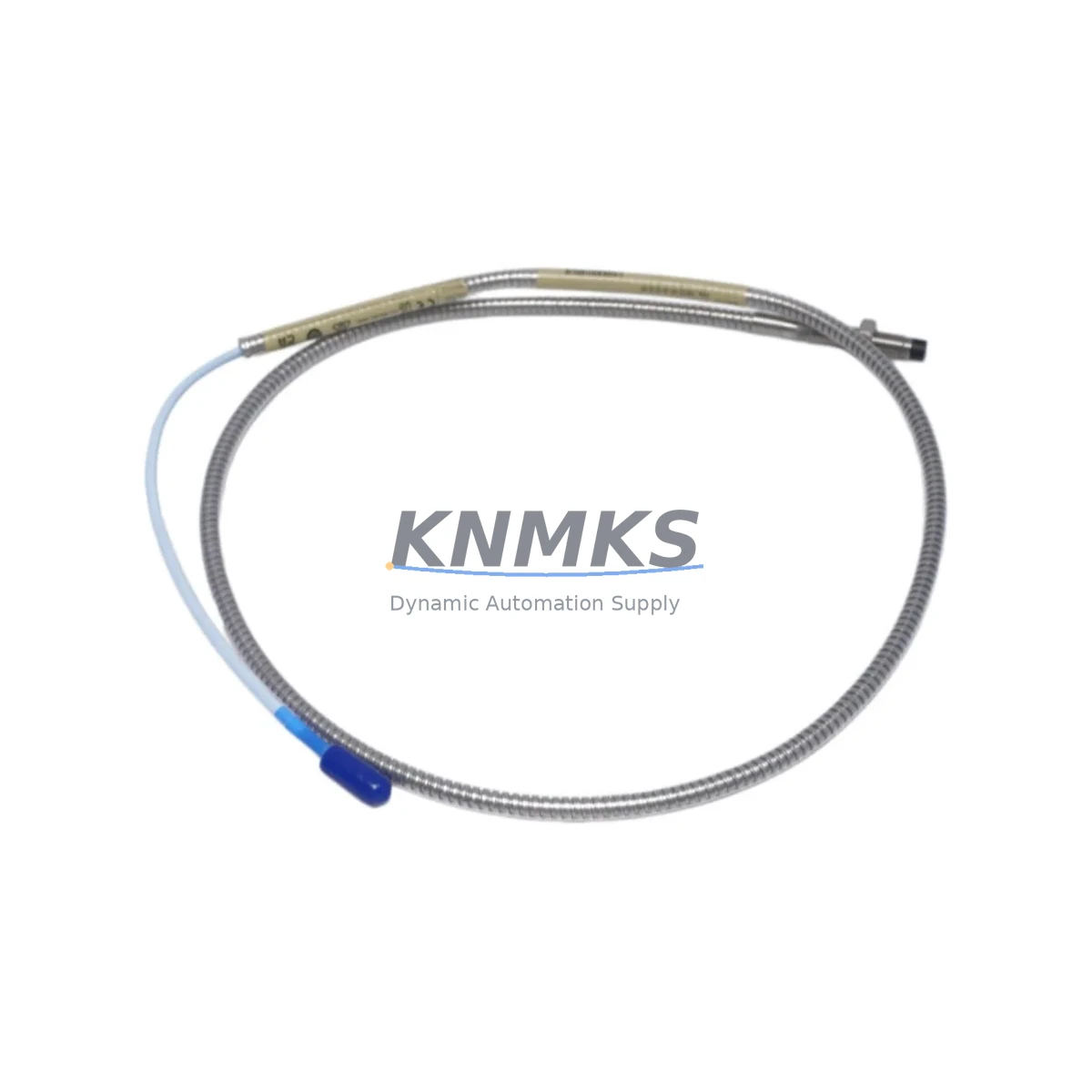

Bently Nevada 330102-10-40-10-02-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330102-10-40-10-02-CN Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330102-10-40-10-02-CN is an 8mm eddy-current proximity probe engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series, this probe delivers exceptional signal stability, high electromagnetic interference (EMI) immunity, and consistent output accuracy — making it the preferred choice for critical rotating machinery protection systems in petrochemical, power generation, mining, water treatment, metallurgy, port, marine, and continuous manufacturing facilities.

In high-stakes control environments where unplanned downtime carries severe operational and safety consequences, the 330102-10-40-10-02-CN provides the measurement integrity required to sustain protective interlock logic. Its robust construction resists signal drift caused by electrical noise, ground loops, and power fluctuations — common failure triggers in heavy industrial control cabinets. Whether deployed in a turbine protection panel, compressor monitoring rack, or pump safety loop, this probe maintains reliable gap voltage output across its full operating range, ensuring that vibration trip setpoints are never compromised by sensor-level faults.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330102-10-40-10-02-CN is rarely deployed in isolation. In a properly engineered rotating machinery protection system, it operates as part of a tightly integrated measurement chain. The probe connects to a Bently Nevada 330130 Series Extension Cable, which routes the signal from the machine casing to the control cabinet with minimal signal attenuation. Inside the cabinet, the Bently Nevada 330180 Series 3300 XL 8mm Proximitor conditions the raw probe signal into a calibrated DC voltage output, which feeds directly into the Bently Nevada 3500/40M Proximitor Monitor for real-time vibration and position alarming.

To protect the entire measurement loop from power-side disturbances — including voltage sags, surges, and high-frequency conducted noise common in variable-frequency drive (VFD) environments — the system should be powered through a dedicated Bently Nevada 3500/15 Power Supply Module or equivalent isolated DC supply. In facilities with high electromagnetic interference from large motor starters or arc furnaces, supplementary signal isolators and surge protection devices installed at the cabinet entry points further reduce the risk of false trips or sensor damage.

For applications requiring SIL-rated safety loop integration, the 330102-10-40-10-02-CN measurement chain can be interfaced with a safety-rated logic solver or safety PLC, enabling the vibration signal to participate in emergency shutdown (ESD) interlock logic. This architecture ensures that any abnormal vibration event — whether caused by bearing wear, rotor imbalance, or sudden mechanical impact — triggers a controlled, fail-safe shutdown before catastrophic equipment failure occurs.

Critical Industrial Safety Applications

The 330102-10-40-10-02-CN is trusted across a wide range of critical industrial sectors where continuous uptime and personnel safety are non-negotiable:

Petrochemical and Refining: Installed on high-speed centrifugal compressors, steam turbines, and boiler feed pumps, this probe provides the real-time shaft vibration data required to prevent catastrophic seal failures and uncontrolled process releases. In flammable or toxic atmospheres, reliable vibration monitoring is a fundamental layer of process safety management.

Power Generation: Turbine-generator sets in thermal and combined-cycle power plants rely on proximity probes to monitor shaft eccentricity, differential expansion, and thrust position. The 330102-10-40-10-02-CN’s stable output under high-temperature and high-vibration conditions makes it suitable for both steam and gas turbine applications.

Mining and Mineral Processing: In ball mills, SAG mills, and large slurry pumps operating in dusty, wet, and high-vibration environments, the sealed construction and wide temperature range of this probe ensure measurement continuity even under the harshest site conditions.

Water and Wastewater Treatment: Large vertical turbine pumps and blower units in water treatment facilities benefit from continuous vibration monitoring to detect impeller wear and bearing degradation before pump failure disrupts critical water supply or treatment processes.

Metallurgy and Steel: Rolling mill drives, continuous casting machines, and large induction furnace cooling pumps operate in environments with extreme electromagnetic interference and thermal cycling. The 330102-10-40-10-02-CN’s EMI immunity and temperature resilience make it a reliable choice for these demanding applications.

Marine and Port Equipment: Shipboard propulsion systems, cargo pump turbines, and large crane drives require compact, vibration-resistant proximity probes capable of operating in humid, salt-laden atmospheres. This probe’s sealed design and robust connector system meet the demands of marine-grade installations.

Safety and Quality FAQ

Q1: What support terms does the 330102-10-40-10-02-CN carry?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are supported with direct technical assistance and replacement logistics.

Q2: How is each unit tested before shipment?
Every 330102-10-40-10-02-CN undergoes a full outgoing functional inspection prior to dispatch, including verification of output sensitivity, cable continuity, connector integrity, and physical condition. Test records are available upon request for quality-critical procurement.

Q3: Is this probe compatible with existing 3300 XL system installations?
Yes. The 330102-10-40-10-02-CN is fully compatible with the Bently Nevada 3300 XL measurement chain, including 330130 Series extension cables and 330180 Series Proximitor drivers. It is a direct replacement for existing 8mm probes in 3300 XL systems without requiring recalibration of the Proximitor, provided the gap is set correctly during installation.

Q4: Can KNMKS support long-term and emergency spare parts supply?
KNMKS maintains stocked inventory of the 330102-10-40-10-02-CN and related 3300 XL Series components to support both planned maintenance schedules and emergency breakdown situations. Fast international shipping is available to minimize plant downtime. Contact our team for volume pricing, lead time confirmation, and long-term supply agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330102-10-40-10-02-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330102-10-40-10-02-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
