Bently Nevada 330102-08-96-10-02-00 Migration-Ready Proximity Probe

Overview

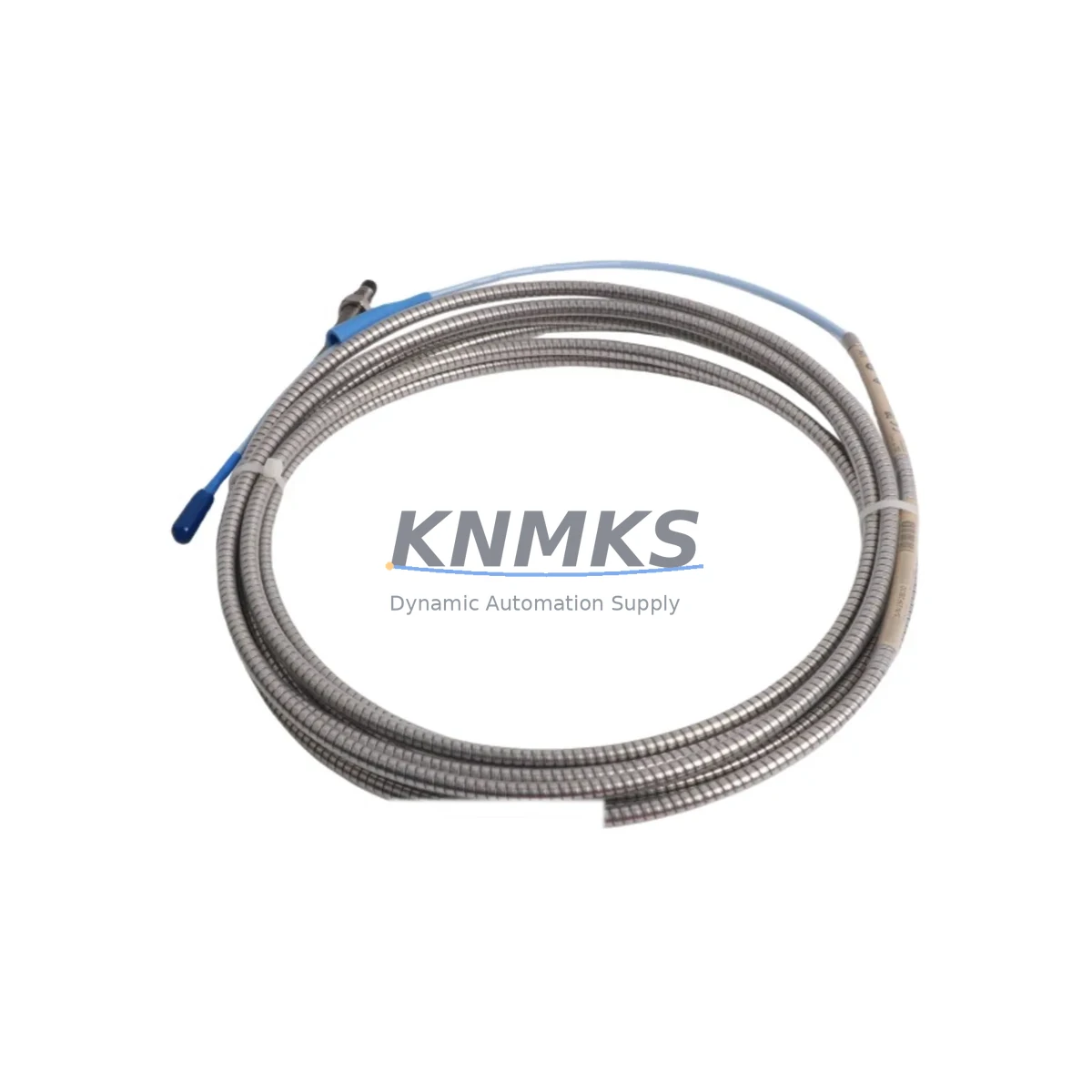

Bently Nevada 330102-08-96-10-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330102-08-96-10-02-00 is an 8mm proximity probe engineered for the 3300 XL Series vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications worldwide. As original equipment manufacturers phase out legacy components and end-of-life notices accelerate across the process industries, this probe remains a critical migration-ready spare for facilities operating turbines, compressors, pumps, and gearboxes on aging Bently Nevada 3300 XL architectures.

Whether your facility is executing a full DCS migration, upgrading a control cabinet, or simply maintaining operational continuity on a legacy monitoring loop, the 330102-08-96-10-02-00 provides a verified drop-in replacement path with no firmware modification required at the probe level. Its 8mm sensing tip, standard Bently Nevada extension cable interface, and 3300 XL-compatible signal output make it directly interchangeable with original factory-installed units — reducing retrofit risk and minimizing engineering rework during planned or emergency replacement cycles.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330102-08-96-10-02-00 into a legacy or transitional automation environment requires a structured pre-installation review. Begin by auditing the existing 3300 XL rack configuration: confirm that the proximitor/driver module — typically a 3300/16 or 3300/20 series monitor card — is seated correctly and that its channel assignment matches the probe’s physical mounting position on the machine train. If the rack also houses a 3300/55 Dual Voting Trip module or a 3300/46M Machinery Protection Monitor, verify that the channel mapping in the system configuration software reflects the new probe’s installation point before energizing.

For facilities running parallel migration projects — such as transitioning from a standalone 3300 XL rack to a System 1 Evolution condition monitoring platform — the 330102-08-96-10-02-00 remains fully compatible with the legacy hardware layer during the transition period. This allows engineering teams to maintain continuous vibration monitoring on critical assets while the higher-level data acquisition and trending infrastructure is upgraded. During this phase, pay particular attention to the 330130 series extension cable routing: any replacement or re-routing of extension cables must preserve the original cable length to avoid introducing gap voltage errors that could trigger false OK relay trips.

Terminal wiring at the junction box or field terminal block should be inspected for corrosion, loose ferrules, and correct shield grounding. The probe’s coaxial cable shield must be grounded at one end only — typically at the proximitor input — to prevent ground loop interference that can mask real vibration signals or generate spurious alarms. If the control cabinet also contains a 3500 series rack (Bently Nevada’s successor platform), confirm that any shared power supply modules — such as a 3500/15 Power Supply — are not overloaded by the addition of new monitoring channels during the retrofit window.

Where I/O expansion is part of the broader upgrade scope, teams integrating additional vibration channels alongside process I/O modules should verify that the DCS or safety system’s analog input cards are configured for the correct input range and that any signal isolators in the loop are rated for the proximitor’s output impedance. Pre-commissioning bench testing of the complete probe-cable-proximitor assembly against a calibrated target is strongly recommended before field installation to confirm gap sensitivity and output linearity.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement or broader 3300 XL system migration requires disciplined pre-work and a clear sequence of operations. Before any probe is removed from service, capture the current gap voltage reading and vibration baseline from the System 1 or DCS historian — this establishes the reference point for post-installation verification and confirms that the replacement probe is performing within the expected envelope of the original unit.

Where the machine cannot be taken offline for an extended period, a hot-swap sequence can be executed on non-redundant channels by temporarily bypassing the OK relay output at the monitor card and placing the affected channel in bypass mode within the machinery protection logic. This preserves the overall protection system’s voting integrity while the physical probe exchange is completed. Confirm with the site safety authority that bypass procedures comply with the facility’s Management of Change (MOC) and Permit to Work (PTW) requirements before proceeding.

Program logic preservation is a key concern when the probe replacement coincides with a monitor card firmware update or a rack reconfiguration. Export and archive the current 3300 XL configuration file from the System 1 database or the rack’s local configuration memory before making any hardware changes. This ensures that channel scaling, alarm setpoints, danger thresholds, and OK relay logic can be restored exactly if a rollback is required. For facilities using a Bently Nevada 3500/22M Transient Data Interface or a 3500/42M Proximitor Monitor in the same rack, verify that the configuration export includes all associated channel parameters — not just the probe channel being replaced.

Post-installation, perform a full gap calibration sequence with the machine at rest, confirm OK relay status, and validate vibration readings against the pre-replacement baseline before releasing the machine to operations. Document the as-found and as-left gap voltages, the probe serial number, and the installation date in the site’s maintenance management system to support future lifecycle planning and support terms tracking.

Retrofit Support FAQ

Q1: Is the 330102-08-96-10-02-00 a direct replacement for the original Bently Nevada part of the same number?
Yes. The 330102-08-96-10-02-00 is manufactured to the same dimensional and electrical specification as the original Bently Nevada part. It is a direct drop-in replacement requiring no modification to the probe holder, extension cable, or proximitor module. Each unit undergoes pre-shipment functional testing to verify gap sensitivity and output linearity before dispatch.

Q2: What commissioning steps are required after installation?
After physical installation, perform a gap calibration with the shaft stationary. Adjust the probe gap to achieve the nominal output voltage specified for your proximitor model (typically -10 VDC ±0.5 V at the recommended gap). Verify the OK relay output on the monitor card, confirm that vibration readings are within the expected baseline range, and check that no spurious alarms are active before returning the channel to normal protection service.

Q3: Can this probe be used during a phased migration from a 3300 XL rack to a 3500 series platform?
Yes. The 330102-08-96-10-02-00 is compatible with both 3300 XL and 3500 series proximitor/driver modules, making it suitable for use during phased migration projects where legacy and new-generation hardware coexist in the same control cabinet or machine train monitoring loop. Confirm the specific proximitor model’s input specification before finalizing the installation plan.

Q4: What does the support terms confirmed by quotation cover, and what is the typical lead time?
The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the date of shipment. Units are available from in-stock inventory for immediate dispatch, supporting both planned maintenance schedules and emergency replacement requirements. Pre-shipment functional testing is included as standard. Contact our sales team for current stock levels and expedited shipping options.
