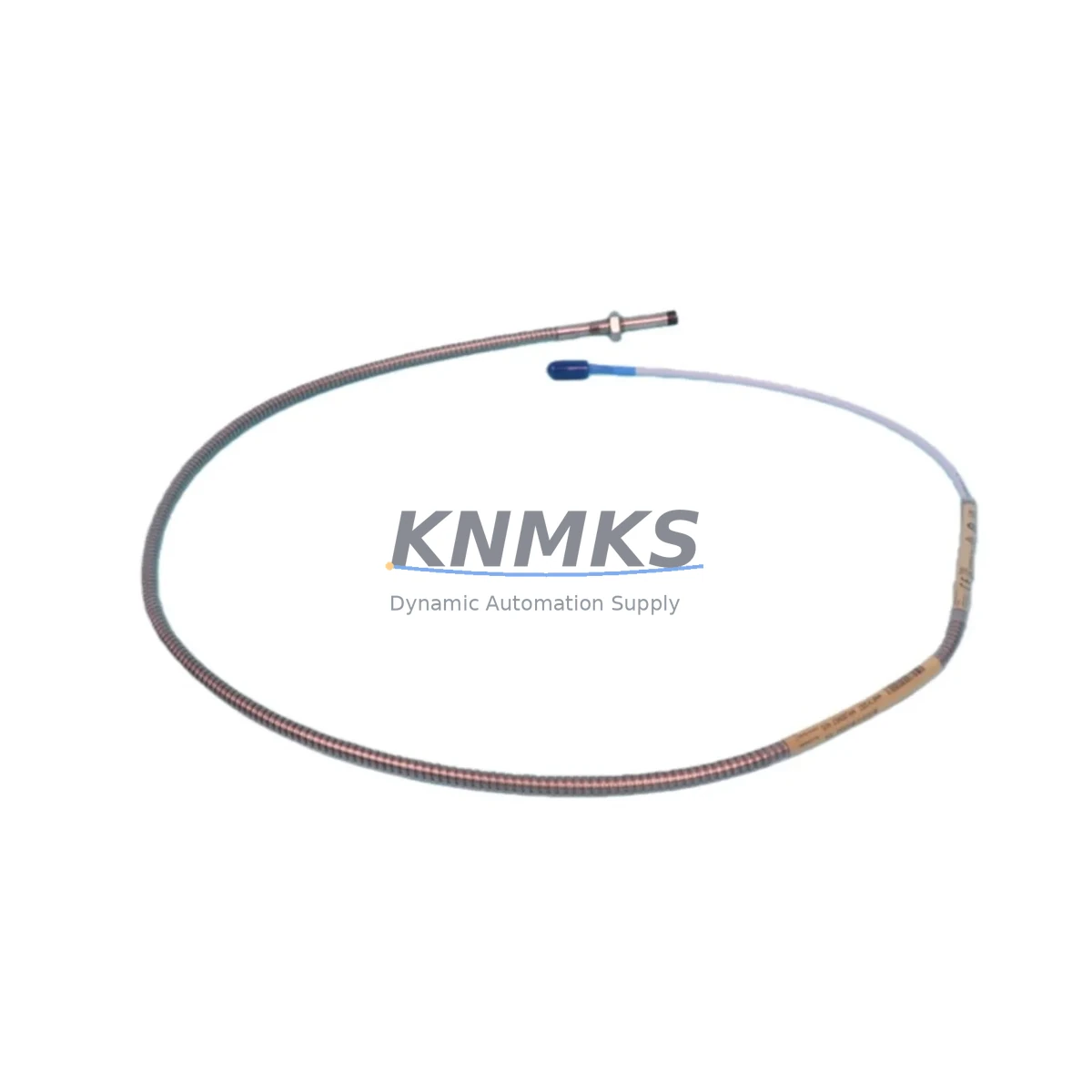

Bently Nevada 330102-08-50-10-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330102-08-50-10-02-05 Fail-Safe Proximity Probe: Fault-Tolerant Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330102-08-50-10-02-05 is an 8mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe shaft vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and heavy marine applications, this probe delivers uninterrupted signal integrity where control interruption is simply not an option.

In critical rotating machinery protection — turbines, compressors, pumps, fans, and gearboxes — the 330102-08-50-10-02-05 serves as the primary sensing element within a complete machinery protection loop. Its non-contact eddy current sensing principle eliminates mechanical wear, ensuring long-term measurement stability without drift, even under sustained high-speed shaft rotation, axial thrust, or radial vibration loads. The probe is fully compatible with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor® Sensor, forming a calibrated, system-matched assembly that meets API 670 machinery protection requirements.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a complete machinery protection architecture, the 330102-08-50-10-02-05 probe does not operate in isolation. It is the field-sensing front end of a layered protection system. Within the same control cabinet or marshalling panel, it is typically paired with the Bently Nevada 3300 XL Proximitor® Sensor (e.g., 330180-X1-05), which conditions the raw eddy current signal into a calibrated voltage output for the monitoring system. The Proximitor® provides the regulated –24 VDC bias supply to the probe and converts gap distance into a linear voltage signal, ensuring that any cable break, probe fault, or gap exceedance is immediately flagged as a system alert rather than a silent failure.

For multi-channel turbine or compressor protection trains, the probe assembly integrates directly with the Bently Nevada 3500 Series Rack — including the 3500/42M Proximitor®/Seismic Monitor — which provides dual-channel vibration, position, and speed monitoring with relay-based trip outputs. In high electromagnetic interference environments such as variable frequency drive (VFD) cabinets, arc furnace control rooms, or offshore platform switchgear rooms, the shielded coaxial cable of the 330102-08-50-10-02-05 suppresses induced noise that would otherwise cause signal drift or spurious trips.

Power supply stability is equally critical. The probe system draws its bias from a dedicated –24 VDC instrument power rail, typically sourced through a Bently Nevada 3500/15 Power Supply Module or an equivalent redundant DC power conditioner. Surge protection devices installed on the instrument power rail — such as DIN-rail mounted transient voltage suppressors — protect the Proximitor® and probe from voltage spikes caused by nearby motor starts, capacitor bank switching, or lightning-induced transients on field cable runs.

In safety-instrumented systems (SIS) operating under IEC 61511, the proximity probe loop may feed a Triconex or Bently Nevada TMR (Triple Modular Redundant) voting architecture, where three independent probe channels vote 2-out-of-3 to confirm a genuine vibration trip before initiating an emergency shutdown sequence. This architecture eliminates single-point failures and prevents both spurious shutdowns and dangerous undetected faults — the two primary failure modes that compromise process safety integrity.

Critical Industrial Safety Applications

Petrochemical & Refinery: In ethylene crackers, crude distillation units, and compressor trains, the 330102-08-50-10-02-05 monitors shaft radial vibration and axial position on centrifugal compressors and steam turbine drivers. Continuous monitoring enables early detection of rotor imbalance, bearing wear, surge events, and seal degradation — all of which, if undetected, can escalate to catastrophic mechanical failure, process release, or fire.

Power Generation: Steam and gas turbine generators in thermal power plants rely on eddy current proximity probes for shaft eccentricity monitoring during startup, steady-state operation, and coast-down. The 330102-08-50-10-02-05’s wide operating temperature range makes it suitable for high-temperature bearing pedestals where conventional sensors would fail prematurely.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject proximity probes to extreme vibration, dust ingress, and moisture. The IP67-rated construction of this probe ensures reliable operation in wet grinding circuits and underground ventilation fan installations where unplanned downtime directly impacts ore production targets.

Water & Wastewater Treatment: High-speed centrifugal pumps and blowers in water treatment facilities require continuous vibration monitoring to prevent bearing failures that would interrupt water supply or effluent treatment. The non-contact sensing principle of the 330102-08-50-10-02-05 eliminates the need for periodic sensor replacement due to mechanical wear.

Metallurgy & Steel: In rolling mills, continuous casting lines, and electric arc furnace auxiliary drives, proximity probes must withstand intense electromagnetic fields, thermal radiation, and mechanical shock. The shielded cable construction and robust probe body of the 330102-08-50-10-02-05 maintain signal integrity in these extreme conditions.

Port & Marine: Ship propulsion systems, crane drives, and offshore platform rotating equipment require vibration monitoring solutions that meet marine classification society requirements. The 330102-08-50-10-02-05, as part of a certified Bently Nevada 3300 XL system, supports compliance with DNV, ABS, and Lloyd’s Register machinery monitoring requirements.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330102-08-50-10-02-05?
Every unit supplied by KNMKS carries a 12-month functional support terms from the date of shipment. If the probe fails to perform within its specified parameters under normal operating conditions during this period, we provide replacement or documented resolution support. Support requests are processed within 5 business days.

Q2: What pre-shipment testing is performed on each unit?
All 330102-08-50-10-02-05 probes undergo outgoing quality inspection including visual inspection, dimensional verification, coaxial connector integrity check, and cable continuity/insulation resistance testing before dispatch. Units sourced from verified supply channels are cross-referenced against Bently Nevada factory documentation where available.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor® Sensors and 3500 Series racks?
Yes. The 330102-08-50-10-02-05 is a standard 3300 XL series 8mm probe and is fully interchangeable with other 330102-series probes. It is calibrated for use with 3300 XL Proximitor® Sensors and integrates directly with Bently Nevada 3500 Series monitoring racks without requiring recalibration of the Proximitor®, provided the extension cable length matches the original system configuration.

Q4: Can KNMKS support long-term supply commitments for maintenance and turnaround planning?
Yes. KNMKS maintains standing inventory of high-demand Bently Nevada 3300 XL series components and can support blanket purchase orders, scheduled releases, and emergency same-day dispatch for critical plant turnarounds. Contact our technical sales team to discuss consignment stock arrangements or annual supply agreements tailored to your maintenance schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330102-08-50-10-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330102-08-50-10-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
