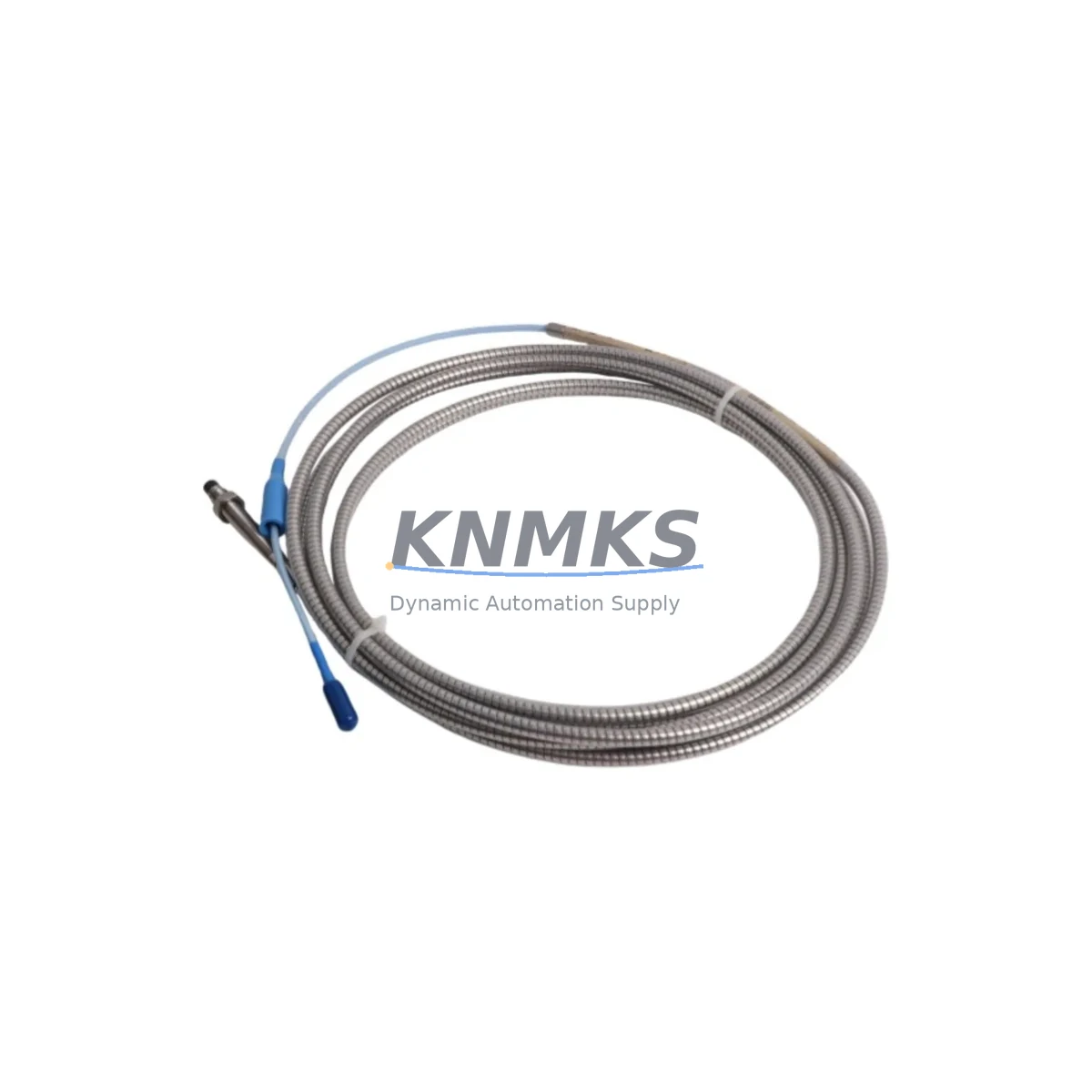

Bently Nevada 330102-05-40-05-02-05 Migration-Ready Proximity Transducer

Overview

Bently Nevada 330102-05-40-05-02-05 Migration-Ready Proximity Transducer for Legacy Control Systems

The Bently Nevada 330102-05-40-05-02-05 is a 5mm proximity transducer engineered for direct integration into legacy 3300 XL vibration monitoring systems. As original equipment reaches end-of-life and OEM spare parts become increasingly scarce, this migration-ready transducer provides a verified, drop-in replacement path that preserves existing wiring infrastructure, signal conditioning architecture, and rack-mounted monitor configurations without requiring a full system overhaul.

For maintenance engineers managing aging turbomachinery protection systems, the 330102-05-40-05-02-05 addresses one of the most common retrofit challenges: sourcing a proximity transducer that maintains signal chain integrity across the full 3300 XL monitor chain — from the field-mounted probe tip through the extension cable to the proximitor/driver and ultimately to the rack-mounted monitor card. This transducer is designed to operate within the established -24 VDC bias voltage range and delivers a linear output of approximately -7.87 V/mm (200 mV/mil), ensuring that existing alarm and danger setpoints configured in the 3300 XL monitor remain valid without recalibration.

When planning a retrofit or spare-part replacement using the 330102-05-40-05-02-05, engineers must verify several critical interface parameters before installation. Power supply capacity at the local junction box or marshalling cabinet should be confirmed to support the transducer’s quiescent current draw. Terminal wiring at the field junction box — typically a three-conductor shielded cable connecting the probe, extension cable, and proximitor — must be inspected for insulation integrity and correct shield grounding to avoid common-mode noise injection into the 3300 XL monitor input. Backplane connector compatibility at the rack level, particularly for systems using the 3300/16 or 3300/20 monitor cards, should be validated against the existing slot assignment and channel address configuration.

Module addressing within the 3300 XL rack is another area requiring careful attention during migration. If the replacement transducer is installed in a channel previously mapped to a specific machine train position in the System 1 condition monitoring software, the channel tag, engineering unit scaling, and transducer gap voltage reference must be re-verified in the software database. HMI display screens configured in the plant DCS or SCADA system — often linked to the 3300 XL via a Modbus RTU or 4–20 mA analog output from the monitor — should be reviewed to confirm that the displayed vibration values remain within expected operating ranges after transducer replacement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 330102-05-40-05-02-05 typically involves coordinating several interdependent components within the 3300 XL monitoring architecture. The transducer itself is only one element of a calibrated measurement chain. The matching extension cable — commonly the Bently Nevada 330130-045-00-00 (4.5 m) or 330180-X0-05 armored variant — must be selected to achieve the correct total system length, which directly affects the proximitor’s calibrated output range. Mismatched cable lengths are a frequent source of gap voltage errors during commissioning and should be verified before the system is returned to service.

At the rack level, the 3300 XL monitor card (such as the 3300/16-02-01-01-00-00 dual-channel radial vibration monitor) must have its channel configuration reviewed in the Rack Configuration Software (RCS) to confirm that the transducer type, sensitivity, and gap voltage parameters match the replacement unit. If the plant is operating a mixed rack containing both radial vibration and axial position monitors, the slot assignment and I/O terminal block wiring at the rear of the rack chassis must be documented before any physical replacement is attempted.

For plants that have integrated the 3300 XL system with a Bently Nevada System 1 Evolution condition monitoring platform, the asset database entry for the affected machine train must be updated to reflect the new transducer serial number and installation date. This ensures that the historical vibration trend data remains traceable and that any predictive maintenance algorithms referencing the channel are not disrupted by a gap in the calibration record.

In control cabinets where the 3300 XL rack shares a 24 VDC power bus with other instrumentation — such as a Bently Nevada 3500/15 power supply module or a third-party signal isolator feeding a DCS analog input card — the total current budget of the power rail should be recalculated after the transducer replacement to confirm that no supply voltage droop will affect adjacent channels. Signal isolators installed between the proximitor output and the DCS marshalling cabinet should also be verified for input impedance compatibility with the 330102-05-40-05-02-05 output characteristics.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer replacement on a live turbomachinery protection system requires a structured pre-outage preparation process. Before the maintenance window begins, the original program logic in the 3300 XL monitor — including alarm hysteresis settings, time delays, and relay output assignments — should be exported from the Rack Configuration Software and archived. This ensures that if a configuration error occurs during recommissioning, the original setpoints can be restored without relying on memory or handwritten records.

During the physical replacement, the affected monitor channel should be placed in bypass mode (if the plant safety management system permits) to prevent a spurious machine trip while the transducer is disconnected. The bypass status must be logged in the plant’s management of change (MOC) system, and a time limit should be set to ensure the bypass is removed promptly after recommissioning is complete.

After the 330102-05-40-05-02-05 is installed and the extension cable is reconnected, the gap voltage at the proximitor output should be measured with a calibrated digital voltmeter before the monitor channel is taken out of bypass. The target gap voltage for a standard 5mm probe at nominal air gap is typically in the range of -9.5 V to -10.5 V; values outside this range indicate either an incorrect air gap setting or a cable length mismatch that must be resolved before the channel is returned to protection service.

Once the gap voltage is confirmed, the monitor channel should be observed through at least one complete machine startup cycle to verify that the vibration readings are stable, that no spurious alarms are generated during the transient speed range, and that the System 1 trend display shows a continuous, uninterrupted data record. Only after this verification should the bypass be formally removed and the MOC record closed. All pre-shipment functional test documentation supplied with the 330102-05-40-05-02-05 should be retained in the plant’s equipment history file for future reference during audits or insurance inspections.

Retrofit Support FAQ

Q1: Is the 330102-05-40-05-02-05 a direct replacement for the original Bently Nevada part, and will it work with my existing 3300 XL monitor card without any configuration changes?
A: Yes. The 330102-05-40-05-02-05 is a form-fit-function replacement for the original Bently Nevada 330102 series 5mm proximity transducer. It is designed to operate within the same -24 VDC supply voltage range and deliver the same 200 mV/mil output sensitivity, meaning that existing alarm and danger setpoints configured in your 3300 XL monitor card do not need to be changed. The only field adjustment required is the physical air gap setting at the machine bearing housing, which should be verified with a calibrated voltmeter after installation.

Q2: What extension cable should I use with the 330102-05-40-05-02-05, and how does cable length affect system calibration?
A: The 330102-05-40-05-02-05 has a 40 cm (0.4 m) integral cable. The total system length — probe cable plus extension cable — must match the proximitor’s calibrated range, which is typically 5 m or 9 m for standard 3300 XL proximitors. Use a Bently Nevada 330130 or 330180 series extension cable of the appropriate length to achieve the correct total. Using an incorrect cable length will shift the proximitor’s output voltage range and may cause the monitor to report incorrect vibration amplitude values.

Q3: How do I verify that the replacement transducer has been correctly commissioned before returning the machine to service?
A: After installation, measure the DC gap voltage at the proximitor output terminals with a calibrated digital voltmeter. At the nominal air gap (typically 1.0 mm for a 5mm probe), the output should read approximately -10.0 V ± 0.5 V. If the reading is outside this range, adjust the probe air gap at the machine bearing housing until the target voltage is achieved. Once the gap voltage is confirmed, observe the monitor channel through a complete machine startup to verify that vibration readings are stable and that no spurious alarms are generated during the transient speed range.

Q4: What support terms and pre-shipment testing does the 330102-05-40-05-02-05 include, and what documentation is provided?
A: Every 330102-05-40-05-02-05 unit supplied by KNMKS is covered by a support terms confirmed by quotation against manufacturing defects from the date of shipment. Each unit undergoes a pre-shipment functional test that verifies output sensitivity, insulation resistance, and connector integrity. A test report is included with each shipment. In-stock units are available for immediate dispatch; lead times for bulk orders are confirmed at the time of inquiry. For procurement support, contact [email protected] or call +86 18359268345.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330102-05-40-05-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330102-05-40-05-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
