Bently Nevada 330102-05-30-50-02-05 Maintenance Spare Part

Overview

Bently Nevada 330102-05-30-50-02-05 Maintenance-Proven Spare Part for Factory Uptime

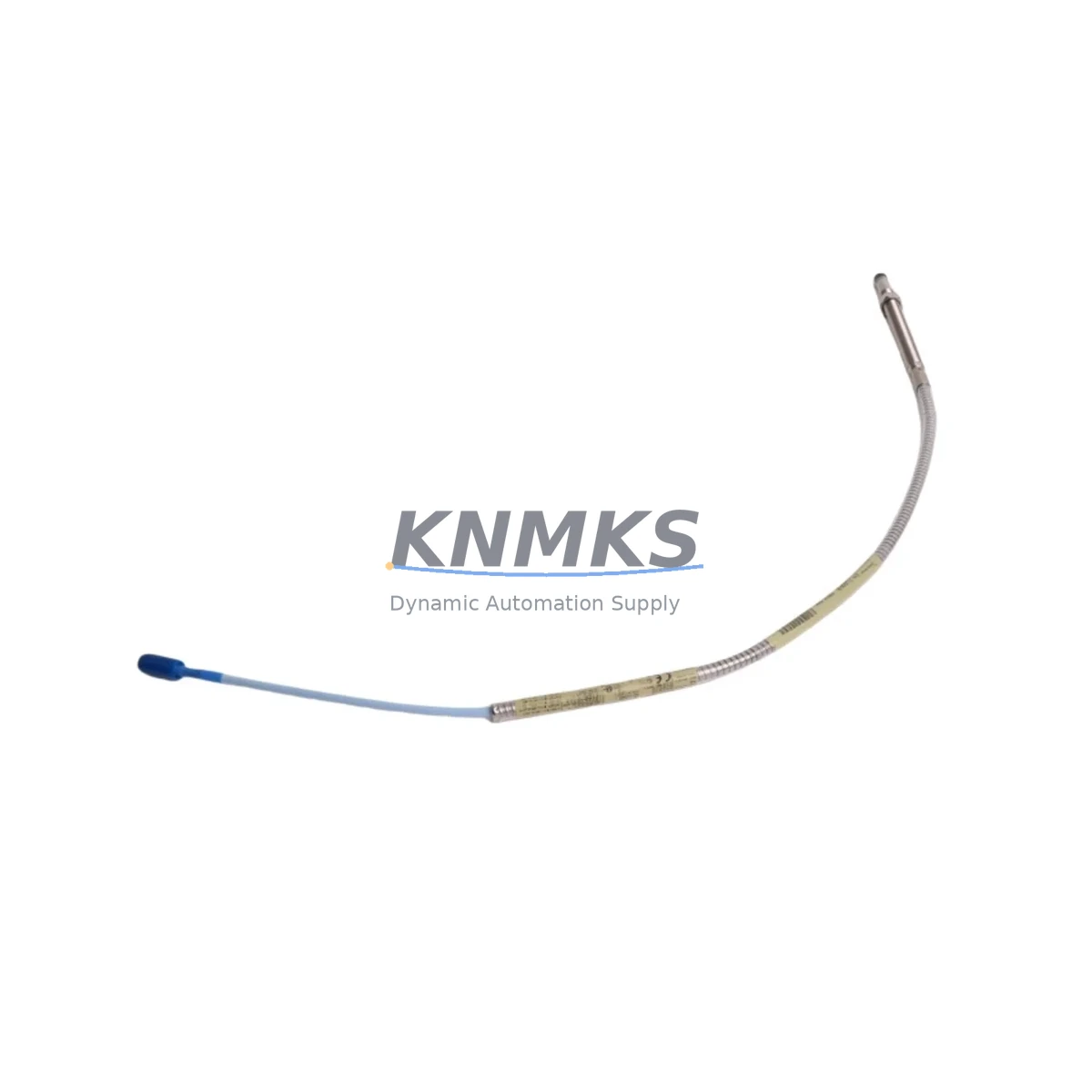

The Bently Nevada 330102-05-30-50-02-05 is an eddy current proximity probe engineered for the 3300 XL continuous vibration monitoring system. Designed for critical rotating machinery applications — including turbines, compressors, pumps, and motors — this probe delivers reliable non-contact displacement and vibration measurement in demanding industrial environments. Maintaining an on-hand spare of the 330102-05-30-50-02-05 is a proven strategy for reducing unplanned downtime and protecting high-value rotating assets.

At KNMKS, every 330102-05-30-50-02-05 unit is sourced from verified supply channels, inspected for physical integrity, and tested prior to shipment. A support terms confirmed by quotation is included with every order, backed by long-term supply commitment for legacy 3300 XL installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing 3300 XL-based machinery protection systems, the 330102-05-30-50-02-05 probe is rarely a standalone replacement. A complete site inspection should address the full transducer chain to ensure signal integrity and system reliability after any probe swap.

Begin with the 330130 series extension cable — the interconnect between the probe and driver. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation degradation in high-vibration or high-temperature zones. A probe replacement without cable inspection risks introducing signal noise or open-circuit faults that mimic probe failure.

The 3300 XL proximitor/driver module (such as the 330180 or 330104 driver) should be verified for output voltage within the –24 VDC bias range and confirmed free of internal oscillator drift. Driver modules in continuous service for 5+ years are candidates for scheduled replacement alongside the probe.

Inspect the 3300 XL monitor card installed in the rack — typically a 3300/16 or 3300/20 series card — for alarm setpoint integrity, OK relay function, and buffered output signal quality. A degraded monitor card can mask genuine probe faults or generate false trips that interrupt production.

Check the rack power supply module feeding the 3300 XL system. Voltage ripple or supply instability directly affects probe bias voltage and measurement accuracy. Redundant power supply configurations should be verified for automatic switchover function.

Review terminal block and field wiring connections at the junction box. Loose terminations, corroded lugs, or improper shielding grounding are common root causes of intermittent vibration signal faults that are incorrectly attributed to probe failure.

For installations with Keyphasor® probes (such as the 330980 series), confirm that the Keyphasor signal is clean and phase-referenced correctly after any probe replacement, as shaft speed and phase data underpin all vector-based vibration analysis in the 3300 XL system.

Maintaining a minimum spare inventory of one probe assembly, one extension cable set, and one driver module per critical machine train is the recommended baseline for facilities operating under API 670 machinery protection standards.

Site Replacement Workflow

Replacing the 330102-05-30-50-02-05 in a live 3300 XL installation follows a structured sequence to minimize downtime and avoid system faults during the swap:

1. Pre-Replacement Verification: Confirm the replacement probe part number matches the installed probe body diameter (8 mm), cable length, and connector type. Cross-reference the 3300 XL system documentation or the existing probe label to validate the full SKU before removing the installed unit.

2. System Isolation: Coordinate with the control room to acknowledge or bypass the affected channel alarm in the 3300 XL monitor. Do not remove the probe under live alarm conditions without operator awareness. Document the current gap voltage (typically –10 to –18 VDC for an 8 mm probe at nominal gap) as a baseline for post-installation verification.

3. Mechanical Removal: Use the correct probe wrench to avoid thread damage on the probe body. Inspect the probe mounting boss for thread condition and cleanliness. Clean the target area and verify the shaft surface is free of scoring or runout anomalies that could affect the new probe’s linear range.

4. Installation and Gap Setting: Install the 330102-05-30-50-02-05 and set the probe gap per the 3300 XL calibration specification — typically 1.0 mm (40 mil) for an 8 mm probe, corresponding to approximately –10.4 VDC output. Use a calibrated gap tool or feeler gauge. Verify output voltage at the driver with a precision voltmeter before reconnecting to the monitor.

5. System Restoration and Functional Test: Restore the monitor channel, clear alarm bypasses, and confirm OK relay status. Observe buffered output signal on a portable analyzer or the DCS historian to verify signal quality and absence of noise. Log the replacement in the maintenance management system with the new probe serial number and gap voltage.

This workflow supports back-to-back compatibility with existing 3300 XL installations and eliminates the need for system reconfiguration or recalibration of adjacent channels.

Spare Parts Support FAQ

Q1: Is the 330102-05-30-50-02-05 a direct replacement for older Bently Nevada 3300 series probes?
The 330102-05-30-50-02-05 is designed for the 3300 XL system and is not directly interchangeable with earlier 3300 (non-XL) probes without verifying driver compatibility. The 3300 XL system uses a different driver module and calibration curve compared to the legacy 3300 series. Always confirm the installed driver model before ordering a replacement probe to ensure full system compatibility.

Q2: What testing is performed before shipment?
Each 330102-05-30-50-02-05 unit supplied by KNMKS undergoes physical inspection for connector integrity, cable jacket condition, and probe tip condition. Functional verification of output sensitivity and bias voltage response is performed prior to packaging. Units that do not meet specification are quarantined and not shipped. A support terms confirmed by quotation cover defects in materials and workmanship from the date of shipment.

Q3: Can KNMKS support long-term or blanket stock orders for the 330102-05-30-50-02-05?
Yes. KNMKS supports blanket purchase orders and scheduled release programs for facilities requiring guaranteed stock availability across multiple maintenance cycles. Long-term supply agreements help mitigate lead-time risk for discontinued or allocation-constrained Bently Nevada components. Contact our sales team to discuss volume pricing and delivery scheduling.

Q4: What is the recommended spare inventory strategy for 3300 XL probe assemblies?
For critical rotating machinery operating under continuous monitoring, the recommended minimum spare holding is one complete probe assembly (probe + extension cable + driver) per monitored machine train, plus a system-level buffer of 10–20% of total installed probe count. Annual consumption forecasting based on MTBF data and planned outage schedules should drive replenishment cycles. KNMKS can provide supply planning support and multi-year pricing to support this strategy.
