Bently Nevada 330102-04-78-05-02-05 Migration-Ready Proximity Probe

Overview

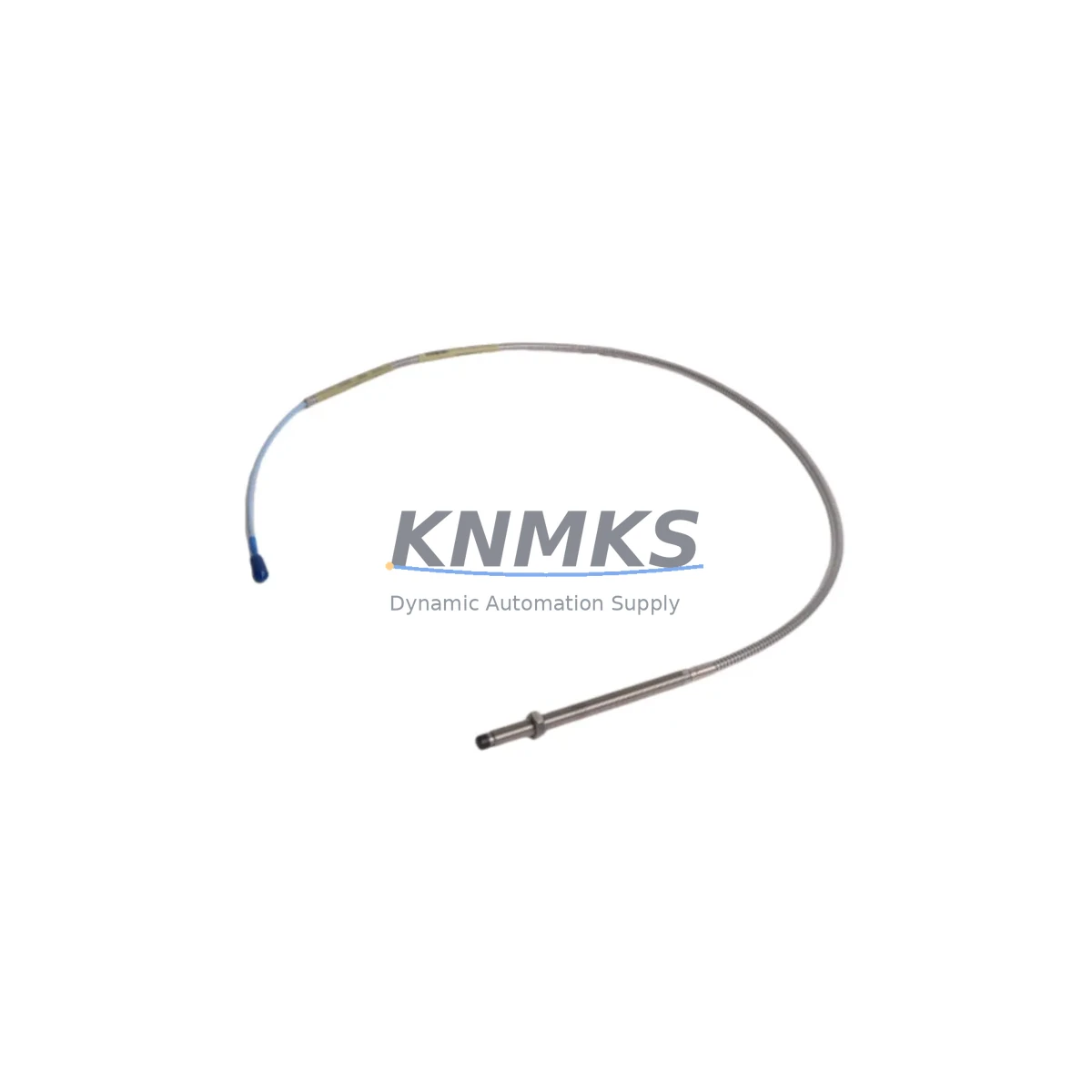

Bently Nevada 330102-04-78-05-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330102-04-78-05-02-05 is an 8mm proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-support milestones, maintenance engineers and reliability teams increasingly rely on verified, migration-ready replacement probes to sustain continuous monitoring without triggering full system overhauls. This probe delivers a direct, drop-in retrofit path for facilities operating aging 3300 Series and early 3300 XL installations, preserving existing cable routing, conduit runs, and extension cable assemblies while restoring full signal integrity to the monitoring chain.

The 330102-04-78-05-02-05 is specified with a 78-inch (approximately 2,000 mm) armored extension cable, a 5-meter driver cable, and a 2-meter probe body — a configuration commonly deployed in turbine bearing housings, compressor trains, and pump pedestals where cable routing distances demand precise length matching. Before installation, engineers must confirm the existing Bently Nevada 3300 XL proximitor/driver — such as the 330180 or 330130 series — remains calibrated to the correct gap voltage range (typically –10 VDC at 50-mil nominal gap for 8mm probes). Mismatched gap settings between a replacement probe and the installed driver are the most common source of false vibration alarms during retrofit commissioning.

When integrating this probe into an existing rack, technicians should verify the target material of the observed shaft. The 330102 series is factory-calibrated for AISI 4140 steel. If the shaft material differs — for example, Inconel or 17-4 PH stainless — a material correction factor must be applied at the 3300 XL monitor card level, typically through the Rack Configuration Software (RCS) or System 1 configuration interface. Failure to apply the correction factor will introduce a systematic measurement offset that cannot be resolved by field gap adjustment alone.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330102-04-78-05-02-05 into an operating plant begins well before the maintenance window opens. The first step is a full cable audit: confirm that the existing extension cable — typically a Bently Nevada 330130 or 330180 series armored extension — is undamaged and that its length matches the replacement probe’s driver cable specification. If the extension cable shows signs of jacket abrasion, connector corrosion, or impedance drift, it should be replaced simultaneously with the probe to avoid introducing a new fault source into the measurement chain.

The 3300 XL monitor card installed in the rack — commonly a 3300/16 or 3300/20 series dual-channel vibration monitor — must be checked for its current channel configuration. If the card was previously paired with a probe of a different body length or cable combination, the scale factor stored in the monitor card’s non-volatile memory will be incorrect for the replacement probe. This is corrected through the Rack Configuration Software by uploading a new channel configuration file that matches the 330102-04-78-05-02-05 probe-driver combination. Engineers should prepare this configuration file in advance and validate it in a bench test environment before the live cutover.

For facilities running System 1 condition monitoring software, the probe channel tag must be updated in the System 1 database to reflect the new probe serial number and calibration data. This ensures that historical trend data remains traceable and that alarm logic tied to the channel tag continues to function correctly after the swap. If the plant also operates a Bently Nevada 3500 Series rack in parallel for overspeed or thrust position monitoring, confirm that the 3500/42M or 3500/45 position monitor cards are not sharing a common proximitor power supply rail with the 3300 XL rack — cross-rack power coupling can introduce noise into the replacement probe’s output signal during the commissioning phase.

Where the control system interfaces with a DCS — such as a Honeywell Experion PKS or Emerson DeltaV — the 4–20 mA or discrete trip output from the 3300 XL monitor card should be loop-checked after probe replacement to confirm that the DCS I/O card is receiving the correct signal range. Any change in probe sensitivity or gap voltage that shifts the analog output baseline will appear as a process deviation in the DCS historian and may trigger spurious interlock logic if alarm deadbands are not temporarily widened during commissioning. A Bently Nevada TK-3 calibration tool or equivalent signal simulator is recommended for bench verification of the output signal before the probe is installed in the machine.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation protocol. The replacement 330102-04-78-05-02-05 should be bench-tested against a known-good 330180 proximitor before the maintenance window to confirm that the gap voltage curve matches the factory specification. This pre-verification step eliminates the most common cause of extended commissioning time: discovering a probe-driver mismatch only after the machine is offline and the probe is installed in the bearing housing.

During the outage, the original probe should be removed carefully to preserve the probe boss threads and the existing gap setting reference. Photograph or record the original gap measurement (in mils or millimeters) before removal so that the replacement probe can be set to the same nominal gap without requiring a full re-gapping procedure from scratch. If the machine’s bearing housing design allows, use a non-contact gap gauge to verify the replacement probe gap before tightening the locknut — this reduces the number of gap adjustment iterations required during commissioning.

Once the replacement probe is installed and the extension cable is reconnected, bring the 3300 XL monitor card online in bypass mode if the platform supports it, allowing the gap voltage to stabilize before re-enabling alarm and trip logic. This prevents nuisance trips during the warm-up period when the probe output may fluctuate slightly as the eddy-current field stabilizes. After the gap voltage has settled to within ±0.5 VDC of the nominal setpoint, re-enable the alarm and trip outputs and confirm that the System 1 or DCS display is showing the correct vibration baseline for the machine at rest. Document the as-left gap voltage, scale factor, and alarm setpoints in the plant maintenance management system before returning the machine to service.

Retrofit Support FAQ

Q1: Is the 330102-04-78-05-02-05 a direct drop-in replacement for earlier 3300 Series probes with the same cable configuration?
Yes, for the same 8mm probe diameter and matching cable length combination, the 330102-04-78-05-02-05 is mechanically and electrically compatible with 3300 XL proximitor/driver assemblies. However, the monitor card channel configuration must be verified and updated in RCS to match the replacement probe’s calibration data before returning the channel to service.

Q2: What commissioning checks are required after installation?
The minimum commissioning checklist includes: (1) gap voltage verification at the proximitor output terminals, (2) scale factor confirmation in the 3300 XL monitor card configuration, (3) alarm and trip setpoint review, (4) loop check of the 4–20 mA or discrete output to the DCS or safety system, and (5) vibration baseline comparison against the pre-outage trend data in System 1 or the plant historian.

Q3: Does the probe ship tested, and what does the support terms confirmed by quotation cover?
Yes. Each 330102-04-78-05-02-05 unit is function-tested prior to shipment to verify gap voltage linearity and cable continuity. The support terms confirmed by quotation cover manufacturing defects, signal integrity failures, and connector assembly faults under normal operating conditions. It does not cover damage resulting from incorrect installation gap, mechanical impact, or exposure to fluids outside the probe’s rated environmental specification.

Q4: What is the typical lead time and stock availability?
We maintain buffer stock of the 330102-04-78-05-02-05 to support urgent replacement requirements. Standard orders ship within 3–5 business days. For critical plant shutdowns requiring same-week delivery, contact our sales team directly to confirm current inventory position and expedited shipping options.
