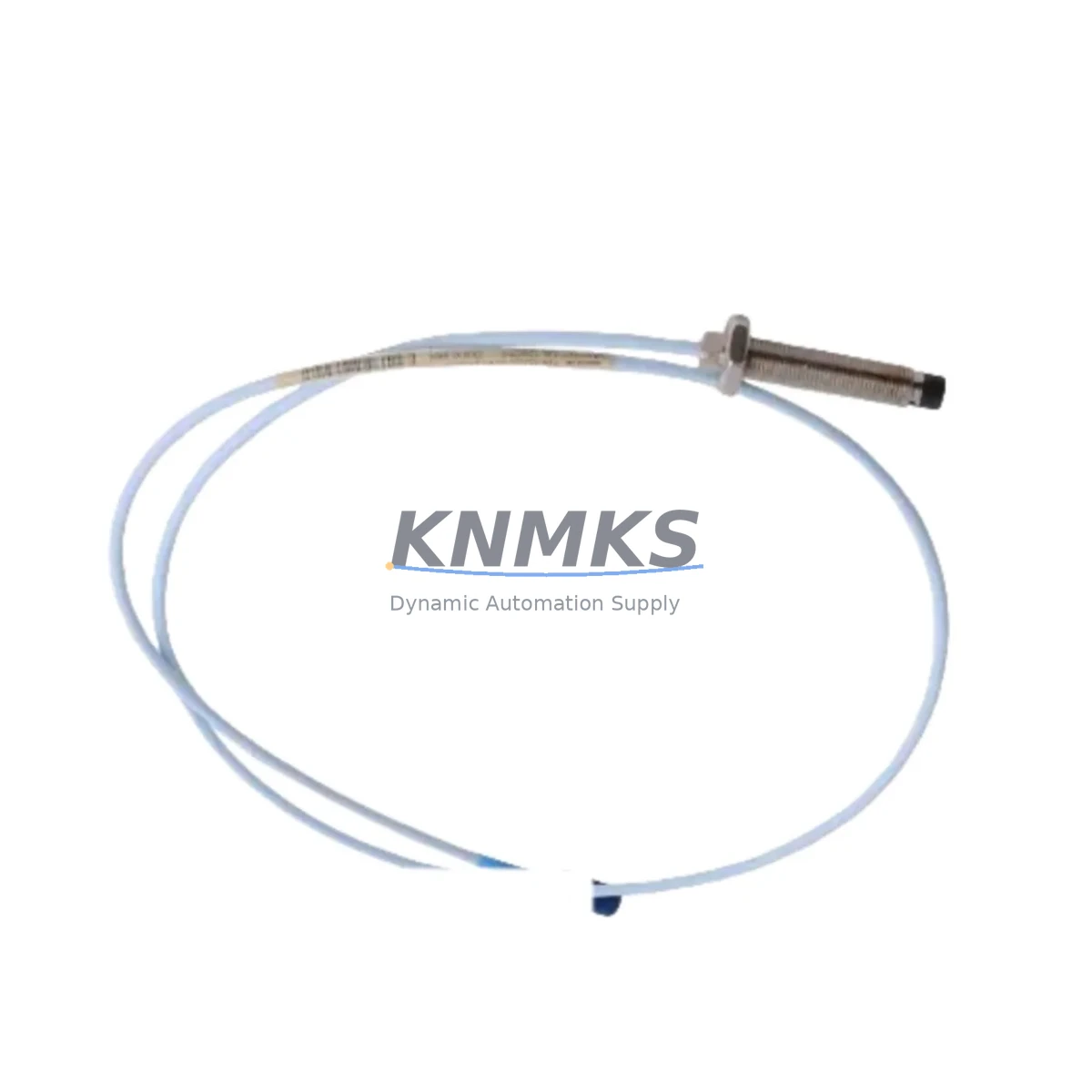

Bently Nevada 330102-04-56-10-02-00 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 330102-04-56-10-02-00 is an 8mm eddy current proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. Designed as a core component of the Bently Nevada 3300 XL Proximity Transducer System, this probe delivers reliable non-contact measurement of shaft radial vibration, axial position, and differential expansion in turbines, compressors, pumps, and other critical rotating assets. Maintaining a verified stock of this probe is a fundamental requirement for any maintenance program operating under a zero-unplanned-downtime mandate.

For maintenance engineers managing aging DCS or machinery protection systems, the 330102-04-56-10-02-00 represents one of the highest-priority spare parts in the control cabinet inventory. Its failure — whether from cable fatigue, connector corrosion, or probe tip damage — directly interrupts vibration signal chains and can trigger protective shutdowns or, worse, mask developing faults. Procurement engineers sourcing this part should verify full system compatibility including the paired extension cable and proximitor/driver module before committing to a replacement order.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330102-04-56-10-02-00 probe in the field, a disciplined maintenance engineer will treat the replacement as an opportunity to audit the entire vibration transducer loop — not just the probe tip. The 3300 XL transducer system is a three-component chain: probe, extension cable, and proximitor sensor. Replacing only the probe while leaving a degraded 330130-series extension cable in place is a common source of repeat callouts. Inspect the extension cable for jacket cracking, connector pin corrosion, and continuity before reinstalling.

The 330180-series 3300 XL Proximitor Sensor (driver module) should be bench-tested or replaced on a scheduled interval, particularly in high-vibration or high-temperature environments. A drifting proximitor output will produce erroneous gap voltage readings even with a new probe installed, leading to false alarms or missed fault detection. Confirm the proximitor output voltage falls within the calibrated linear range (typically -2 VDC to -18 VDC for 8mm probes) after probe installation.

At the rack level, verify the 3500/42M Proximitor/Seismic Monitor or equivalent monitor card is seated correctly and that its channel configuration matches the replacement probe’s sensitivity factor. Loose backplane connections on the 3500-series rack are a known source of intermittent channel faults that are frequently misdiagnosed as probe failures. While the cabinet is open, inspect the 3500/15 Power Supply module for output voltage stability — an under-voltage condition will affect the entire rack’s measurement accuracy.

For plants running integrated machinery protection and condition monitoring, the vibration signal from this probe may feed into a System 1 Evolution software platform or a third-party DCS historian. Confirm signal scaling and engineering unit conversion settings are preserved after the channel is re-enabled. If the plant uses 3300 XL Velomitor sensors on adjacent measurement points, cross-check their outputs against the newly installed proximity probe data during the post-maintenance run-up to validate baseline consistency.

Procurement teams should maintain a minimum of two 330102-04-56-10-02-00 probes per critical machine train in the site spare parts store. Given the long lead times historically associated with Bently Nevada OEM parts through standard distribution channels, holding verified stock eliminates the risk of extended machinery downtime while awaiting replenishment. Pair this with a stocked 330130-series extension cable of matching length to ensure a complete transducer loop replacement can be executed within a single maintenance window.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Disable the monitor channel at the 3500-series rack to prevent spurious trip signals during probe removal. Document the existing gap voltage reading before disconnecting the probe.

Step 2 — Probe Removal: Disconnect the probe cable at the junction box or proximitor input. Unthread the probe from the mounting bracket. Inspect the probe tip for physical damage, target surface condition, and any signs of lubricant contamination that may have affected measurement linearity.

Step 3 — Installation of 330102-04-56-10-02-00: Thread the replacement probe into the bracket. Set the initial gap to the system-specified value (typically 1.0mm / -7 VDC for 8mm probes on steel targets). Use a calibrated gap-setting tool or feeler gauge. Do not over-torque the probe body against the bracket.

Step 4 — Cable Routing and Connection: Route the probe cable to avoid contact with hot surfaces, sharp edges, or high-voltage conductors. Reconnect to the extension cable or proximitor input. Verify connector seating and apply appropriate cable tie support to prevent vibration-induced connector fatigue.

Step 5 — Gap Verification and Channel Re-enable: Re-enable the monitor channel. Confirm the gap voltage reading matches the target value within ±0.5 VDC. Check for alarm and danger setpoint integrity in the monitor configuration before returning the machine to service.

Step 6 — Post-Replacement Run-Up Monitoring: Monitor the channel during machine run-up to rated speed. Confirm vibration amplitude and phase readings are consistent with historical baseline data. Log the replacement in the site CMMS with the new probe serial number and gap voltage as-found/as-left values.

Spare Parts Support FAQ

Q1: Is the 330102-04-56-10-02-00 a direct drop-in replacement for other 3300 XL 8mm probes?
The 330102-04-56-10-02-00 is compatible with the 3300 XL 8mm Proximity Transducer System. Compatibility with a specific installation depends on the probe body length, cable length, and connector configuration encoded in the full part number suffix. Always verify the complete SKU against the original system documentation or the proximitor label before ordering. Mixing probe and proximitor models from different sensitivity classes will produce calibration errors.

Q2: What is included in the support terms confirmed by quotation and what does pre-shipment testing cover?
Each 330102-04-56-10-02-00 unit is functionally tested before shipment to verify electrical continuity, insulation integrity, and connector condition. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from improper installation, mechanical impact, or operation outside specified environmental limits. Support requests are processed with proof of purchase and a fault description.

Q3: How should this probe be stored as a long-term spare?
Store the probe in its original packaging or an ESD-safe, moisture-controlled environment. Avoid storage near strong magnetic fields or in areas subject to temperature cycling beyond -40°C to +85°C. Inspect the probe tip and connector annually for corrosion. For probes stored longer than 24 months, perform a bench continuity and insulation resistance check before installation to confirm the unit remains within specification.

Q4: Can you support long-term or blanket supply agreements for this part?
Yes. For maintenance programs requiring guaranteed stock availability across multiple machine trains or plant sites, we support scheduled release orders and blanket purchase agreements. Contact our team to discuss minimum order quantities, lead time commitments, and regional warehouse stocking options that align with your annual maintenance calendar.
