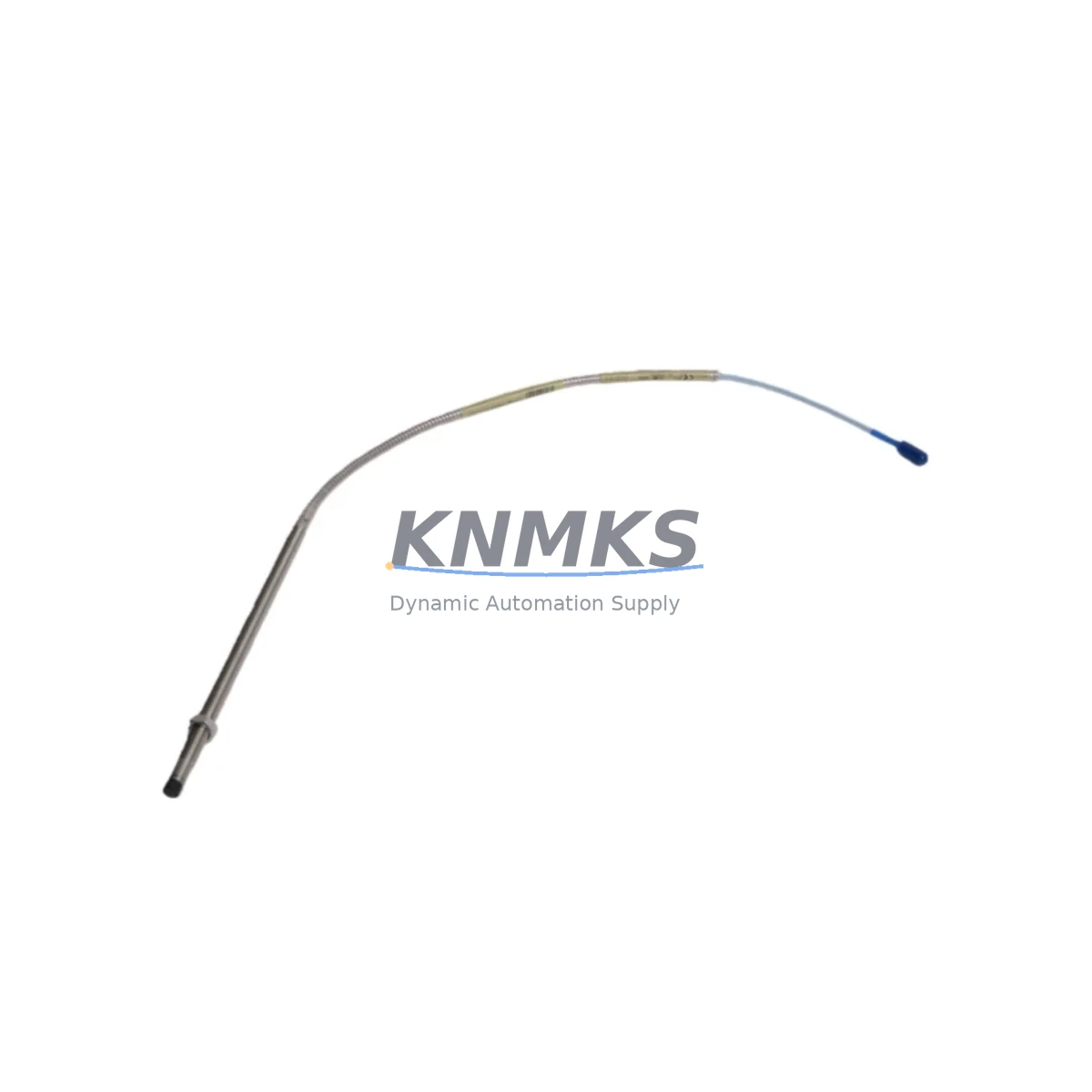

Bently Nevada 330102-04-45-50-01-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330102-04-45-50-01-00 Fail-Safe Proximity Probe: Industrial Control Reliability

The Bently Nevada 330102-04-45-50-01-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high electromagnetic interference (EMI), extreme temperature fluctuations, heavy vibration, moisture ingress, and corrosive atmospheres, this probe is a cornerstone component for rotating machinery protection in critical process industries.

Where unplanned downtime carries catastrophic consequences — whether in a petrochemical compressor train, a power generation turbine, or a mining mill drive — the 330102-04-45-50-01-00 delivers the signal integrity and mechanical durability required to keep safety interlocks and condition monitoring systems fully operational. Its non-contact sensing principle eliminates mechanical wear, ensuring long-term measurement stability without drift or degradation even after years of continuous service.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a properly engineered rotating machinery protection cabinet, the 330102-04-45-50-01-00 probe operates as the primary sensing element within a complete Bently Nevada 3300 XL Proximity Transducer System. It pairs directly with the Bently Nevada 330130 extension cable and the Bently Nevada 330180 proximitor sensor (driver/oscillator), which conditions the raw eddy-current signal into a clean DC voltage output suitable for monitoring system inputs.

Within the control cabinet, the proximitor output feeds into a Bently Nevada 3500/40M Proximitor/Seismic Monitor or equivalent rack-mounted monitor card, which performs real-time gap, vibration, and eccentricity analysis. To protect the entire monitoring loop from power-line transients and voltage surges — a critical concern in heavy industrial environments with large motor starts and switching events — a dedicated Phoenix Contact TRABTECH surge protection device or equivalent DIN-rail surge arrester should be installed on the 24 VDC supply rail feeding the proximitor.

For cabinet thermal management in high-ambient-temperature installations, pairing the monitoring system with a Rittal TopTherm cabinet cooler or equivalent enclosure cooling unit ensures that the proximitor electronics remain within their rated operating temperature range, preventing signal drift caused by thermal stress. In hazardous-area installations, the signal loop may also incorporate a Pepperl+Fuchs Z787 Zener barrier or galvanic isolator to maintain intrinsic safety compliance between the field probe and the safe-area monitoring rack, ensuring the entire protection circuit meets IEC 60079 requirements for explosive atmospheres.

Critical Industrial Safety Applications

The Bently Nevada 330102-04-45-50-01-00 is deployed across the full spectrum of critical process industries where rotating machinery failure carries unacceptable safety and financial risk.

In petrochemical and refinery facilities, it monitors radial vibration and shaft position on centrifugal compressors, pumps, and expanders within API 670-compliant machinery protection systems. Any abnormal shaft displacement triggers a high-high alarm and automatic shutdown before mechanical contact or seal failure can escalate to a process safety incident.

In power generation — including coal, gas, hydro, and nuclear plants — the probe provides continuous shaft eccentricity and differential expansion monitoring on steam and gas turbines, feeding data to the plant DCS and safety instrumented system (SIS) to enforce turbine protection interlocks.

In mining and mineral processing, it is installed on SAG mills, ball mills, and crusher drives, where high dust loading, water spray, and structural vibration demand IP67-rated, mechanically robust sensing. Early detection of bearing wear or rotor imbalance prevents catastrophic mill failures that can idle an entire concentrator circuit for weeks.

In water and wastewater treatment, the probe monitors large vertical turbine pumps and blower trains, where continuous operation is mandated by environmental compliance obligations. In metallurgical and steel plants, it protects rolling mill drives and continuous caster pinch rolls operating in extreme heat and scale-laden environments. In port and marine applications, it is used on propulsion shaft monitoring systems and crane hoist drives where reliability under salt-air corrosion and dynamic loading is essential.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330102-04-45-50-01-00?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify output sensitivity, linearity, and connector integrity before dispatch.

Q2: How is the probe tested before shipment?
Every 330102-04-45-50-01-00 is bench-tested against Bently Nevada factory specifications, including gap-versus-output linearity verification, insulation resistance check, and coaxial connector continuity test. A test report is available upon request for critical installation projects.

Q3: Is this probe compatible with existing 3300 XL system installations?
Yes. The 330102-04-45-50-01-00 is fully interchangeable within the Bently Nevada 3300 XL 8mm Proximity Transducer System, compatible with all standard 330130-series extension cables and 330180-series proximitor sensors. It is a direct drop-in replacement requiring no recalibration of the monitoring rack when replacing a like-for-like probe.

Q4: Can KNMKS support long-term supply and emergency replacement requirements?
KNMKS maintains standing inventory of the 330102-04-45-50-01-00 and related 3300 XL series components to support both planned maintenance schedules and emergency breakdown replacements. We offer expedited shipping for critical plant shutdowns and can discuss long-term supply agreements for facilities with ongoing spare parts programs.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330102-04-45-50-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330102-04-45-50-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
