Bently Nevada 330102-03-28-10-02-00 Maintenance-Proven Spare

Overview

Bently Nevada 330102-03-28-10-02-00 Maintenance-Proven Spare Part for Factory Uptime

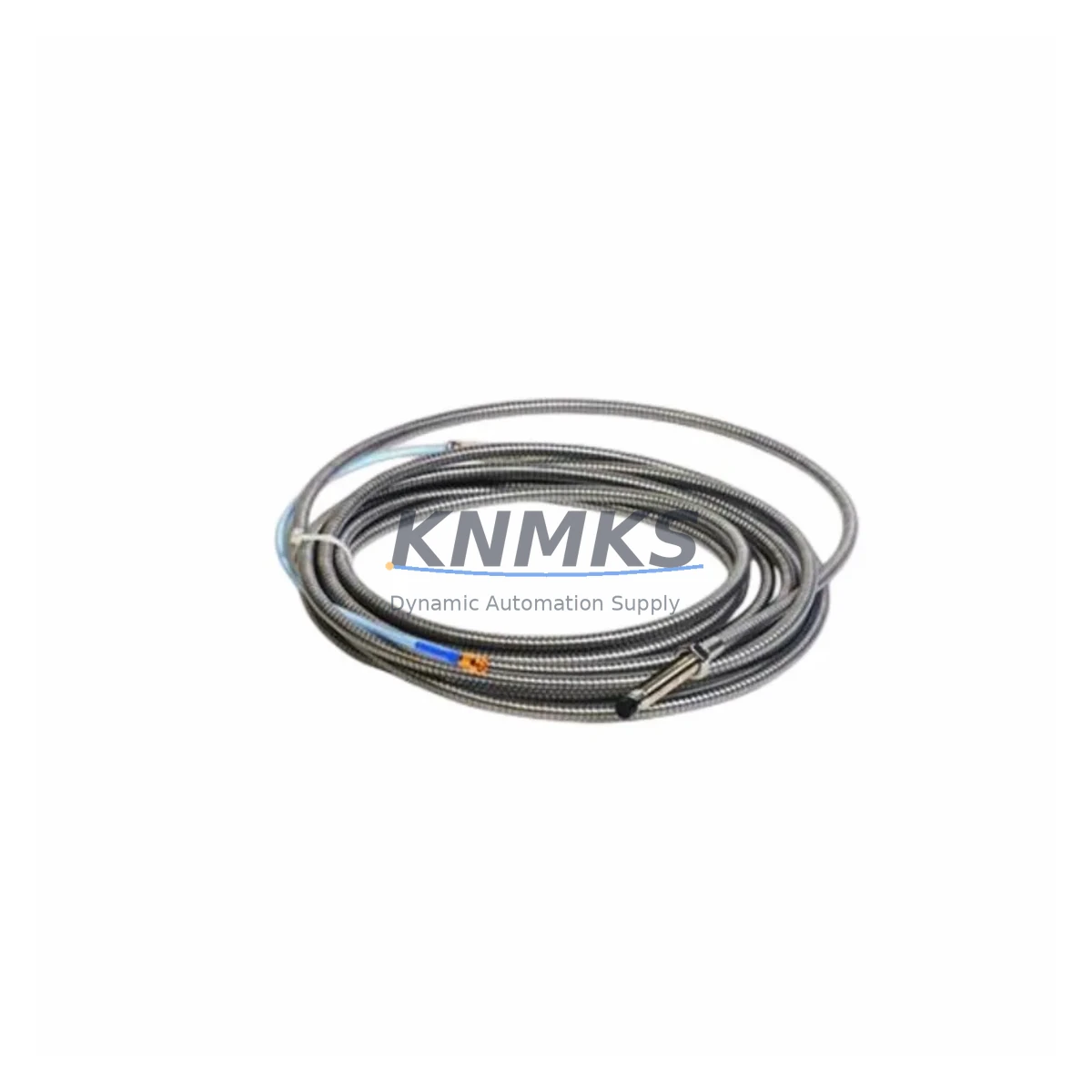

The Bently Nevada 330102-03-28-10-02-00 is an 8mm eddy current proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. As a core sensing element within the 3300 XL Series monitoring system, this probe delivers the shaft displacement and radial vibration data that maintenance engineers rely on to prevent unplanned shutdowns in turbines, compressors, pumps, and generators across oil and gas, power generation, petrochemical, and heavy industrial facilities.

Maintaining a stocked unit of the 330102-03-28-10-02-00 is a fundamental element of any predictive maintenance program. When a probe fails or drifts out of calibration tolerance, the monitoring loop is broken — leaving rotating equipment running blind. Fast replacement with a pre-tested, original-specification spare restores full system visibility and protects both machinery and personnel. Every unit dispatched by KNMKS is pre-shipment tested, covered by a support terms confirmed by quotation, and sourced to meet OEM electrical and mechanical specifications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330102-03-28-10-02-00 proximity probe is flagged for replacement during a routine inspection or after a trip event, the replacement scope should extend beyond the probe itself. A thorough maintenance review of the full measurement chain is essential to restore reliable vibration monitoring and avoid repeat failures.

Begin with the 3300 XL Proximitor Sensor (typically the 330180 series), which conditions the probe signal and outputs the DC voltage proportional to gap distance. A degraded or contaminated Proximitor can produce erratic readings even with a new probe installed — inspect the housing, verify the output voltage at the recommended gap, and replace if the unit shows signs of moisture ingress or connector corrosion. Next, inspect the extension cable assembly (such as the 330130 series) that links the probe to the Proximitor; cable damage, connector oxidation, or impedance mismatch are common sources of signal noise that are frequently misdiagnosed as probe failure.

At the monitoring rack level, verify the 3300 XL Monitor module (e.g., 3300/16 or 3300/20 series) for correct channel configuration, alert and danger setpoints, and firmware revision. If the monitor has been in service for more than five years without a bench calibration, schedule a calibration check during the same outage window. For facilities running the System 1 Condition Monitoring Software, confirm that the new probe’s sensitivity and gap values are correctly entered to prevent false alarms after restart.

Also inspect the barrier or Zener barrier in the intrinsically safe circuit if the probe is installed in a hazardous area classification. A failed barrier can limit signal swing and cause the monitor to report a fault condition. Check the terminal block and field wiring for continuity, insulation resistance, and correct shielding grounding — ungrounded or double-grounded shields are a persistent source of 50/60 Hz interference in proximity probe circuits. Finally, review the power supply module feeding the monitoring rack; voltage sag or ripple on the -24 VDC supply rail directly affects Proximitor output accuracy and should be measured under load before the system is returned to service.

Site Replacement Workflow

Replacing the 330102-03-28-10-02-00 in the field follows a structured sequence to minimize downtime and confirm system integrity before restart:

• Isolate and de-energize the monitoring channel at the rack. Record the existing gap voltage and alert/danger setpoints before disconnection.
• Remove the existing probe from the bearing housing. Inspect the probe tip for mechanical damage, target surface condition, and any signs of oil contamination or fretting.
• Install the replacement 330102-03-28-10-02-00 to the correct gap distance per the 3300 XL installation manual (typically 50 mil / 1.27 mm for standard steel targets). Use a non-metallic gap-setting tool to avoid disturbing the target surface.
• Reconnect the extension cable and Proximitor. Power up the channel and verify the output voltage falls within the linear range at the set gap. Compare against the pre-removal baseline.
• Confirm monitor channel status — no fault, no bypass, correct engineering units displayed. Run a brief coast-down or bump test if operationally feasible to validate dynamic response.
• Update maintenance records with the replacement date, new probe serial number, gap setting, and output voltage. Log the event in the predictive maintenance system for trend tracking.

This workflow supports a typical bearing-accessible probe replacement in under two hours, keeping unplanned downtime to a minimum and ensuring the monitoring system is fully functional before the machine is returned to service.

Spare Parts Support FAQ

Q1: Is the 330102-03-28-10-02-00 a direct drop-in replacement for older 3300 series probes?
The 330102-03-28-10-02-00 is designed for the 3300 XL 8mm system and is electrically compatible with 3300 XL Proximitor Sensors. If your existing installation uses an earlier 3300 (non-XL) Proximitor, verify the Proximitor model before ordering — the XL and non-XL systems use different sensitivity specifications and are not interchangeable without a Proximitor upgrade.

Q2: How does KNMKS verify the probe before shipment?
Every 330102-03-28-10-02-00 unit undergoes pre-shipment electrical testing, including coil resistance check, insulation resistance, and sensitivity verification against a calibrated steel target. A test report is available upon request. Units that do not meet OEM specification thresholds are quarantined and not dispatched.

Q3: What is the recommended spare inventory strategy for this probe?
For facilities with four or more monitored machines using 3300 XL proximity systems, maintaining a minimum of two 330102-03-28-10-02-00 probes in the on-site spare parts store is recommended. Pair each probe spare with a matched extension cable assembly and a spare Proximitor to ensure a complete measurement chain replacement can be executed without waiting for procurement. KNMKS supports long-term supply agreements for high-volume or multi-site customers.

Q4: What support terms and return policy applies to this spare part?
All 330102-03-28-10-02-00 units supplied by KNMKS carry a support terms confirmed by quotation from the date of dispatch, covering manufacturing defects and electrical performance. Units that fail within the confirmed support period are replaced or credited after a brief failure analysis. Support requests require the original order reference and a description of the failure mode. Physical damage caused by incorrect installation or mechanical impact is excluded from support terms coverage.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

BENTLY NEVADA
Bently Nevada

Model / Series

330102-03-28-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: BENTLY NEVADA 330102-03-28-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
