Bently Nevada 330102-00-80-10-11-05 Maintenance-Proven Spare Part

Overview

Bently Nevada 330102-00-80-10-11-05 Maintenance-Proven Spare Part for Factory Uptime

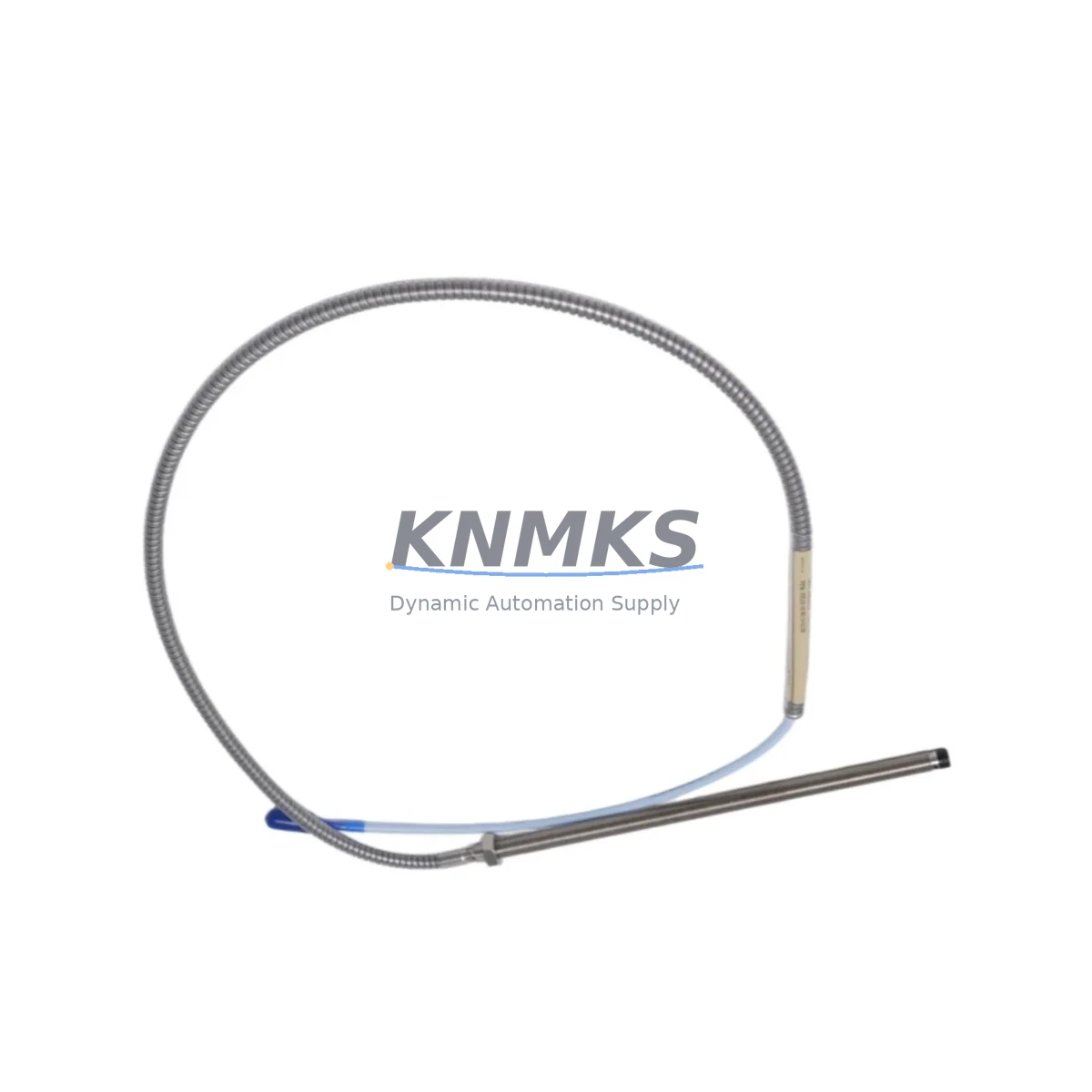

The Bently Nevada 330102-00-80-10-11-05 is an 8mm proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. Designed to API 670 standards, this original spare part delivers reliable non-contact vibration and position measurement on rotating equipment including turbines, compressors, pumps, and motors. For maintenance engineers managing critical rotating machinery, keeping a verified replacement of the 330102-00-80-10-11-05 in the spare parts cabinet is a fundamental strategy for minimizing unplanned downtime and protecting production continuity.

Whether you are conducting routine point inspections, isolating a vibration fault, or executing an emergency replacement during a forced outage, the 330102-00-80-10-11-05 integrates directly into existing 3300 XL monitor racks without reconfiguration. Its 8mm sensing diameter, 5-metre cable length, and -24 VDC operating range match the original factory specification, ensuring signal integrity from day one of reinstallation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement is rarely an isolated event. When a 330102-00-80-10-11-05 probe shows drift, signal loss, or physical damage, experienced maintenance engineers know that the surrounding measurement chain must be inspected simultaneously to prevent repeat failures and ensure accurate vibration data after reinstallation.

Begin with the Bently Nevada 330130-080-00-05 extension cable — the 5-metre interconnect between the probe and the proximitor. Cable jacket abrasion, connector corrosion, or shield continuity breaks are a leading cause of false high-vibration trips that are often misdiagnosed as probe failure. Inspect the full cable run from the machine bearing housing to the junction box before condemning the probe itself.

Next, verify the Bently Nevada 330180-X1-05 proximitor / oscillator-demodulator. The proximitor converts the probe’s RF signal into a DC voltage proportional to gap distance. A degraded proximitor can produce non-linear output even with a new probe installed, leading to incorrect vibration readings and potential nuisance trips. Bench-test the proximitor against a calibrated gap simulator before returning the loop to service.

Within the 3300 XL monitor rack, inspect the 3300/16 vibration monitor card and its associated I/O terminal blocks. Loose terminal screws, oxidized contacts, or a cracked backplane connector can introduce noise into the measurement channel. Torque all terminals to specification and verify continuity with a calibrated multimeter.

For plants running Bently Nevada 3500 Series monitors alongside legacy 3300 XL hardware, confirm that the correct proximitor and gap voltage settings are applied in the 3500/42M or 3500/40M monitor module. Mixed-series installations are a common source of configuration errors during emergency replacements under time pressure.

Procurement engineers should also maintain a buffer stock of 3300 XL power supply modules (such as the 3300/05 or equivalent rack power unit). A failing rack power supply can cause intermittent probe signal loss that mimics probe degradation, leading to unnecessary probe replacements and extended diagnostic time. Confirming stable ±15 VDC and -24 VDC rail voltages at the rack is a mandatory step in any proximity probe replacement workflow.

Finally, review the barrier/isolator modules (Zener barriers or galvanic isolators) installed in the intrinsically safe circuit if the probe is deployed in a hazardous area. A degraded barrier can clamp the probe supply voltage below the minimum operating threshold, causing signal dropout that appears identical to a failed probe. Replace barriers on a scheduled interval rather than waiting for failure.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and coordinate with the control room to acknowledge the vibration channel before disconnecting the probe. This prevents a spurious trip from triggering a machine shutdown during the replacement.

Step 2 — Gap Measurement: Before removing the old probe, record the installed gap voltage from the proximitor output (typically -10 VDC ±0.5 VDC for a nominal 1.5 mm gap). This baseline confirms the target reinstallation gap for the new 330102-00-80-10-11-05.

Step 3 — Probe Removal: Loosen the locknut and unscrew the probe from the bracket. Inspect the probe tip for physical damage, contamination, or oil ingress. Inspect the bracket threads and replace the bracket if corrosion is present.

Step 4 — New Probe Installation: Thread the replacement 330102-00-80-10-11-05 into the bracket and adjust the gap to achieve the target output voltage (±0.2 VDC of baseline). Tighten the locknut to the specified torque. Reconnect the extension cable and verify connector seating.

Step 5 — Loop Verification: With the machine at rest, confirm the proximitor output voltage is within the linear range. Perform a slow-roll check if the machine can be barred over to verify dynamic signal quality before returning to full speed.

Step 6 — Documentation: Record the replacement date, new probe serial number, installed gap voltage, and technician ID in the maintenance management system (CMMS). Update the spare parts inventory to trigger a replenishment order for the consumed 330102-00-80-10-11-05 unit.

This structured workflow reduces mean time to repair (MTTR), eliminates repeat failures caused by overlooked upstream components, and ensures the vibration monitoring system is fully functional before the machine returns to service.

Spare Parts Support FAQ

Q1: Is the 330102-00-80-10-11-05 a direct drop-in replacement for older 3300 series probes?
Yes. The 330102-00-80-10-11-05 is backward compatible with the 3300 XL monitor system and is also interchangeable with earlier 3300/16 installations using the same 8mm probe bracket and extension cable. No monitor reconfiguration is required when replacing a like-for-like probe within the same series. For 3500 Series installations, verify the proximitor model and gap voltage settings before installation.

Q2: What pre-shipment testing is performed on each unit?
Every 330102-00-80-10-11-05 shipped from KNMKS undergoes a full functional test including output linearity verification across the specified gap range, supply current measurement, and cable continuity check. A test report is available upon request. Units that do not meet Bently Nevada factory specifications are quarantined and not shipped.

Q3: What is the support terms coverage and what does it include?
All units carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, premature output failure under normal operating conditions, and connector integrity. It does not cover physical damage caused by improper installation, over-torquing, or exposure to conditions outside the rated temperature and chemical resistance specifications. Support requests are processed within 5 business days of receiving the returned unit.

Q4: Can KNMKS support long-term or blanket purchase orders for the 330102-00-80-10-11-05?
Yes. KNMKS maintains dedicated stock of the 330102-00-80-10-11-05 and related 3300 XL series components to support annual maintenance contracts, turnaround shutdowns, and OEM spare parts programs. Blanket orders with scheduled releases are available for procurement teams seeking to lock in pricing and ensure supply continuity for multi-year maintenance plans. Contact our team to discuss volume pricing and lead time commitments.
