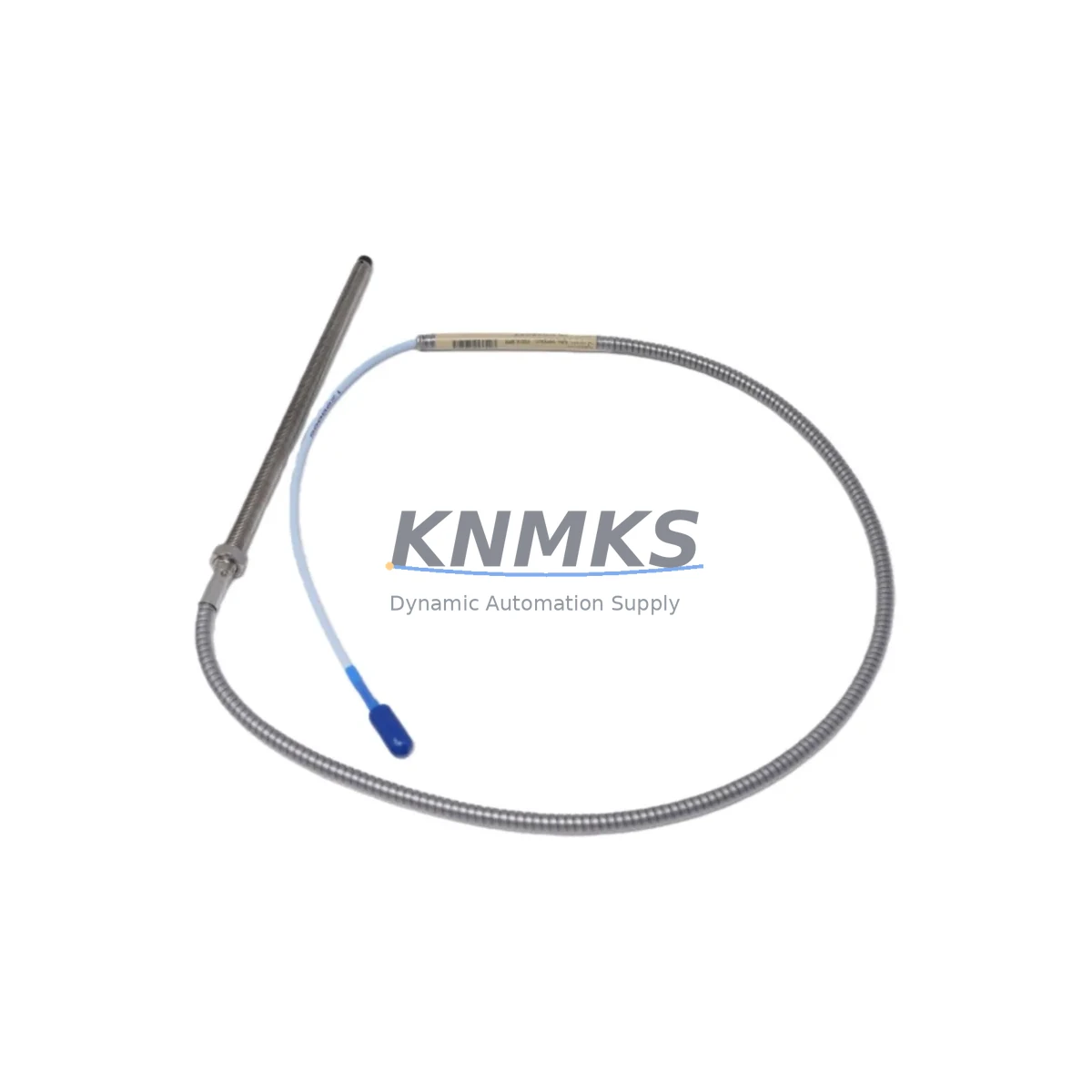

Bently Nevada 330102-00-80-10-11-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330102-00-80-10-11-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-life or face discontinued spare parts availability, this probe serves as a verified drop-in replacement that preserves existing wiring, conduit routing, and signal chain integrity without requiring reprogramming of the 3300 XL monitor rack. Whether you are executing a planned turnaround, responding to an unplanned probe failure, or executing a phased migration from an older 7200 Series installation, the 330102-00-80-10-11-00 delivers the dimensional and electrical compatibility required to restore protection coverage with minimal downtime.

The probe operates with an 8mm tip diameter, a standard 5-metre (extension cable dependent) system range, and is calibrated for use with Bently Nevada 330130 series extension cables and 3300 XL proximitor sensors such as the 330180-51-00. Before installation, engineers should confirm that the existing proximitor supply voltage (typically -24 VDC), the gap voltage target (nominally -10.0 VDC at mid-gap), and the output scale factor (200 mV/mil or 7.87 V/mm) match the replacement probe specification. Failure to verify these parameters against the installed proximitor model can result in incorrect vibration amplitude readings and nuisance trips.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful proximity probe retrofit within a 3300 XL rack begins well before the maintenance window opens. The first step is a full audit of the existing probe-extension-proximitor system. The 330102-00-80-10-11-00 probe must be paired with the correct 330130 series extension cable — typically the 330130-080-00-00 for an 8-metre total system — to maintain the calibrated electrical length that the 330180 proximitor expects. Substituting an incorrect extension cable length will shift the gap voltage baseline and invalidate the vibration amplitude calibration without triggering any obvious fault indication on the monitor.

Within the 3300 XL rack, the associated monitor card — commonly a 3300/16 or 3300/20 dual-channel vibration monitor — stores the alert and danger setpoints, time constants, and full-scale range configuration in non-volatile memory. These parameters do not need to be re-entered when replacing only the probe and extension cable, provided the proximitor model and system range remain unchanged. However, engineers should document the existing configuration using the System 1 Evolution software or a direct rack printout before breaking any connections, as a precautionary measure against accidental parameter loss during power cycling.

For installations where the 3300 XL rack itself is being retired in favour of a newer 3500 Series rack, the migration scope expands significantly. The 3500/42M six-channel monitor card uses a different backplane connector and requires re-termination of all field wiring at the I/O module. In this scenario, the 330102-00-80-10-11-00 probe remains reusable, but the extension cable and proximitor must be re-evaluated against the 3500 Series proximity system specifications. Signal isolators may be required if the new rack shares a common ground with legacy instrumentation loops. A Bently Nevada 3500/20 rack interface module or equivalent signal conditioning component should be included in the bill of materials for such cross-generation migrations.

Where HMI integration is part of the upgrade scope, operators should verify that the Modbus RTU or OPC-DA tags mapped to the existing vibration channels are updated to reflect any new rack slot assignments. Yokogawa, Emerson DeltaV, or Honeywell Experion DCS historians that poll 3300 XL data via a gateway should be reconfigured to point to the new rack address before the old rack is decommissioned, preventing data gaps in the vibration trend archive.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation protocol. Before the maintenance window, the replacement 330102-00-80-10-11-00 probe should be bench-tested against a known-good 330180 proximitor to confirm the static gap voltage falls within the -10.0 ± 0.5 VDC acceptance band. This pre-installation verification eliminates the risk of installing a probe that has been damaged in transit or storage, which would otherwise only be discovered after the machine is reassembled and the protection system is re-energised.

During the outage, the original probe gap setting should be measured and recorded before removal. The replacement probe should be installed to the same gap dimension — typically 1.0 mm for a mid-range starting point — and the gap voltage re-verified at the proximitor terminal strip before the monitor is returned to the RUN state. If the machine cannot be barred over for a static gap check, the dynamic gap voltage at slow-roll speed (typically below 600 RPM) provides an acceptable alternative reference.

To protect the original control program logic, no changes should be made to the 3300 XL monitor configuration during a like-for-like probe replacement. Alert and danger setpoints, time constants, and the OK relay logic should remain untouched. If the monitor must be powered down to safely access the probe wiring, the associated machine protection relay outputs should be defeated at the relay panel — not at the monitor — to prevent spurious trips to the process control system during the maintenance window. Restoring relay outputs should be the final step before returning the protection system to service, after confirming that all gap voltages are within specification and the monitor OK LED is illuminated.

Retrofit Support FAQ

Q: Is the 330102-00-80-10-11-00 a direct replacement for older Bently Nevada 330102 variants?
A: Yes. The 330102-00-80-10-11-00 is dimensionally and electrically compatible with other 330102 series 8mm probes used in 3300 XL systems. The suffix digits define cable length and connector options; confirm the integral cable length and connector type match your existing installation before ordering.

Q: Does replacing the probe require reconfiguration of the 3300 XL monitor card?
A: No, provided the replacement probe, extension cable, and proximitor combination maintains the same system range and scale factor as the original. Monitor setpoints, time constants, and OK relay thresholds are stored in the monitor card and are not affected by a like-for-like probe swap.

Q: What pre-shipment testing is performed on each unit?
A: Each 330102-00-80-10-11-00 unit is tested for static gap voltage linearity, cable continuity, and connector integrity before dispatch. A test report is available on request. All units are covered by a support terms confirmed by quotation against manufacturing defects from the date of shipment.

Q: What is the lead time and stock availability?
A: Stock is maintained for immediate dispatch. Standard lead time for in-stock units is 3–7 business days internationally. For urgent requirements, expedited shipping options are available. Contact our team to confirm current inventory levels and delivery schedules for your region.

—
